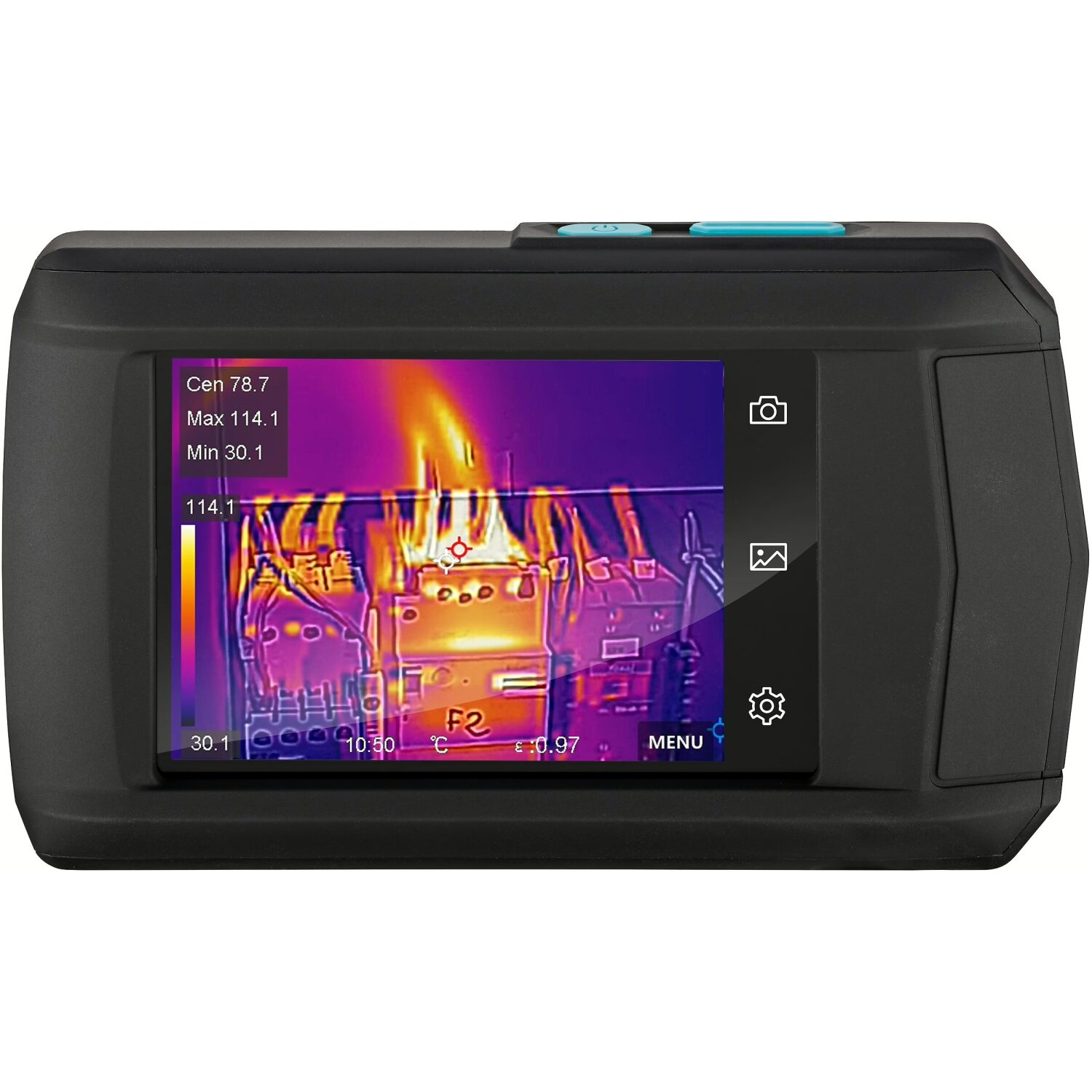

Hazet 1992-2 Thermal Camera

139 mm

85 mm

24 mm

LCD Touchscreen

Automatic hot, cold and central point measurement
Records videos
Visual camera: 3264 x 2448 pixel (8 MP)
Screen size: 3.5 inch LCD touchscreen
Display resolution is 640 x 480 pixels
Thermal (or IR) resolution: 256 x 192 pixels
Temperature measuring range: -20° C to 400° C (-4° F to 752° F)
Battery life: up to 4 hours
Image modes: Thermal ∙ Optical ∙ Fusion ∙ PIP (picture in picture)
Digital zoom: 1x to 4x
Storage medium: EMMC 16 GB (included in delivery) ∙ up to 60000 images or 10 hours of video material
Additional features: LED light ∙ microphone ∙ buzzer
Hand strap
Image sensor: Vanadium oxide uncooled focal plane arrays (FPA)
Refresh rate: 25 Hz
Thermal sensitivity (Noise Equivalent Temperature Difference, NETD): < 40 mK (0.04 °C)
Measuring accuracy maximum (±2° C ∙ ±2%): Ambient temperatures 15° C – 35° C / Object temperatures above 0° C
Field of view: 37.2° x 50°

4 hours

Hazet

1992-2

Thermal camera

4000896249435
