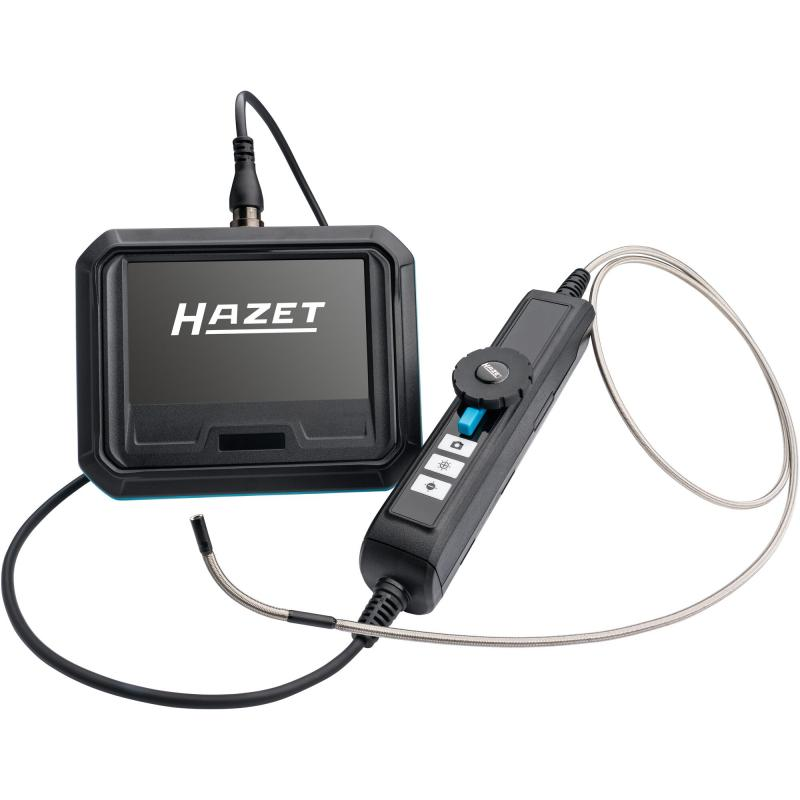

Hazet 4812-21/5AF Borescope Set Swivelling Probe, 180°, ⌀ 4.5 mm, 5 Pieces
- 4812-21/5AF
- Hazet
- Specialty Testers
Downloads
No files available.
Key points

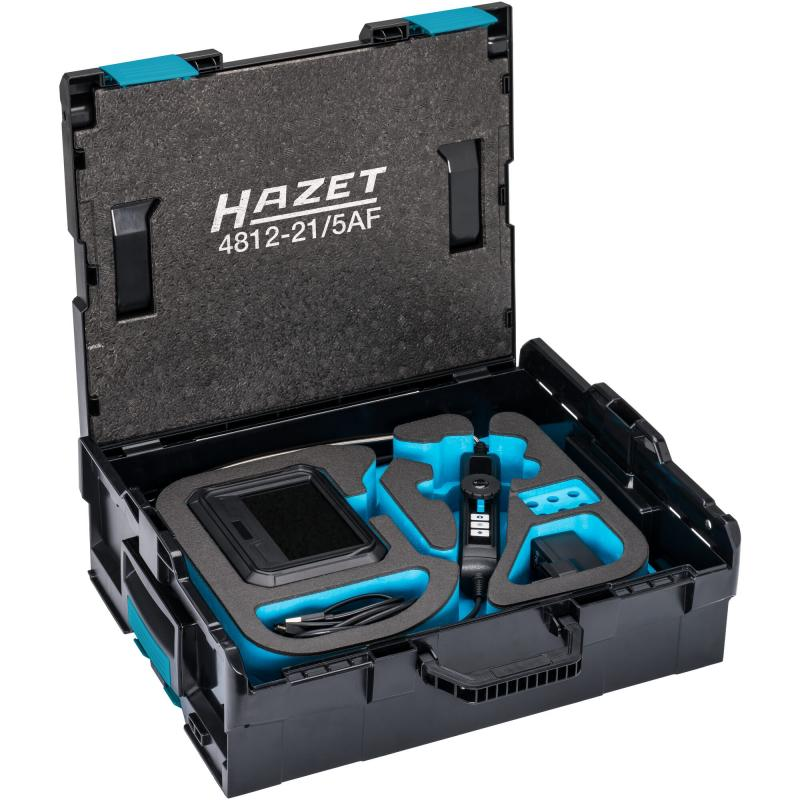

- Set of 5 pieces in L-Boxx 136
- 4.5 mm ⌀ micro lens

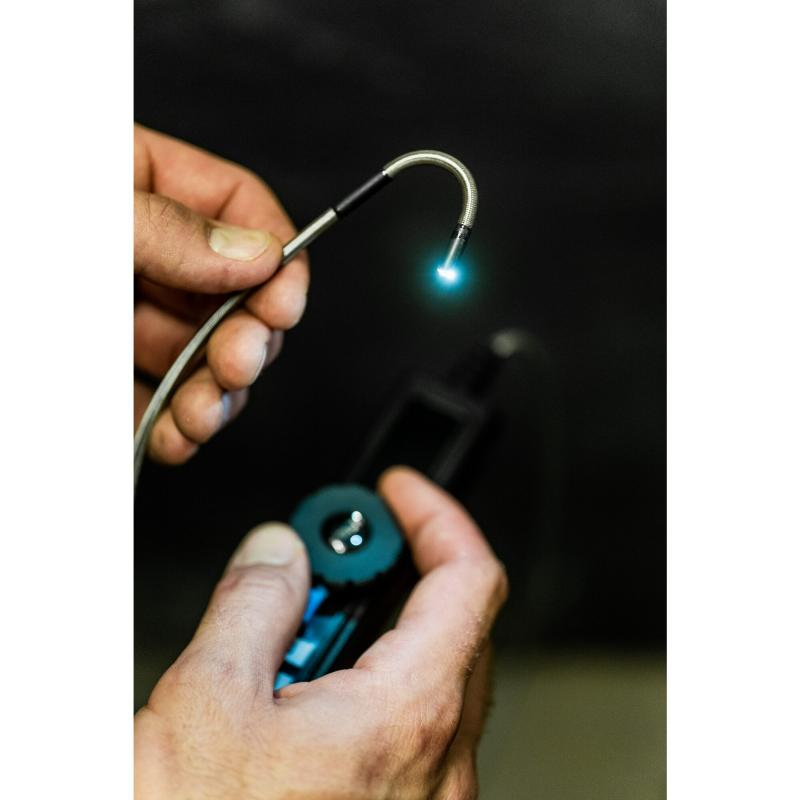

- High mobility due to bilateral articulation
- Full 180° swivel on both sides enables e.g. a real reverse view onto valves in the cylinder head
- Focus range 10 to 100 mm
Description
Video probe:- Improved accuracy of detail
- Image resolution 1024 x 768 pixels
- Compression format: H.264
- Operating temperature: -10°C up to 60 °C
- Protection rating probe: IP67 (when connected)
- 1 m probe cable

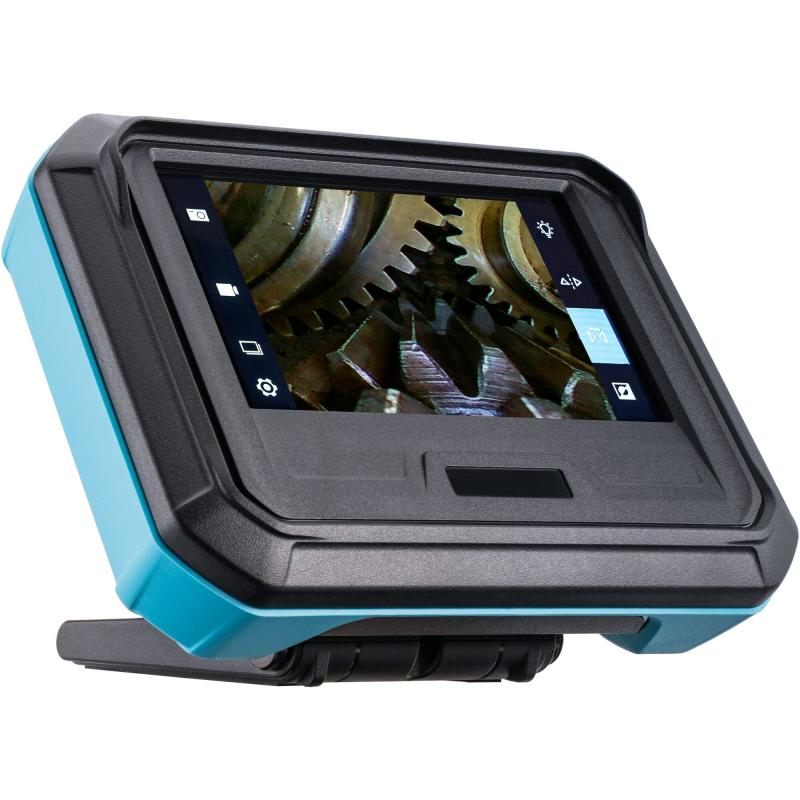

Basic unit:
- Easy to read even in sunlight
- Touch display ∙ diagonal 147 mm (5 inch)

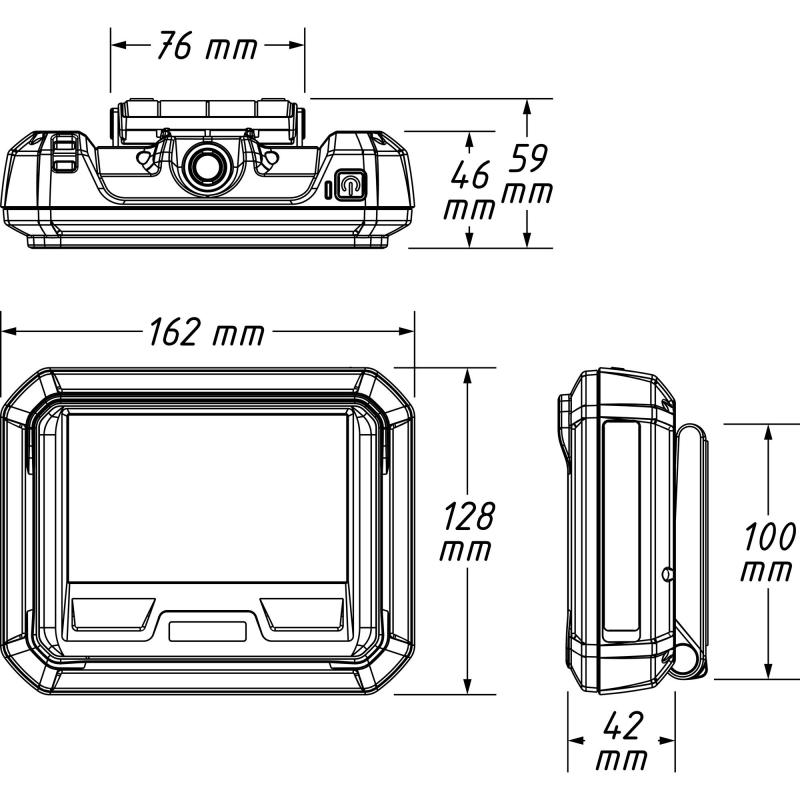

- Compact design
- Easy to handle

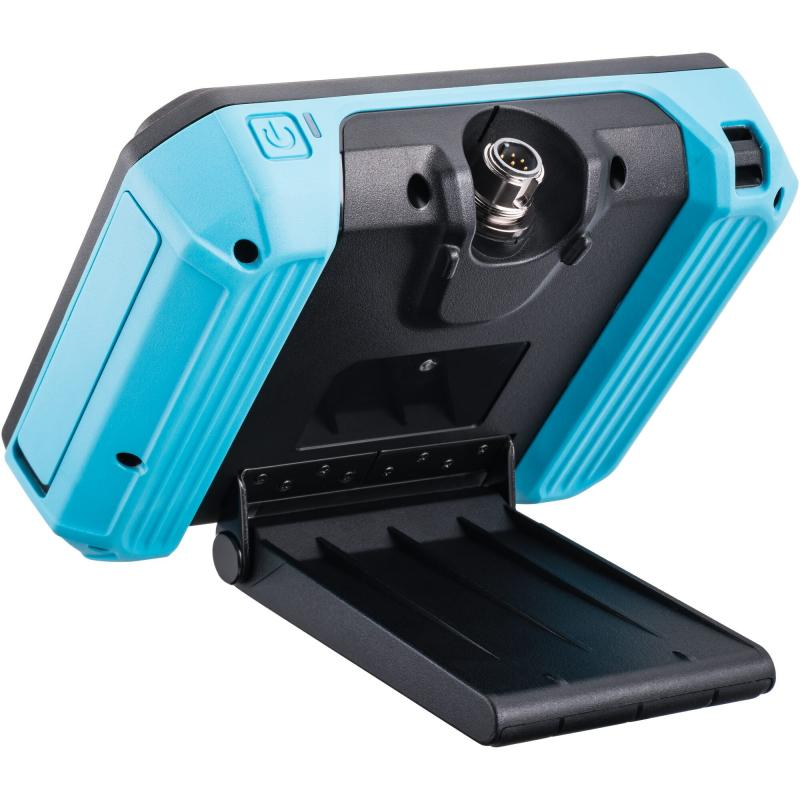

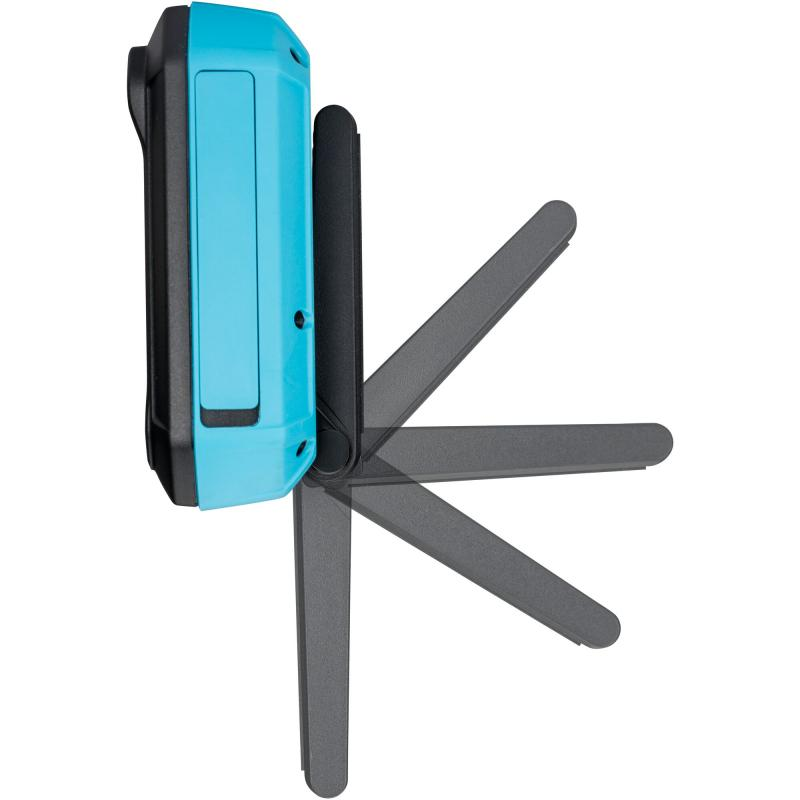

- Swivelling magnetic base, 180° adjustable
- 127 mm (5 inch) touch display, readable in sunlight
- Display resolution 800x480 pixels
- 8-stage brightness setting (5 + 3 boost)
- Zoom: 3-step
- Display of battery capacity
- Timestamp can be shown
- Record videos (MOV format) and photos (Jpeg format)
- Mirroring of the camera image
- Negative display of the camera image
- Designation of photos

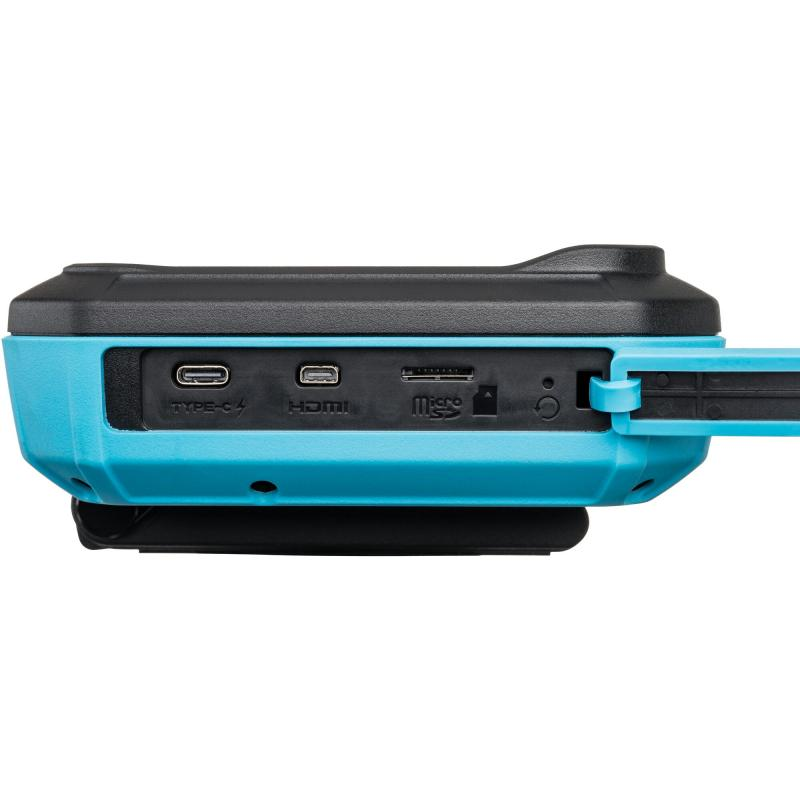

- Data transfer: USB-C (USB-C for USB-A cable included in the set)
- HDMI port for video output
- Rechargeable battery: li-ion battery
- Operating time when fully charged 4 hours
- Charging time 3.5 hours
- Charger: USB charging adapter DC-5 V / 3 A
- Operating temperature: 0°C up to 45 °C
- Operating humidity of up to 90 % (non-condensing)
- IP protection rating (basic unit): IP54
- IP protection rating with probe connected: IP67
