Details
Measurement Standard
Metric
Batteries
internal rechargeable battery
Cable Type
Probe cable
Temperature Range
-10° C to 60° C
Features
Diagnosis and documentation of cavities for damage assessment
Improved accuracy of detail thanks to HD camera

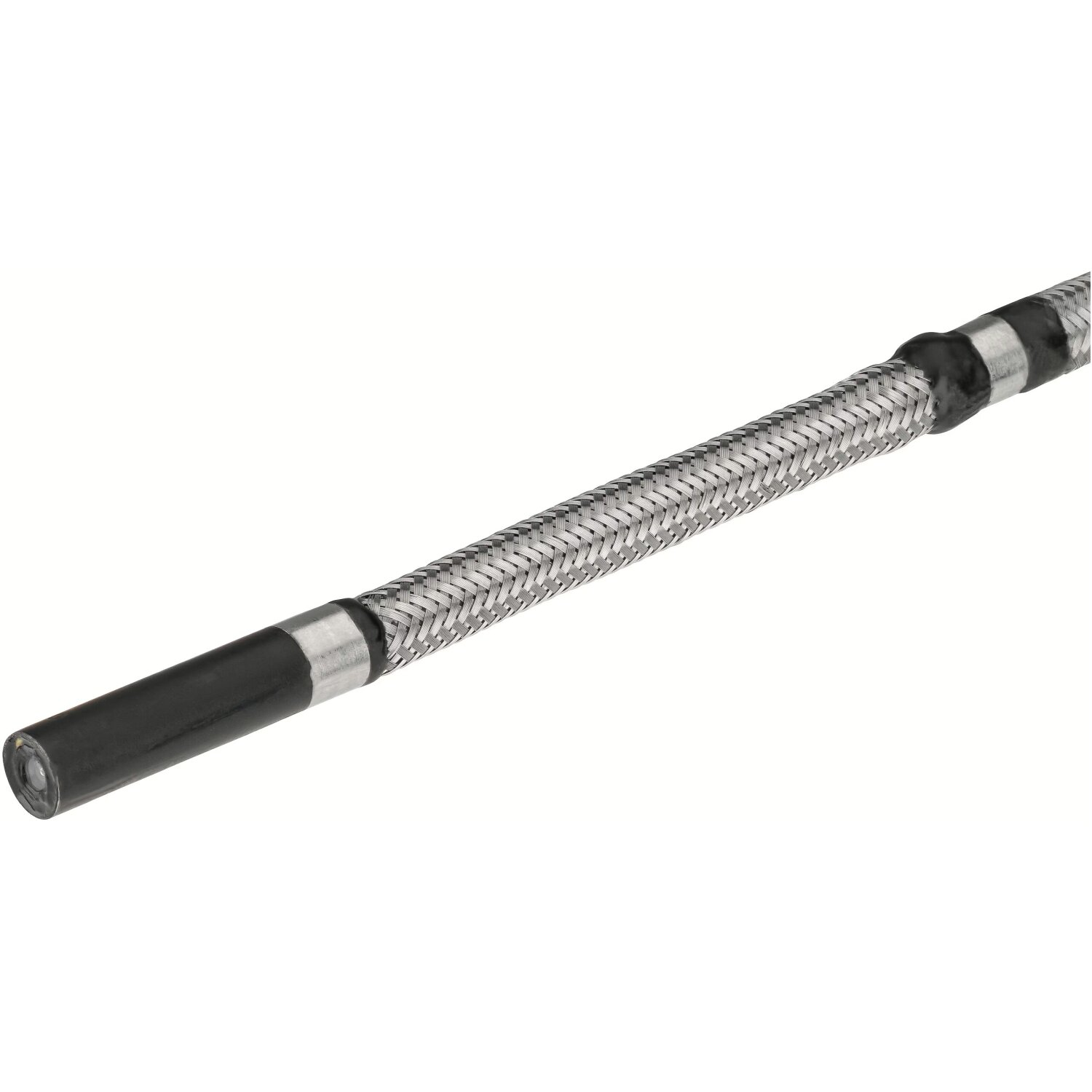

Smaller probe diameter 3.9 mm
Compatible with basic unit 4812-23G and 4812-11G

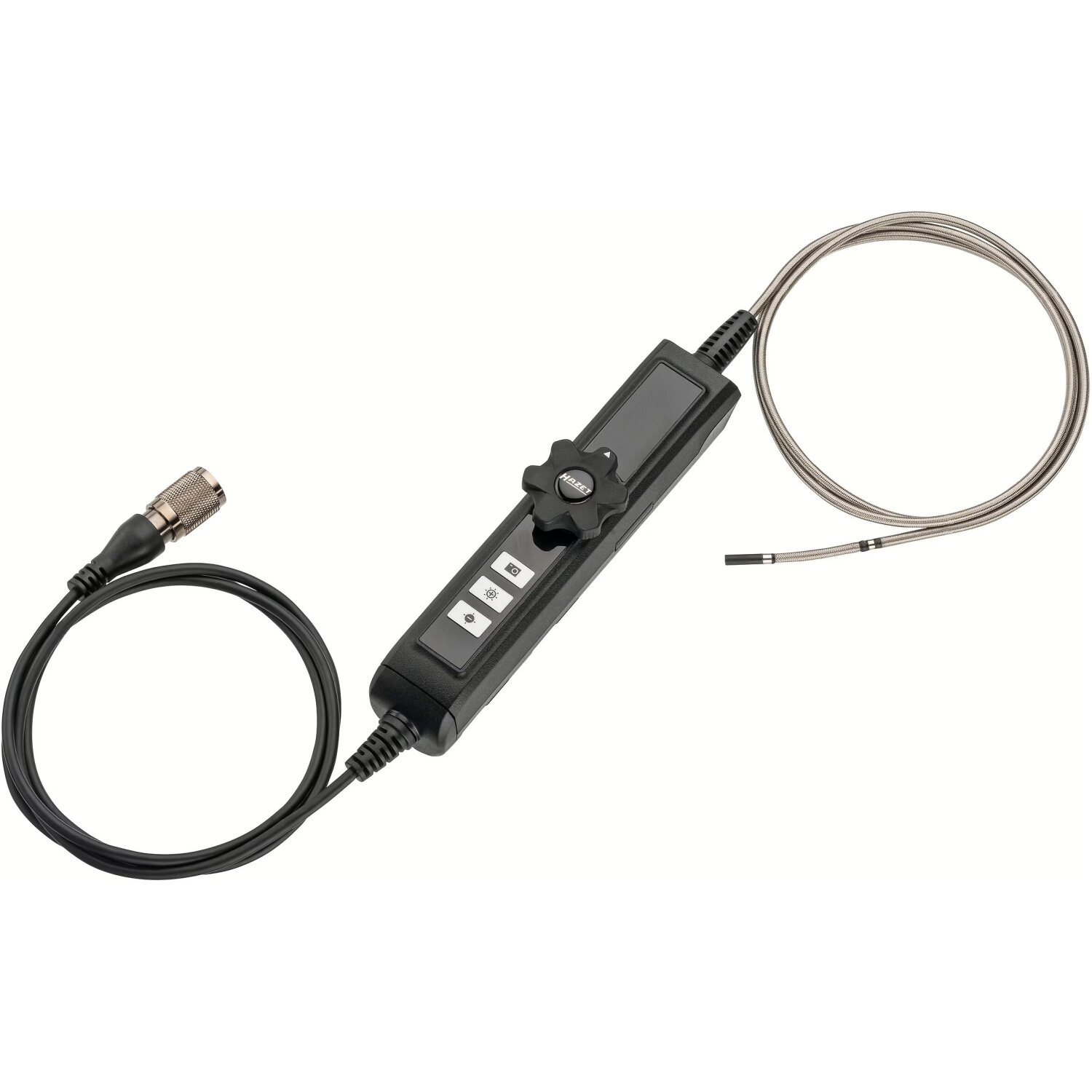

Including control unit to operate articulation, video recording, brightness control
Bending radius approx. 35 mm (-30% compared to conventional designs)
High mobility due to bilateral articulation

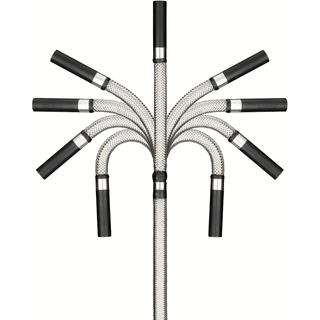

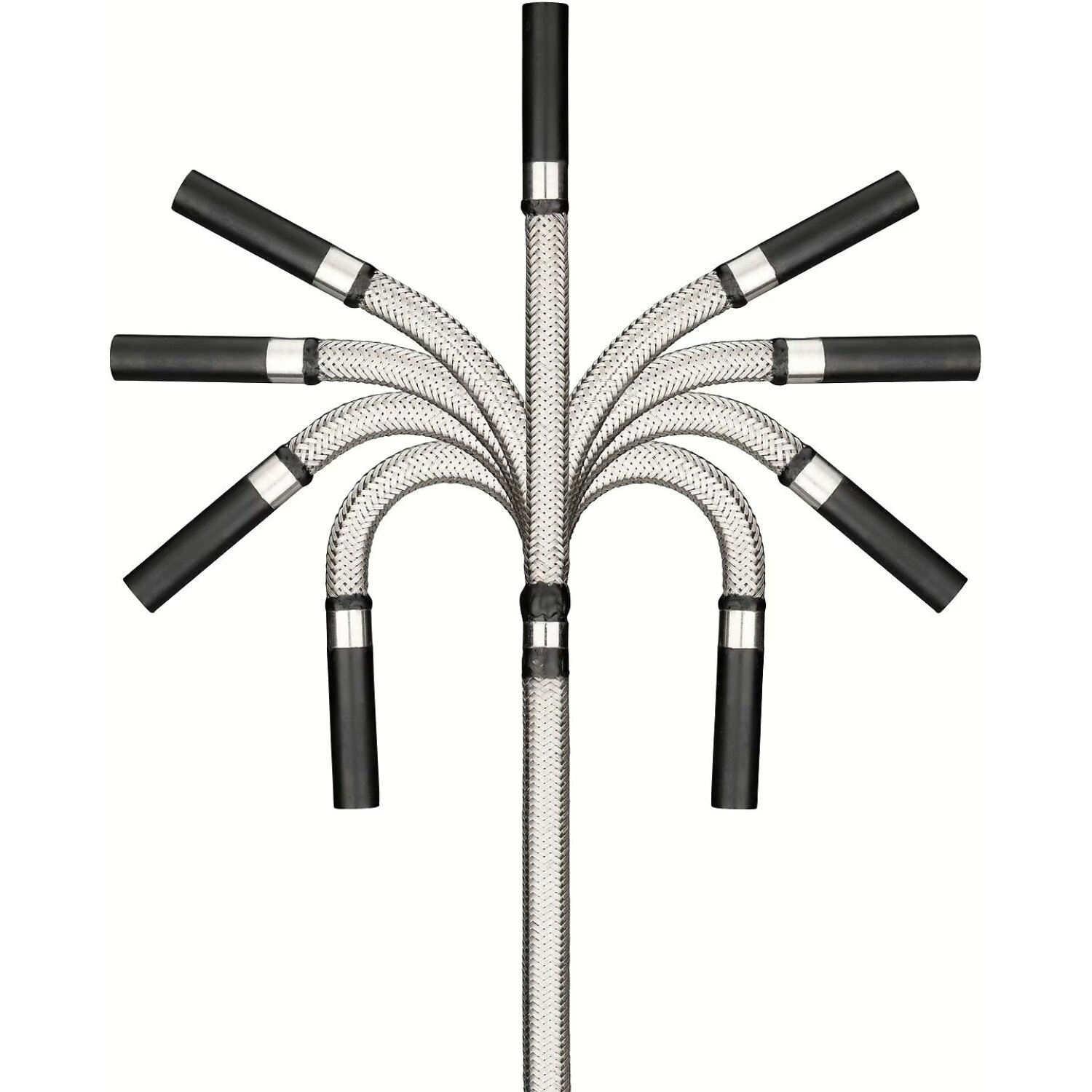

Full swivel up to 180° on both sides enables e.g. a real reverse view onto valves in the cylinder head
Front camera
Twofold dimmable LED light source
Light intensity: front LED 200 – 300 Lux (measured at 5 cm distance)

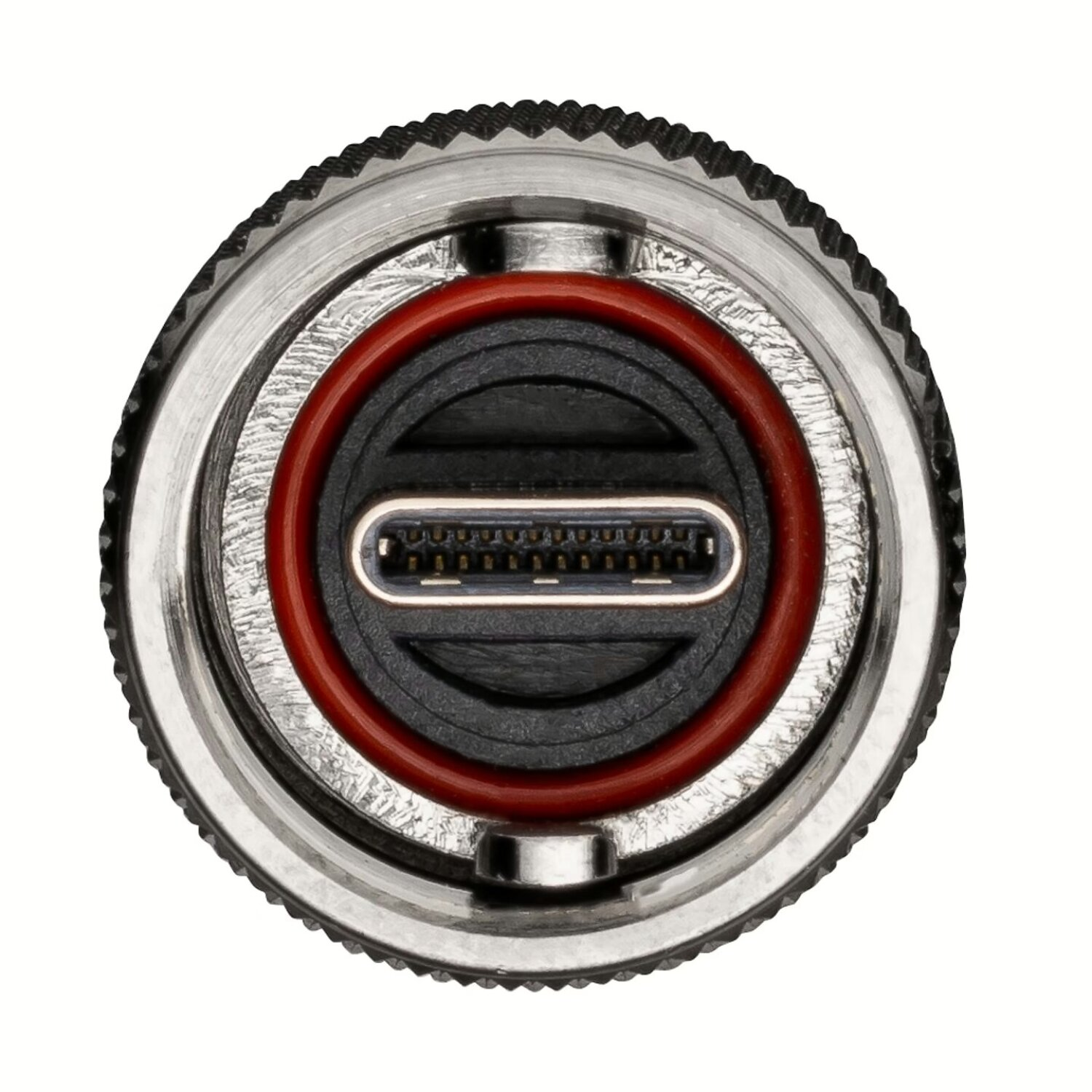

Digital interface to basic unit: USB-C
Viewing angle (FOV): 90°
Depth of focus (DOV): 10 – 100 mm
Resolution: HD 1280(H) x 720(V) pixels
Compression format: H.264
Operating temperature: -10° C to 60° C
Probe protection rating: IP67
Weight: 307 g
Improved accuracy of detail thanks to HD camera
Diagnosis of cavities for damage assessment
Image format: Jpeg
Video format: MOV
Protection rating probe: IP67 (when connected)
Probe cable: 1 m

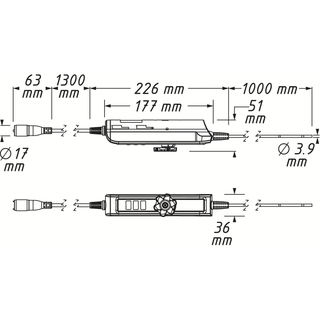

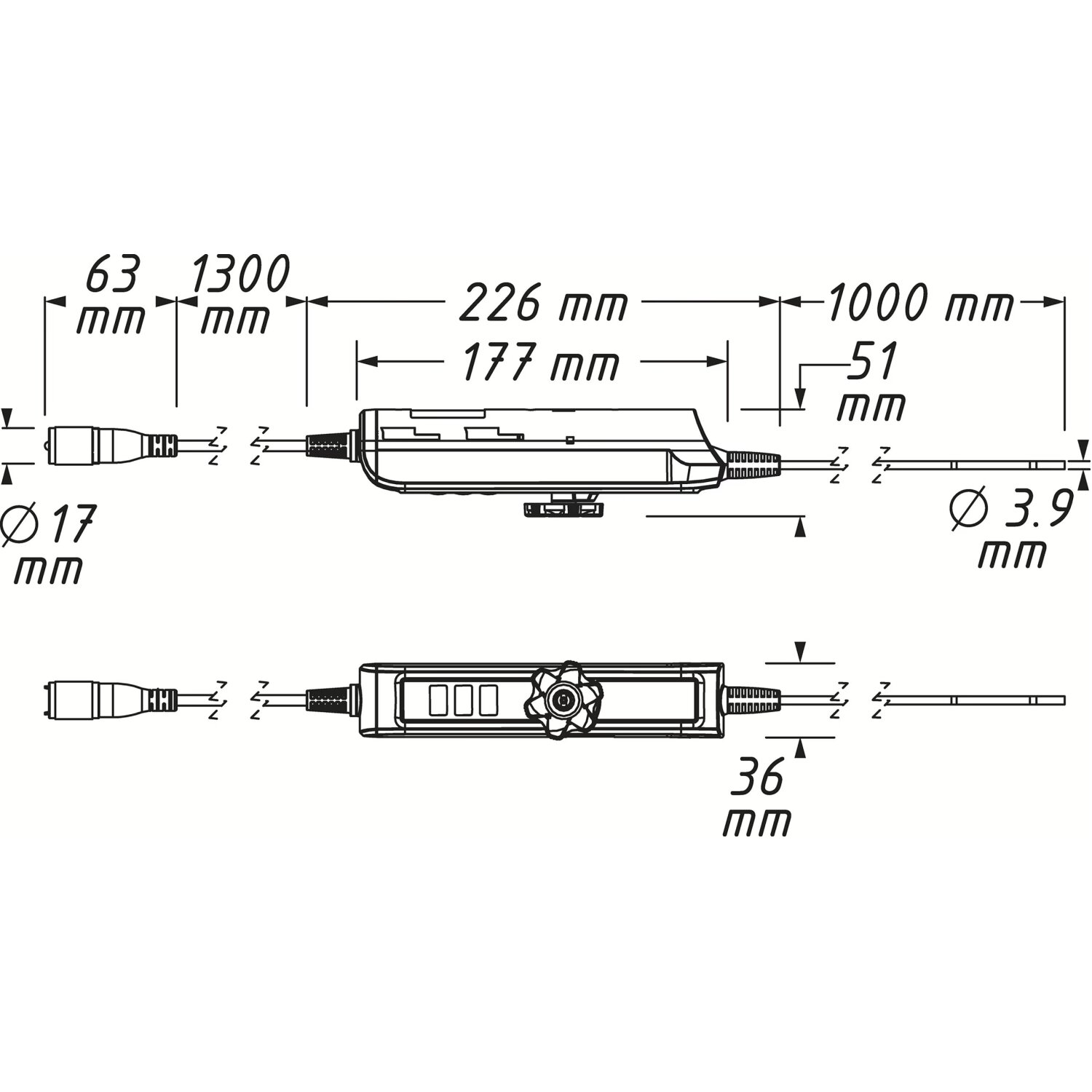

Dimensions: 35.4 x 51.1 mm 2589 mm (W x H x L)
