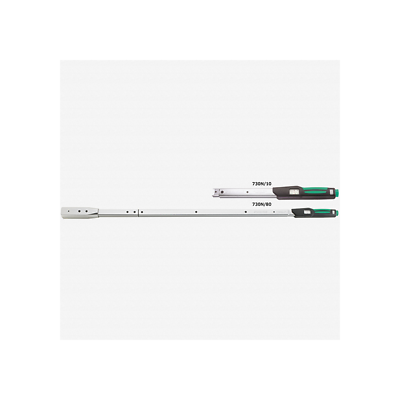

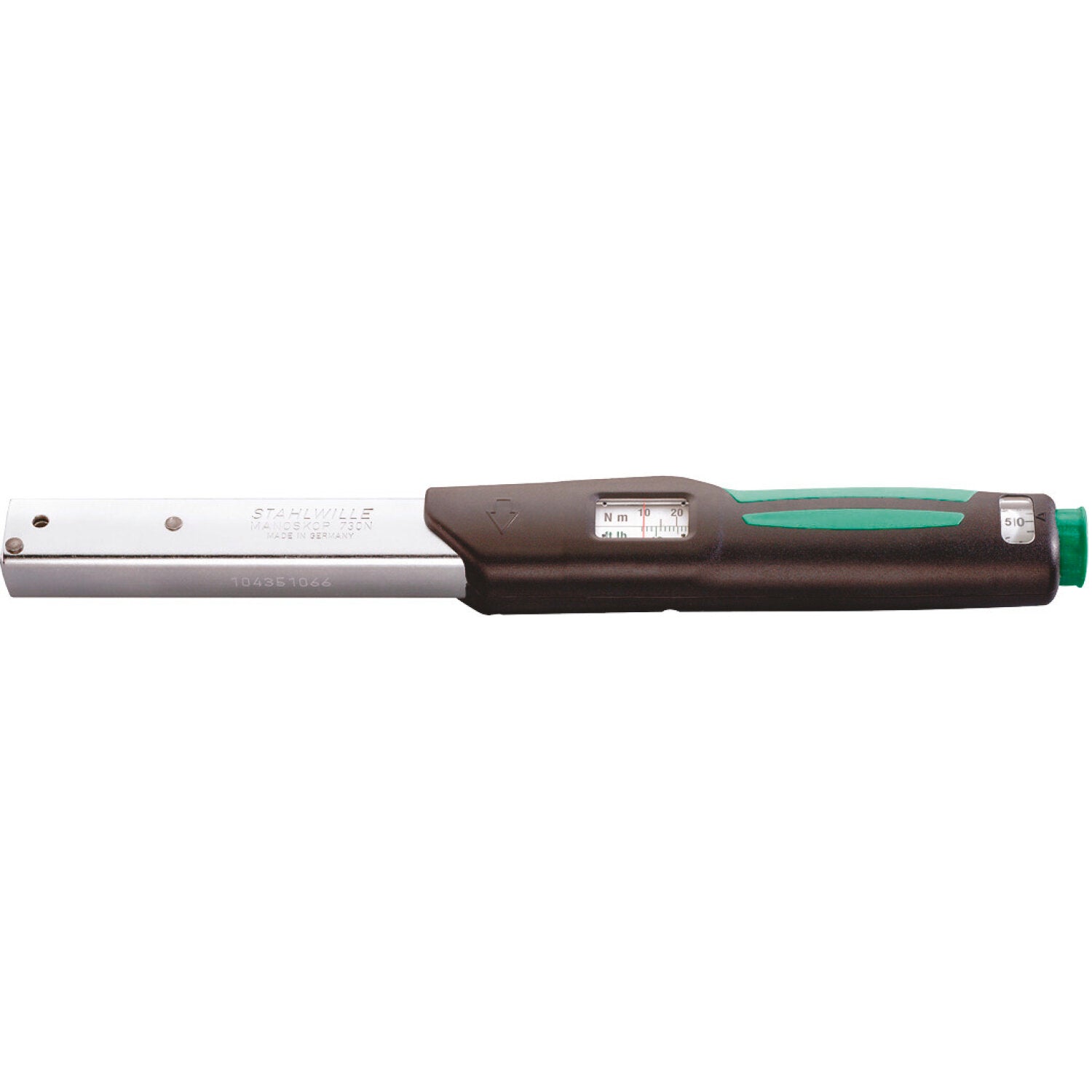

Stahlwille 50581005 730N Service MANOSKOP torque wrench
- 50581005
- Stahlwille
- Torque Wrenches
Downloads
No files available.
Key points
- clicking type with dual stop signal
- no reset to "0" required
- the measuring element is only under load when a force is applied
- mount for interchangeable insert tools
- with QuickRelease safety lock
Description

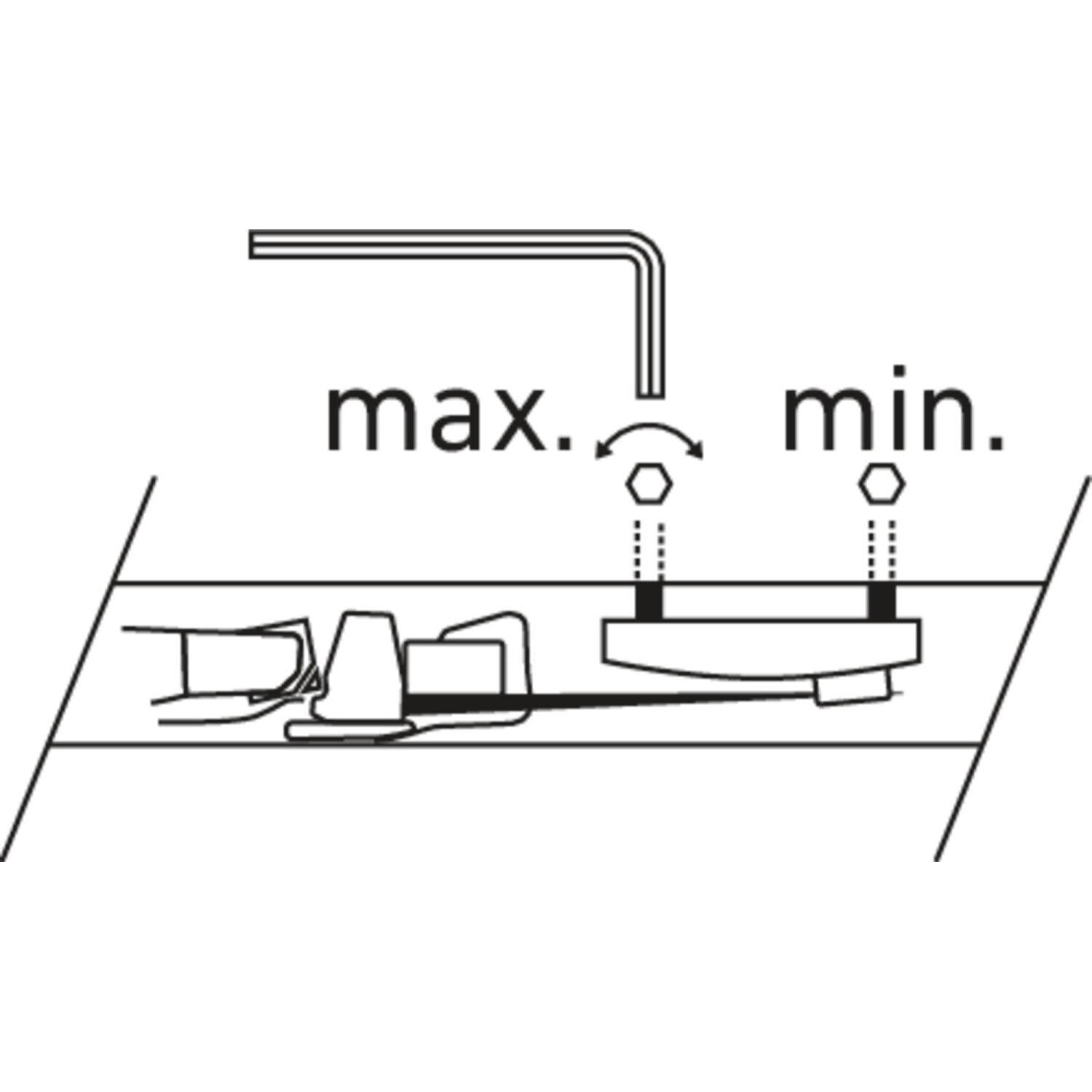

This torque wrench features a clicking type mechanism with a dual stop signal and does not require a reset to "0". The measuring element is only under load when a force is applied. It includes a mount for interchangeable insert tools, a QuickRelease safety lock, and fast, precise adjustment with QuickSelect quick adjustment. The wrench has a dual scale in ft·lb/in·lb and a clicking mechanism that is insensitive to continuous loads and counter-loads up to the maximum measurement range. Counter-clockwise tightening is possible by turning the insert tools over. Optimal calibration can be achieved with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment is possible without disassembly via two external adjustment screws. The tool comes with a 2-component handle and a calibration certificate in accordance with DIN EN ISO 6789-2:2017. It offers an accuracy of ±3% (size a/2: 4%).
