About this item

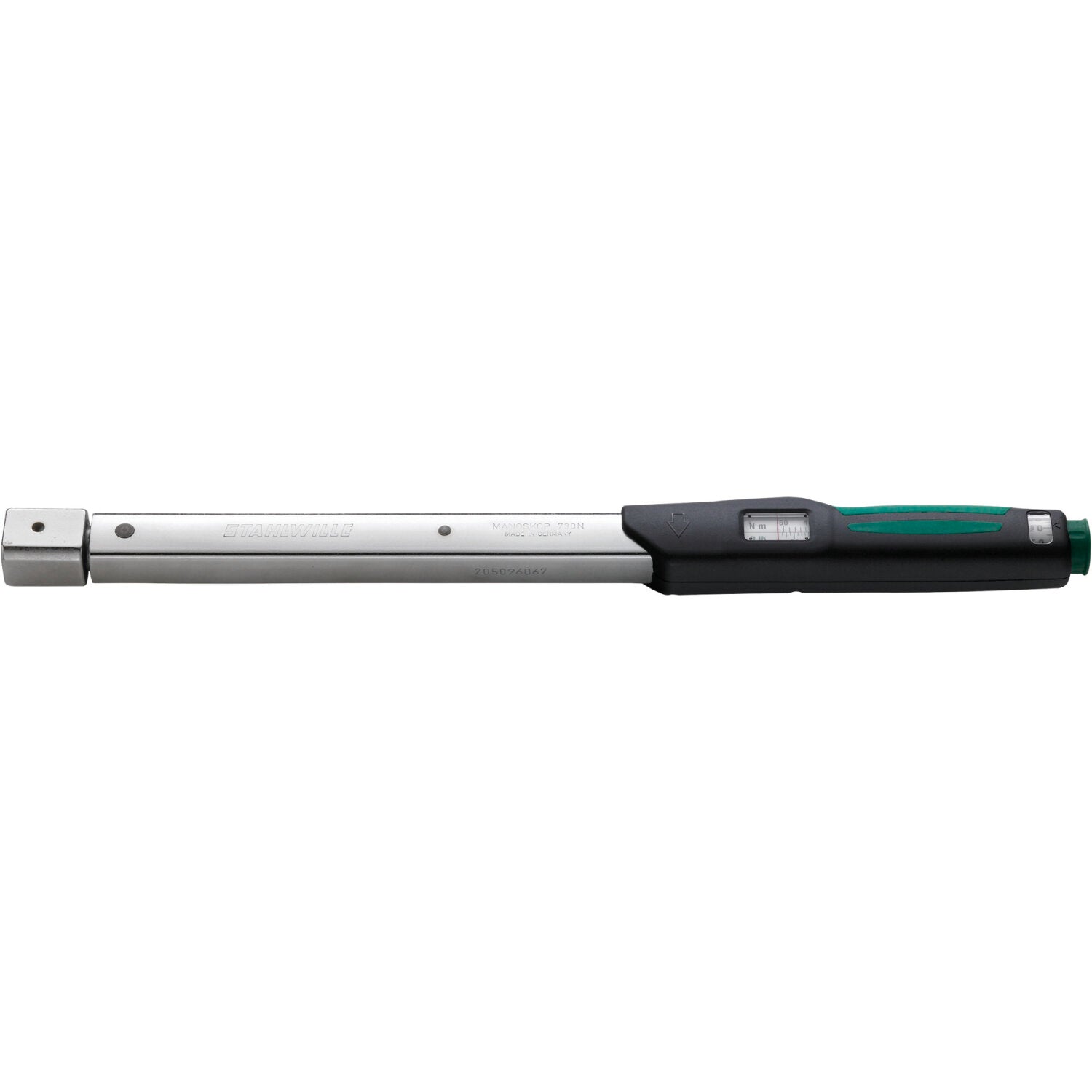

Stahlwille 50581040 730N Service MANOSKOP torque wrench
- 50581040
- Stahlwille
- Torque Wrenches
Downloads
No files available.
Key points
- clicking type with dual stop signal
- no reset to "0" required
- the measuring element is only under load when a force is applied
- mount for interchangeable insert tools
- with QuickRelease safety lock
Description

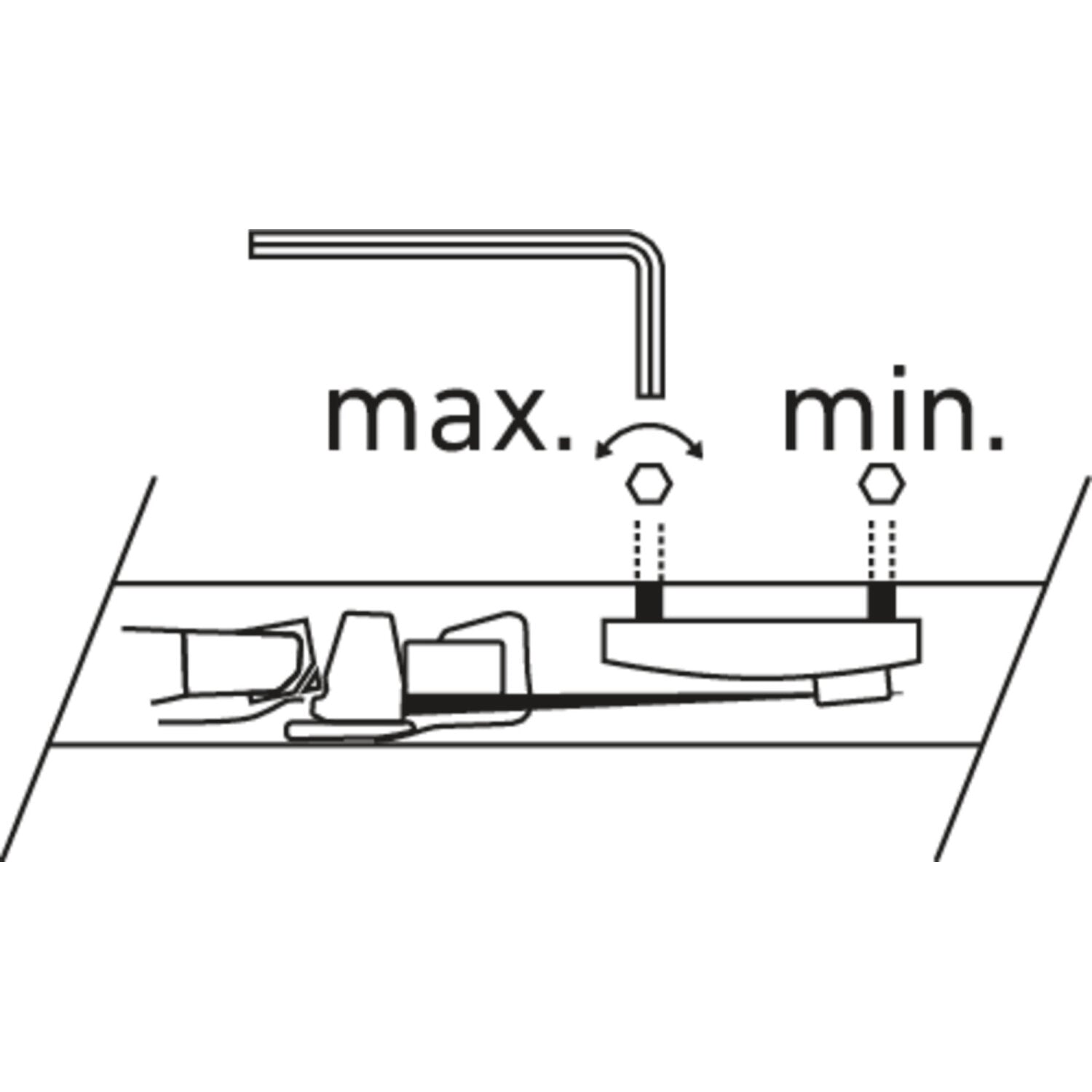

Clicking-type torque wrench with dual stop signal, requiring no reset to "0". The measuring element is only under load when a force is applied. Equipped with a mount for interchangeable insert tools and QuickRelease safety lock. Features fast, precise adjustment with QuickSelect quick adjustment and dual scale in ft·lb/in·lb. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range of the torque wrench. Counter-clockwise tightening is possible by turning the insert tools over. Ensures optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment without disassembly via 2 external adjustment screws. Includes a 2-component handle and calibration certificate in accordance with DIN EN ISO 6789‑2:2017. Accuracy ±3% (size a/2: 4%).
