About this item

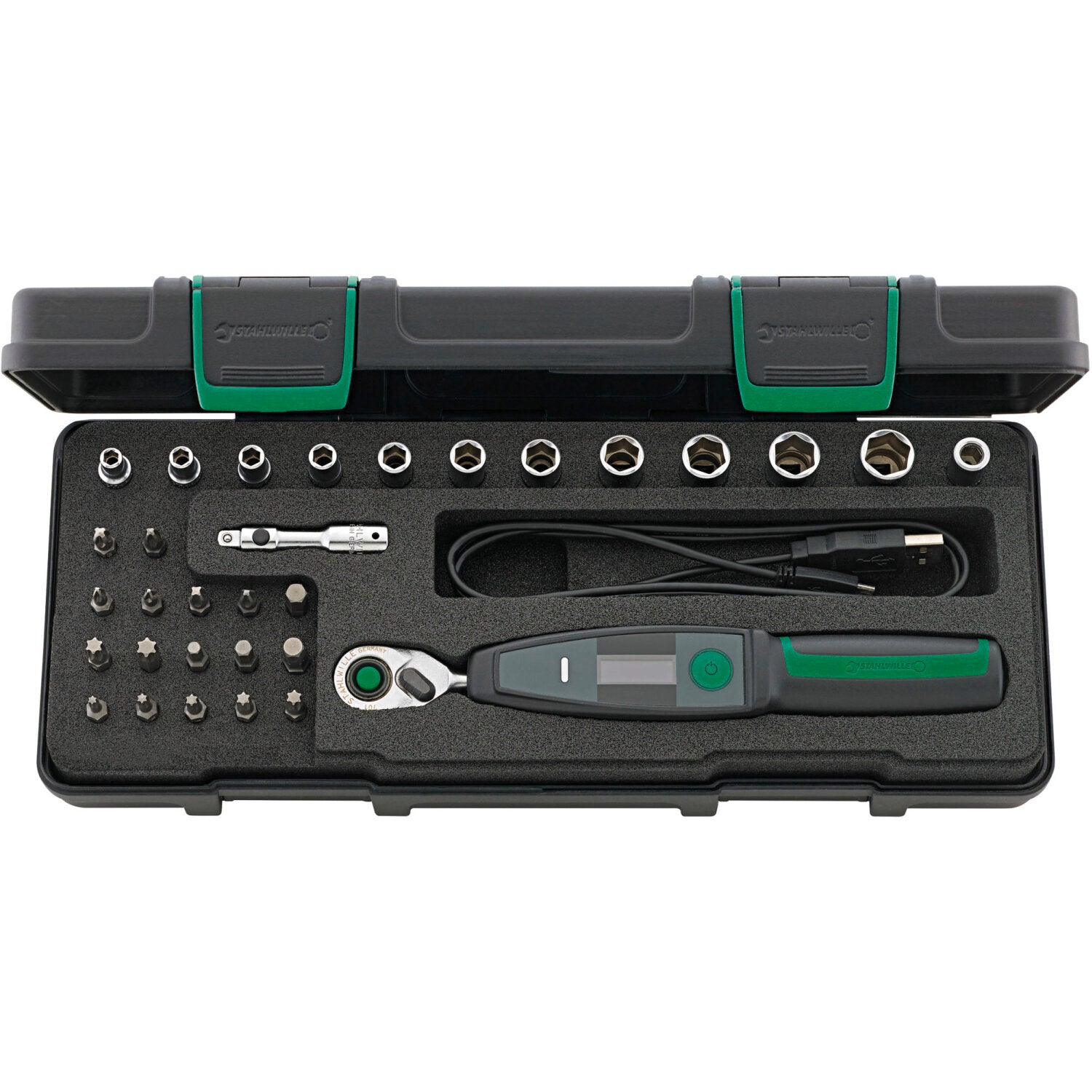

Stahlwille 96090005 1/4″ tool kit with torque wrench 701, 33 pcs
- 96090005
- Stahlwille
- Torque Wrenches
Features
Downloads
No files available.
Key points
- With permanently installed fine-tooth ratchet
- 80 teeth allow for a working angle of just 4.5° - enabling you to work efficiently, even in the tightest spaces
- with QuickRelease safety lock
- very slim and compact design for small torques from 1-20 N·m
- measurement independent of the point of force application
Description

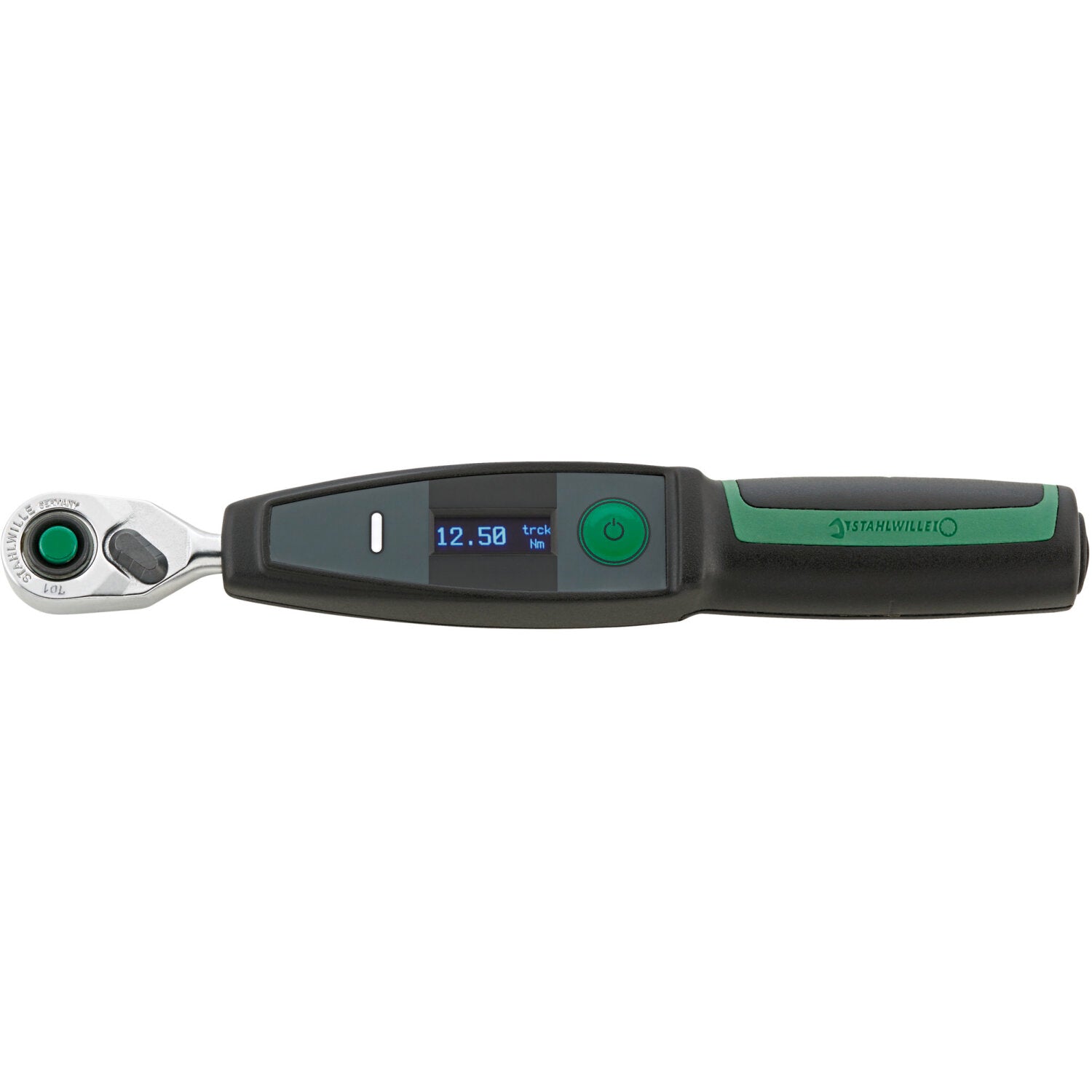

Indicating type torque tool with permanently installed fine-tooth ratchet. 80 teeth allow for a working angle of just 4.5°, enabling efficient work even in the tightest spaces. Equipped with QuickRelease safety lock and a very slim, compact design for small torques from 1–20 N·m. Measurement is independent of the point of force application. Units of measurement: N·m, cN·m, ft·lb, in·lb. Optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Results can be documented (with SensoMaster), with evaluation of bolted joint by coloured LEDs, buzzer, and vibration. Supplied with 3.6 V lithium-metal battery, type 14500, packaged according to UN3091, Class 9. Adjustable joint parameters, with 2-component handle, supplied in a sturdy plastic box. Calibration certificate in accordance with DIN EN ISO 6789-2:2017. Accuracy ± 4%.
