About this item

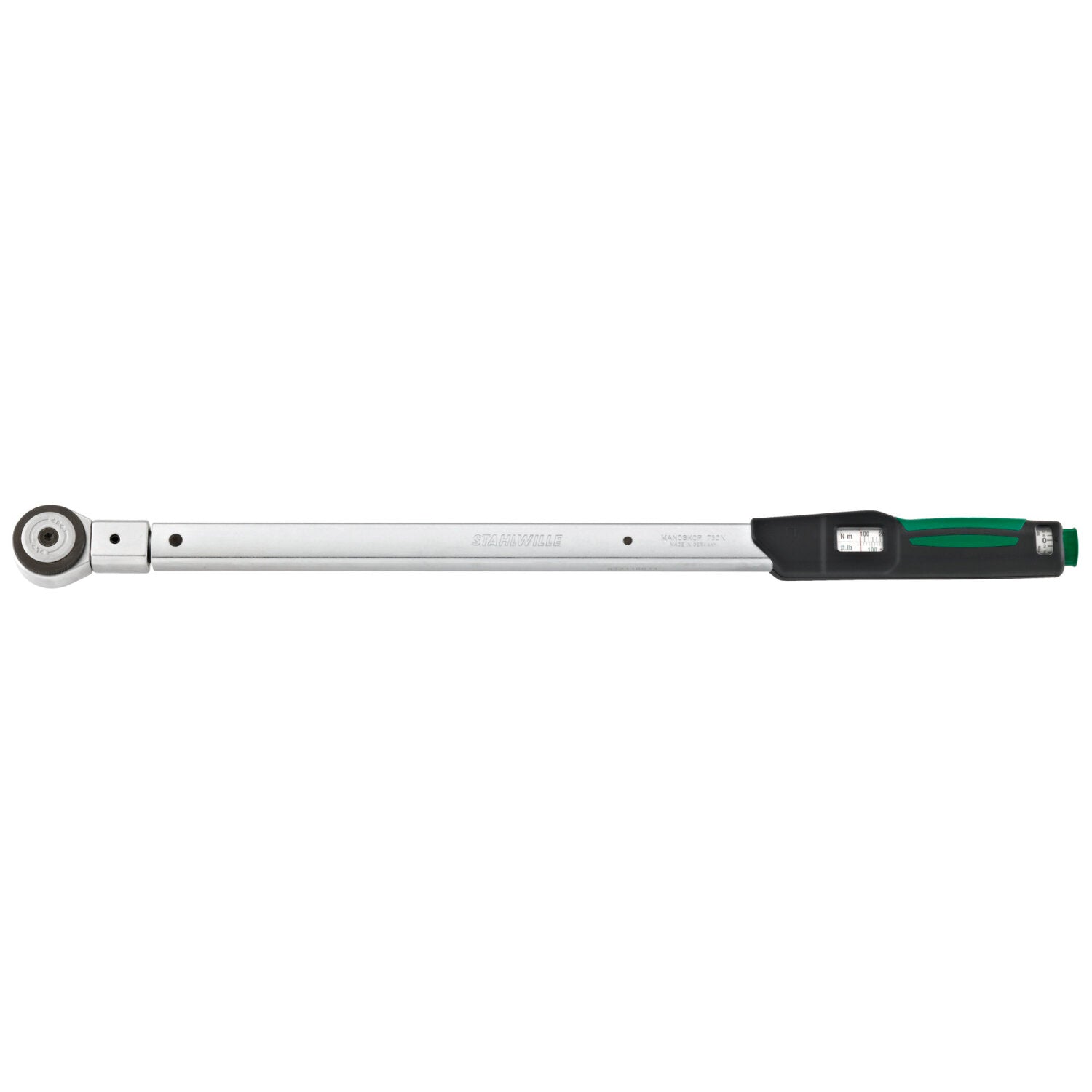

Stahlwille 96502140 730NR Service MANOSKOP torque wrench
- 96502140
- Stahlwille
- Torque Wrenches
Downloads
No files available.
Key points
- clicking type with dual stop signal
- no reset to '0' required
- the measuring element is only under load when a force is applied
- with permanently installed fine-tooth ratchet
- fast, precise adjustment with QuickSelect quick adjustment
Description

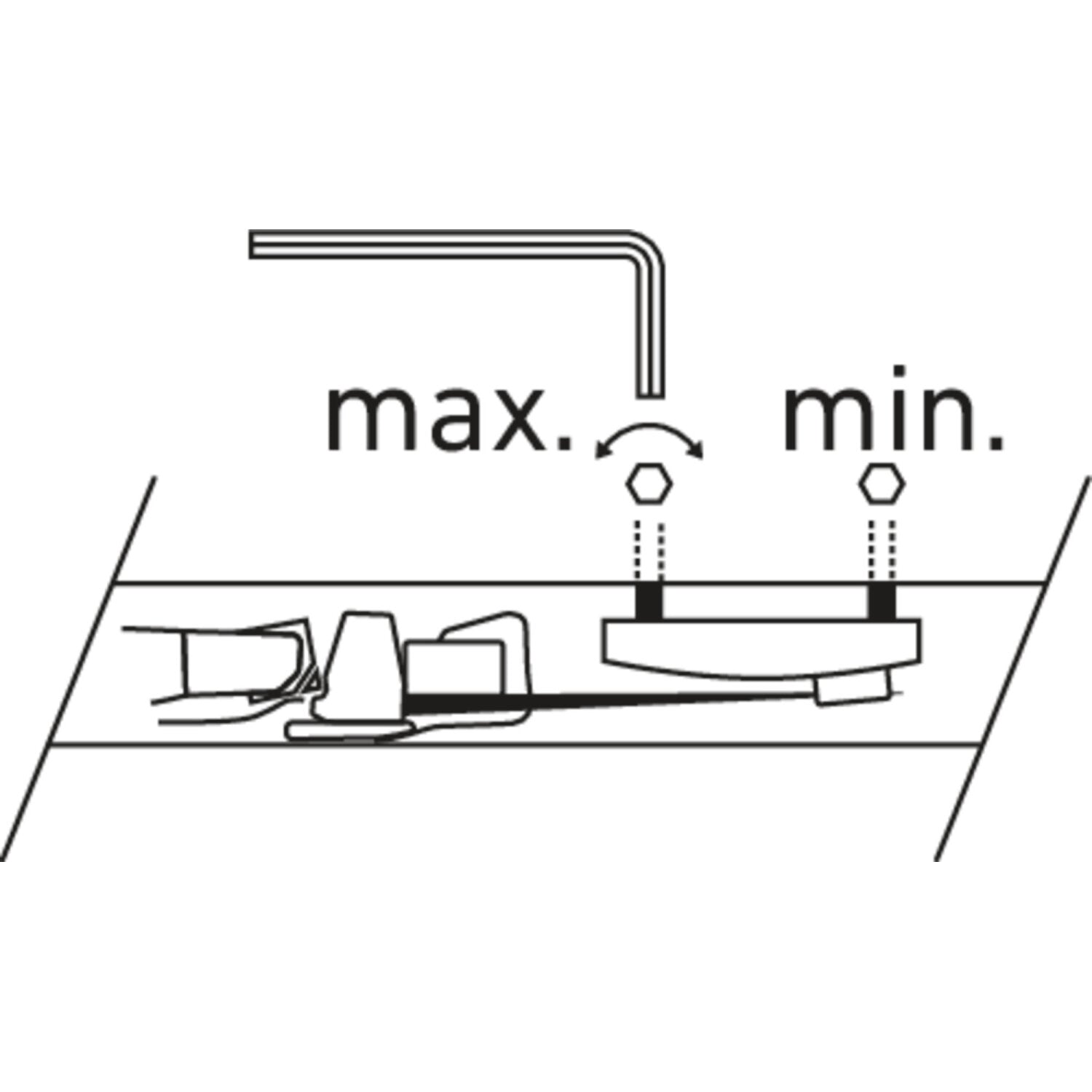

High-precision clicking torque wrench with dual stop signal, designed so no reset to '0' is required. The measuring element is active only under applied force and features a permanently installed fine-tooth ratchet for precise operation. Fast and accurate adjustments are possible using the QuickSelect quick adjustment system. The wrench offers a dual scale in N·m and ft·lb and its clicking mechanism remains insensitive to continuous loads and counter-loads within the maximum measurement range. Optimal calibration is ensured with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791. Easy adjustment is possible without disassembly via two external adjustment screws. Supplied in a sturdy plastic box (size 65 in sheet steel box) and equipped with a 2-component handle, the torque wrench comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017 and guarantees an accuracy of ± 4%.
