About this item
Stahlwille 96503005 730 FS MANOSKOP Torque Wrench 5/10-50Nm/9x12mm
- 96503005
- Stahlwille
- Torque Wrenches
Downloads
No files available.
Key points
- for work on assembly lines or for repetitive production tasks
- clicking type with dual stop signal
- adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
- the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
- no reset to '0' required
Description

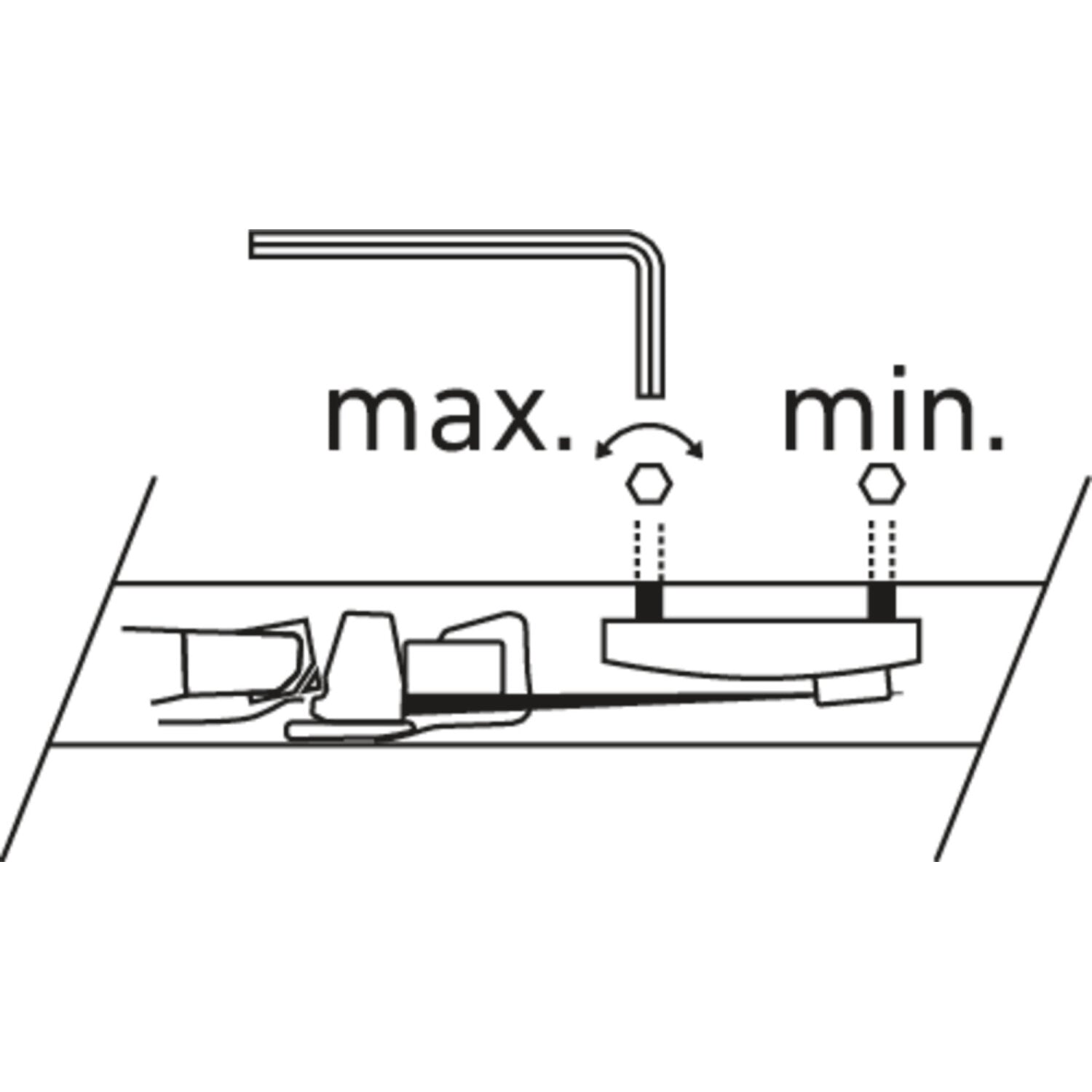

MANOSKOP Torque Wrench – designed for assembly line work or repetitive production tasks, featuring a clicking type mechanism with dual stop signal. The adjustment knob can be unscrewed after setting the desired torque value to prevent changes, while the included TORX® Tamper Resistant locking screw and self-adhesive seals ensure no adjustment is possible without breaking the seal. No reset to “0” is required, as the measuring element is only under load when force is applied. It allows fast, precise QuickSelect adjustment, dual scale in N·m/ft·lb, and a mount for interchangeable insert tools with QuickRelease safety lock. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range, with counter-clockwise tightening possible by turning the insert tools over. Optimal calibration is ensured with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment without disassembly is possible via two external adjustment screws. Equipped with a 2-component handle, supplied in a sturdy plastic box (sizes 80–100 in sheet steel box), and delivered with a calibration certificate in accordance with DIN EN ISO 6789-2:2017.
