About this item

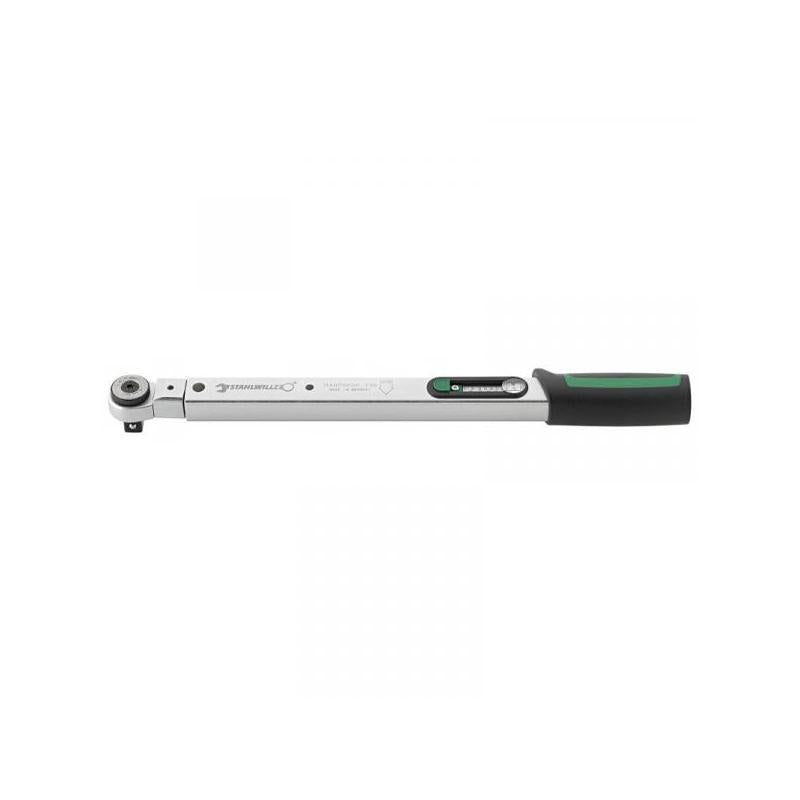

stahlwille 96504030 730R/30 Ref Torque Wrenches
- 96504030
- Stahlwille
- Torque Wrenches
Features
Downloads
No files available.
Key points
- Clicking type with dual stop signal
- no reset to “0' required, as the measuring element is only under load when a force is applied
- mount for interchangeable insert tools
- with QuickRelease safety lock
- Quick adjustment thanks to easy-to-operate locking lever in handle
Description

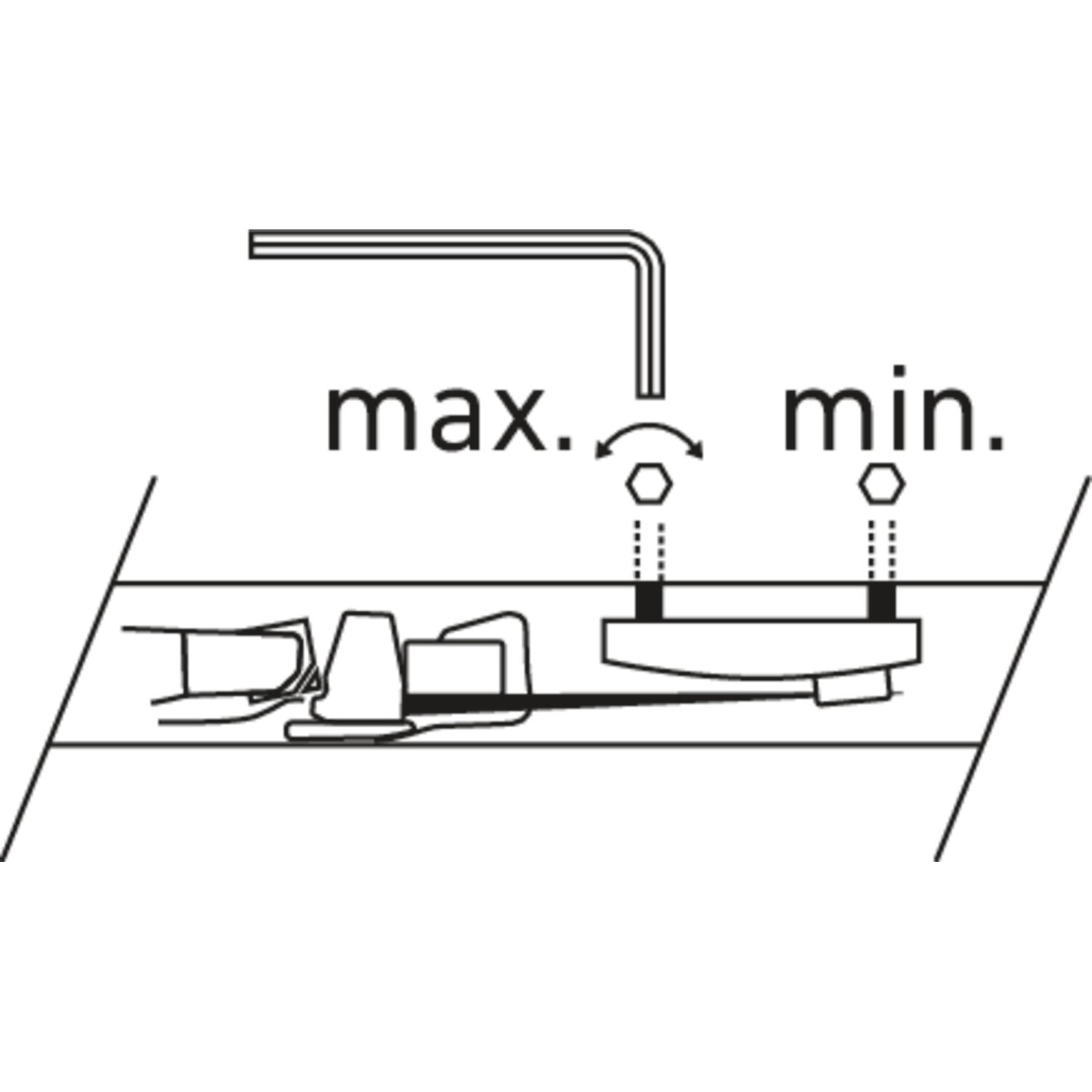

This torque wrench features a clicking type mechanism with dual stop signal and does not require resetting to “0,” as the measuring element is only under load when force is applied. It includes a mount for interchangeable insert tools, QuickRelease safety lock, and a locking lever in the handle for quick adjustment. The non-slip adjuster with thumb recess allows fast torque changes, and the double scale displays N·m/ft·lb or N·m/in·lb. Counter-clockwise tightening is possible by turning the insert tools over, and the clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. Optimal calibration is achieved with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment without disassembly is possible via two external adjustment screws. The wrench has a 2-component handle, comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017, and provides an accuracy of ± 4%.
