The complete calibration system features a special power transmission mechanism that prevents the force application point from shifting, ensuring highly accurate measurements. A handwheel drives a lever linearly via a spindle, converting this motion into precise rotary movement for the transducer. Two ball-bearing bushings provide a friction-free contact surface and allow horizontal alignment of the torque wrench, which remains securely in position while the load is applied. Minimal transverse forces and reduced friction minimize measurement errors, and the system is protected by national and international patents for its innovative design.
About this item

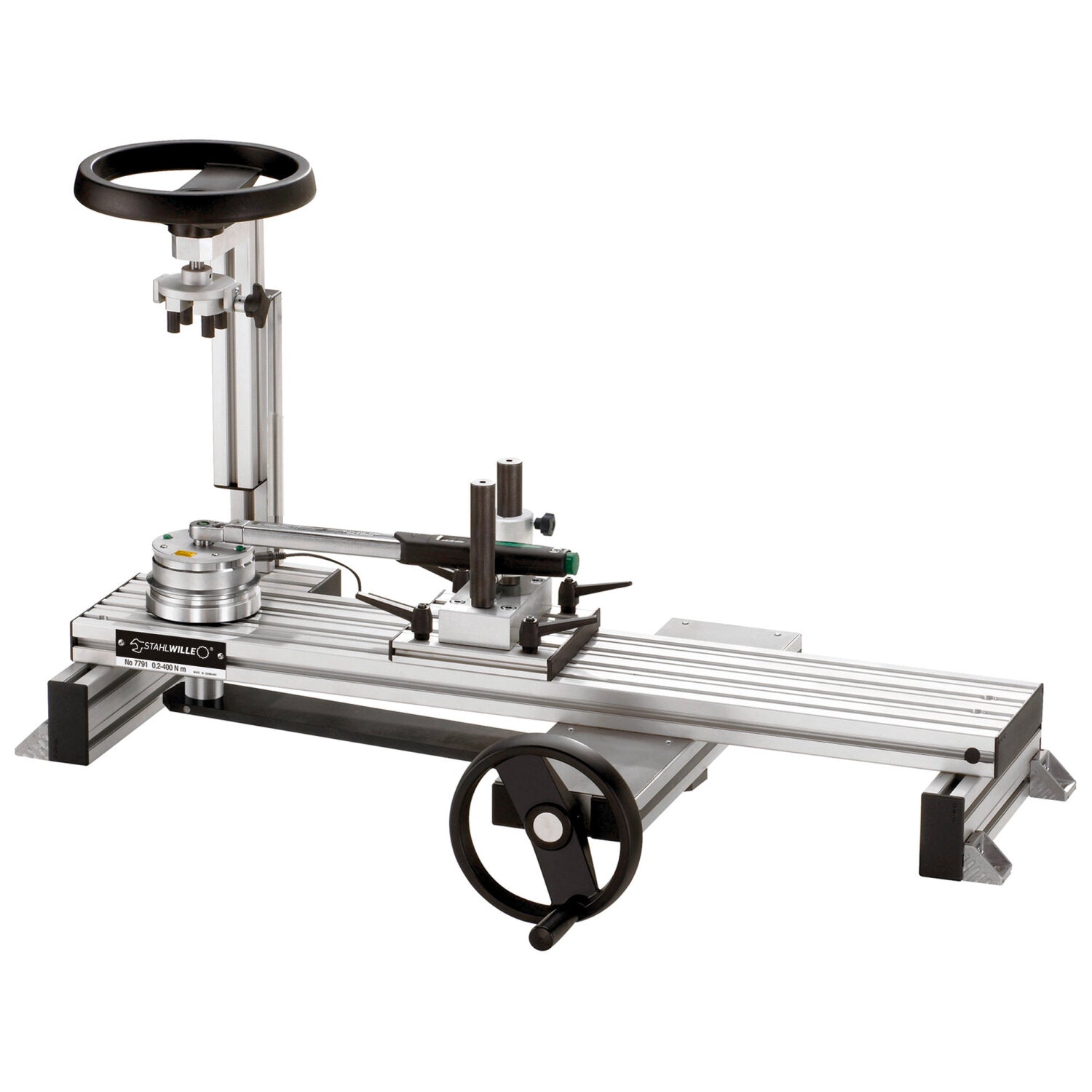

Stahlwille 96521069 7706-9PC Complete calibration system, 3/4" Drive
- 96521069
- Stahlwille
- Torque Accessories
Features
Downloads
No files available.
Key points
- the special power transmission system prevents the force application point from shifting
- the handwheel drives a lever linearly via a spindle, whereby this movement is converted into a rotary movement for the transducer
- 2 ball-bearing bushings ensure a friction-free contact surface and enable the horizontal alignment of the wrench
- the torque wrench remains in position whilst the load is being applied
- minimal transverse forces and reduced friction minimise measurement errors
