This complete calibration system features a special power transmission mechanism that prevents the force application point from shifting, ensuring accurate readings. The handwheel drives a lever linearly via a spindle, which is then converted into rotary motion for the transducer. Equipped with two ball-bearing bushings, the system provides a friction-free contact surface and allows precise horizontal alignment of the torque wrench. The wrench remains in position while the load is applied, and minimal transverse forces with reduced friction help minimise measurement errors, delivering reliable and highly accurate torque calibration results.
About this item

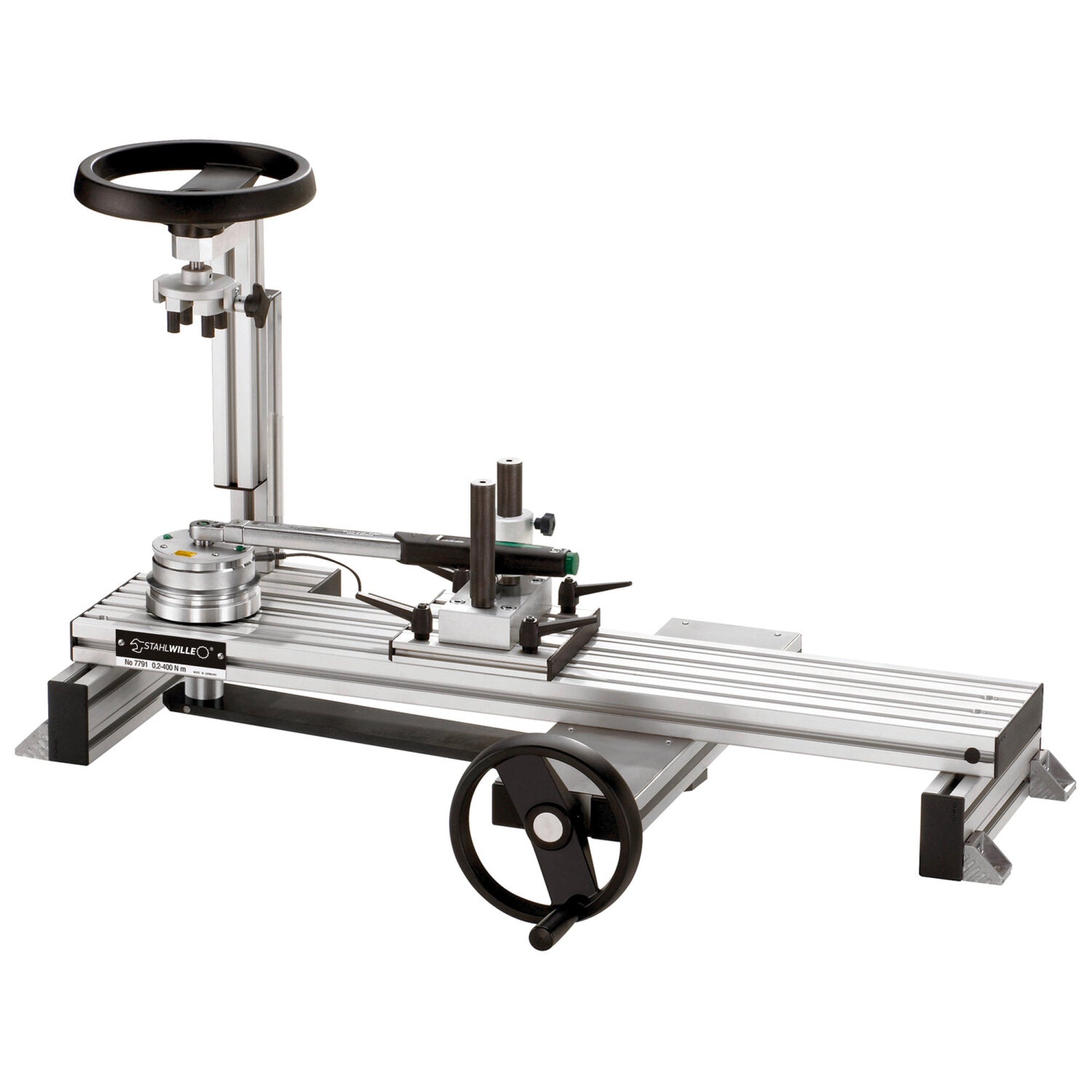

Stahlwille 96521074 7706-11PC Complete calibration system, 3/4" Drive
- 96521074
- Stahlwille
- Torque Accessories
Features
Downloads
No files available.
Key points
- The special power transmission system prevents the force application point from shifting
- The handwheel drives a lever linearly via a spindle, whereby this movement is converted into a rotary movement for the transducer
- 2 ball-bearing bushings ensure a friction-free contact surface and enable the horizontal alignment of the wrench
- The torque wrench remains in position whilst the load is being applied
- Minimal transverse forces and reduced friction minimise measurement errors
