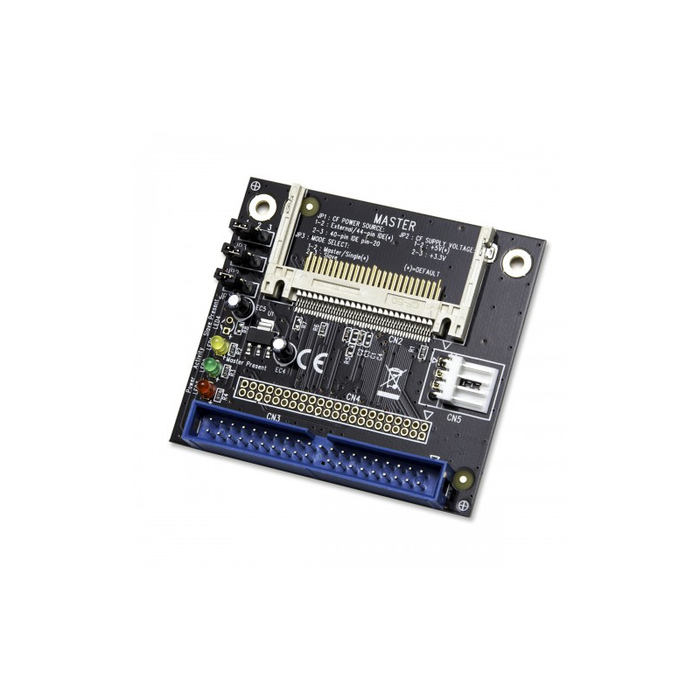

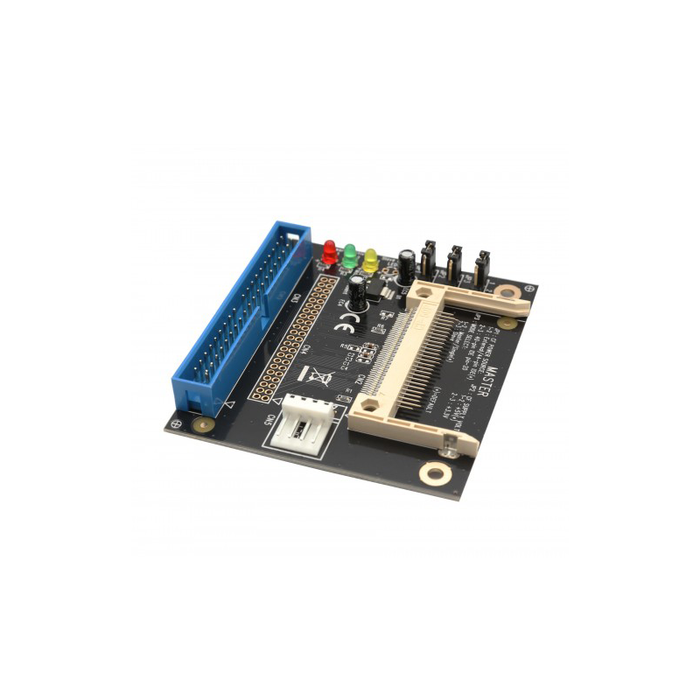

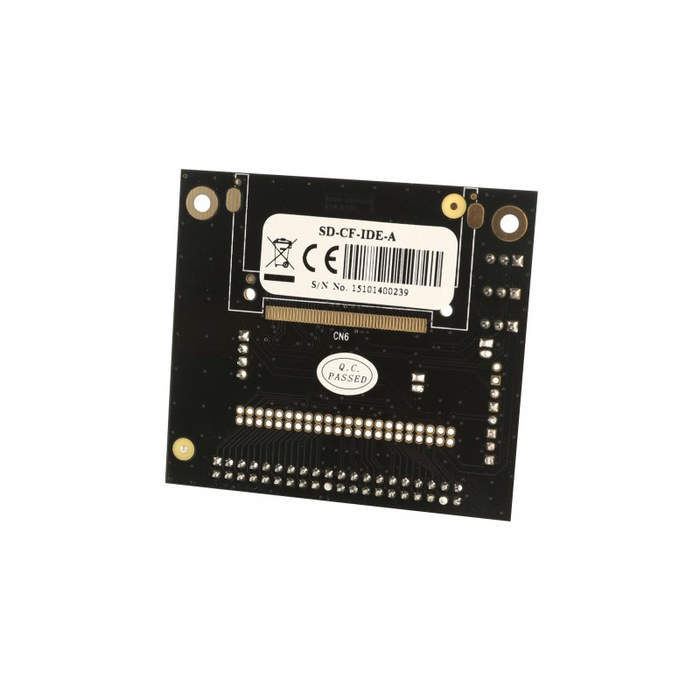

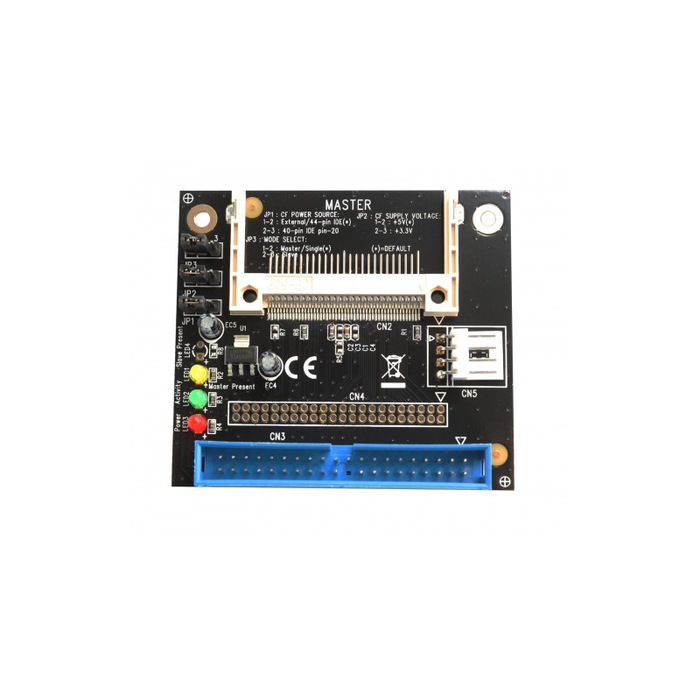

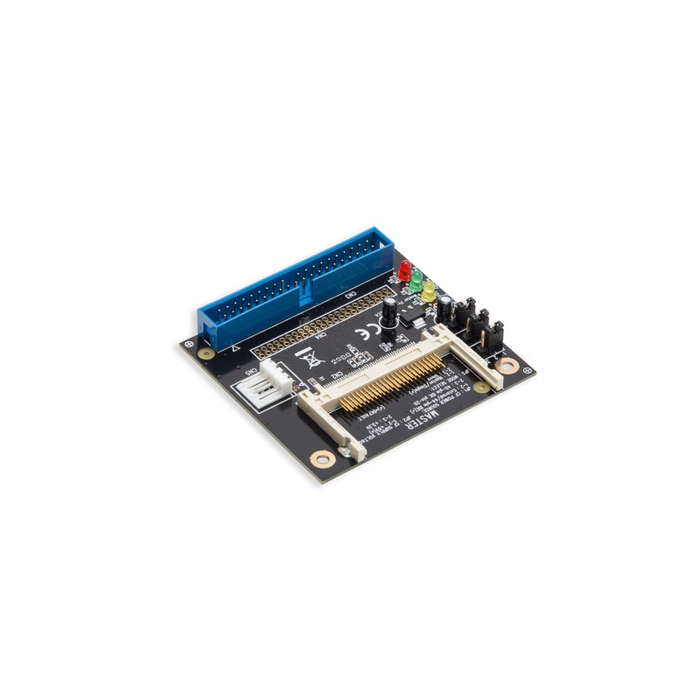

Syba SD-CF-IDE-A 3.5” IDE Host Interface to Compact Flash Adapter

Syba SD-CF-IDE-A 3.5” IDE Host Interface to Compact Flash Adapter

by SYBA Multimedia
No reviews
$12.88 - $12.88
$12.88
$12.88 - $12.88
$12.88
Free shipping
The SD-CF-IDE-A is an adapter for connecting a compact flash memory card to a 3.5” IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a... Read more

Overview

Brand img

Syba SD-CF-IDE-A 3.5” IDE Host Interface to Compact Flash Adapter

The SD-CF-IDE-A is an adapter for connecting a compact flash memory card to a 3.5” IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive. Support Ultra DMA mode.

Product Details

General Information
Manufacturer
Syba
Part Number
SD-CF-IDE-A
Product Type
Adapter
California Residents
Proposition 65 Warning
Technical Information
Host Interface
IDE
Platform Supported
All Windows, MAC OSX, Linux
Physical Characteristics
Height
1.50"
Width
6"
Weight (Approximate)
0.20 lbs
Miscellaneous

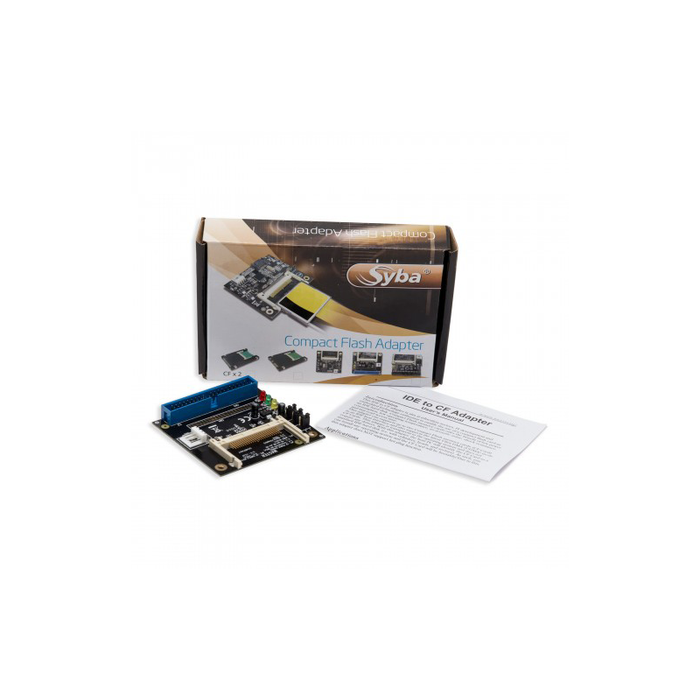

Package Contents
IDE to Compact Flash Adapter, User Manual
Features
Supports Ultra DMA mode CF Card

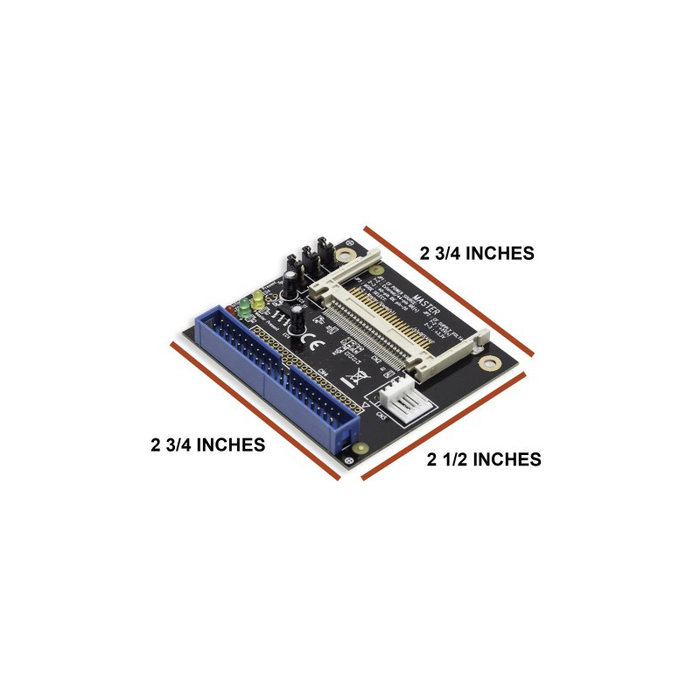

Board size: 70mm x 63mm x 0.8mm (W, L, T)
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive
40-way (2.54mm) standard IDE connector
44-way (2mm) laptop IDE connector (optional)
Mounting holes for rear bracket (optional)
This adapter does NOT support hot insertion of CF card
Connect 3.5 IDE & CF memory card
