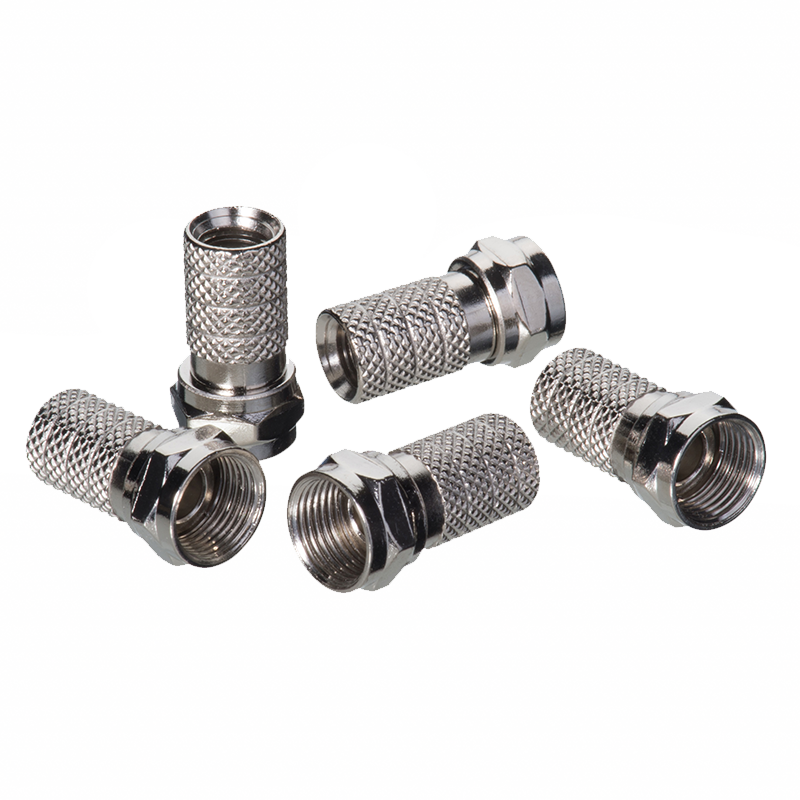

Ideal 84-018 RG-59 F Twist-On Connector, 4 Pieces
Twist-on F connectors are an economical solution that requires no termination tool. Twist-on connectors are designed for indoor coax terminations for standard video and other RF applications. For outdoor or high performance F connectors see the RTQ™ series of compression connectors.
Connector Model: 59FTW
Accepts RG-59 coax cables
Designed for use in indoor video applications
Reusable, can be removed and reused
Industry standard ¼” x ¼” cable preparation
Center conductor range: All
Dielectric diameter range: .142” - .148”
Outer jacket diameter range: .230” - .250”
Recommended cable prep/stripping tools: 45-605 PrepPRO™; 45-321
Recommended crimp tools: None required
Designed for 75Ω coaxial cables
7/16” nut diameter with 3/8-32 thread
To use the twist-on connector:
1) Prepare RG-59 coax with a ¼” x ¼” strip, and fold back the braiding.
2) Twist the connector on to the cable clockwise until the white dielectric becomes flush with the bottom of the nut. 3) Attach connector to device.
