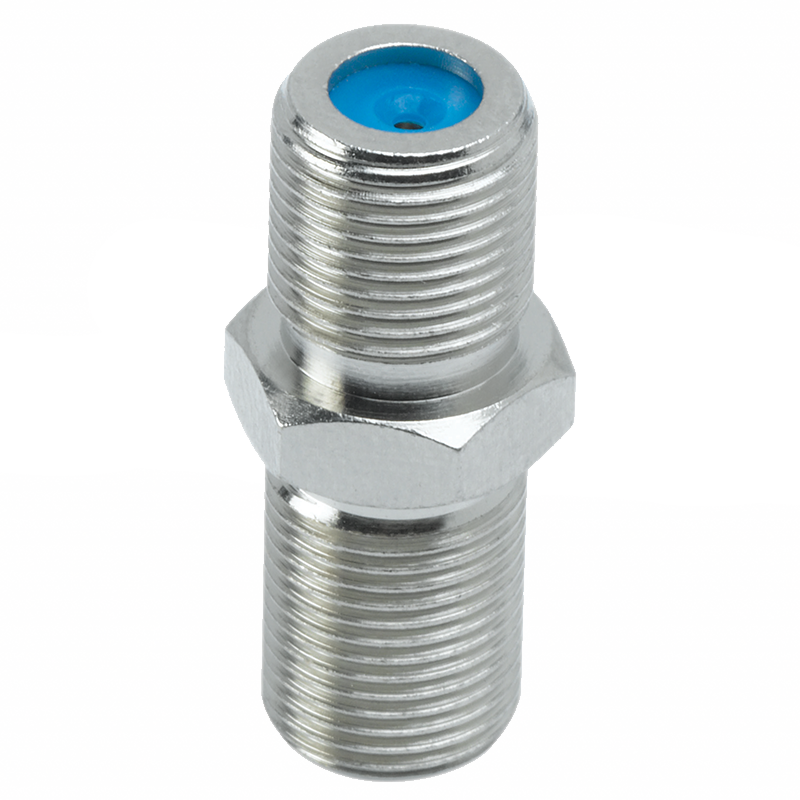

Ideal 85-340 3GHz F-Type Female-to-Female Coax Splice Adapter - 10/Pack

by IDEAL
$16.99
Free shipping
Use the 3GHz F-Splice Adapter for extending coaxial cable runs for all cable and satellite TV applications including High Definition. Attach F-connectors to both ends of the barrel splice to join the cables together.  ... Read more

Overview

Brand img

Ideal 85-340 3GHz F-Type Female-to-Female Coax Splice Adapter - 10/Pack

Use the 3GHz F-Splice Adapter for extending coaxial cable runs for all cable and satellite TV applications including High Definition.

Attach F-connectors to both ends of the barrel splice to join the cables together.



Best for High Definition applications

Nickel plated brass constuction

For 75Ω applications up to 3GHz

Accepts male F connectors on both sides

High bandwidth 0MHz to 3GHz for standard and high definition applications

Long body style for wallplate upgrades

< 0.25 dB insertion loss to maintain signal strength

> 25 dB return loss for less picture distortion


Product Details

General Information
Manufacturer
IDEAL
Part Number
85-340
Product Type
Splice Adapter
Specifications
Color
Metallic
Material
Nickel Plated Brass
Miscellaneous
What's Included
3GHz F-Type Female-to-Female Coax Splice Adapter - 10/Pack
Features
Used for extending or joining lengths of coaxial cable into a longer run, Accepts male F connectors on both sides, Best for High definition applications
