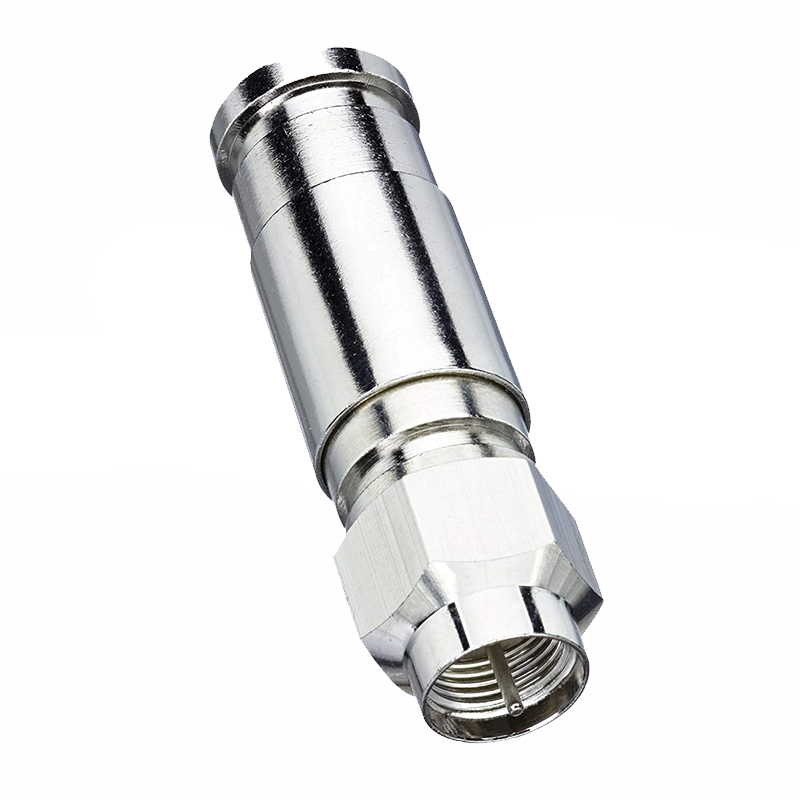

Connector Model: 11PLFIS
Features InSITE™ technology
Accepts RG-11 Plenum coax cables
Center conductor range: 18-14 AWG Solid (.062” - .066”)
Dielectric diameter range: .270” - .280”
Outer jacket diameter range: .340” - .356”
Recommended cable prep/stripping tool: N/A
Recommended compression tool: 30-793 OmniSeal™ PRO XL
Installing one-piece compression RG-11 Plenum F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.
With the patented InSITE™ Technology feature, now standard on all IDEAL RG-11 compression connectors, field termination of these blind entry connectors is simpler, faster, and now provides a higher performance connection for all video based applications.
The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin before the connector is compressed.
All IDEAL compression connectors require a ¼” x ¼” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.
In addition to the InSITE feature, other improvements have been made to our RG-11 F connectors:
Increased ranges of compatible cable jacket diameters – works with more cable types and cable manufacturers
Lower cable insertion force – easier to push the connector on to the cable
A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
The connector has an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.
RG-11 sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV and satellite trunk/distribution lines. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.
This connector requires an industry standard ¼” x ¼” cable preparation and is permanently attached to the cable when using an IDEAL OmniSeal™ Pro compression tool.
Designed for use in cable and satellite TV trunk/feeder installations
WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
Compresses in 30-793 tool without tool adjustment or adapters
Return loss: >25dB up to 1 GHz
All brass, with nickel plated bodies
Fixed pin won’t come lose or pop out of the connector
Designed for optimal performance on 75Ω coaxial cables
Frequency range: 0 MHz to 3 GHz
>40 pounds cable retention on all models
7/16” nut diameter with 3/8-32 thread
