3M Dynatel Pipe/Cable/Fault Transmitter 2273-U3T

by 3M
No reviews
Original price $2,850.99 - Original price $2,850.99
Original price
$2,850.99
$2,850.99 - $2,850.99
Current price $2,850.99
Free shipping
 One per Order, Made to Order Compatible With: 2273-UR, 2273M-UR, 2273M-ID/UR Included with: 2273/2273M Transmitter Only. Four active trace frequencies which can be used individually or simultaneously to compensate for varying field conditions. The receiver... Read more

Overview

3M

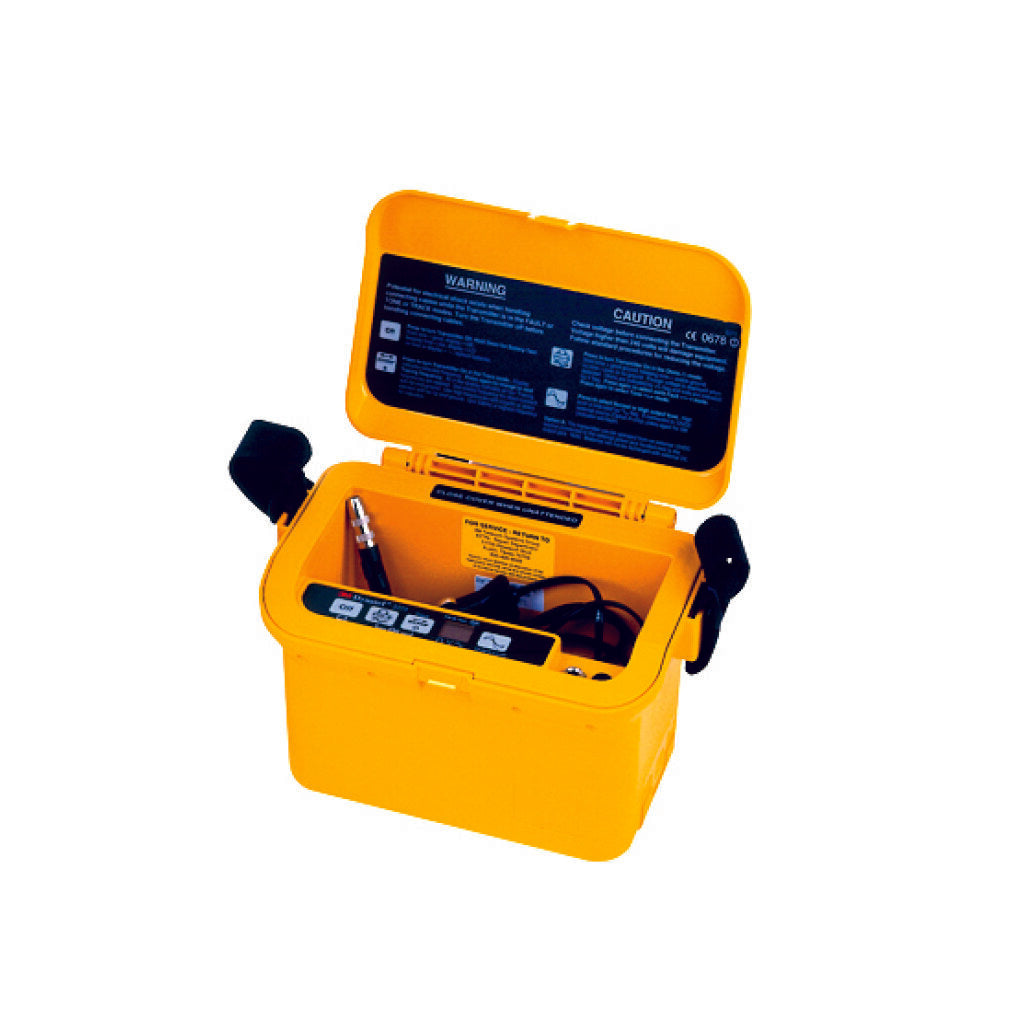

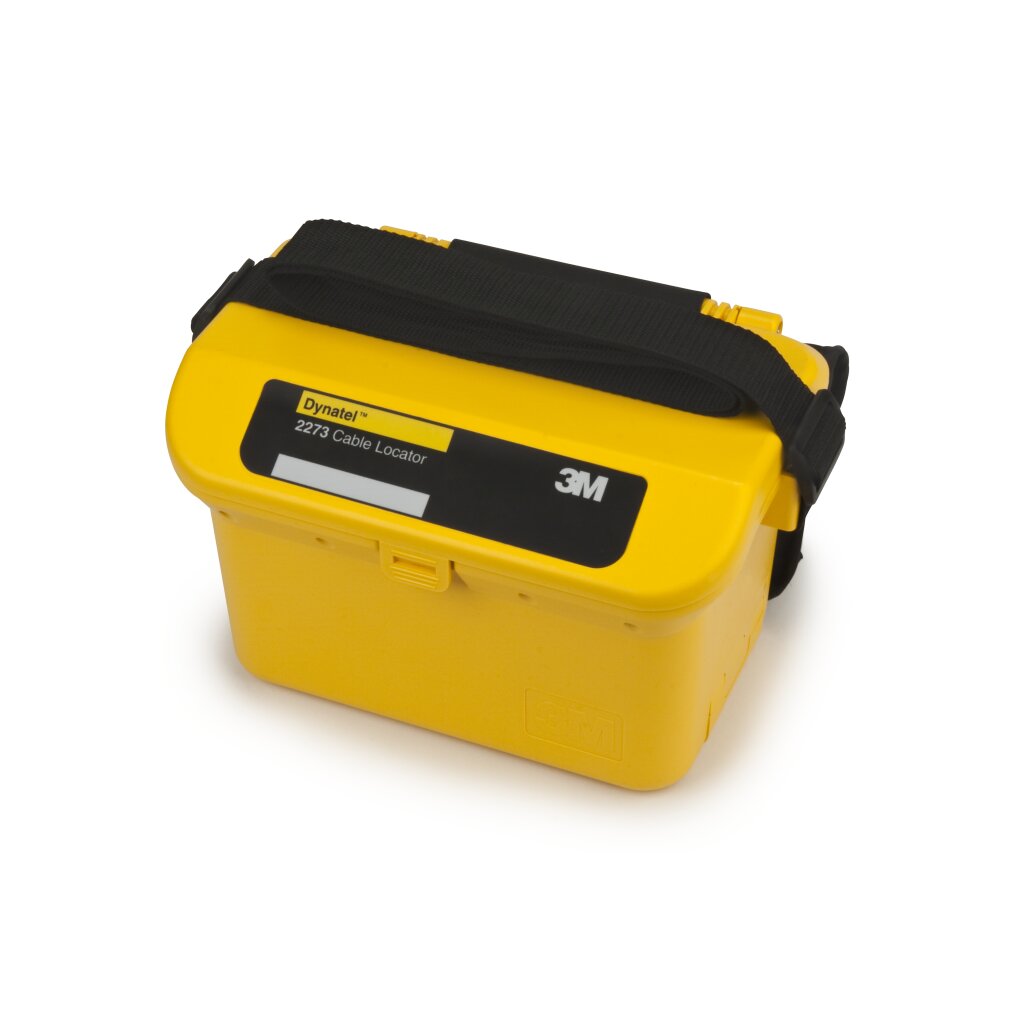

3M Dynatel Pipe/Cable/Fault Transmitter 2273-U3T

 One per Order, Made to Order

Compatible With: 2273-UR, 2273M-UR, 2273M-ID/UR

Included with: 2273/2273M Transmitter Only.

Four active trace frequencies which can be used individually or simultaneously to compensate for varying field conditions. The receiver incorporates passive power and auxiliary frequencies that do not require the use of the transmitter.

Graphic display to distinguish between targeted cable and other cables in congested area.

Four modes of operation - dual peak, dual null, differential and special peak - for accurate locates, even in the most challenging field conditions

Precisely locates sheath or ground faults on both short and long cable sections.

The 3M Dynatel Locator 2250/2273 Series is designed to find the path and estimated depth of buried cables and pipes.

Features include:

Four active frequencies

Passive frequencies for power, cathodic protection systems and CATV

Auxiliary frequencies for long distance locating from remote transmitters

Direct readout of active duct probe (sonde)

Cable/pair identification

Receivers incorporate an “expander” function to make peaks and nulls more pronounced

As with other locator models, the 3M Dynatel Locator 2273 performs all functions of the 2250 locator plus the ability to find underground faults.



Product Details

General Information
Manufacturer
3M
Part Number
7010397265
Product Type
Test Equipment Accessories
