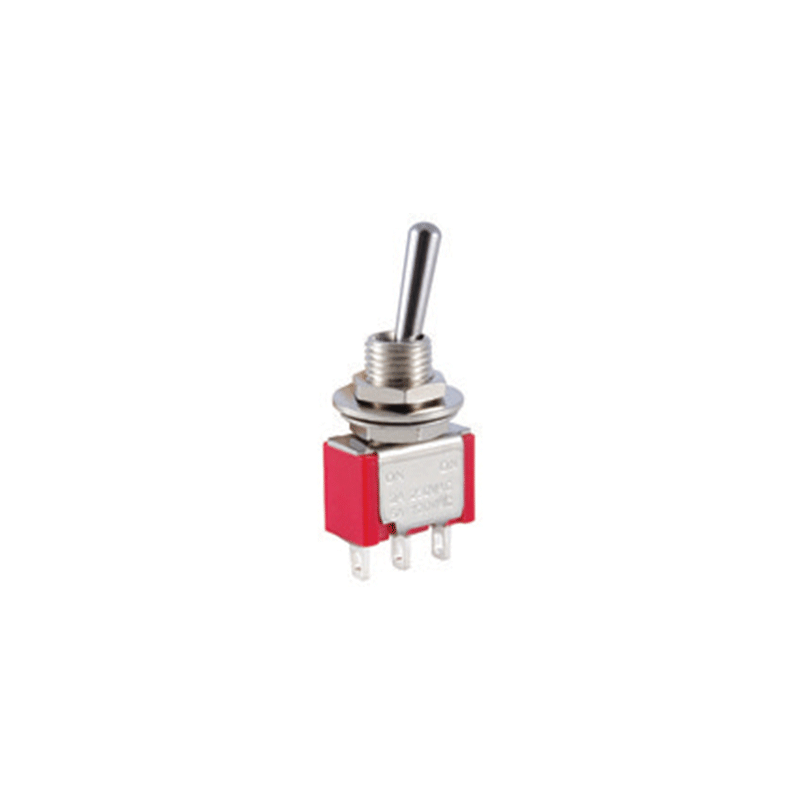

NTE Electronics 54-140 SPST On-Off Subminiature Toggle 3A

NTE Electronics 54-140 SPST On-Off Subminiature Toggle 3A

by NTE Electronics
No reviews
$6.99 - $6.99
$6.99
$6.99 - $6.99
$6.99
Free shipping
The 54-140 is a single-pole single-throw (SPST) bat handle subminiature Toggle Switch with epoxy sealed solder lug terminals, a chrome-plated brass actuator and ON-NONE-OFF function. 30000 cycles Electrical life -30 to +85°C Temperature range 1000MΩ... Read more

Overview

NTE Electronics

NTE Electronics 54-140 SPST On-Off Subminiature Toggle 3A

The 54-140 is a single-pole single-throw (SPST) bat handle subminiature Toggle Switch with epoxy sealed solder lug terminals, a chrome-plated brass actuator and ON-NONE-OFF function. 30000 cycles Electrical life -30 to +85°C Temperature range 1000MΩ Minimum insulation resistance 1500V RMS Minimum dielectric strength

Product Details

General Information
Manufacturer
NTE Electronics
Part Number
54-140
Type
Toggle Switch
California Residents
Proposition 65 Warning
Specifications
Contact Form
SPST
Switch Function
ON - OFF
Current Rating
3A 120VAC or 28VDC, 1.5A 250VAC
