About this item

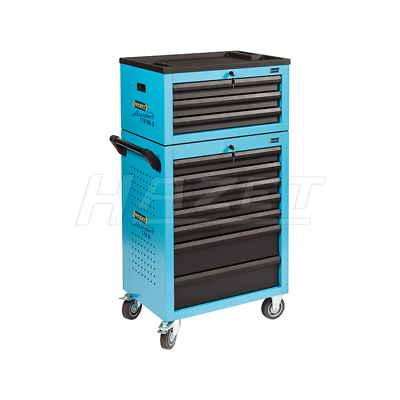

Hazet 178N-10 Tool Trolley
- 178N-10
- Hazet
- Tool Storage
Downloads
Description
Product information
Tool trolley
178 N-10 consisting of tool trolley 178 N-7, tool chest 178 N K-3
Tool trolley 178 N-7:
5 flat and 2 high drawers
Sturdy handle firmly attached to the trolley
Worktop: Plastic, resistant to solvents, with integrated storage wells
Worktop border strip prevents parts from falling down
Rectangular perforations on the side panels offer individual fastening options, e.g. for tool hooks of the HAZET 112 article group or other accessories like can holder, holder for paper reel, paper bin, etc.
Tool chest 178 N K-3:
Suitable for tool trolley Assistent 178 N
3 flat drawers
2 sturdy handles firmly attached to the trolley
Optional: Worktop made from solvent-resistant plastic with integrated storage wells, HAZET No. 177-05
Large ball-bearing-mounted wheels (125 mm), easy manoeuvrability, even with high dynamic load
2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley,
fixed swivel bearing prevents the castors from swivelling,
e.g. on inclined surfaces
Protective ring prevents dirt and threads from getting in
Grey non-marking elastic tyres enable smooth movement
Two-stage locking concept:
- Central locking, lockable with cylinder lock and 2 folding keys
- Individual drawer locking prevents unwanted drawer opening
- 100% sliding-out with ball-bearing drawer slides
Loading capacity (static): 480 kg
Worktop: plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Colour: HAZET-BLUE
Made in Germany
Total length: 781 mm
Height: 1410 mm
Width: 498 mm
Net weight: 107.8 kg
Drawers shallow: 8 x 80 x 527 x 348 mm
Drawers tall: 2 x 165 x 527 x 348 mm
Drawer size for order system: 3/3
Height of worktop: 1410
Number of fixed castors: 2 (∅ 125 mm)
Number of swivel castors: 2 (∅ 125 mm)
