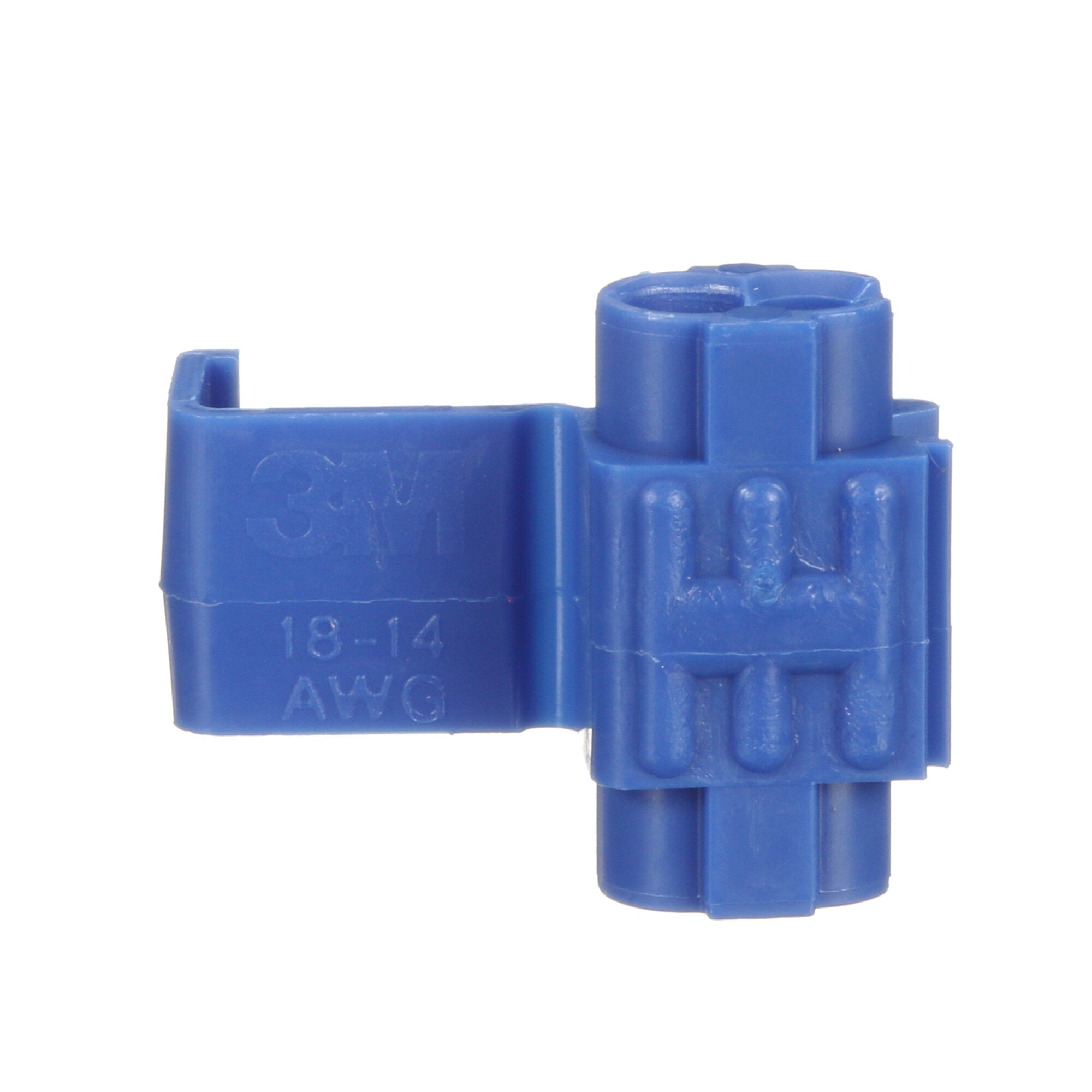

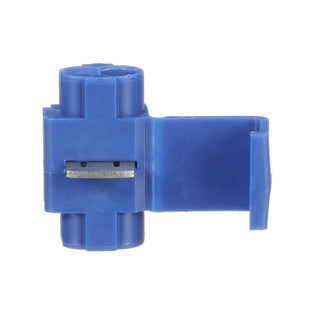

3M™ 7100166938 Scotchlok™ Electrical IDC 560B-POUCH, Double Run or Tap

Features

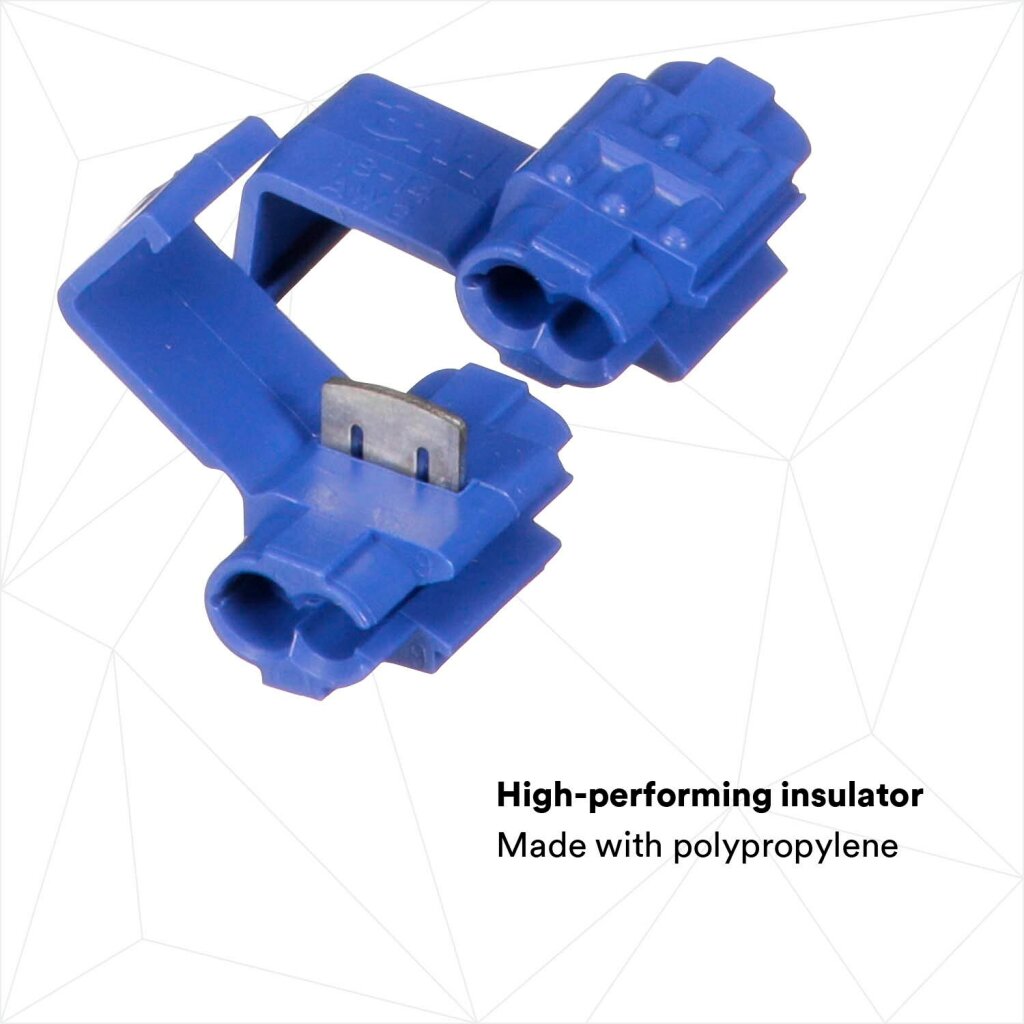

    High-performing polypropylene insulation ensures there are no shorts, making it ideal for complex circuits when used for parallel splicing or a tap wire

    Color-coded for quick and easy identification of the wire size

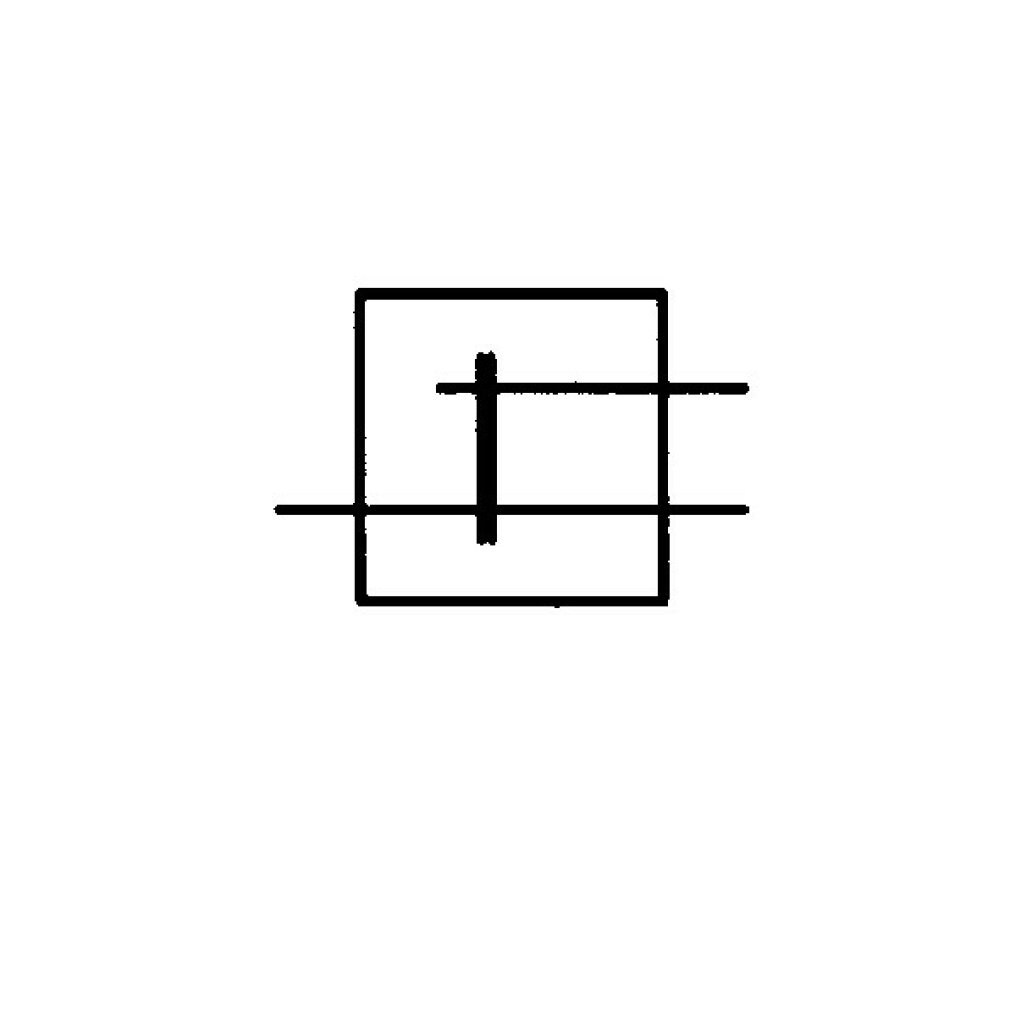

    Makes it simple to connect a tap wire to a run (through) wire electrically via a self-sealing and self-stripping design

    Its design lets you use it with 18 to 16 AWG solid or stranded wire for taps or 14 AWG stranded for runs

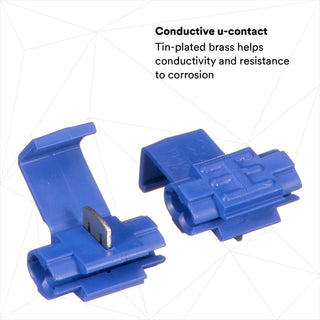

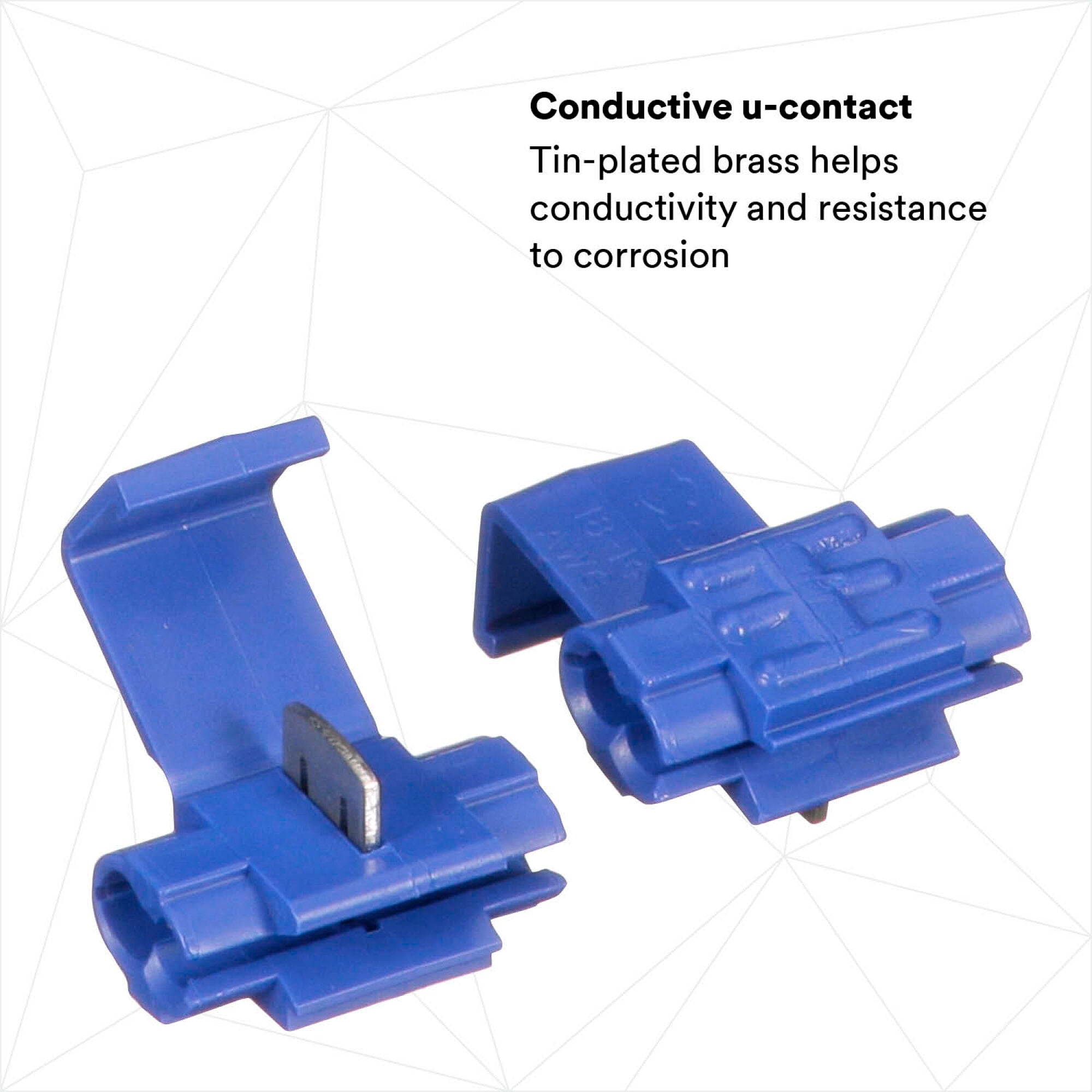

    Easy conductivity is assured thanks to the brass element construction, and it's plated with tin for powerful corrosion resistance

    Withstands temperatures of 194 degrees F (90 degrees C)

    Use it in buildings with circuits rated up to 600V, or use it with fixtures, signs or luminaires rated up to 1000V for maximum flexibility

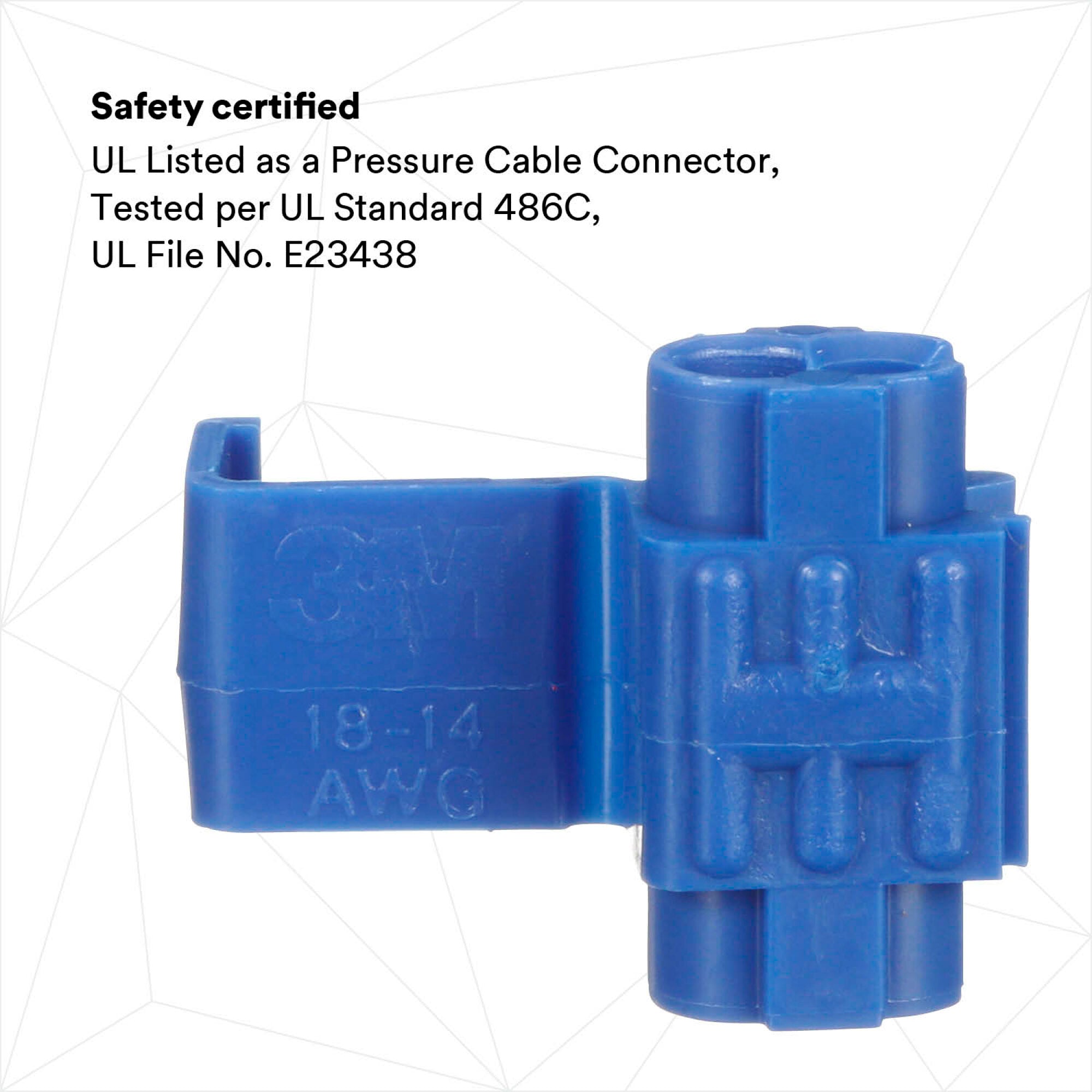

    UL Listed and RoHS 2011/65/EU Compliant

    Quantity: 100 per pouch

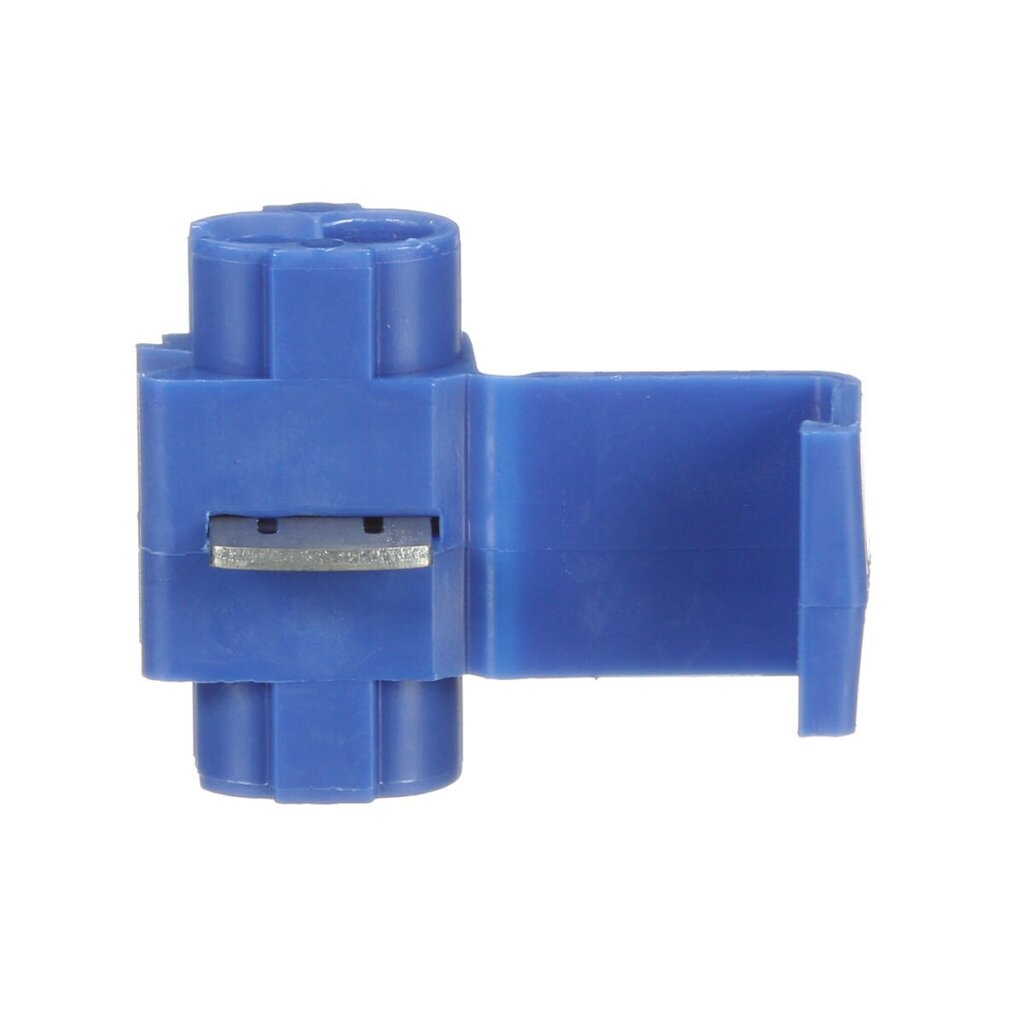

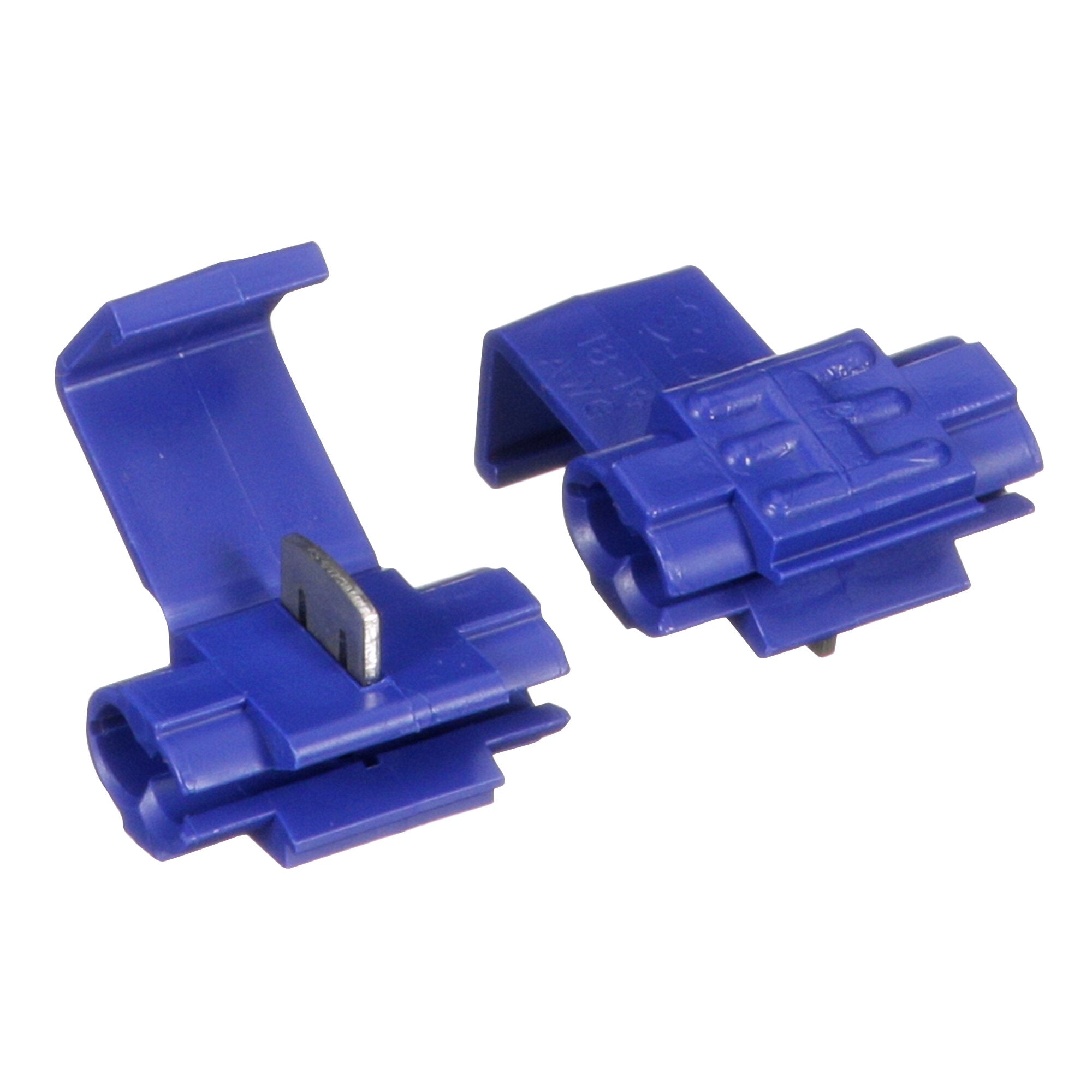

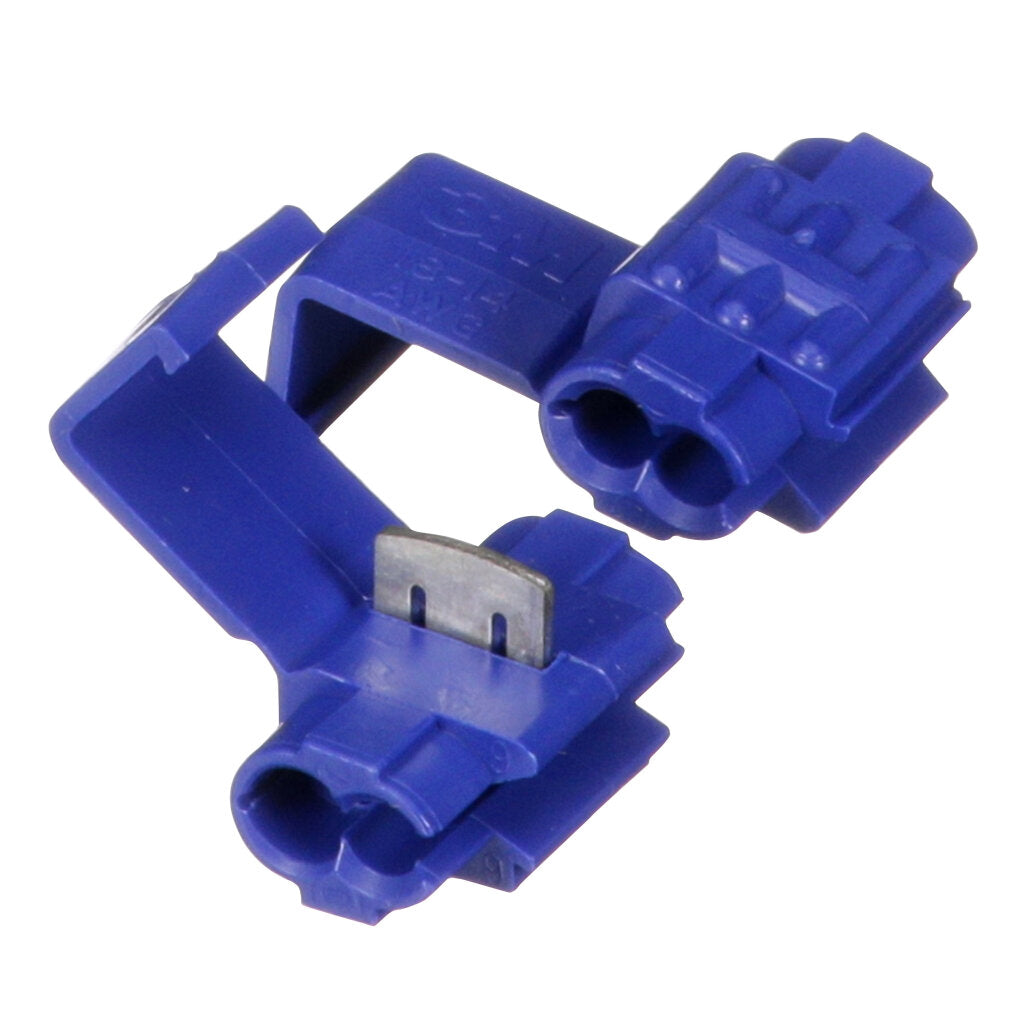

3M™ Scotchlok™ 560B IDC Double Run or Tap Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector insulation is manufactured from polypropylene and is ideal for tap or parallel splicing. It is 600V-rated for building wire and 1000V-rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C).

3M™ Scotchlok™ 560B IDC Double Run or Tap Electrical Connector is color coded for quick and easy identification of the wire size required. The flame retardant connector is suitable for general purpose electrical connections on an auto, boat, van or trailer. UL Listed and RoHS 2011/65/EU Compliant.
