Dimensions and Specifications
Application Temperature Range (Celsius)
0 - 49 Degrees Celsius
Application Temperature Range (Fahrenheit)
32 - 120 Degrees Fahrenheit
Closure Length (Imperial)
3.66 in
Closure Length (Metric)
93 mm
Conductor Sizes (Imperial)
18 AWG
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
6 mm²
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in

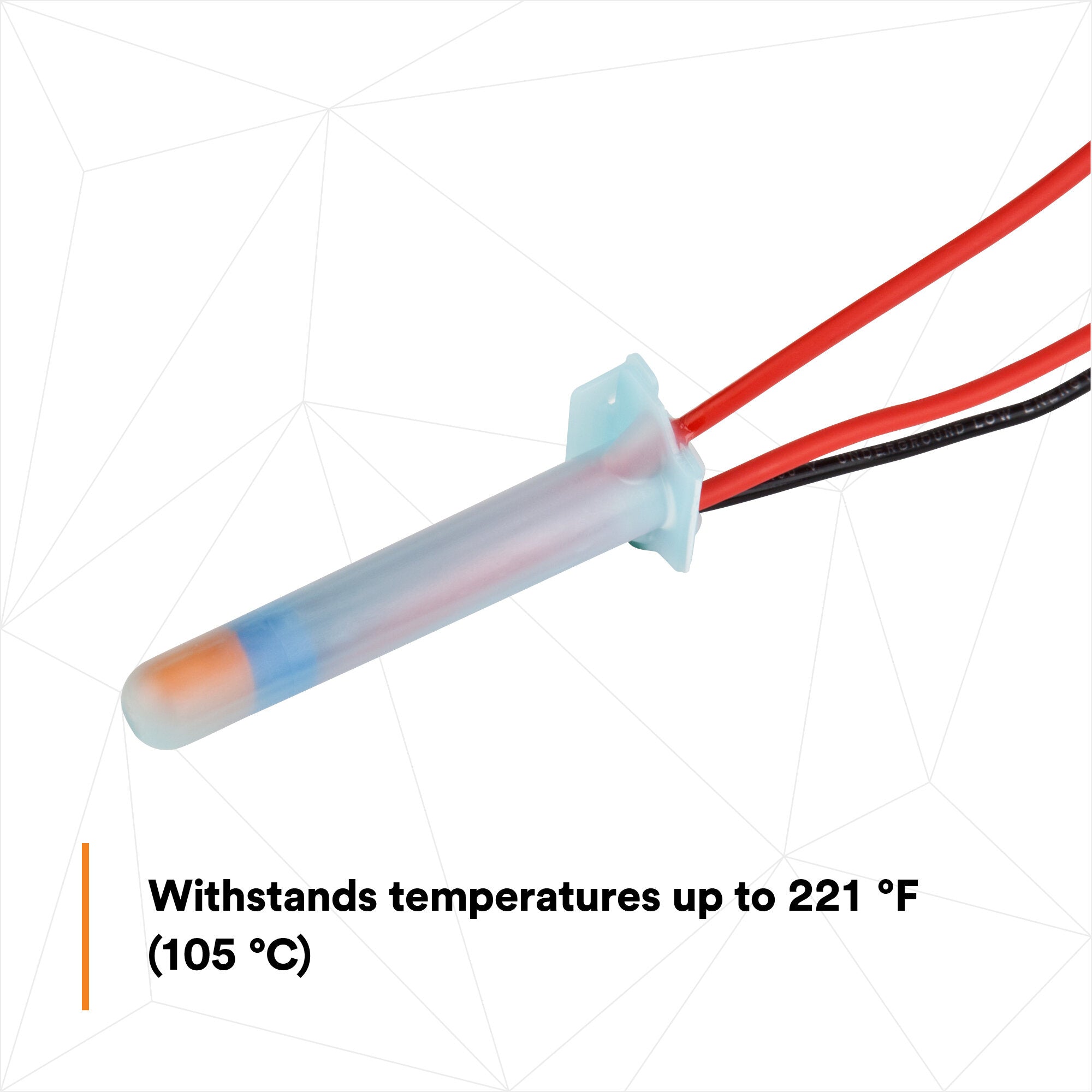

Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Maximum Voltage Rating
600 V
Minimum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Metric)
0.75 mm²
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Voltage Rating
600 V
Conductor Sizes Imperial
18 - 10 AWG
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
6
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
18 AWG
Minimum Conductor Size Metric
1 mm²
