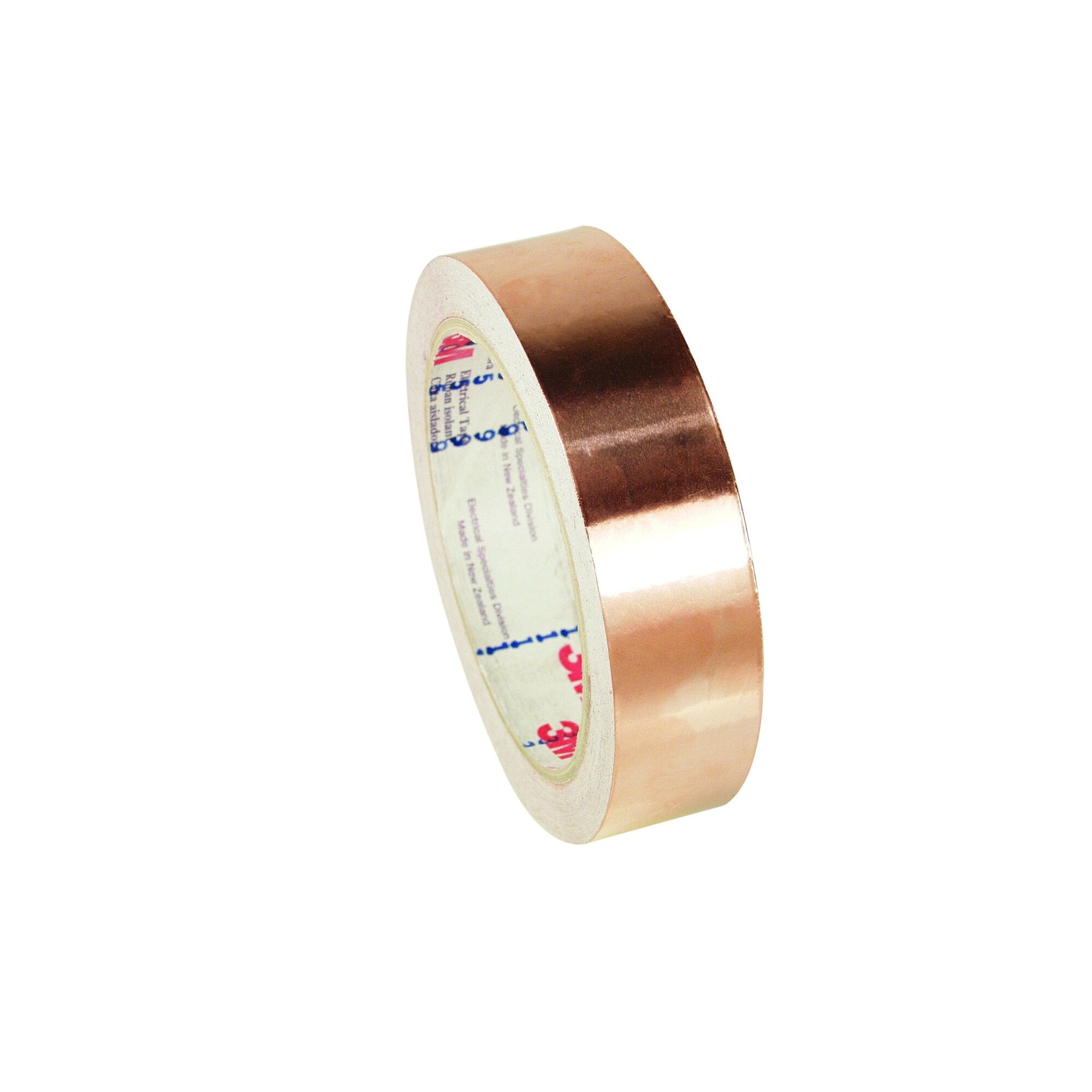

3M EMI Copper Foil Shielding Tape 1181, 3/8 in x 18 yd (9.52 mm x 16.5m)

by 3M
No reviews
Original price $35.99 - Original price $35.99
Original price
$35.99
$35.99 - $35.99
Current price $35.99
Free shipping
3M Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die... Read more
This product is made to order. Please allow 14 days for production.

Overview

3M

3M EMI Copper Foil Shielding Tape 1181, 3/8 in x 18 yd (9.52 mm x 16.5m)

3M Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.3M™ EMI Shielding Tape 1181 has a deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
  • Unique adhesive creates secure contact with the application surface
  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Rated for 600V applications
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Adhesive Type
Conductive Acrylic
Country Of Origin
Taiwan
Lead Time
14 days
California Residents
Dimensions and Specifications
Backing (Carrier) Thickness (Imperial)
1.6 mil
Backing (Carrier) Thickness (Metric)
0.04 mm
Overall Length (Imperial)
18 yd
Overall Length (Metric)
16.5 m
Overall Width (Imperial)
0.375 in
Overall Width (Metric)
9.53 mm
Overall Length Imperial
18.0
Material and Composition
Backing (Carrier) Material
Copper Foil, Flat
Material
Copper Foil
Backing Carrier Material
Copper Foil, Flat
Shelf Life
1825
Certifications and Standards
Specifications Met
RoHS 2011/65/EU
