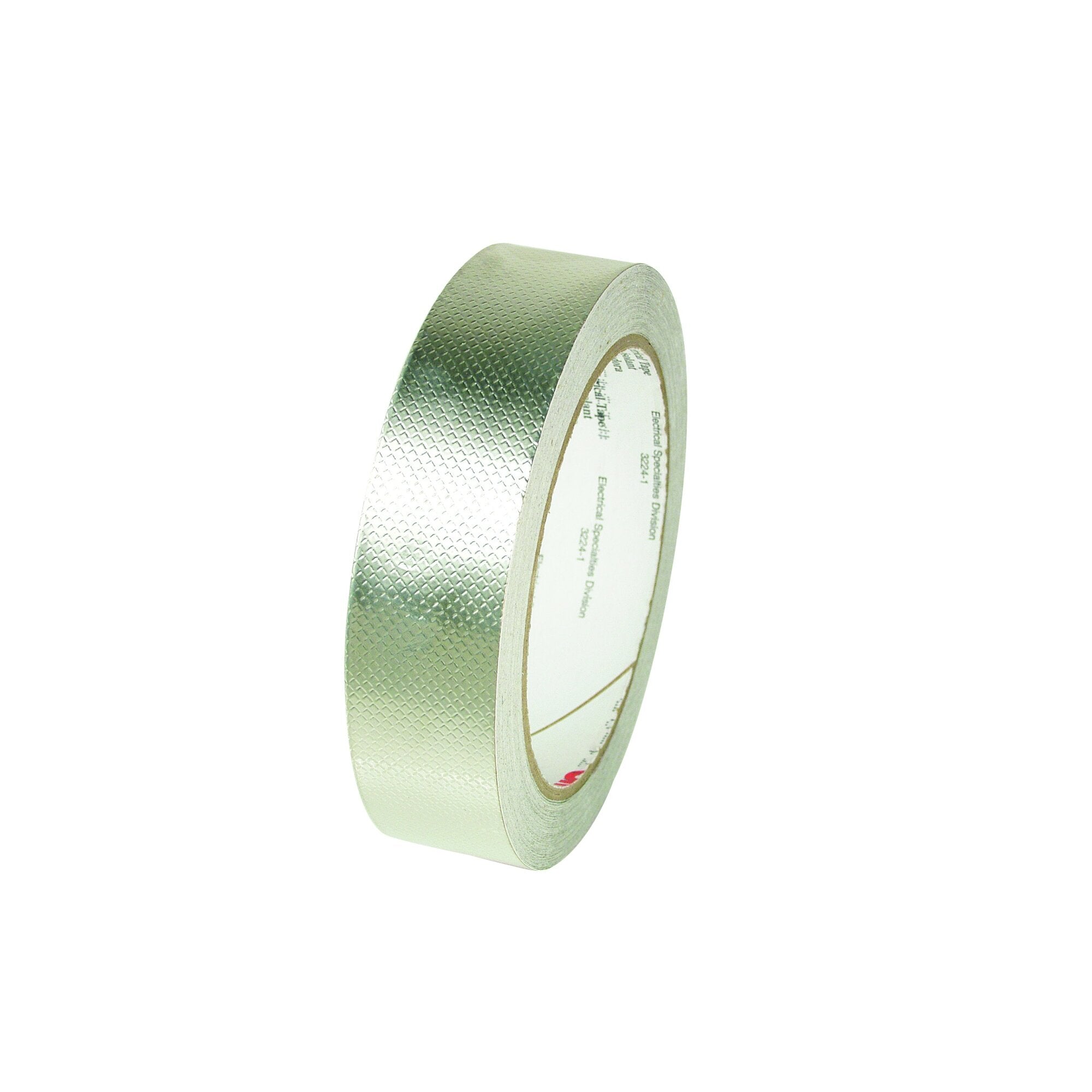

3M™ EMI Embossed Tin-Plated Copper Shielding Tape 1345, 3/4 in x 18 yd

Features

12 rolls per case, made to order

Embossed, copper foil backing resists discoloration and oxidation

Offers stable contact resistance and good shielding effectiveness

Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate

Tape measures 3/4 in x 18 yds x 4 mil

Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms

Withstands a wide temperature range of -40 to 266 degrees F (-40 to 130 degrees C)

Offers outstanding solderability with tin-plated coating

Rated for 600V applications

UL Listed and RoHS 2011/65/EU Compliant

3M™ Tape 1345 is a 4-mil thick EMI shielding tape with an acrylic adhesive. This flame-retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die-cutting and handling. The tape is rated for 600V dry applications.
