3M™ Fire Barrier Composite Sheet CS-195+, 16 in x 28 in, 1/case

by 3M
$180.99
1 sheet     Four-component intumescent system is ideal for firestopping larger penetrations such as cable trays and conduit    Forms effective intermittent fire-break within horizontal and vertical cable tray runs    Hard char material tightly... Read more

Overview

Brand img

3M™ Fire Barrier Composite Sheet CS-195+, 16 in x 28 in, 1/case

1 sheet

    Four-component intumescent system is ideal for firestopping larger penetrations such as cable trays and conduit

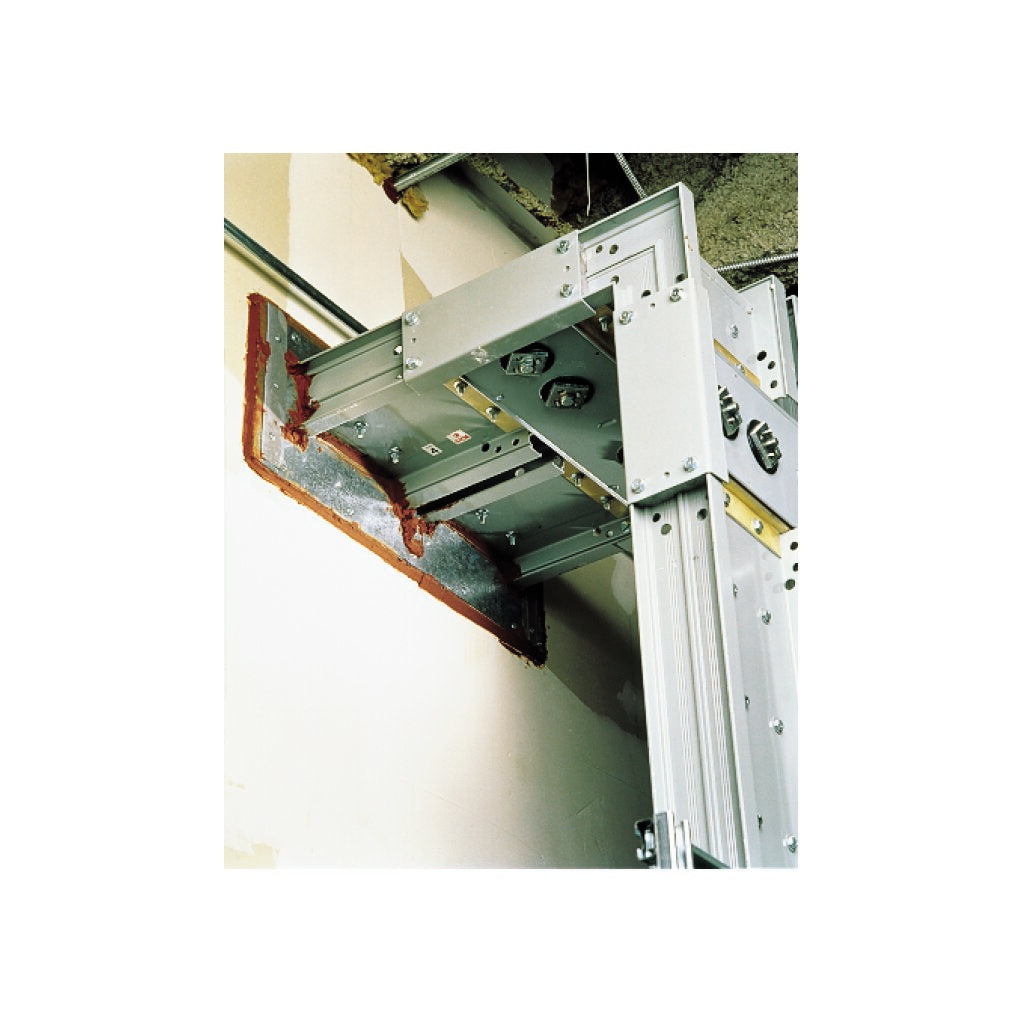

    Forms effective intermittent fire-break within horizontal and vertical cable tray runs

    Hard char material tightly seals penetrations against flame spread, smoke and toxic gases

    Easy to install: cut, form and install using common trade tools for nearly any size

    Thermally conductive: allows unwanted heat build-up to escape, helping reduce derating issues

    Re-enterable for new or retrofit installations

    Firestop tested for up to 4 hours in accordance with ASTM E 814 (UL 1479)

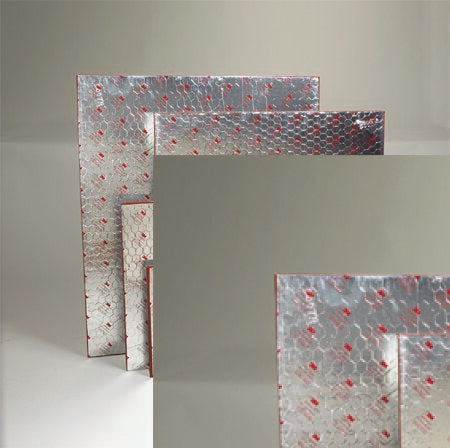

3M™ Fire Barrier Composite Sheet CS-195+ is a lightweight intumescent firestop that combines four components into a single system to help slow the spread of fire, smoke and noxious gases. Sheets combine 28-gauge steel, intumescent material, wire mesh and aluminum foil and are easy to handle and install with common trade tools. They are firestop tested for up to 4 hours of fire protection.

Firestopping in Nearly Any Size and Shape

For larger openings and penetrations where putties and strips alone aren’t enough, our 3M™ Fire Barrier Composite Sheet CS-195+ is a one-part firestop system that installers can cut and form to exact sizes – no mixing or damming required. These sheets are easily installed using common tools and fasteners. Ideal for firestopping penetrations such as cable trays and conduit, the sheets feature intumescent material bonded to 28-gauge galvanized steel, reinforced on its facing side with hexagonal wire mesh and covered in aluminum foil. This combination of organic/inorganic materials makes these composite sheets a reliable firestop in tested and listed systems, new and retrofit. These materials also make an excellent thermal conductor, helping to dispel built-up radiant heat to preserve process and control equipment and help minimize cable derating concerns.

Recommended Applications

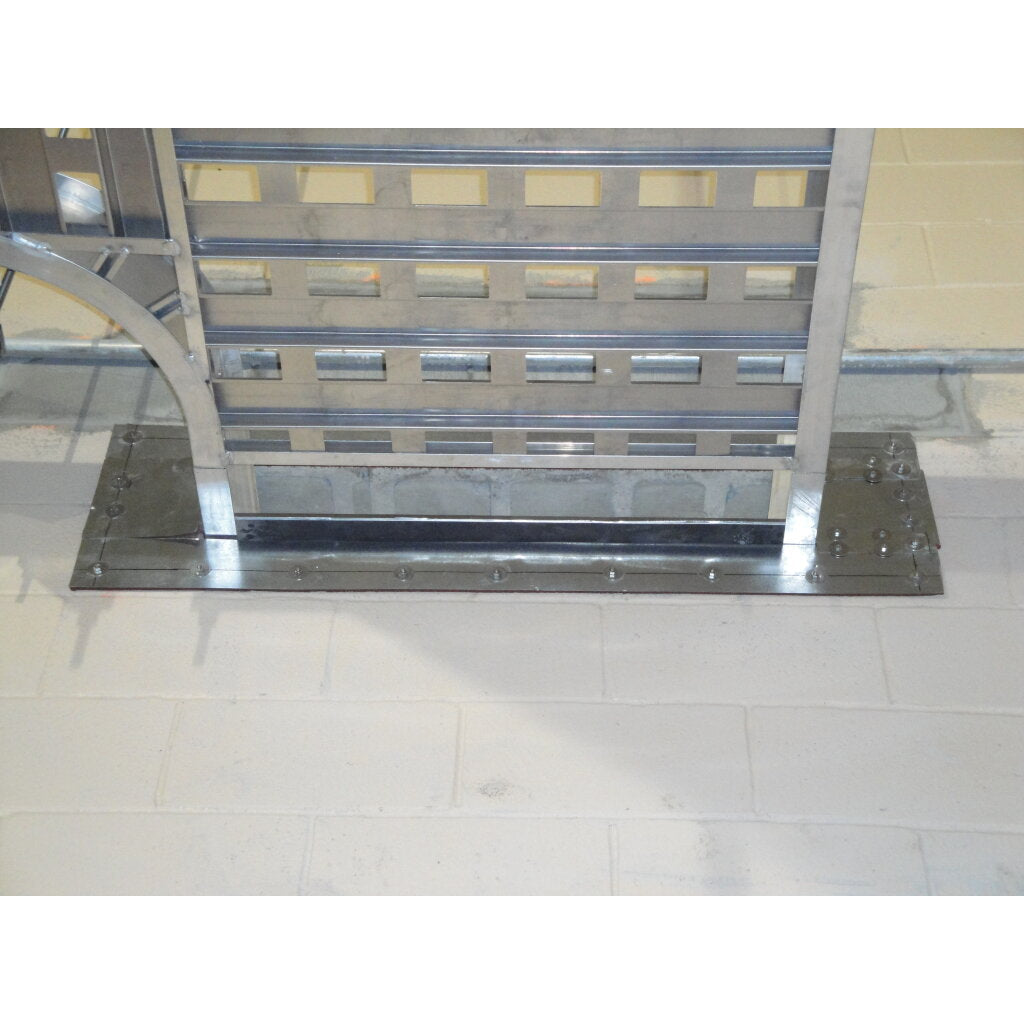

    Seal penetrations through fire-rated walls and floors

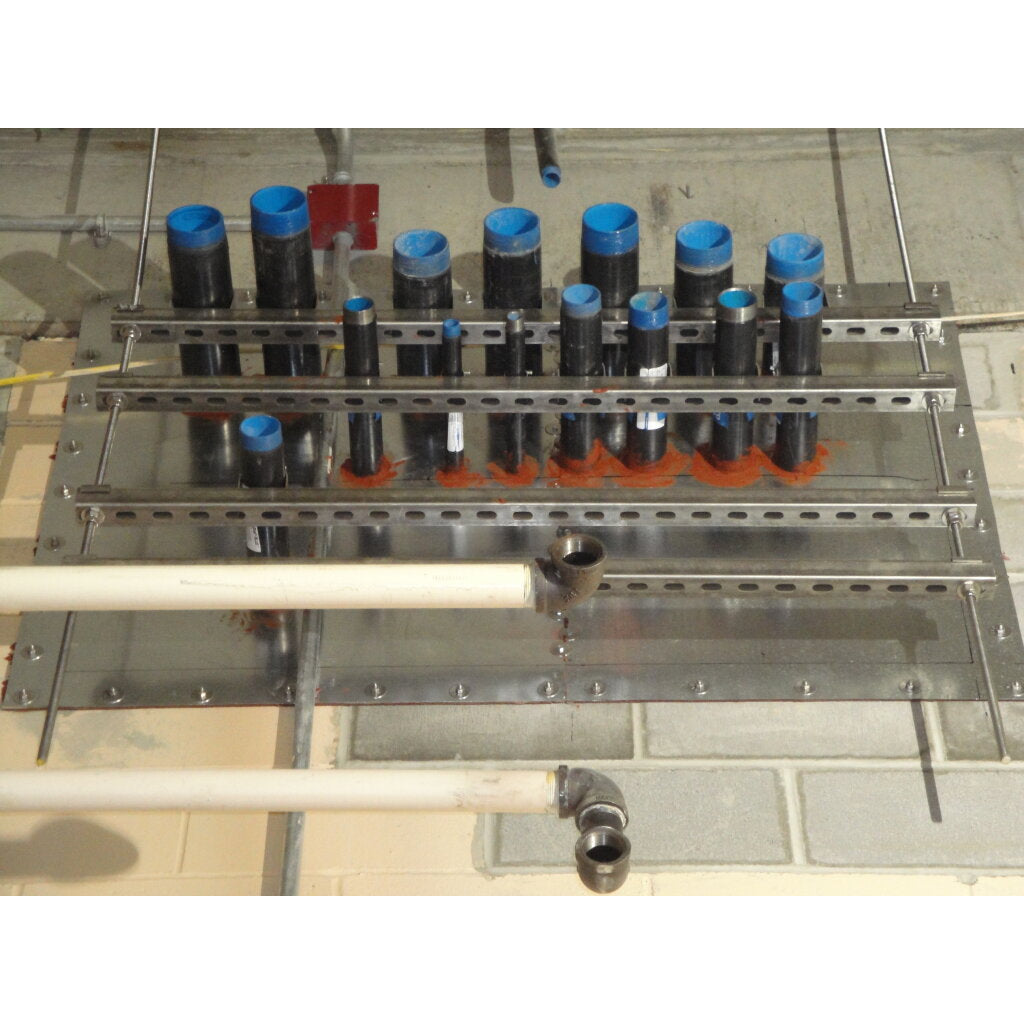

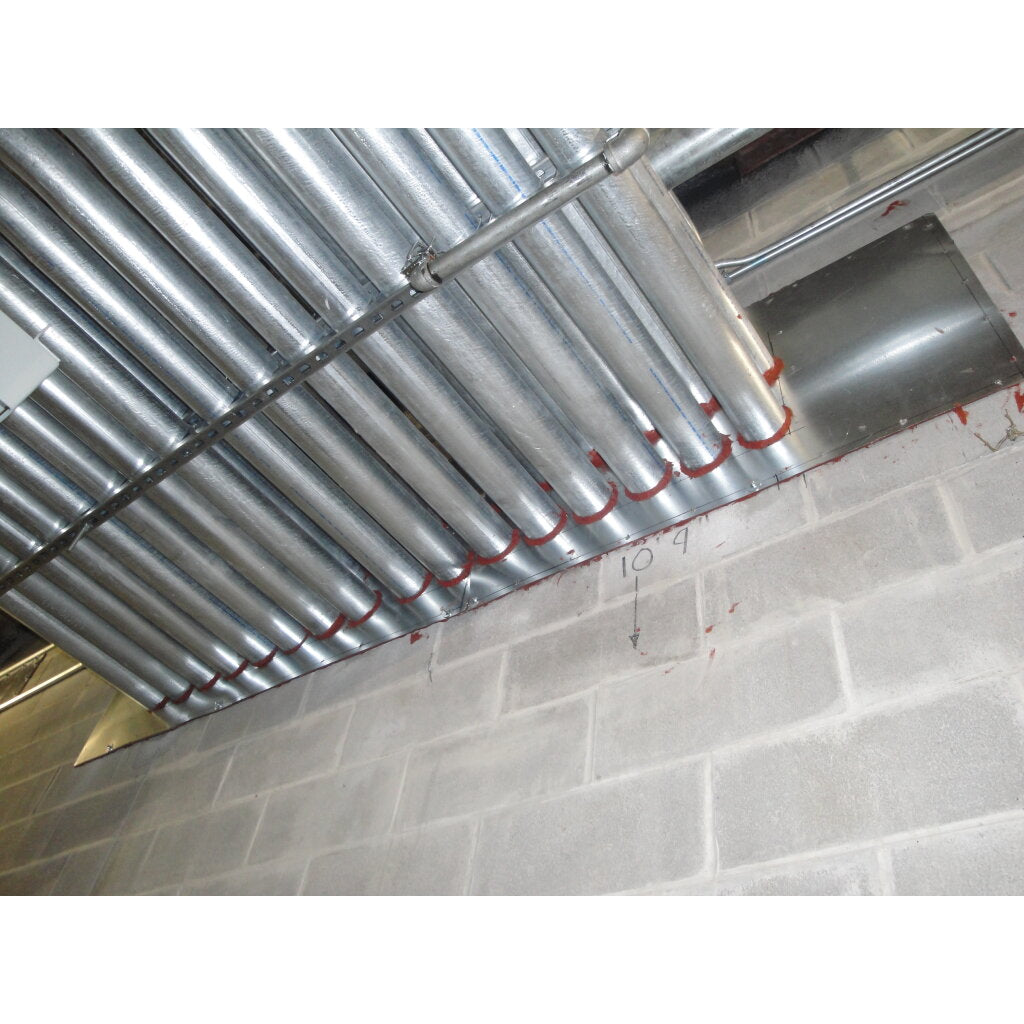

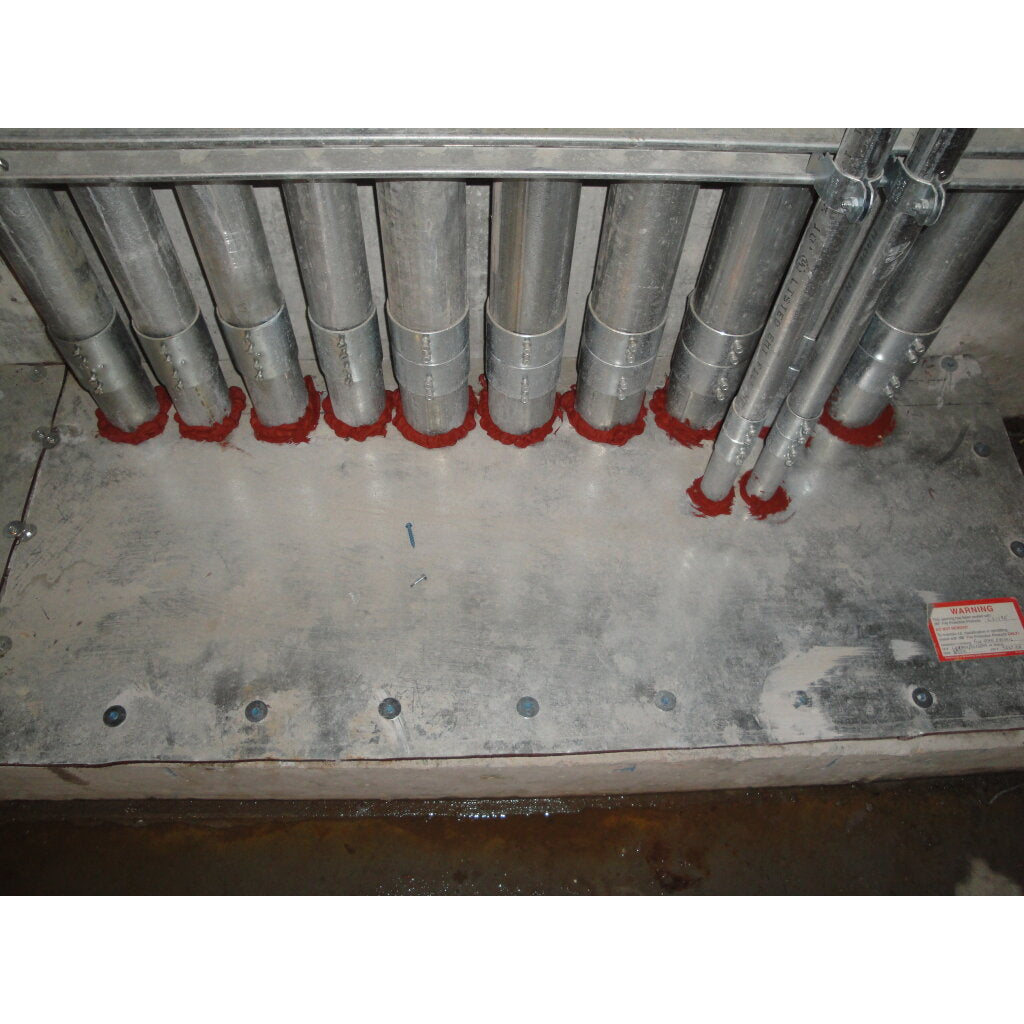

    Firestop penetrations including cable trays, cable, piping and large blanks

    Multiple component installations where heat build-up and derating are concerns

    Shield conduit, HVAC ductwork, panels, valves and vital heat-sensitive process equipment

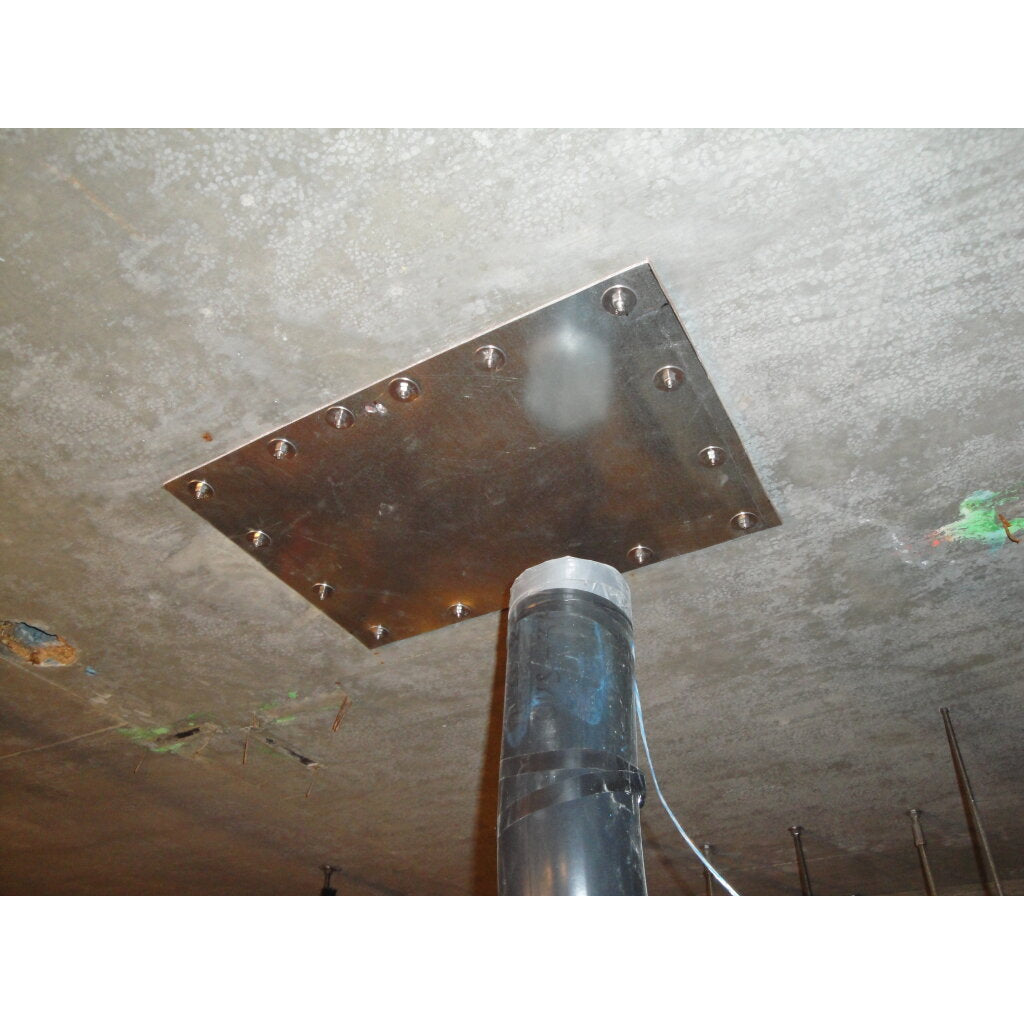

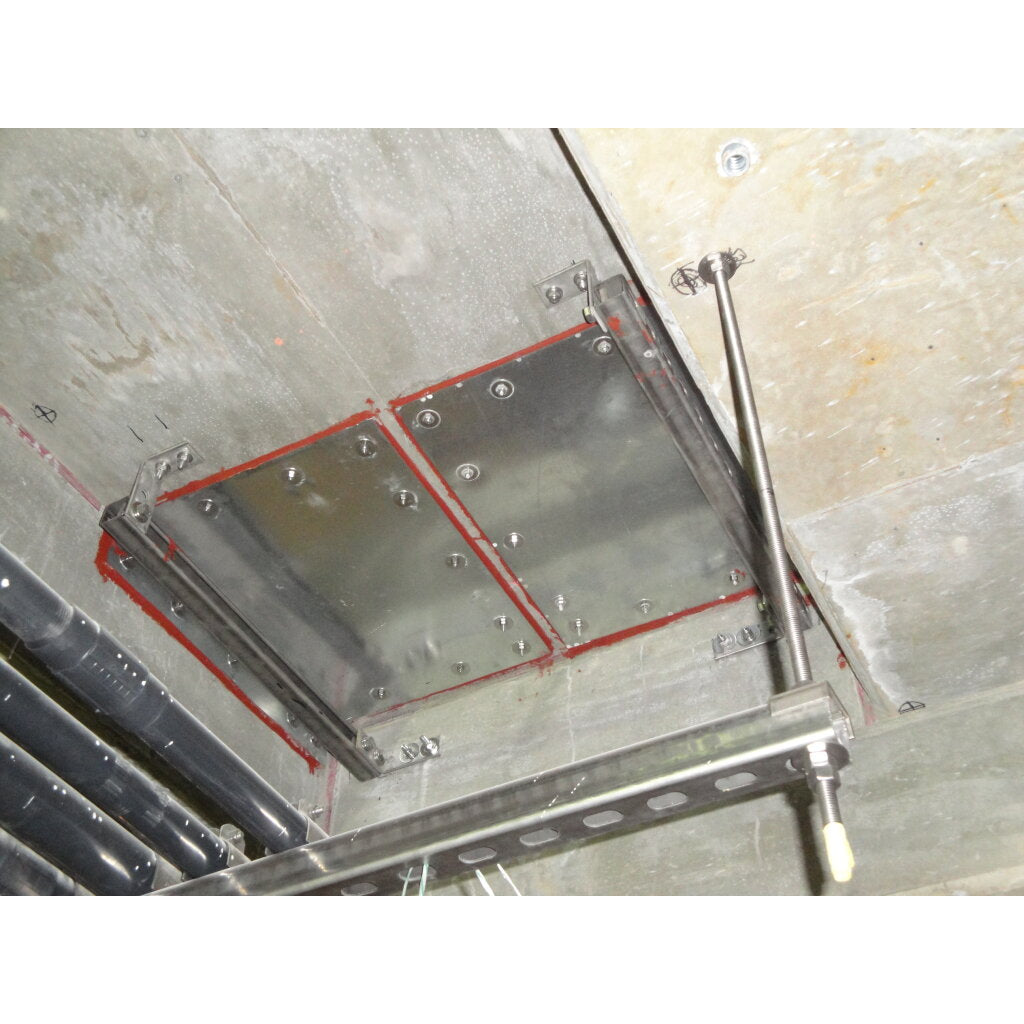

    Fire-resistive and smoke seal for any shape opening in concrete block or slabs

    Protect cable drop-outs, junction boxes and cabinets

    Intermittent firestop in horizontal and vertical cable tray runs

    In conjunction with 3M™ Fire Barrier Sealant or Moldable Putty MP+



Product Details

General Information
Manufacturer
3M
Part Number
7100139139
Product Type
Industrial
