3M Fire Barrier Duct Wrap Collar 615+, 1.5 in x 6 in x 25 ft

by 3M
Original price $135.99 - Original price $135.99
Original price
$135.99
$135.99 - $135.99
Current price $135.99
Free shipping
Thin, lightweight and flexible, 3M Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap... Read more
Please allow 2 days for production.

Overview

3M

3M Fire Barrier Duct Wrap Collar 615+, 1.5 in x 6 in x 25 ft

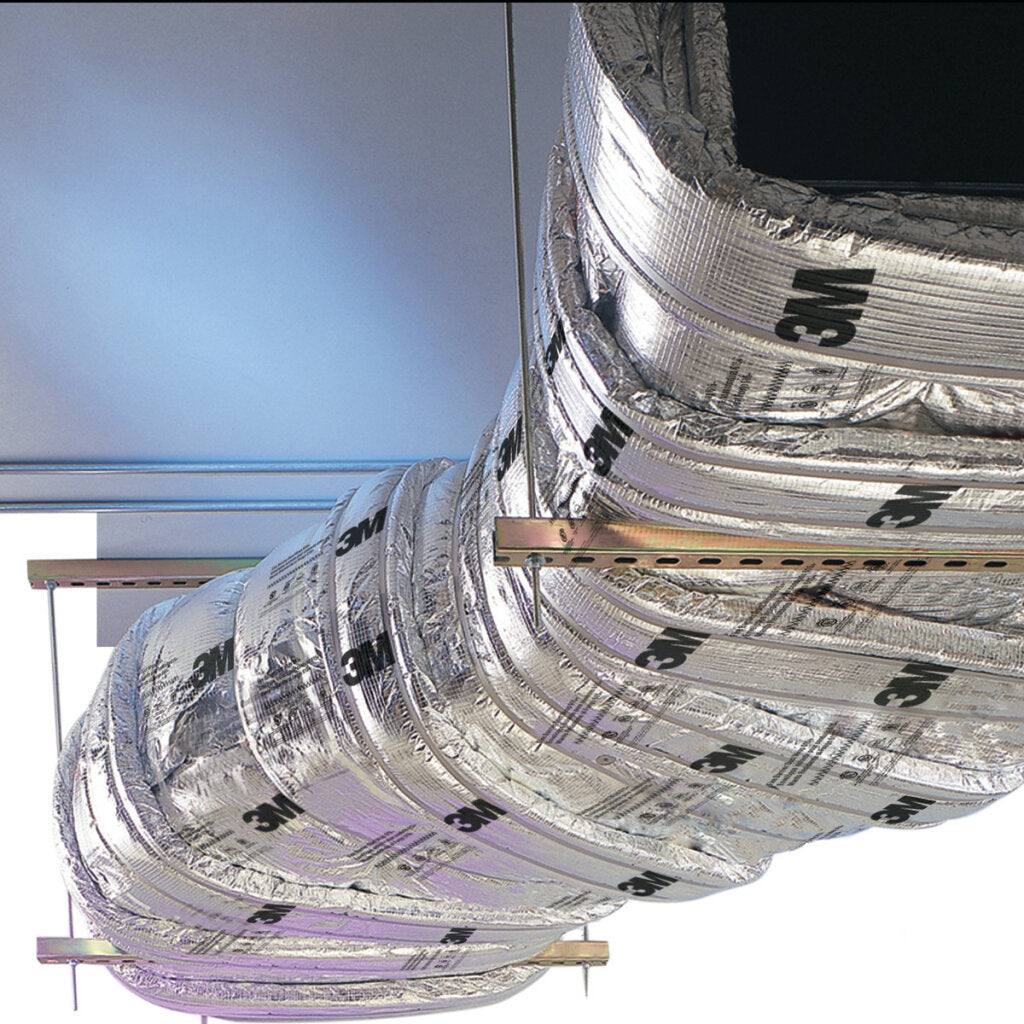

Thin, lightweight and flexible, 3M Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts.

Lightweight, Thin and Low-Profile Protection

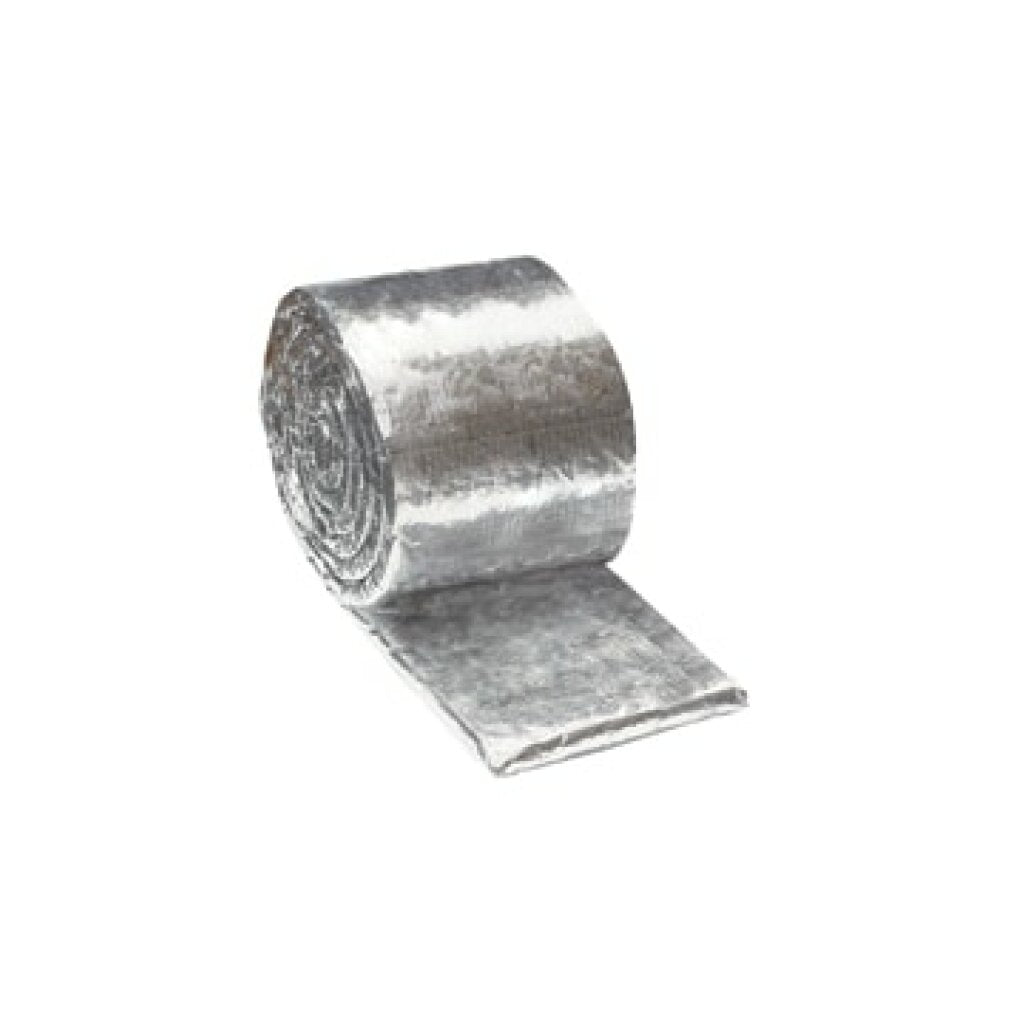

Our 3M™ Fire Barrier Duct Wrap 615+ is a fire-rated duct wrap consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Because the blanket is adhered to the foil scrim it will resist wrapping and slumping. This non-asbestos wrap installs easily due to its high flexibility, low weight and thin profile – making it an ideal choice for duct enclosure systems. It is a proven alternative to 1- and 2-hour fire resistant shaft enclosures for grease ducts. 3M™ Fire Barrier Duct Wrap 615+ performs in temperatures up to 2192°F/1200°C.

3M™ Fire Barrier Duct Wrap 615+ is the only fire-rated duct wrap product you'll ever need to help protect both grease ducts and air ducts while passing the necessary fire tests to achieve up to 2-hour fire-resistance requirements. It is third party certified to ASTM E2336 (grease duct test standard) and ISO 6944 (air duct test standard). It is tested and listed with UL and Intertek, meets IBC, IMC, UMN, NFPA and other key life safety codes. It is listed by California State Fire Marshall (listing No. 2440-0941:5555).

Recommended Applications

  • Fire resistive enclosure for commercial kitchen grease ducts
  • Stair pressurization ducts
  • Life safety air and ventilation ducts
  • Proven alternative to 1- and 2-hour fire resistant rated shaft enclosures for grease ducts
  • Lightweight and thin, for ease of installation and space saving, while allowing custom installation applications with multiple layers where needed
  • Butted inner layer in 2-layer grease duct applications
  • Zero clearance to combustible throughout the entire enclosure system

Product Details

General Information
Brand
3M™
Product Type
Duct Wrap Collar
Country Of Origin
Mexico
Lead Time
2 days
California Residents
Dimensions and Specifications
Overall Length (Imperial)
25 ft
Overall Length (Metric)
7.62 m
Overall Width (Imperial)
6 in
Overall Width (Metric)
15.24 cm
Other Details
Water-tight
No
Water Tight
No
Certifications and Standards
Fire Rating
2 Hour
