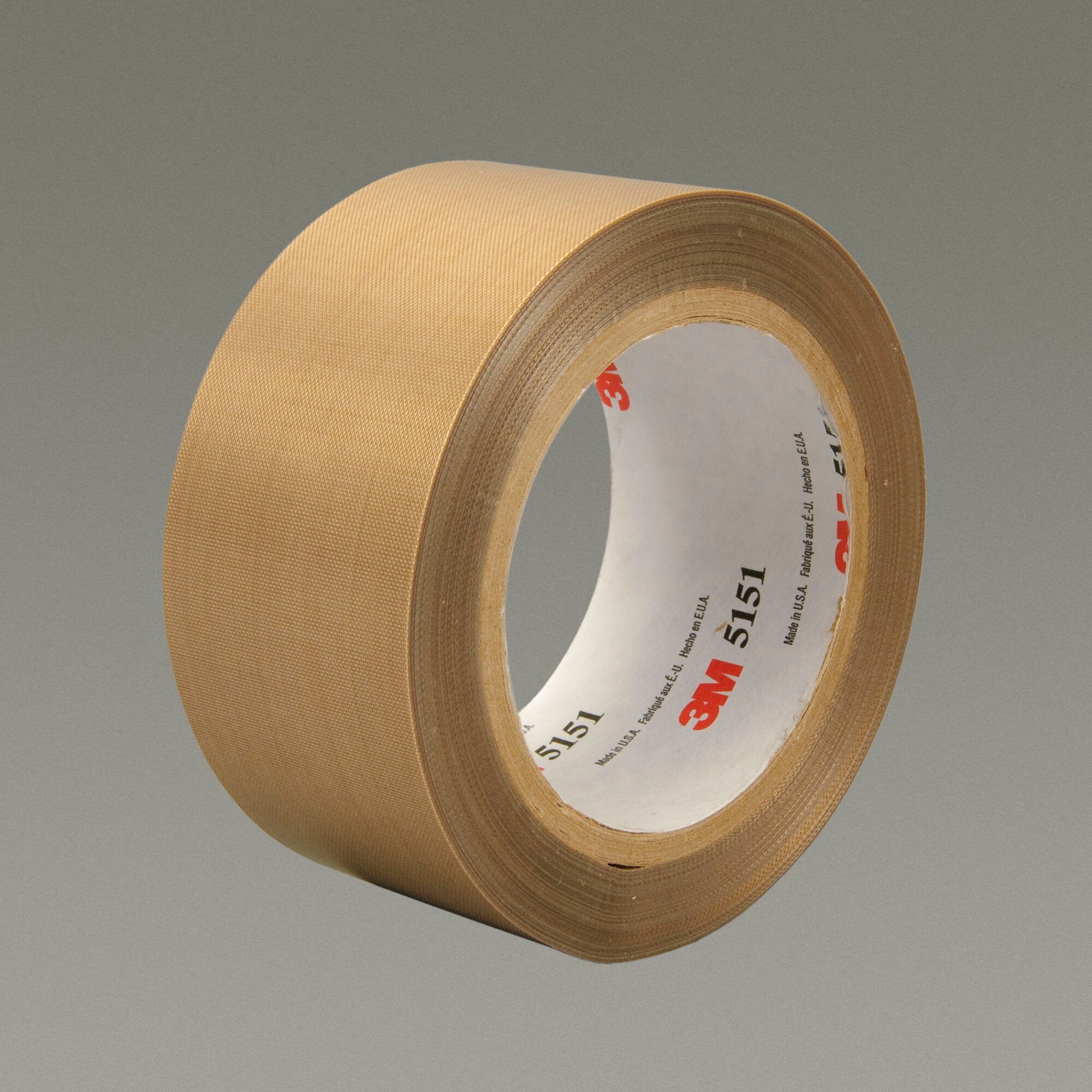

3M General Purpose PTFE Glass Cloth Tape 5151, Light Brown, 1 in x 36yd, 5.3 mil

by 3M
No reviews
Original price $2,300.99 - Original price $2,300.99
Original price
$2,300.99
$2,300.99 - $2,300.99
Current price $2,300.99
Free shipping
Formed from a light brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene), 3M™ General Purpose PTFE Glass Cloth Tape 5151 provides a slick surface on process machinery. This tape offers an extremely low coefficient... Read more
This product is made to order.

Overview

3M

3M General Purpose PTFE Glass Cloth Tape 5151, Light Brown, 1 in x 36yd, 5.3 mil

Formed from a light brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene), 3M™ General Purpose PTFE Glass Cloth Tape 5151 provides a slick surface on process machinery. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Durability to Withstand Rugged Conditions
For high strength applications requiring increased durability, look no further than our 3M™ General Purpose PTFE Glass Cloth Tape 5151. Resistant to most chemicals, this reinforced PTFE tape provides a quick and durable solution to help reduce build-up on packaging and heat sealing machines. It functions as an anti-stick or easy-release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion. PTFE is chemical resistant and can be used as a temporary chemical barrier. The tape has a wide temperature use range, from -100°F/-73°C to 500°F/260°C, making it suitable for a variety of high temperature applications.

Recommended Applications
  • Heat sealing machines
  • Ironing and pressing equipment
  • High temperature bundling

What is PTFE?
Polytetrafluoroethylene (PTFE) is a synthetic material used in a variety of industries and applications to reduce the coefficient of friction. Because of its non-stick properties and high heat resistance, PTFE is used as a non-stick coating for frying pans and other cookware. It makes an excellent insulating material for electrical applications because of its non-conductivity. PTFE is non-reactive to numerous chemicals, due to the chemical resistance of fluoropolymer bonds; making it effective in containers and pipework for reactive and corrosive substances. PTFE reduces friction, wear and energy efficiency of machinery. Because of its low friction, PTFE is used in industrial applications where sliding action of parts is required, such as with bearings, gears, slide plates, etc. In these applications, it delivers significantly better performance than nylon or acetal. 3M has taken this versatile compound through an extrusion process to create a thin film, then paired the film with 3M’s unique pressure sensitive adhesives to make these PTFE tapes. Innovative, high performance 3M PTFE tapes are reliable, durable and reduce friction.

  • Glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Silicone adhesive offers high temperature performance and long aging
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Excellent chemical resistance enables tape to withstand challenging applications

Product Details

General Information
Brand
3M™
Adhesive Type
Silicone
Country Of Origin
United States
California Residents
Dimensions and Specifications
Back Side Adhesive Thickness (Metric)
0.08 mm
Backing (Carrier) Thickness (Imperial)
3 mil
Backing (Carrier) Thickness (Metric)
0.08 mm
Maximum Operating Temperature (Celsius)
260 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
500 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)
-100 Degree Fahrenheit
Overall Length (Imperial)
36 yd
Overall Length (Metric)
32.91 m
Overall Width (Imperial)
1 in
Overall Width (Metric)
25.4 mm
Tensile Strength (Imperial)
1760.0 oz/in
Tensile Strength (Metric)
1925 N/100mm
Total Tape Thickness Without Liner (Imperial)
5.3 mil
Total Tape Thickness Without Liner (Metric)
0.13 mm
Other Details
Elongation At Break
5.0 %
Industries
Appliance
Units Per Case
36.0
Material and Composition
Backing (Carrier) Material
Glass Cloth/PTFE
Shelf Life
24 Month
Color and Appearance
Product Color
Light Brown
