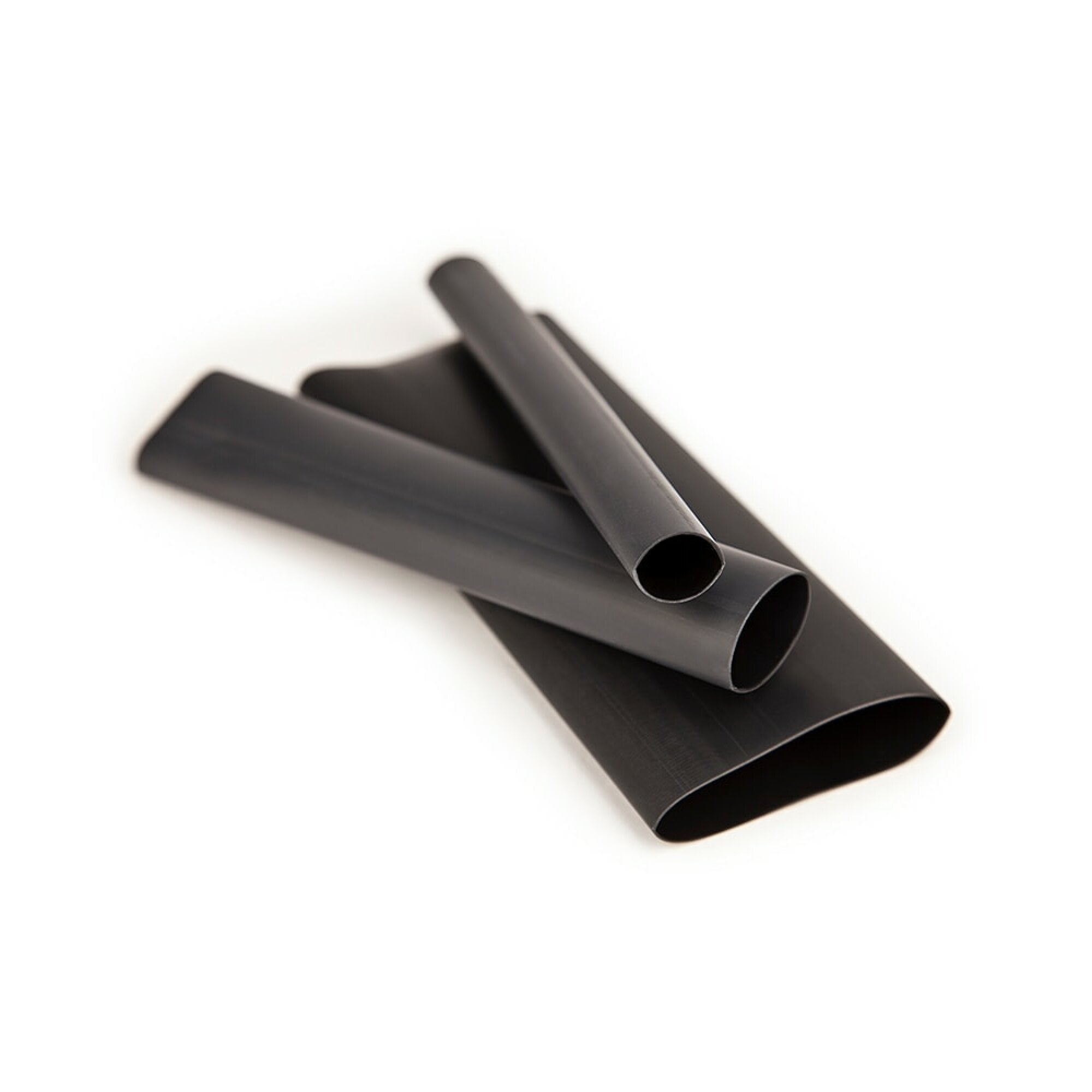

3M Heat Shrink Flexible Polyolefin Tubing EPS200-3/4-48"-Black-5 Pcs

by 3M
No reviews
Original price $75.99 - Original price $75.99
Original price
$75.99
$75.99 - $75.99
Current price $75.99
Free shipping
3M EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications.... Read more

Overview

3M

3M Heat Shrink Flexible Polyolefin Tubing EPS200-3/4-48"-Black-5 Pcs

3M EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications. 3M™ Heat Shrink Tubing EPS 200 provides a skintight fit and strain relief protection of electronic components, truck wiring splices or wire bundling. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance. The tubing also maintains a high flow and has superior adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE AS23053/4, Class 2, CSA Certified and RoHS 2011/65/EU Compliant.
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications

Product Details

General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Country Of Origin
United States
California Residents
Dimensions and Specifications
Expanded Inner Diameter
0.75 in
Expanded Inner Diameter (Metric)
19.05 mm
Inner Diameter After Shrink (Imperial)
0.375 in
Inner Diameter After Shrink (Metric)
9.53 mm
Inner Diameter Before Shrink (Imperial)
0.75 in
Inner Diameter Before Shrink (Metric)
19.05 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Recovered Inner Diameter
0.375 in
Recovered Inner Diameter (Metric)
9.53 mm
Tensile Strength (Imperial)
2100 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
48.0
Other Details
Elongation
450 %
Flame Retardant
Yes
Mil Spec
AMS-DTL-23053/4, Class 2
Minimum Expanded Tubing I. D.
0.75 in
Non-Corrosive
Yes
Shrink Ratio
2:1
UL File Number
E-39100
Units Per Case
5.0
Family
3M™ Heat Shrink EPS-200
Solution For
Wireless Network: Infrastructure Accessories
Tensile Strength Imperial
2100 Pound-Force Per Square Inch
Material and Composition
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test [jacket]
