3M Highland Nylon Fully Insulated Female Disconnect TerminalFDI18-187Q

by 3M
No reviews
Original price $65.99 - Original price $65.99
Original price
$65.99
$65.99 - $65.99
Current price $65.99
Free shipping
3M Highland Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures... Read more
Please allow 2 days for production.

Overview

3M

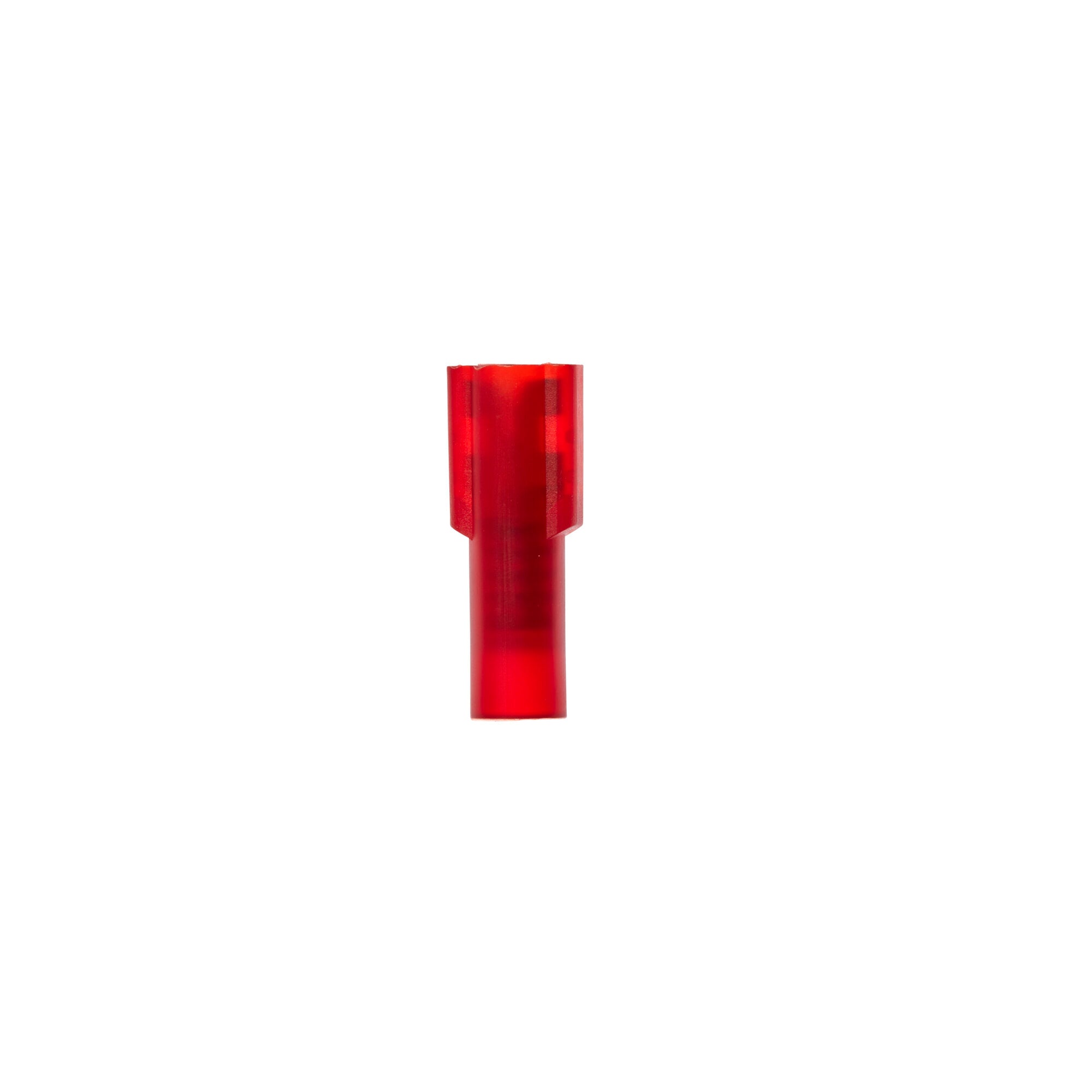

3M Highland Nylon Fully Insulated Female Disconnect TerminalFDI18-187Q

3M Highland Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Highland™ Nylon Fully Insulated Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping. RoHS 2011/65/EU Compliant.
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Disconnect Type
Female
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.085 Inch
Barrel Length (Imperial)
0.25 Inch
Barrel Length (Metric)
6.35 mm
Connection Width (Imperial)
0.187 in
Connection Width (Metric)
4.75 mm
Diameter (D)
0.23 Inch
Mates With Female Width
0.187 Inch
Mates With Male Tab Width (W')
0.187 Inch
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Maximum Insulation Outer Diameter (Imperial)
0.145 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Recommended Voltage Rating
600 V
Maximum Voltage Rating
600 to 1000 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Overall Diameter (Imperial)
0.23 in
Overall Diameter (Metric)
5.84 mm
Overall Length (Imperial)
0.81 in
Overall Length (Metric)
20.574 mm
Overall Width (Imperial)
0.3 in
Overall Width (Metric)
9.4 mm
Pad Width
0.187 in
Tab Width
0.187
Barrel Length Imperial
0.25 Inch
Barrel Length Metric
6.35 mm
Conductor Sizes Imperial
22 - 18 AWG
Maximum Insulation Outer Diameter Metric
3.7
Overall Length Imperial
0.81
Other Details
CSA File Number
LR22190
Fastener Orientation
Female
Max. Number Of Cores
414
UL File Number
E70512
Units Per Case
10.0
Units Per Bag
25
Material and Composition
Insulation Material
Nylon
Material
Plastic
Packaging and Shipping
Packaging
25 per bag
