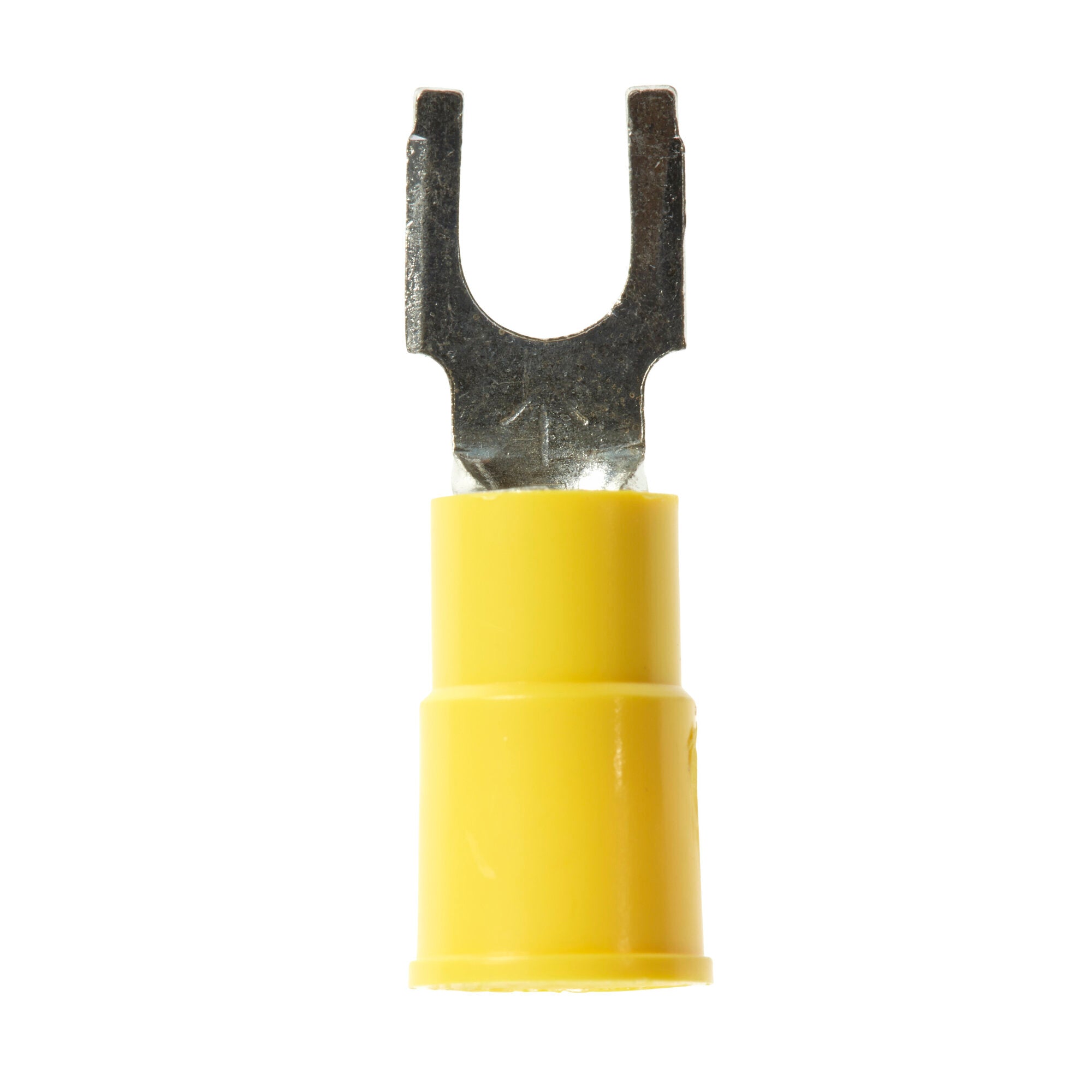

3M Highland Vinyl Insulated Block Fork Terminal BFV10-8Q, AWG 12-10

by 3M
No reviews
Original price $10.99 - Original price $10.99
Original price
$10.99
$10.99 - $10.99
Current price $10.99
Free shipping
Looking for a high-performing fork terminal? Try the 3M Highland Color-Coded Block Fork. It's safe, reliable and provides a great fit every time. It features electrolytic copper for good conductivity and a tin-plated finish for... Read more
Please allow 2 days for production.

Overview

3M

3M Highland Vinyl Insulated Block Fork Terminal BFV10-8Q, AWG 12-10

Looking for a high-performing fork terminal? Try the 3M Highland Color-Coded Block Fork. It's safe, reliable and provides a great fit every time. It features electrolytic copper for good conductivity and a tin-plated finish for corrosion resistance. The butted-seam barrel is vinyl-insulated so it operates well in temperatures ranging from -40 to 221 degrees F (-40 to 105 degrees C).3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block

Product Details

General Information
Brand
Highland™
Terminal Style
Block
Terminal Type
Fork
Disconnect Type
Non Pertinent
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Connection Width (Imperial)
0.164 in
Connection Width (Metric)
4.166 mm
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
1.03 in
Overall Length (Metric)
26.16 mm
Overall Width (Imperial)
0.32 in
Overall Width (Metric)
8.128 mm
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
5.26 mm²
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
3.31 mm²
Overall Length Imperial
1.03
Material and Composition
Insulation Material
Vinyl
