3M Highland Vinyl Insulated Locking Fork Terminal LFV14-6Q, AWG 16-14

by 3M
No reviews
Original price $11.99 - Original price $11.99
Original price
$11.99
$11.99 - $11.99
Current price $11.99
Free shipping
The 3M Highland Color-Coded Locking Fork offers a great way to protect your lugs. The terminal has a vinyl-insulated butted-seam barrel to provide a layer of protection, and a spring-like tongue to ensure a great... Read more
Please allow 2 days for production.

Overview

3M

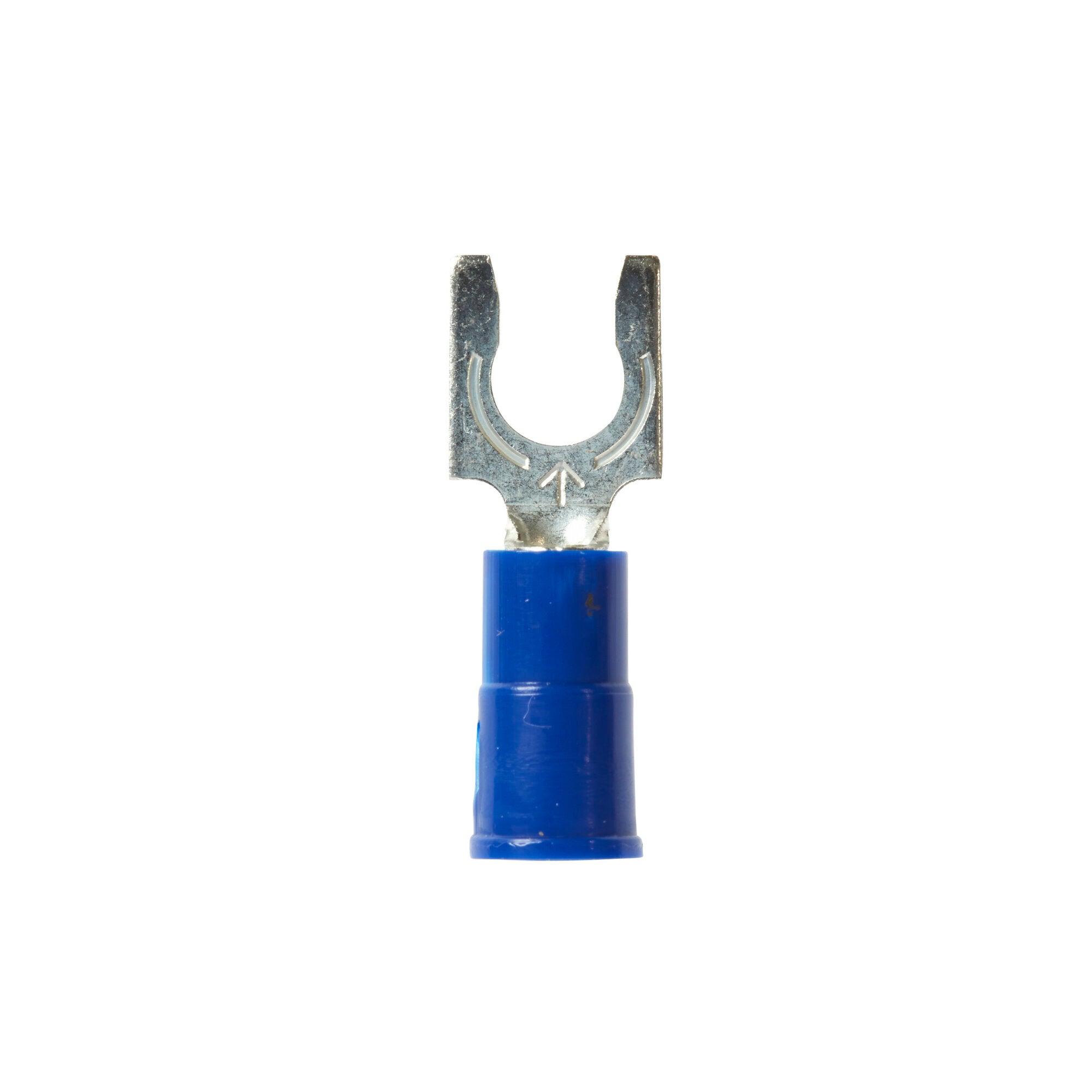

3M Highland Vinyl Insulated Locking Fork Terminal LFV14-6Q, AWG 16-14

The 3M Highland Color-Coded Locking Fork offers a great way to protect your lugs. The terminal has a vinyl-insulated butted-seam barrel to provide a layer of protection, and a spring-like tongue to ensure a great fit around the stud. Its constructed from electrolytic copper to ensure good conductivity for smooth operation. Studs can last longer with its corrosion-resistant tin-plated finish.3M™ Highland™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Fork Type
Locking
Terminal Style
Locking
Terminal Type
Fork
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.09 Inch
Barrel Length (Imperial)
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Lock Width
0.27 Inch
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.88 in
Overall Width (Imperial)
0.25 in
Stud Size
#6
Barrel Length Imperial
0.25 Inch
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.08 mm²
Minimum Conductor Size Imperial
16 AWG
Minimum Conductor Size Metric
1.31 mm²
Overall Length Imperial
0.88
Other Details
CSA File Number
LR22190
Clearance (C)
0.25 Inch
Dimension E
0.7 Inch
UL File Number
E23438
Material and Composition
Insulation Material
Vinyl
Packaging and Shipping
Packaging
25 per bag
