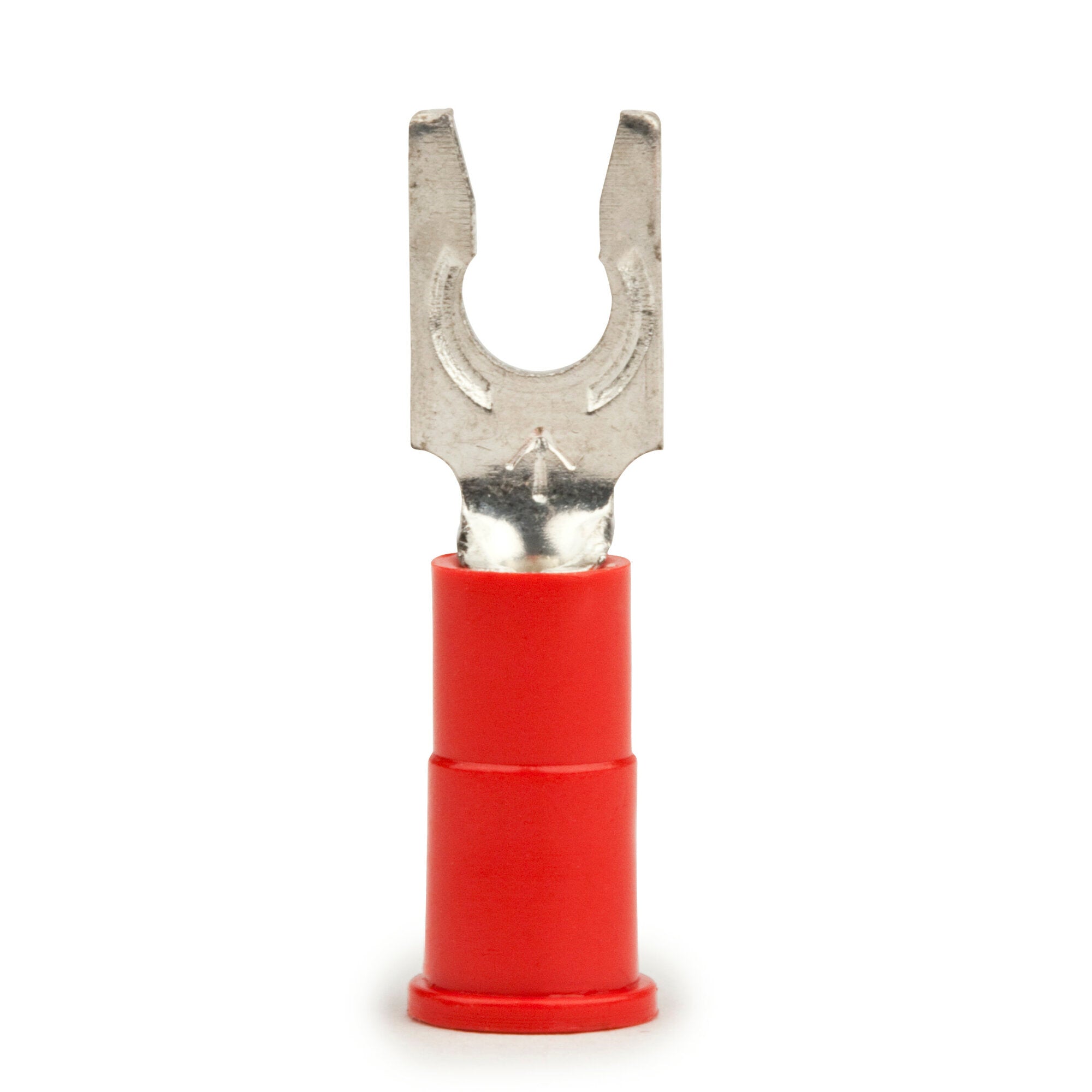

3M Locking Fork, Vinyl Insulated Butted Seam 22-18 AWG, 94867,SS-31-8-P

by 3M
No reviews
Original price $14.99 - Original price $14.99
Original price
$14.99
$14.99 - $14.99
Current price $14.99
Free shipping
3M Highland Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees... Read more
Please allow 2 days for production.

Overview

3M

3M Locking Fork, Vinyl Insulated Butted Seam 22-18 AWG, 94867,SS-31-8-P

3M Highland Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Highland™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud

Product Details

General Information
Brand
3M™
Fork Type
Locking
Terminal Style
Locking
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
.0823 mm²
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Maximum Conductor Size Imperial
18 AWG
Maximum Conductor Size Metric
.0823 mm²
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
0.326 mm²
Material and Composition
Insulation Material
Vinyl
