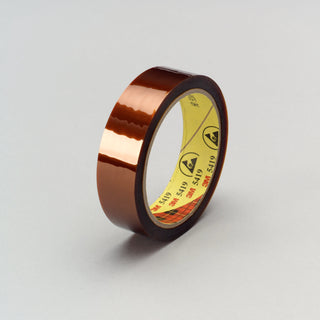

3M Low-Static Polyimide Film Tape 5419 Gold, 1/4 in x 36 yds x 2.7 mil

by 3M
No reviews
Original price $699.99 - Original price $699.99
Original price
$699.99
$699.99 - $699.99
Current price $699.99
Free shipping
3M Low Static Polyimide Film Tape 5419 with DuPont Kapton polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static.Employs a proprietary technology that results in extremely low... Read more

Overview

3M

3M Low-Static Polyimide Film Tape 5419 Gold, 1/4 in x 36 yds x 2.7 mil

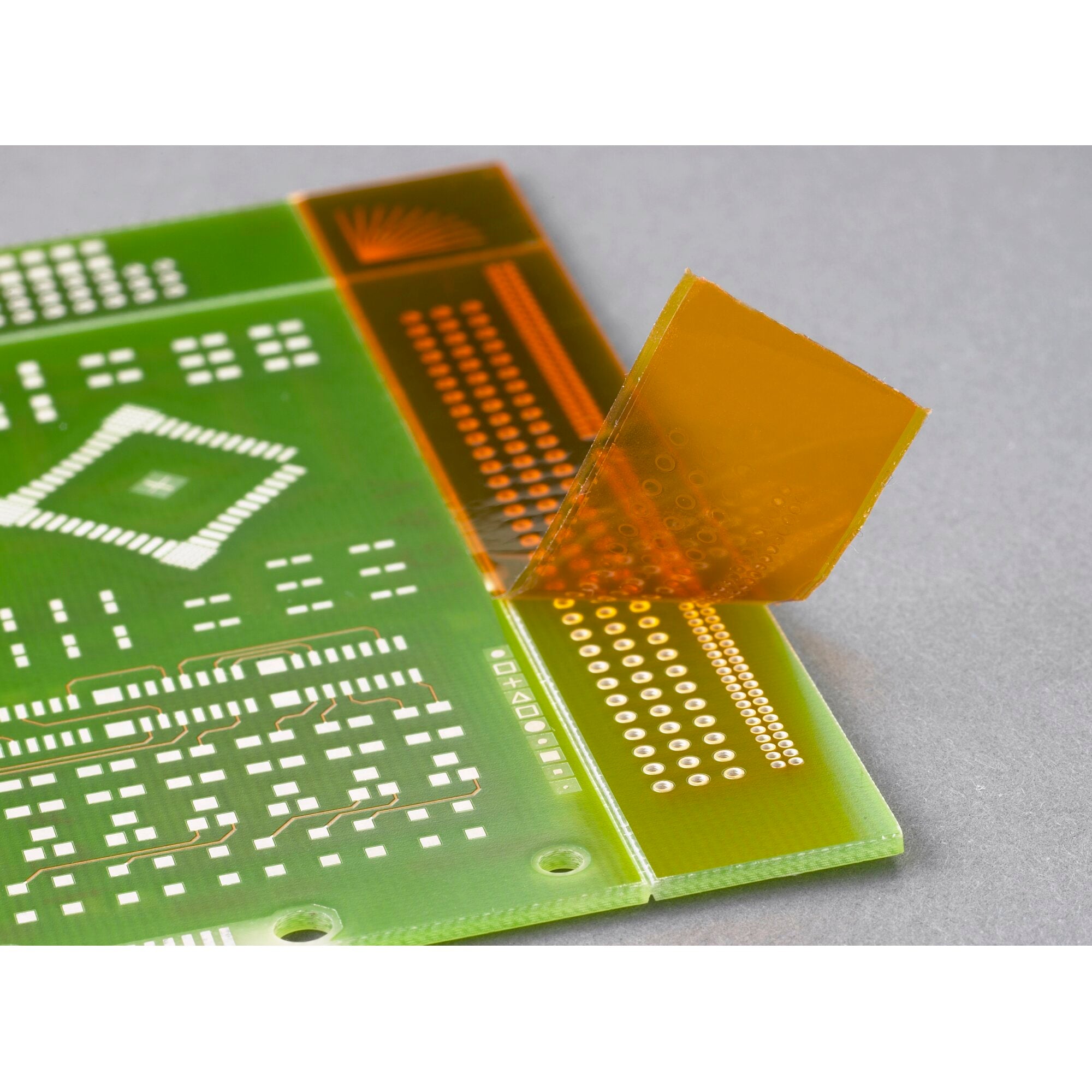

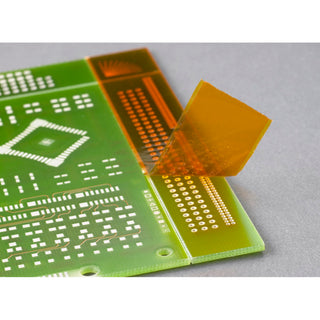

3M Low Static Polyimide Film Tape 5419 with DuPont Kapton polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static.Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional "anti-static" or "static-free" tapes (e.g., variable adhesion and opaqueness). Halogen Free Definition: "Halogen Free" refers to the International Electrochemical Commission’s Definition, IEC 61249-2-21, which sets the limits of: 900 ppm maximum chlorine; 900 ppm maximum bromine; 1500 ppm maximum total halogens
  • DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
  • No rework required, enabling high productivity
  • Protects surfaces helping reduce replacement parts
  • Available on cardboard or polyethyelene core

Product Details

General Information
Brand
3M™
Adhesive Type
Silicone
Country Of Origin
United States
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
260 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
500 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-73 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-100 Degree Fahrenheit
Overall Length (Imperial)
36 yd
Overall Length (Metric)
33 m
Overall Width (Imperial)
0.25 in
Overall Width (Metric)
6.35 mm
Total Tape Thickness Without Liner (Imperial)
2.7 mil
Total Tape Thickness Without Liner (Metric)
0.069 mm
Overall Length Imperial
36.0
Material and Composition
Adhesive Material
Silicone
Backing (Carrier) Material
Polyimide Film
Backing Carrier Material
Polyimide Film
Shelf Life
1095
Color and Appearance
Product Color
Gold
Certifications and Standards
Factory ISO Certification
No ISO Certification information available
