3M™ Motor Lead Pigtail Splice 5301, 1 kV, 1-Hole Lug Connection, 10-4 AWG

by 3M
$45.99
1 piece    Splices motor lead cables to incoming feeder cables    Designed to use with copper compression, 1-hole lugs    Slip-on lug cover is made of durable EPDM rubber    For pigtail (stub) connections... Read more

Overview

Brand img

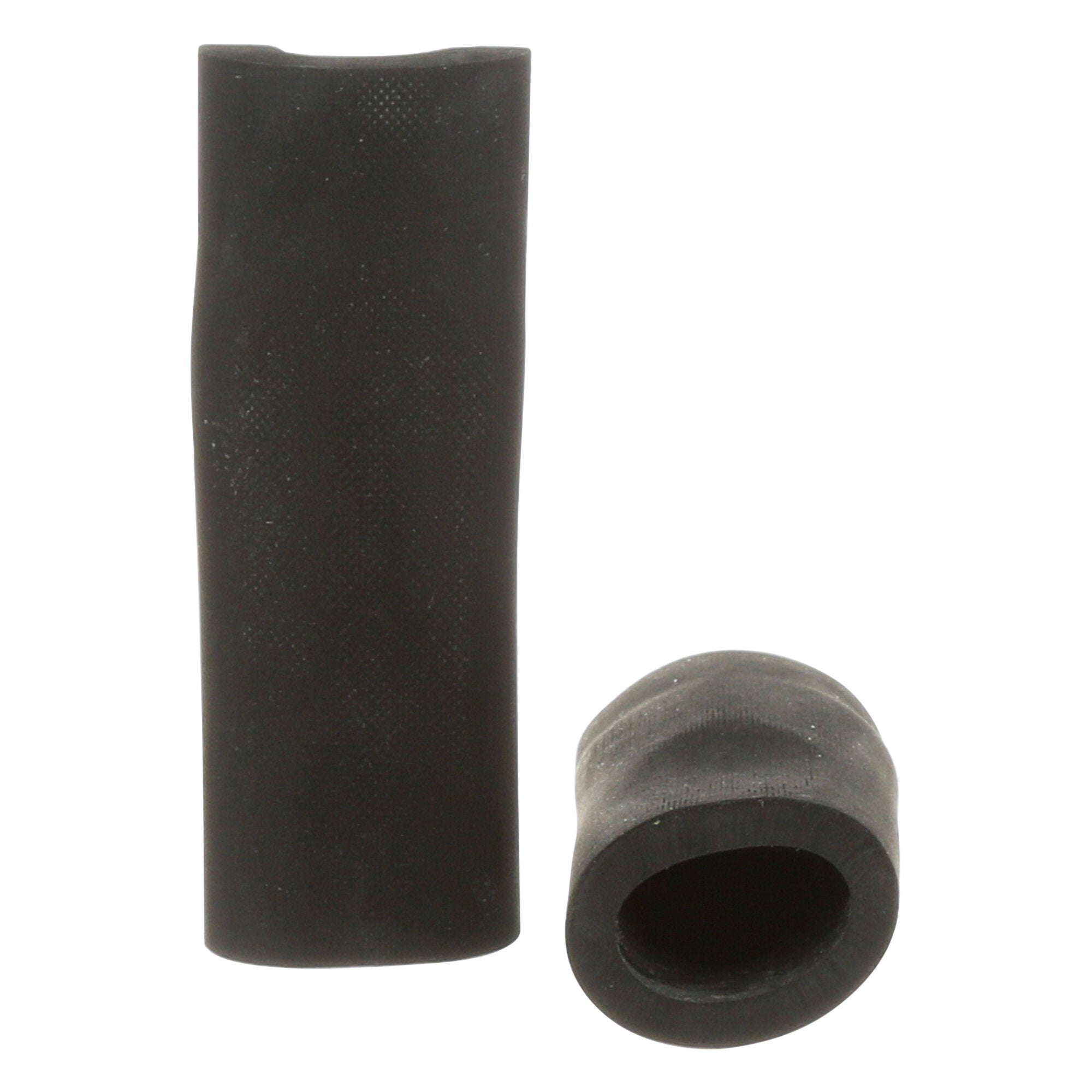

3M™ Motor Lead Pigtail Splice 5301, 1 kV, 1-Hole Lug Connection, 10-4 AWG

  • 3M
  • 7000005805

1 piece

    Splices motor lead cables to incoming feeder cables

    Designed to use with copper compression, 1-hole lugs

    Slip-on lug cover is made of durable EPDM rubber

    For pigtail (stub) connections at 1000V or less

    Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet

    CSA Certified and RoHS 2011/65/EU Compliant‎

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet

3M™ 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease plus an instruction sheet. It is designed for use with copper compression, 1 hole lugs. Its slip on lug cover has EPDM rubber construction while the mastic strips in the kit seal moisture. After being crimped onto the cables, use this kit to insulate and seal the lugs that are bolted together in a pigtail configuration. CSA Certified and RoHS 2011/65/EU Compliant‎.


Product Details

General Information
Manufacturer
3M
Part Number
7000005805
Product Type
Crimp Terminals, Lugs & Wire Nuts
