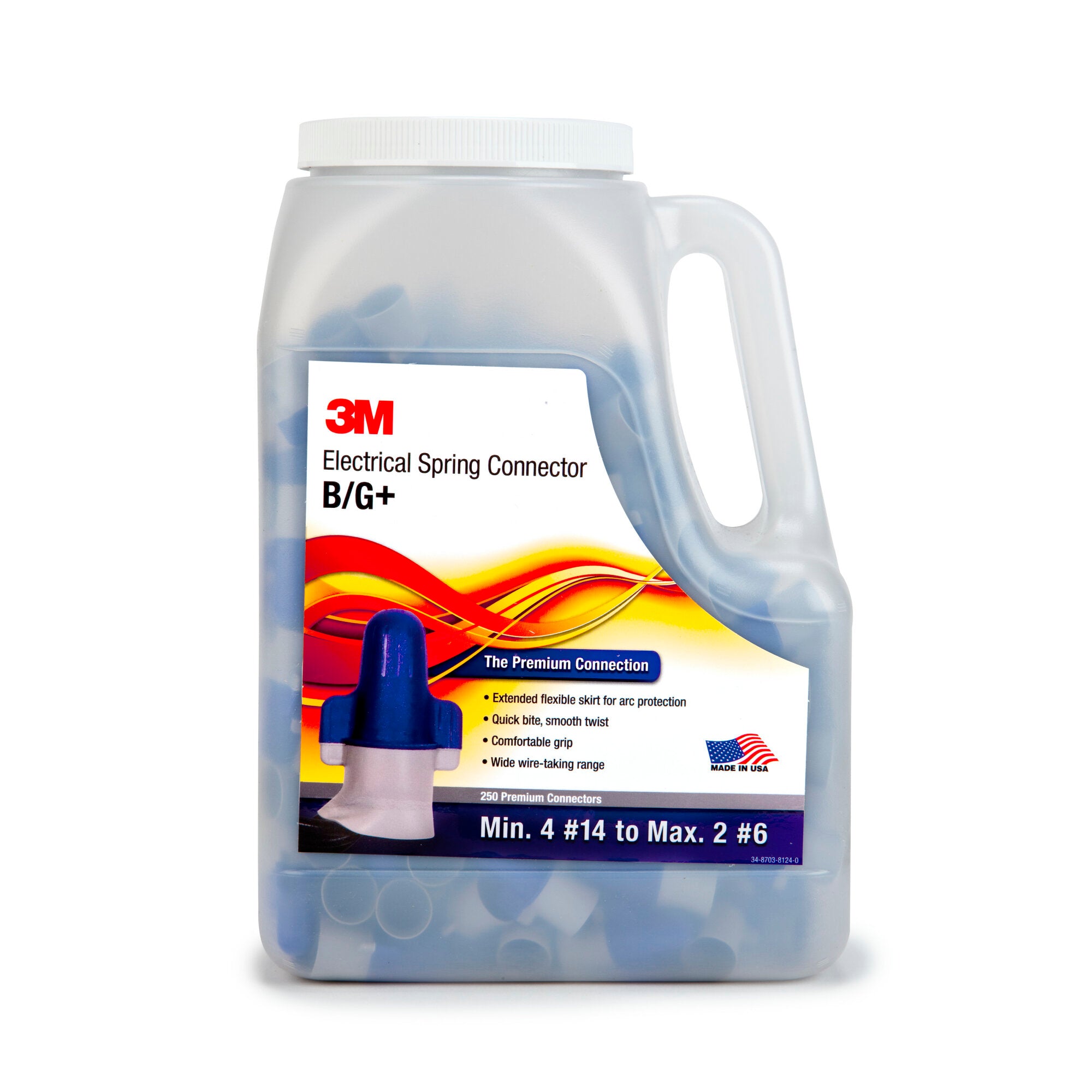

3M Performance Plus Wire Connector B/G+JUG, 250 per Jug

by 3M
No reviews
Original price $110.99 - Original price $110.99
Original price
$110.99
$110.99 - $110.99
Current price $110.99
Free shipping
A better bite gives you a better connection with the 3M Performance Plus Wire Connector B/G+. It offers a quick-biting spring so you get a tight, reliable connection every time. This single B/G+ connector replaces... Read more
Please allow 2 days for production.

Overview

3M

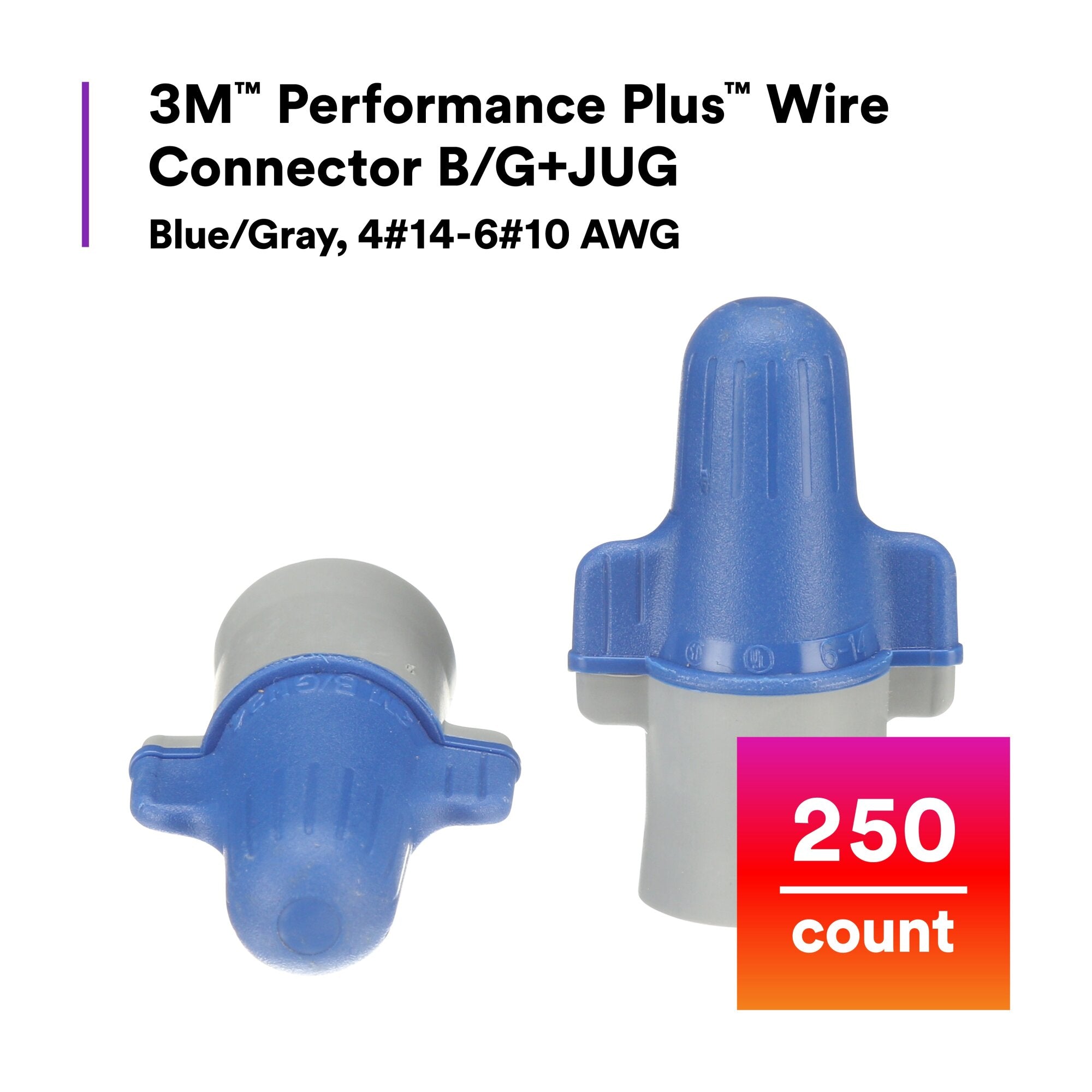

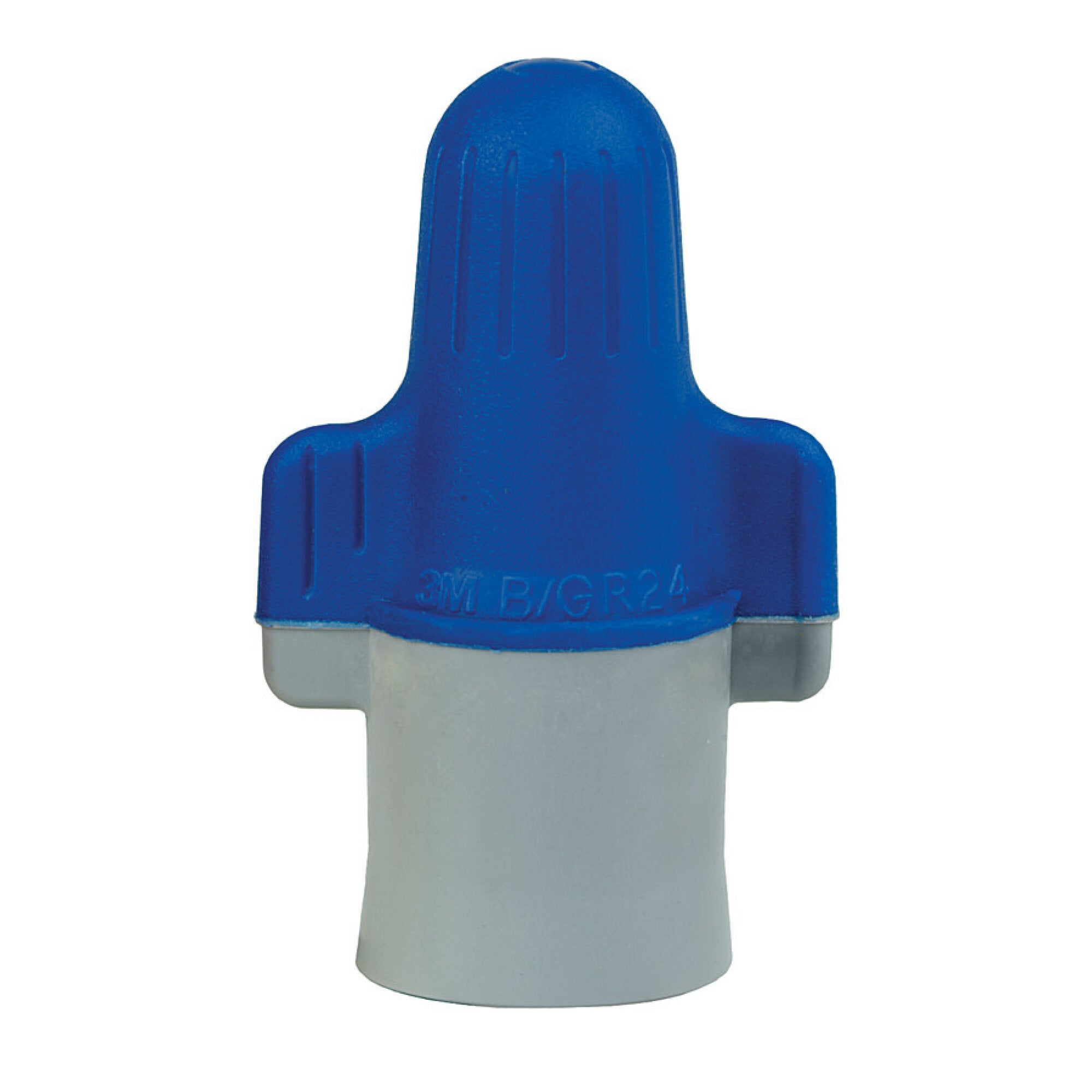

3M Performance Plus Wire Connector B/G+JUG, 250 per Jug

A better bite gives you a better connection with the 3M Performance Plus Wire Connector B/G+. It offers a quick-biting spring so you get a tight, reliable connection every time. This single B/G+ connector replaces your traditional blue and gray connectors to give you more room to work. It's a great connector to use in almost any application where you need to connect and insulate copper wires.3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.

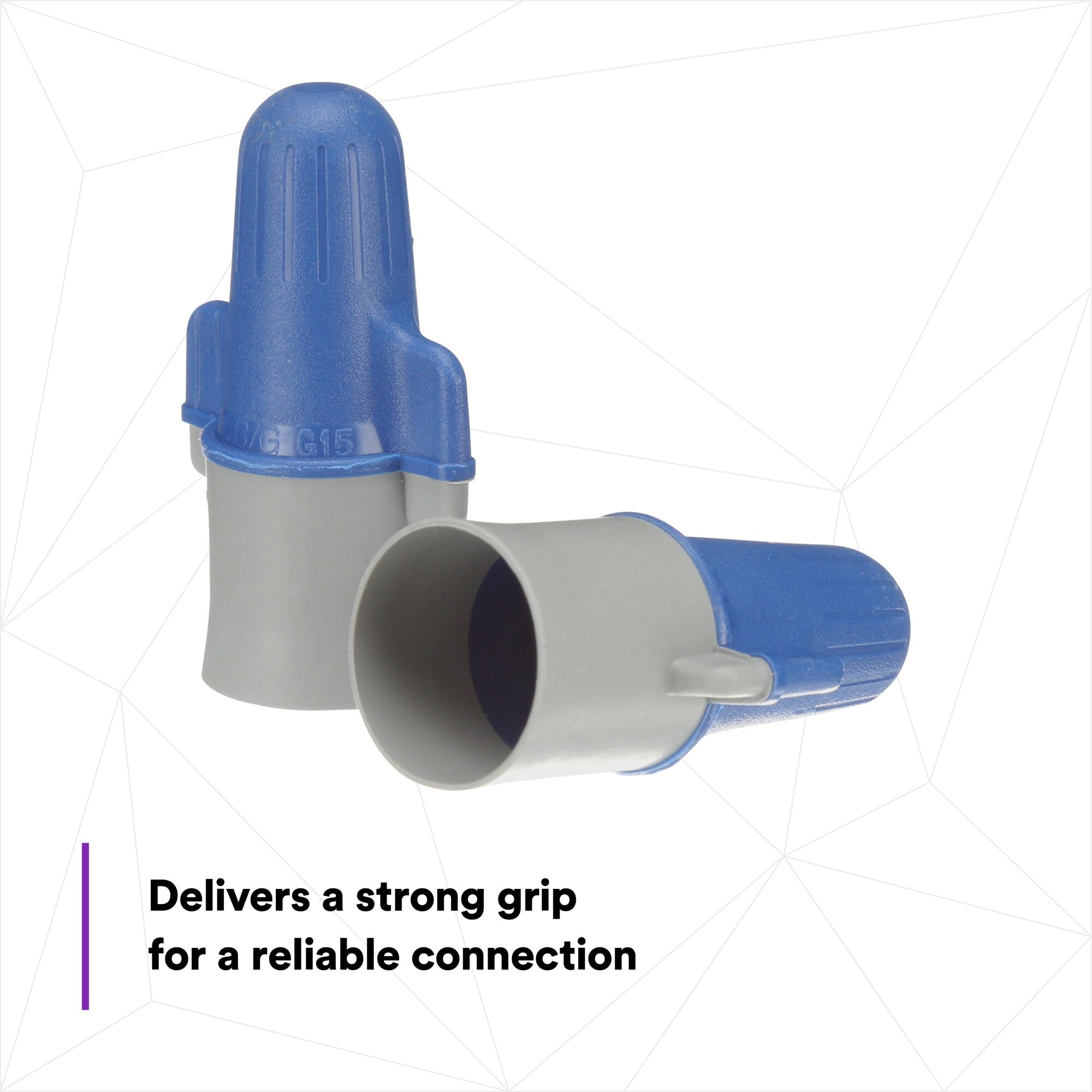

  • Strong bite for a secure, reliable connection

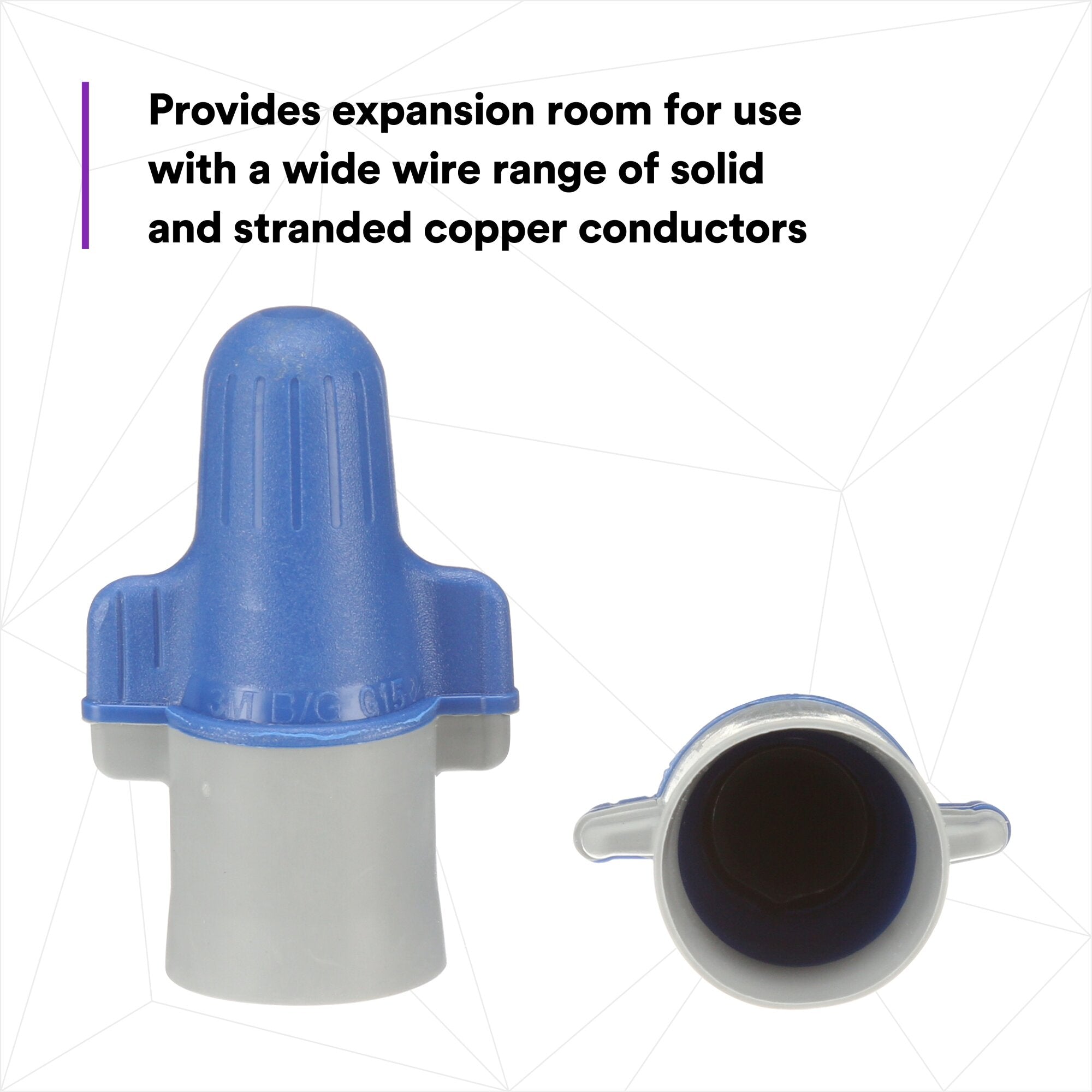

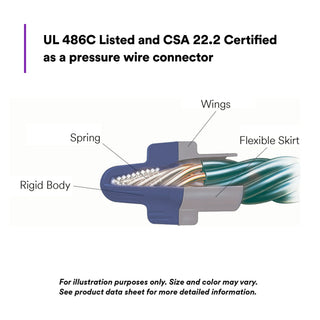

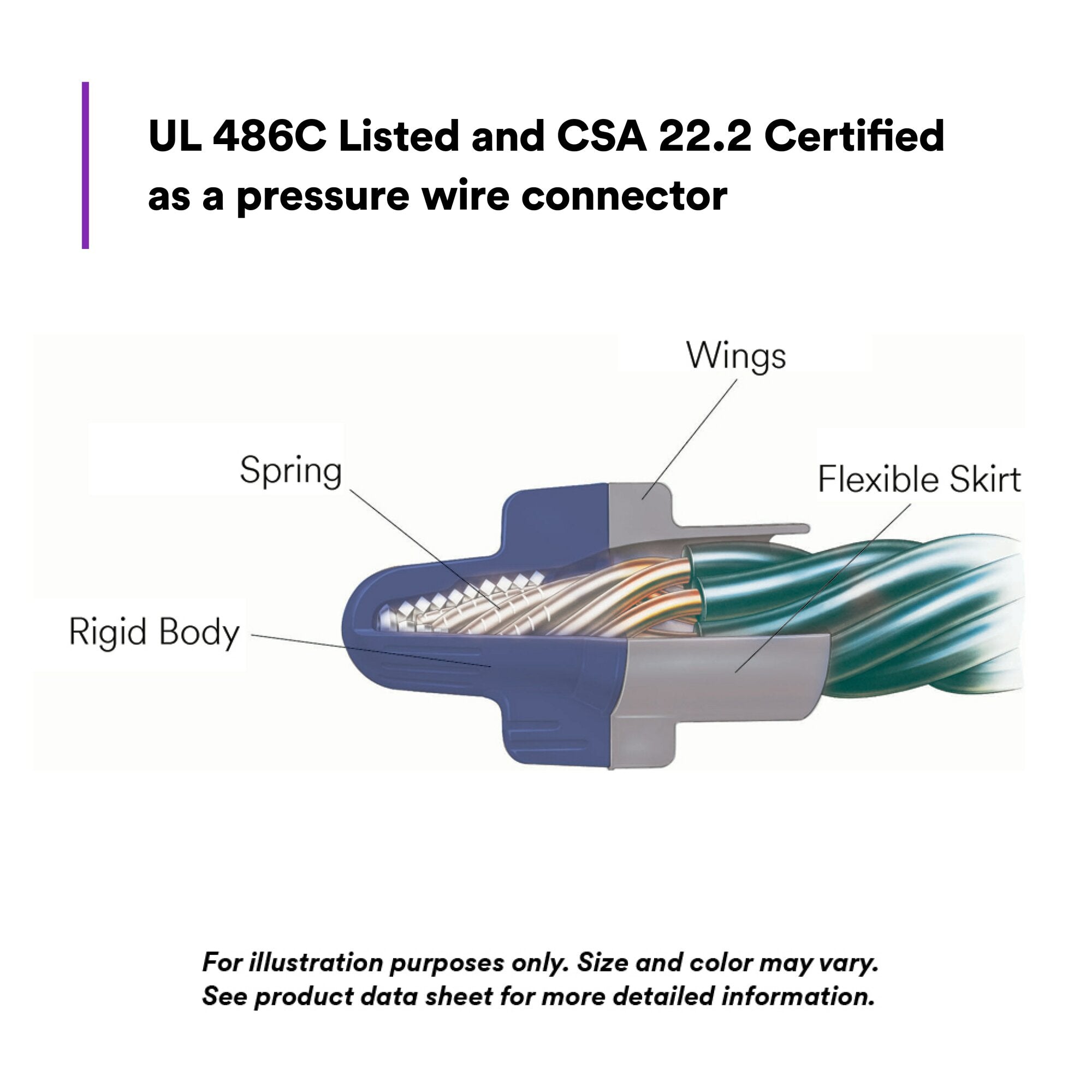

  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed

Product Details

General Information
Brand
Performance Plus™
Connection Type
Wire
Connector Style
Twist On
Product Type
Connector
Wire Connector Type
Twist-on Wire Connectors
Country Of Origin
United States
Lead Time
2 days
California Residents

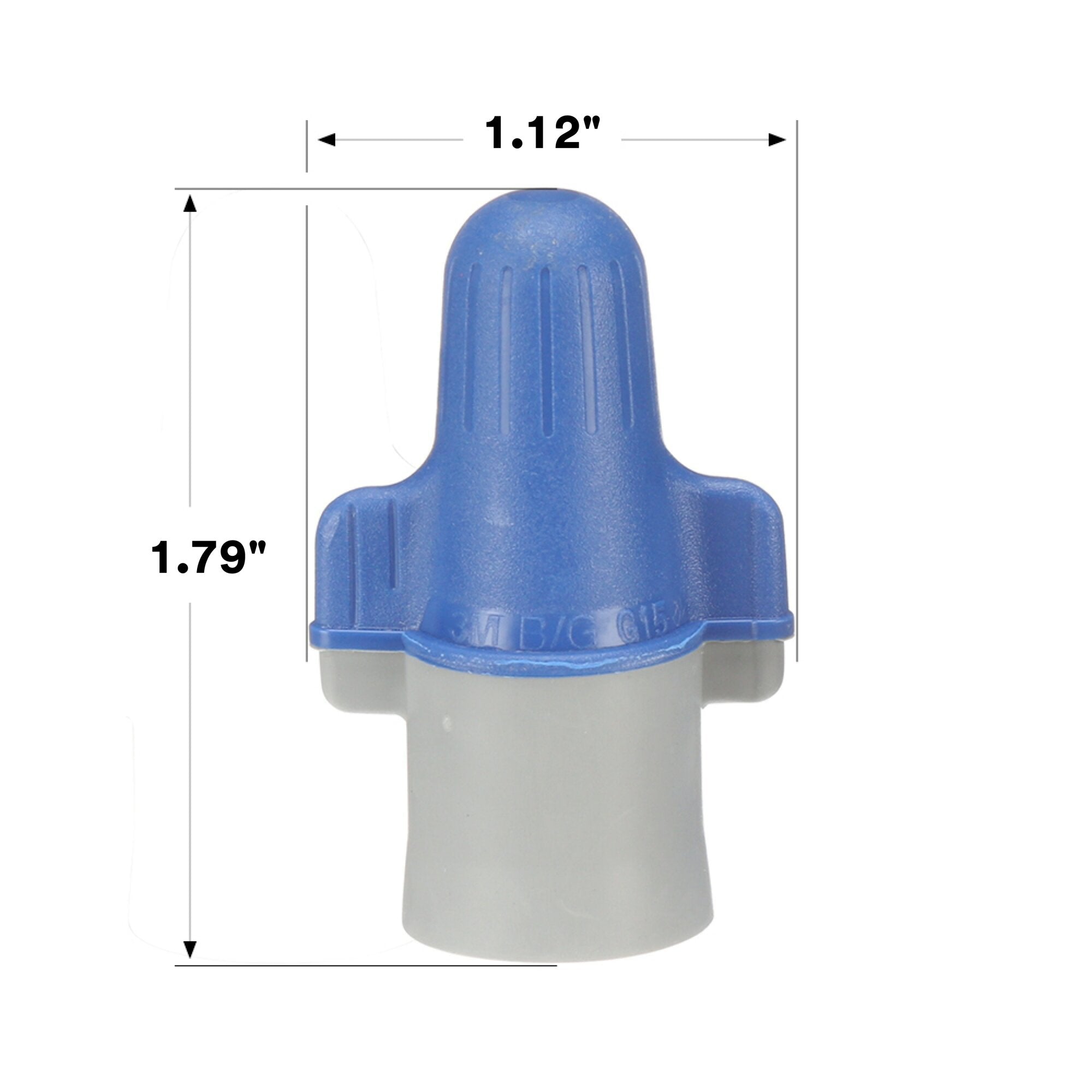

Dimensions and Specifications
Conductor Sizes (Imperial)
14 - 6 AWG
Maximum Conductor Size (Imperial)
6 AWG
Maximum Conductor Size (Metric)
16 mm²
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Maximum Voltage Rating
600 V (1000 V in signs, lighting fixtures and luminaries)
Minimum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Metric)
2.5 mm²
Voltage Rating
600 V
Maximum Conductor Size Imperial
6 AWG
Maximum Conductor Size Metric
16
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
14 AWG
Minimum Conductor Size Metric
2.5 mm²
Other Details
Flame Retardant
Yes
Family
3M™ Performance Plus Wire Connector
Material and Composition
Material
Plastic
Color and Appearance
Product Color
Blue
Certifications and Standards
Specifications Met
CSA
Packaging and Shipping
Boxes Per Case
8.0
Packaging
Jug
Resources
Datasheet
