3M™ Performance Plus™ Wire Connector O/B+POUCH, 100 per Pouch

by 3M
Original price $15.99 - Original price $15.99
Original price
$15.99
$15.99 - $15.99
Current price $15.99
Free shipping
    It offers a strong bite in a pigtail application so you get a long-lasting connection    An expandable spring lets you take in more wire uptake and reuse    The O/B+ is dual... Read more

Overview

Brand img

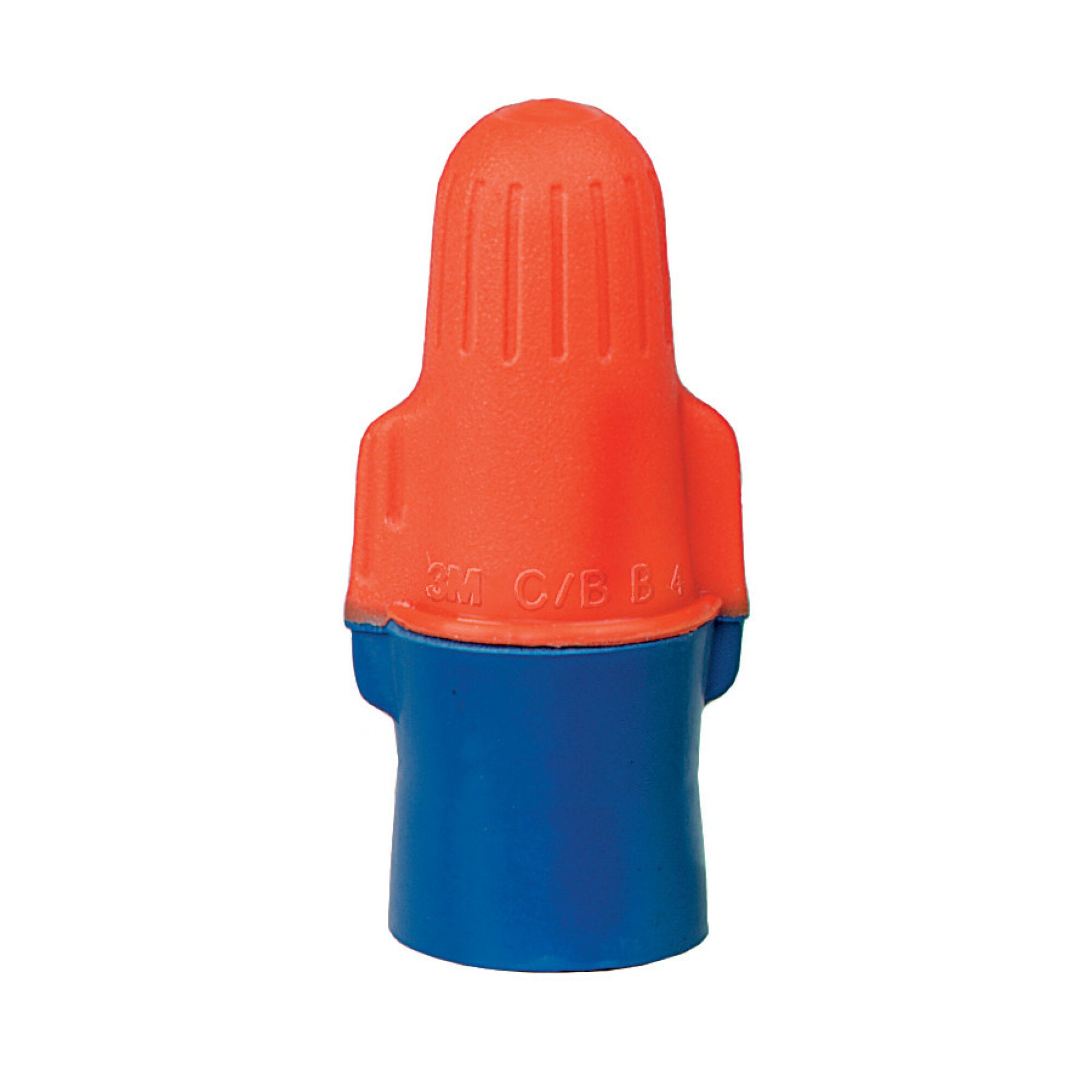

3M™ Performance Plus™ Wire Connector O/B+POUCH, 100 per Pouch

  • 3M
  • 7100127195

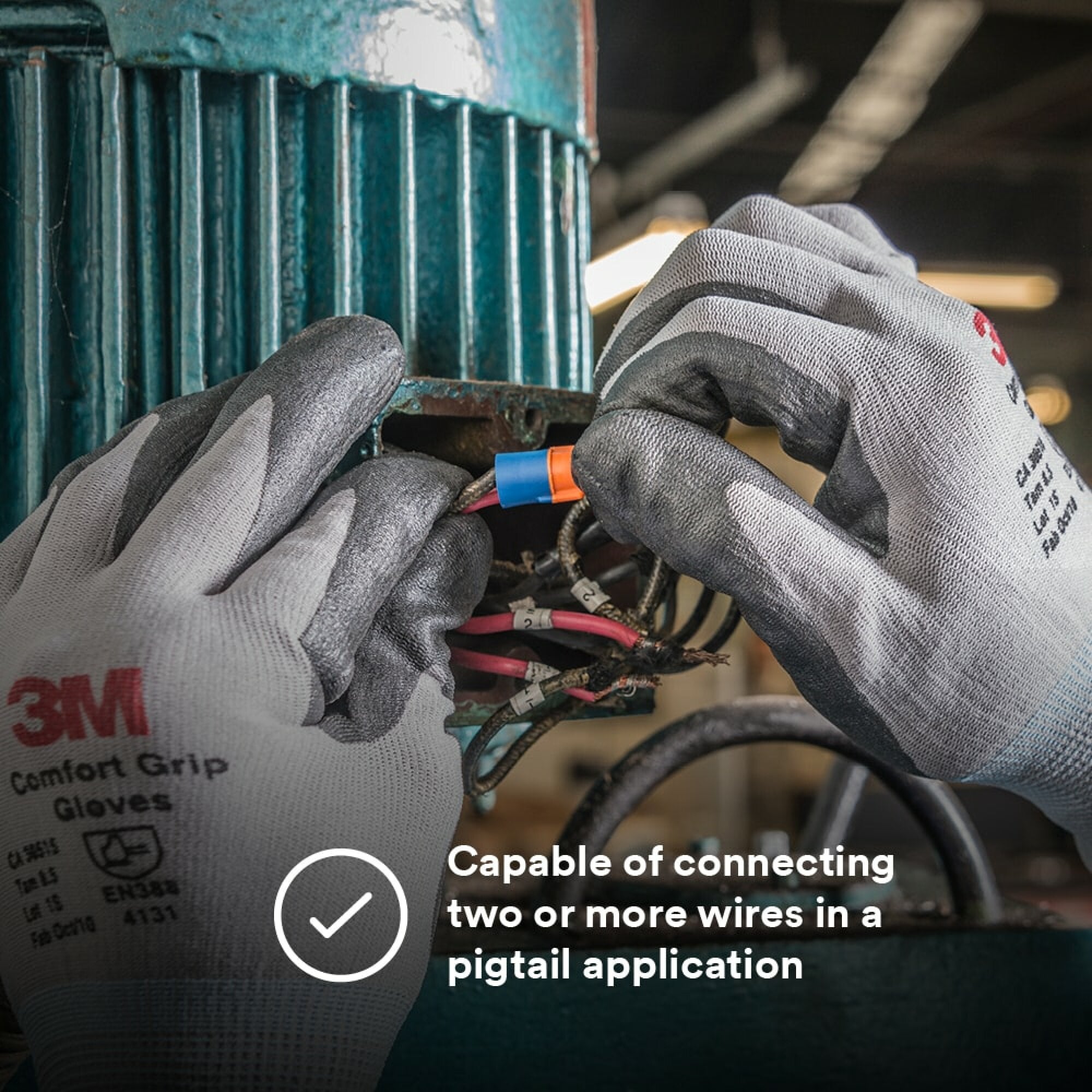

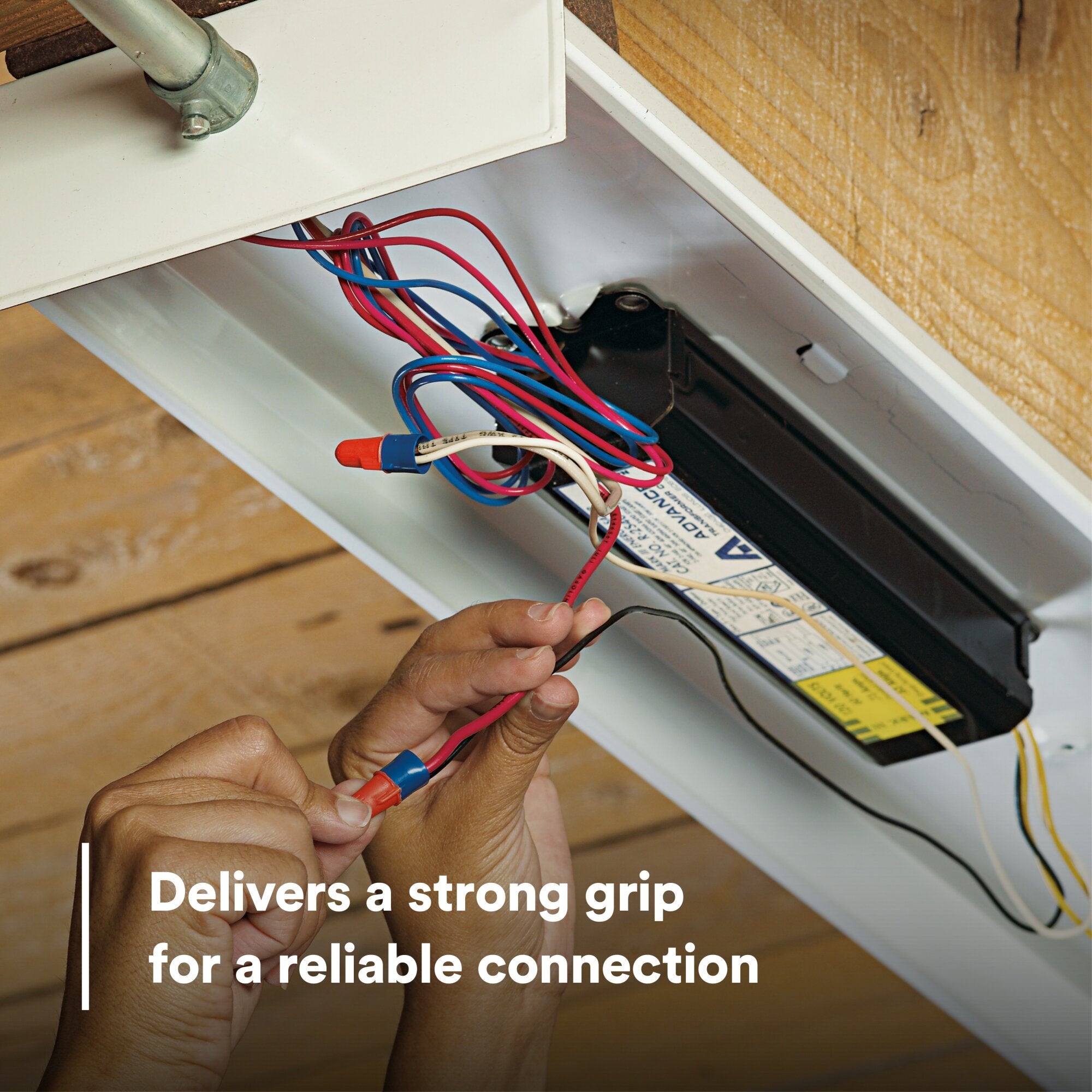

    It offers a strong bite in a pigtail application so you get a long-lasting connection

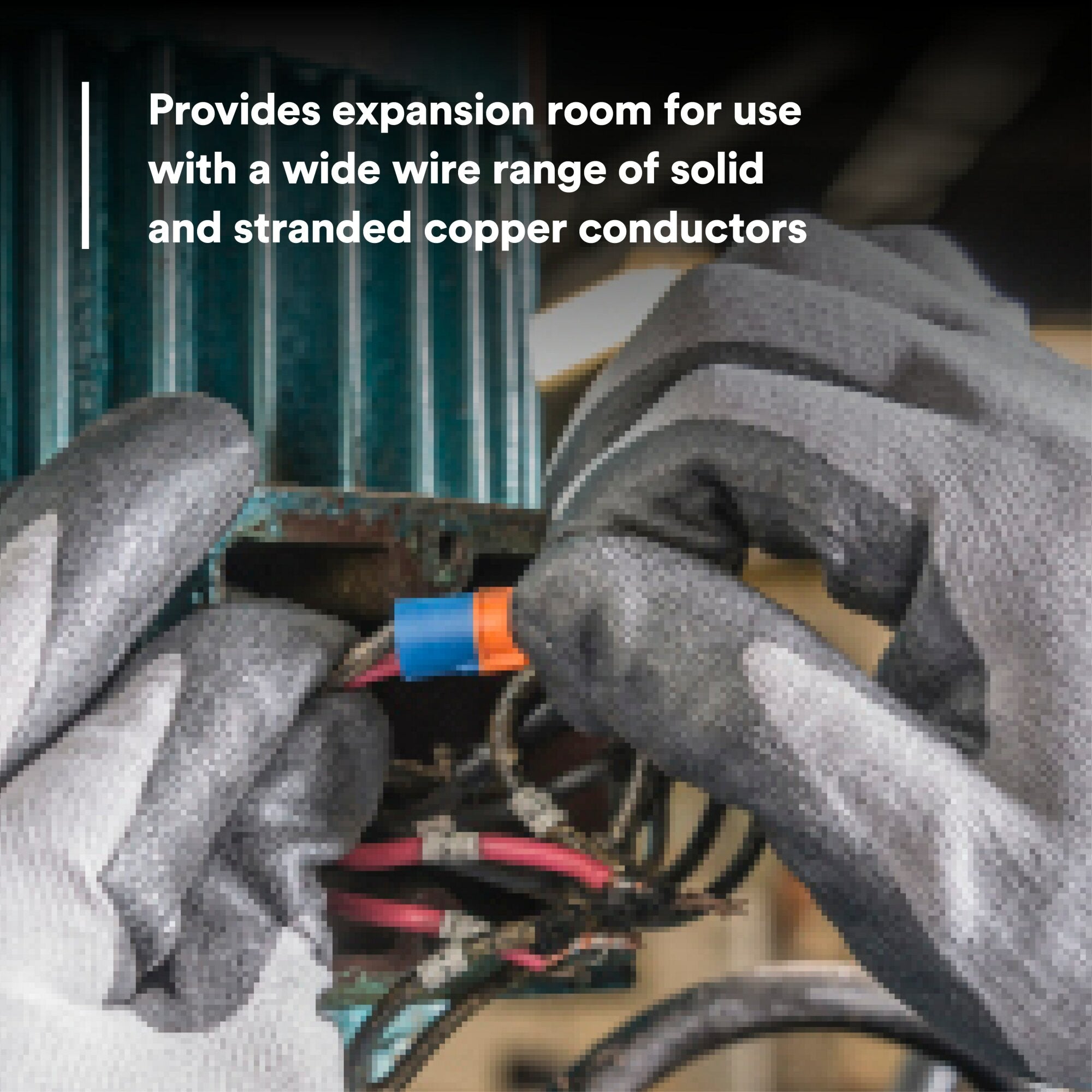

    An expandable spring lets you take in more wire uptake and reuse

    The O/B+ is dual color-coded so this 1 connector replaces your traditional orange and blue connectors

    Great for all types of jobs - from industrial and residential construction, to automotive, marine and appliance applications

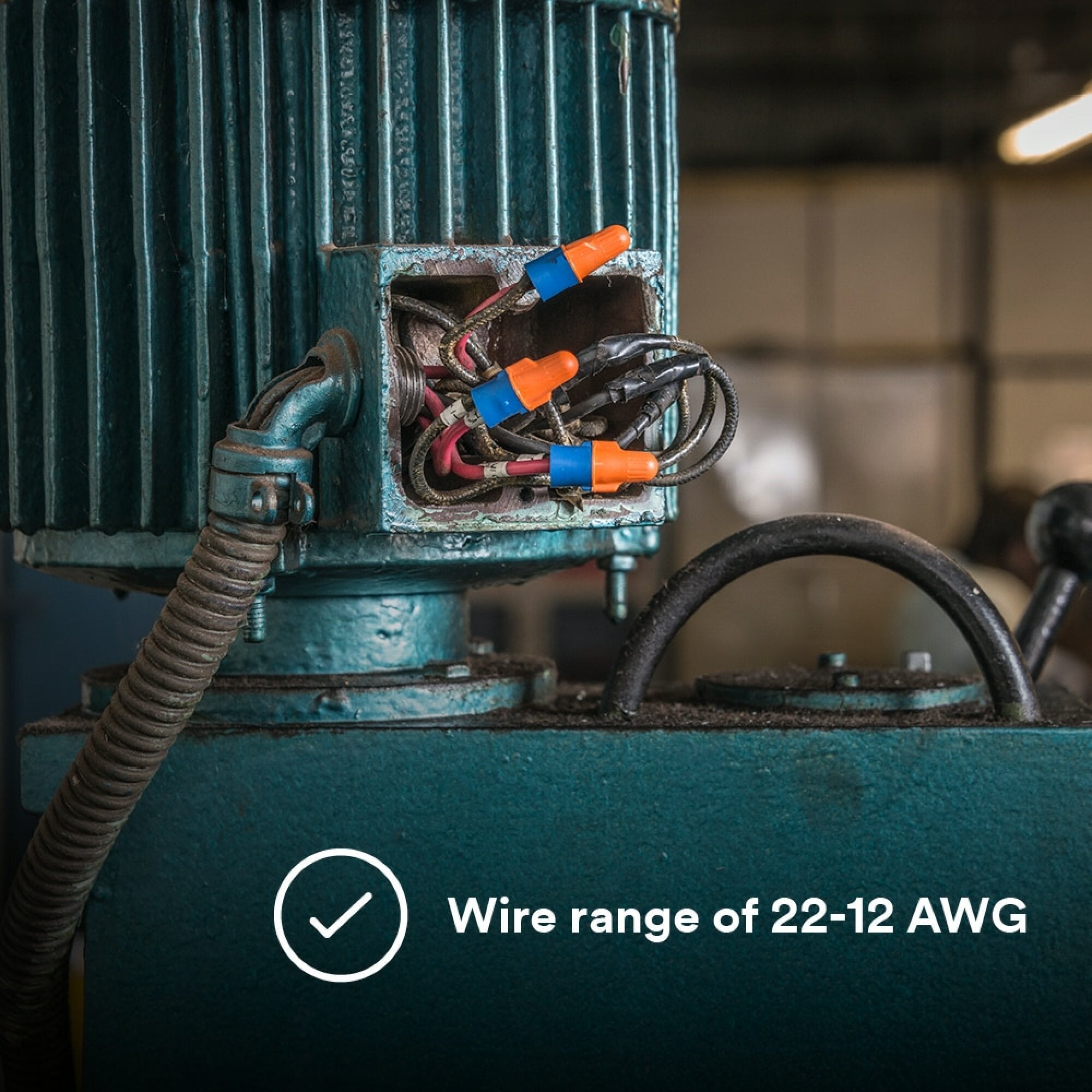

    Use with copper conductors ranging from 22 to 12 AWG

    Built with polypropylene and thermoplastic elastomer material

    Orange/blue connector is flame-retardant and operates in temperatures up to 221 degrees F (105 degrees C)

    Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V

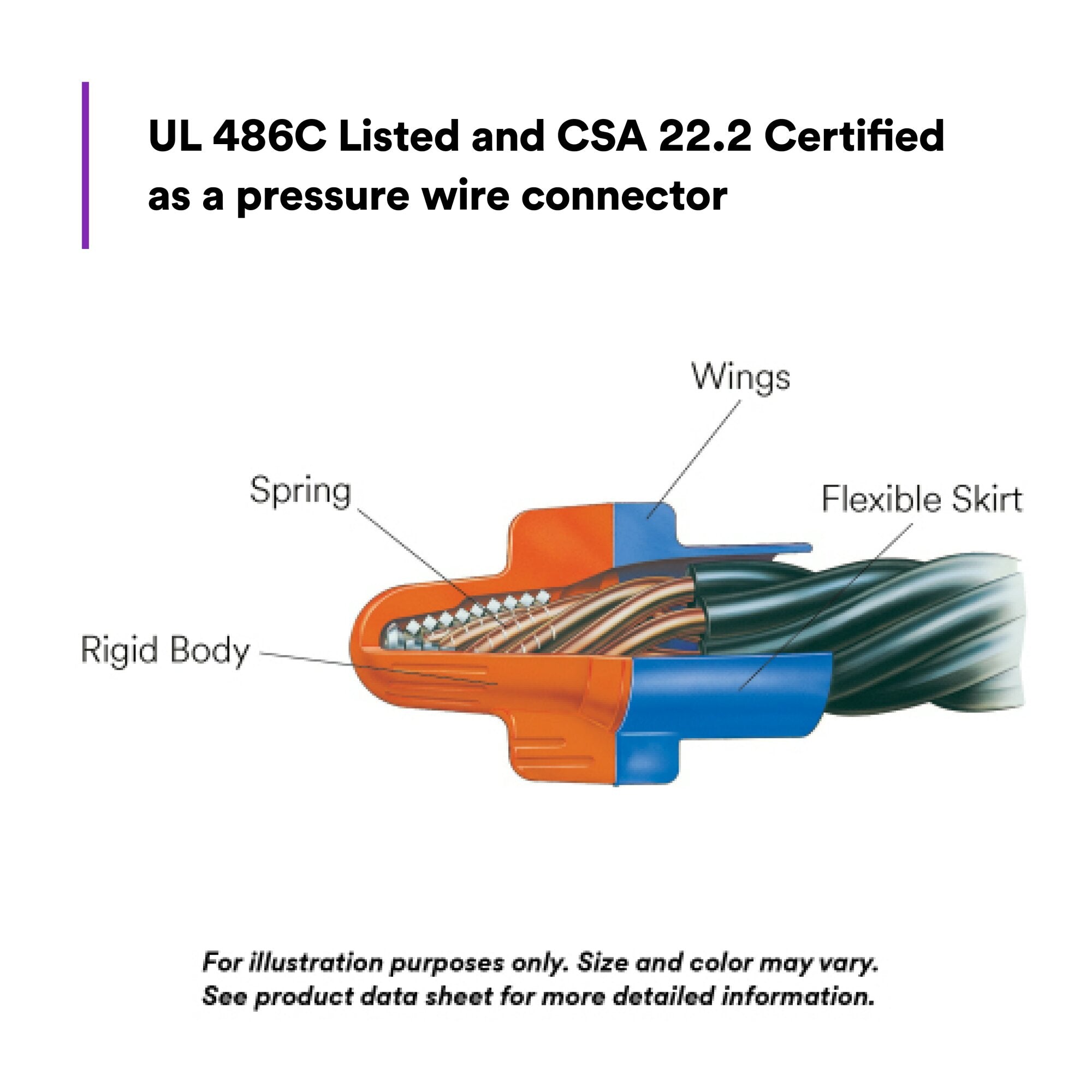

    UL Listed and CSA Certified

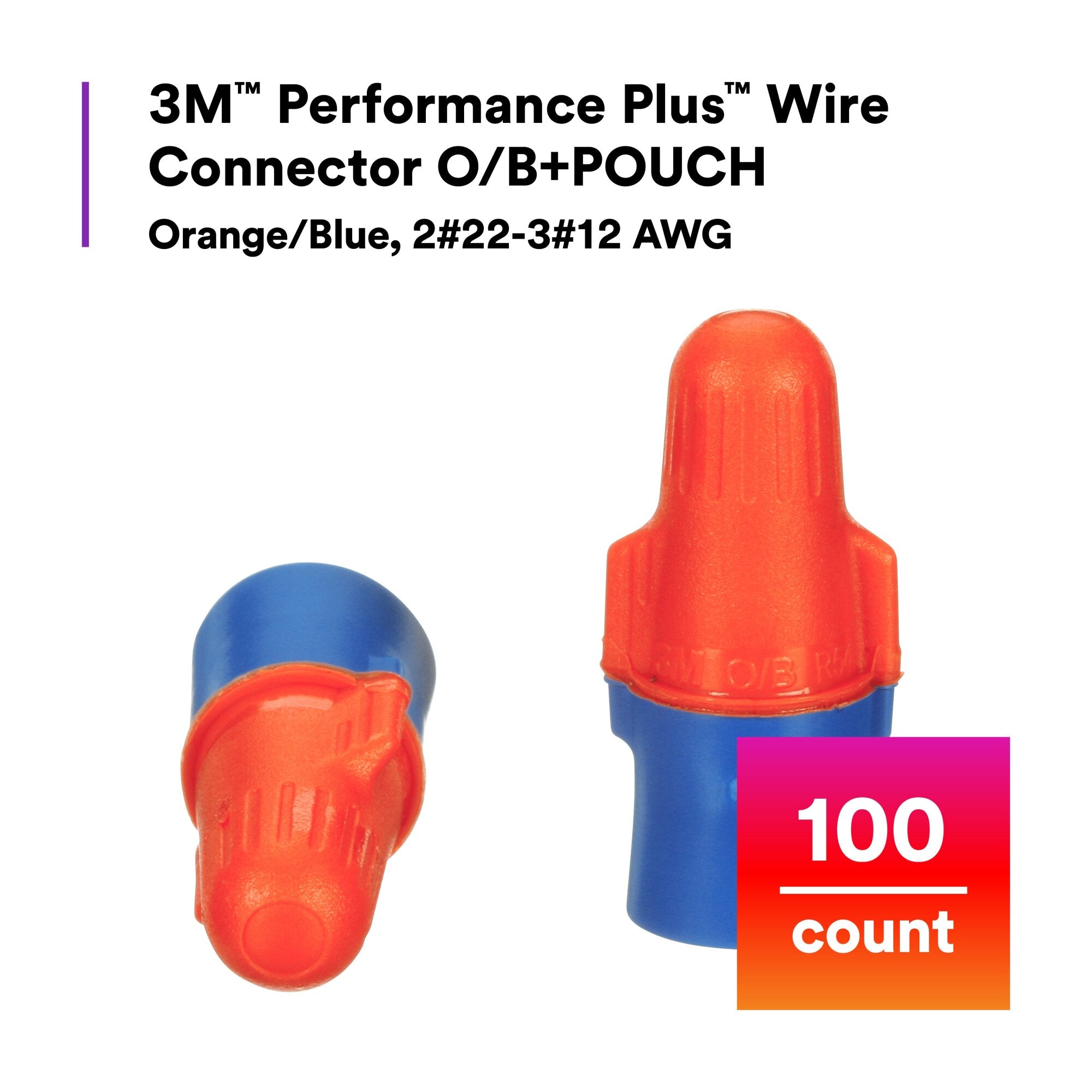

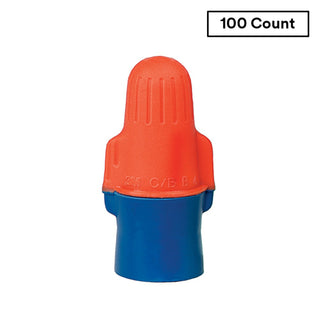

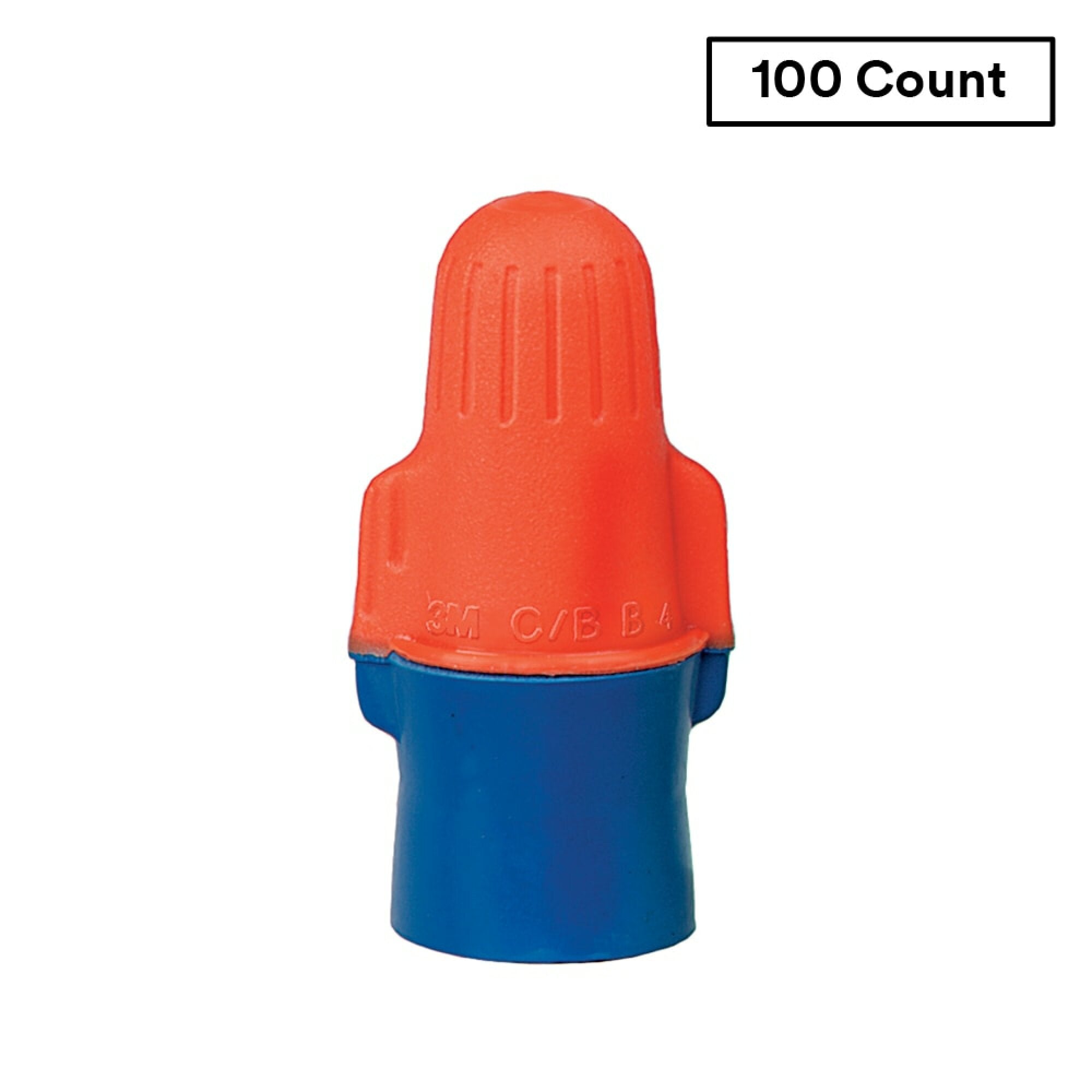

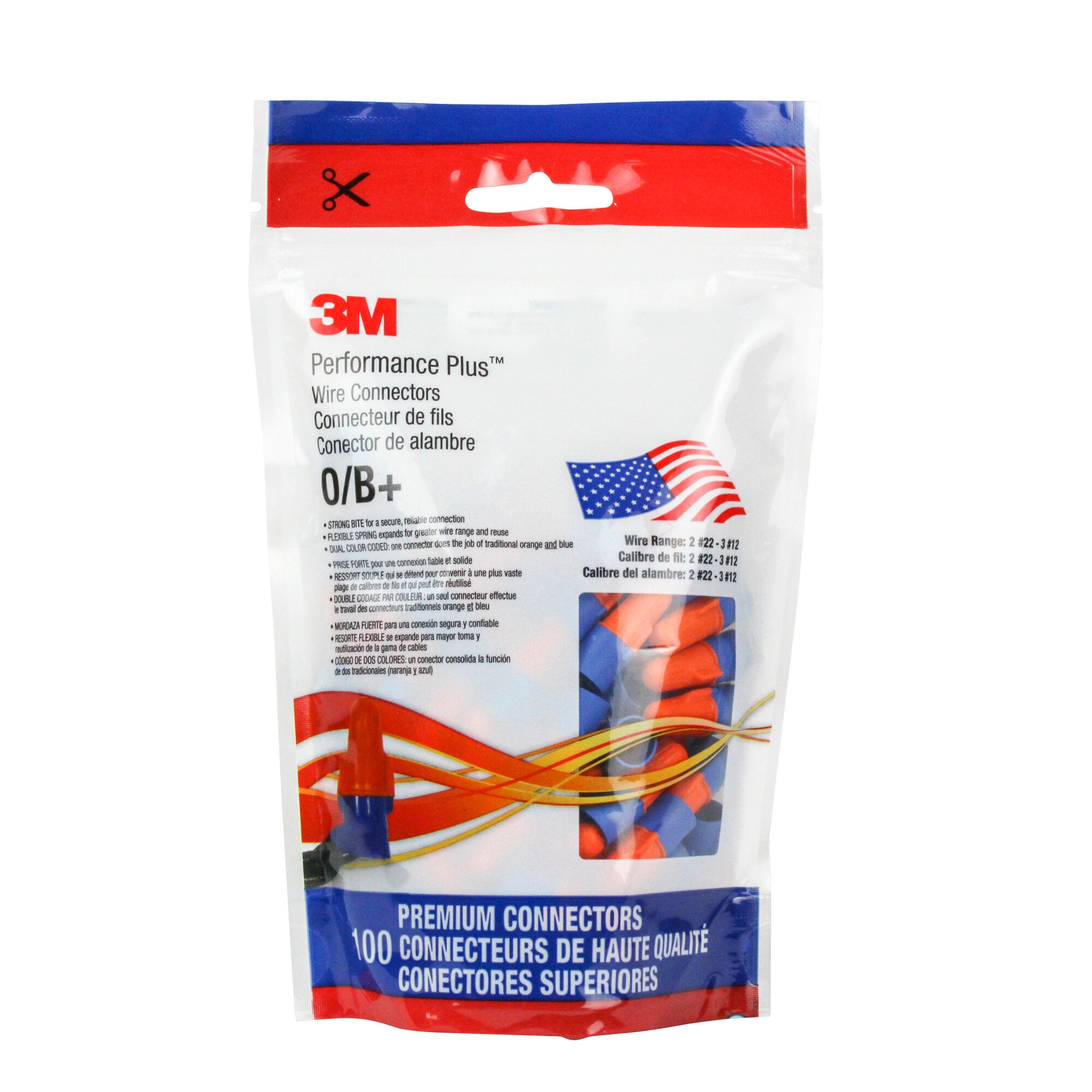

    Connectors come 100/pouch

2 #22 AWG up to 3 #12 AWG (solid) or 4 #14 AWG, Orange with Blue skirt, 100 per box, 1000 per case

The improved 3M O/B+ Connector will help electricians do more with less. The O/B+ connector combines a very small shell with an increased wire range. The improved spring bites wire quickly with less effort and accommodates from two #22 AWG wires up to three #12 AWG wires or four #14 AWG wires. The very small shell fits easily into tight spaces and its flexible skirt helps protect workers from contact with overstripped wires. With such a wide wire range, you can save money by buying fewer connectors. O/B + replaces the orange, blue and gray spring connector style connectors, as well as 70% of the yellow spring connector and wing style connectors. This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.


Product Details

General Information
Manufacturer
3M
Part Number
7100127195
Product Type
Crimp Terminals, Lugs & Wire Nuts
