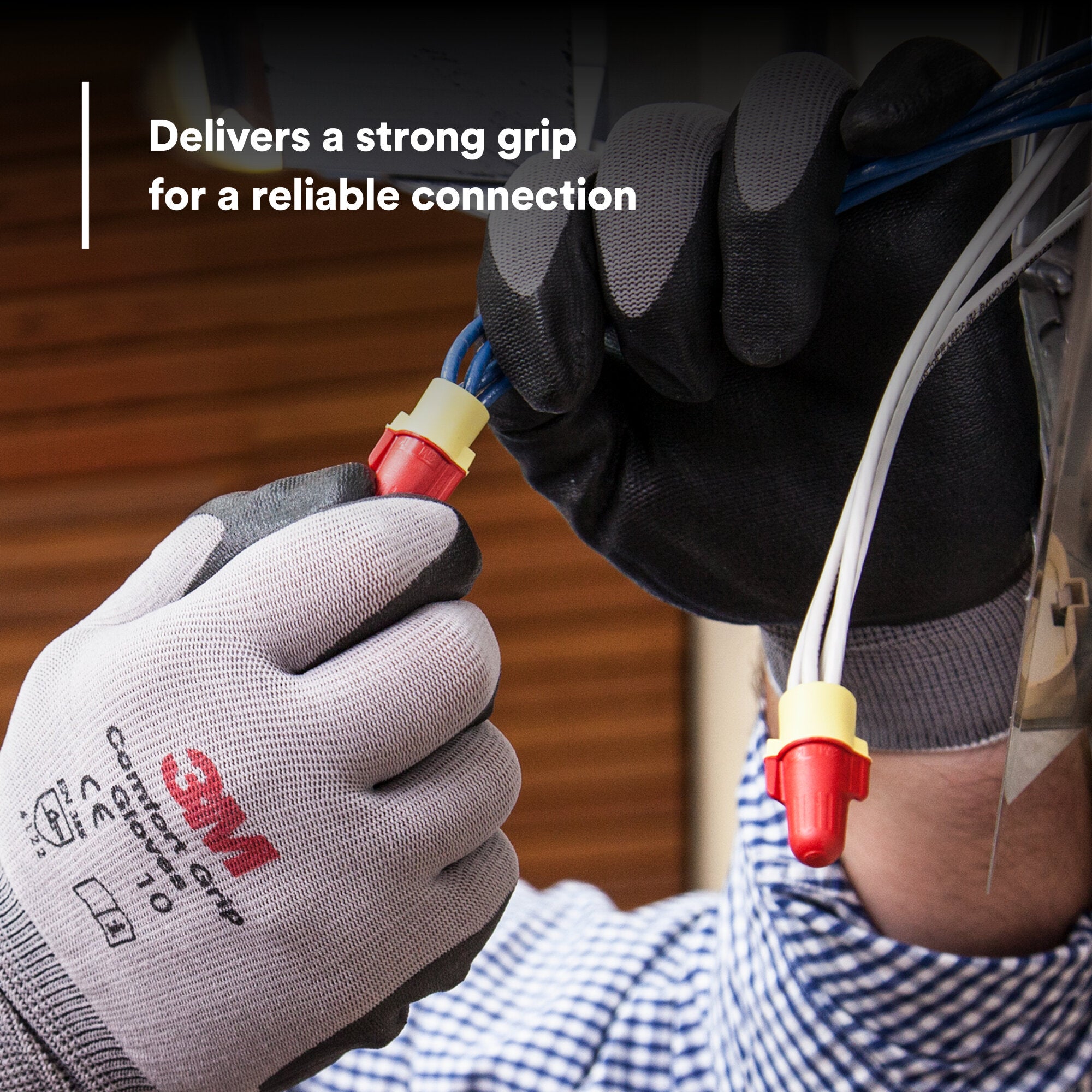

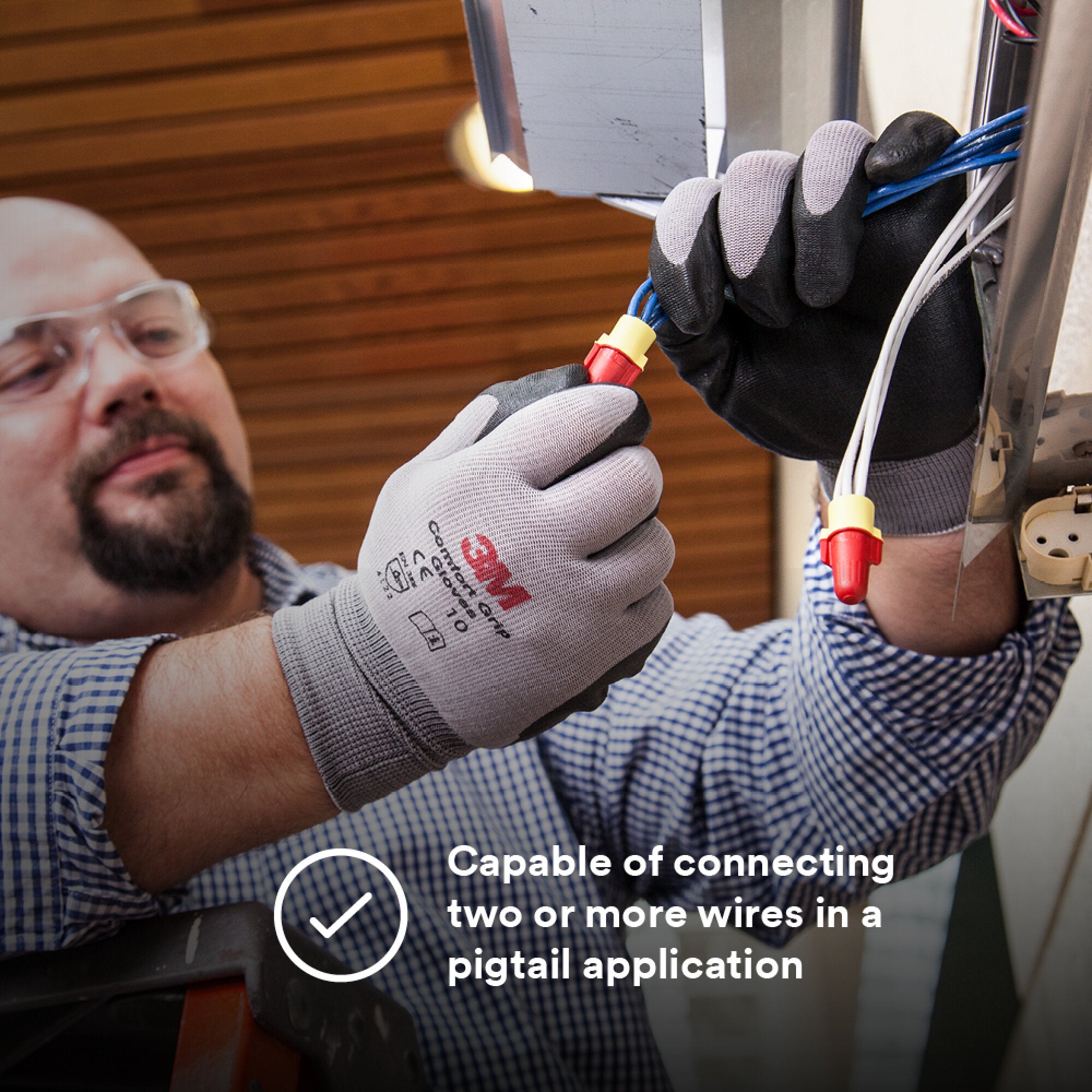

Features a strong bite for a secure, reliable connection in pigtail applications

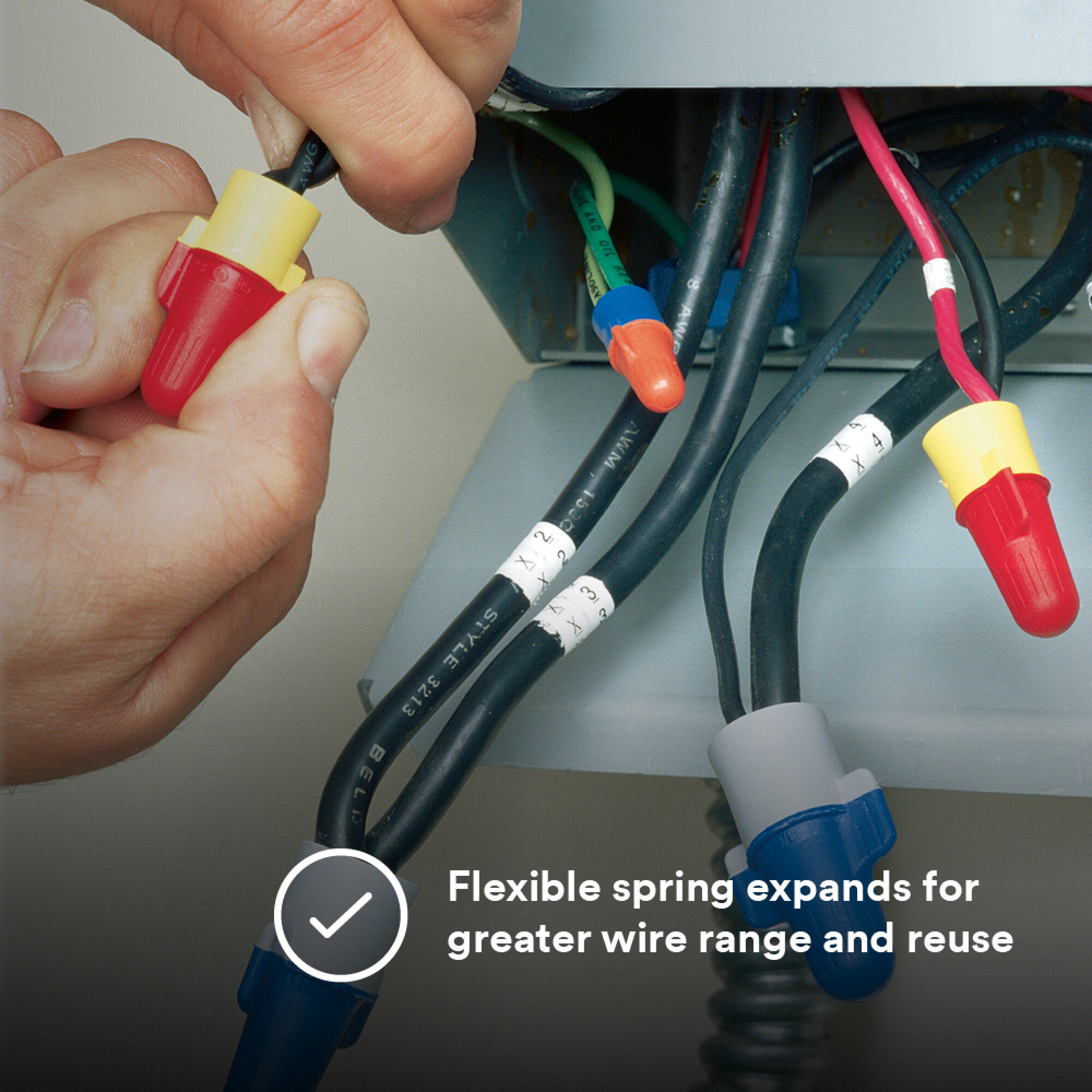

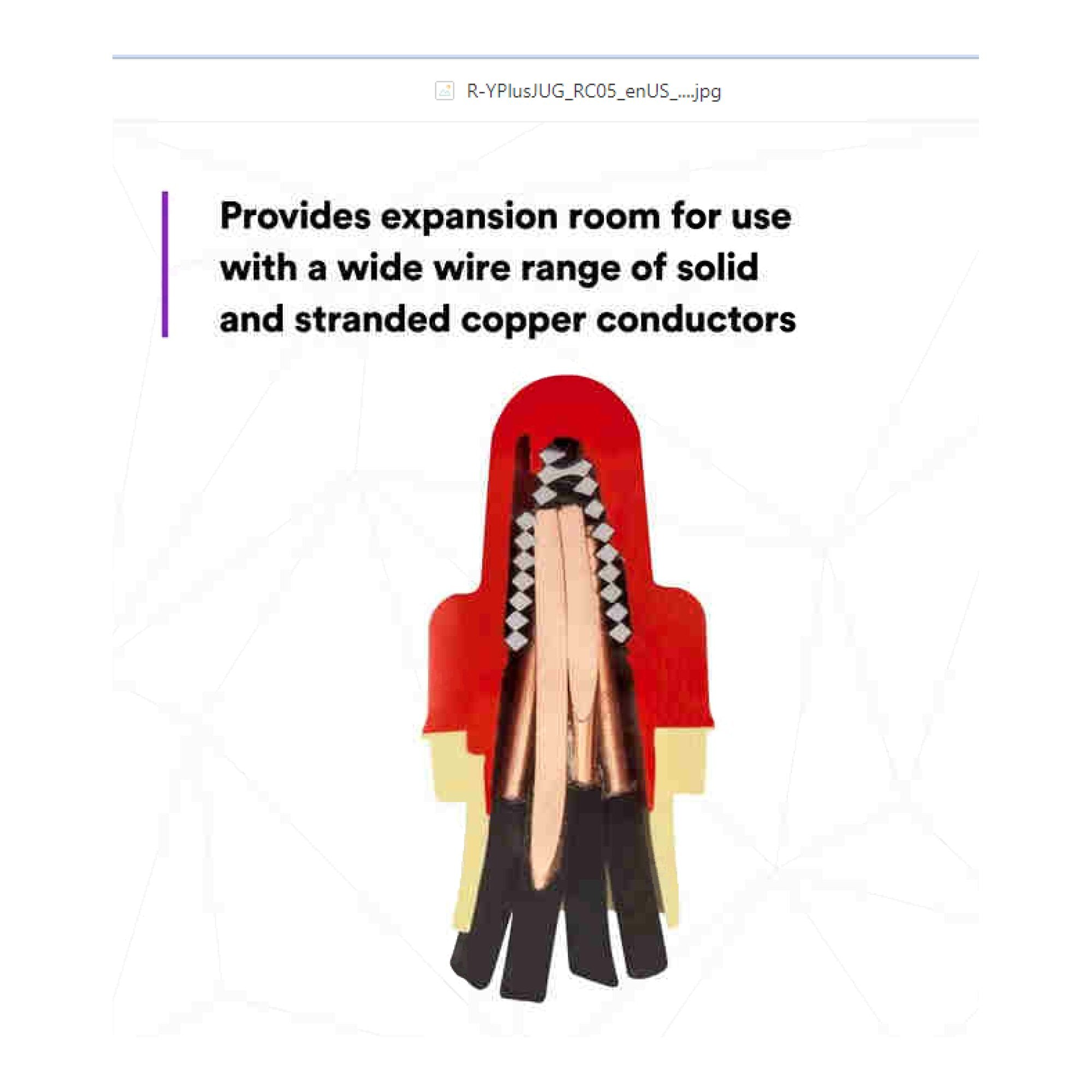

Incorporates a flexible spring that expands for greater wire-range taking and reuse
Twist-on connector is dual color-coded, allowing 1 connector to do the job of a traditional red and yellow

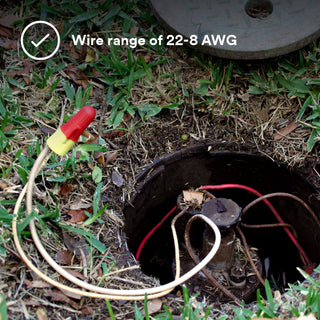

Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction, irrigation and residential construction

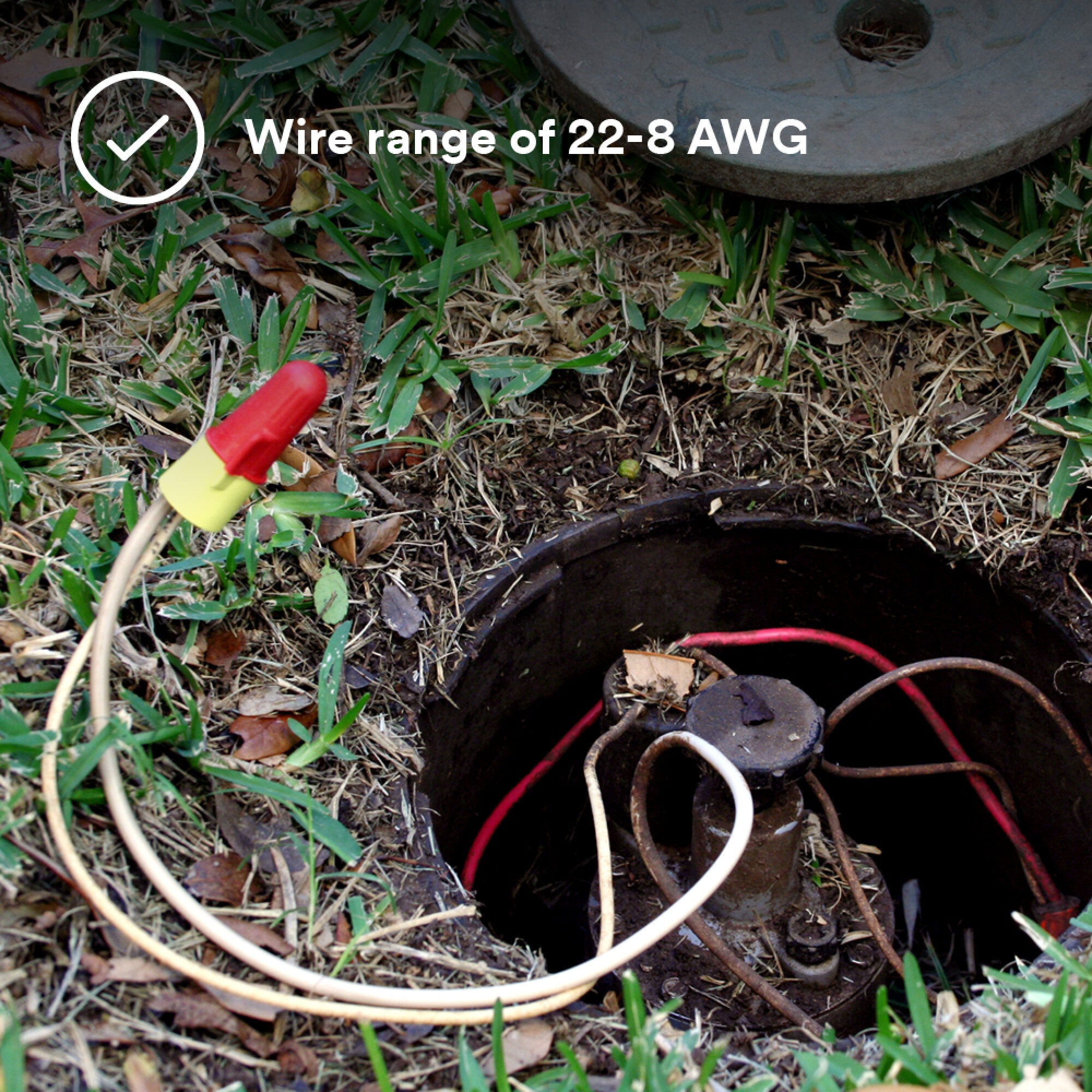

Accommodates a range of 22 to 8 AWG copper conductors
Red/yellow flame-retardant, polypropylene and thermoplastic elastomer construction
Withstands temperatures up to 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
UL Listed and CSA Certified

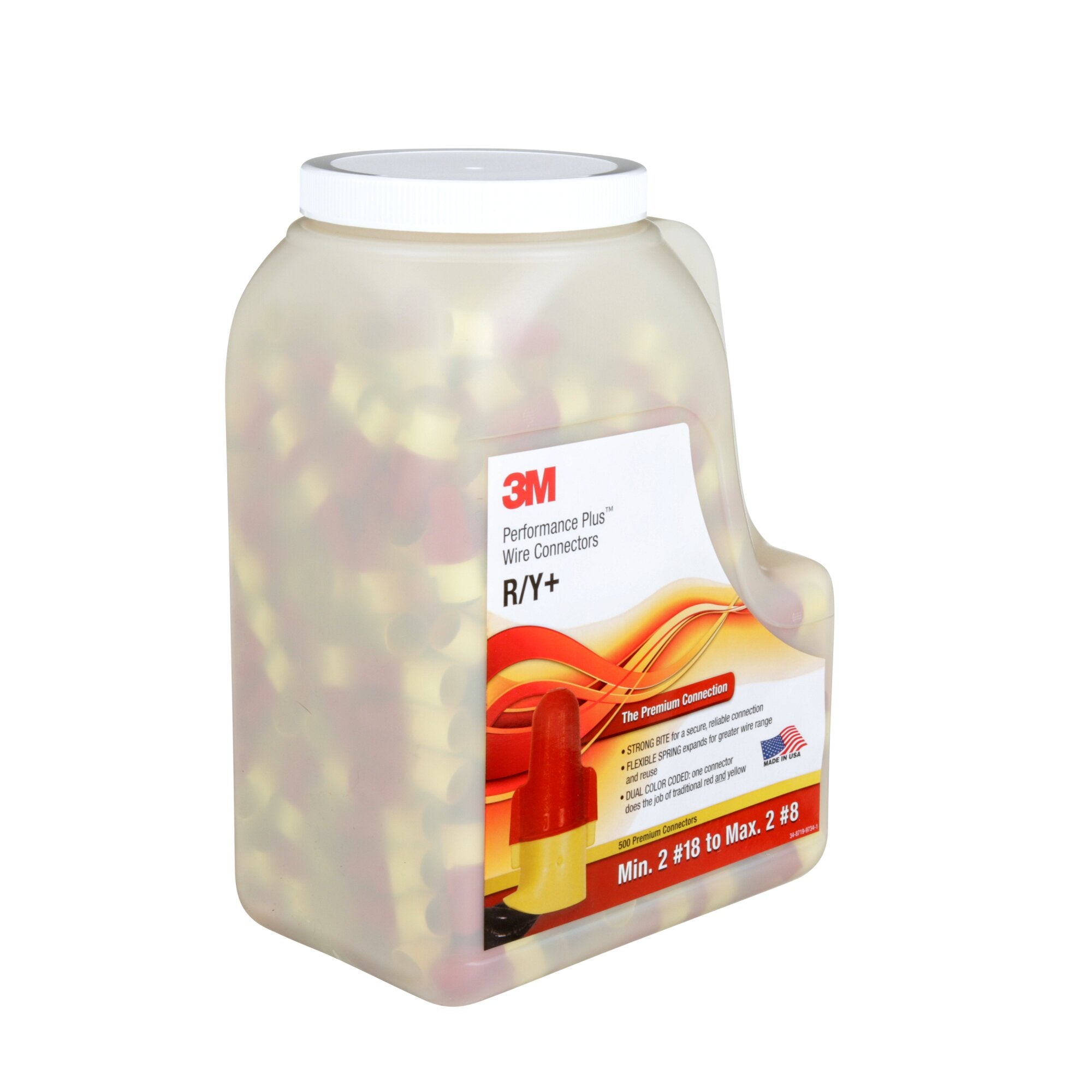

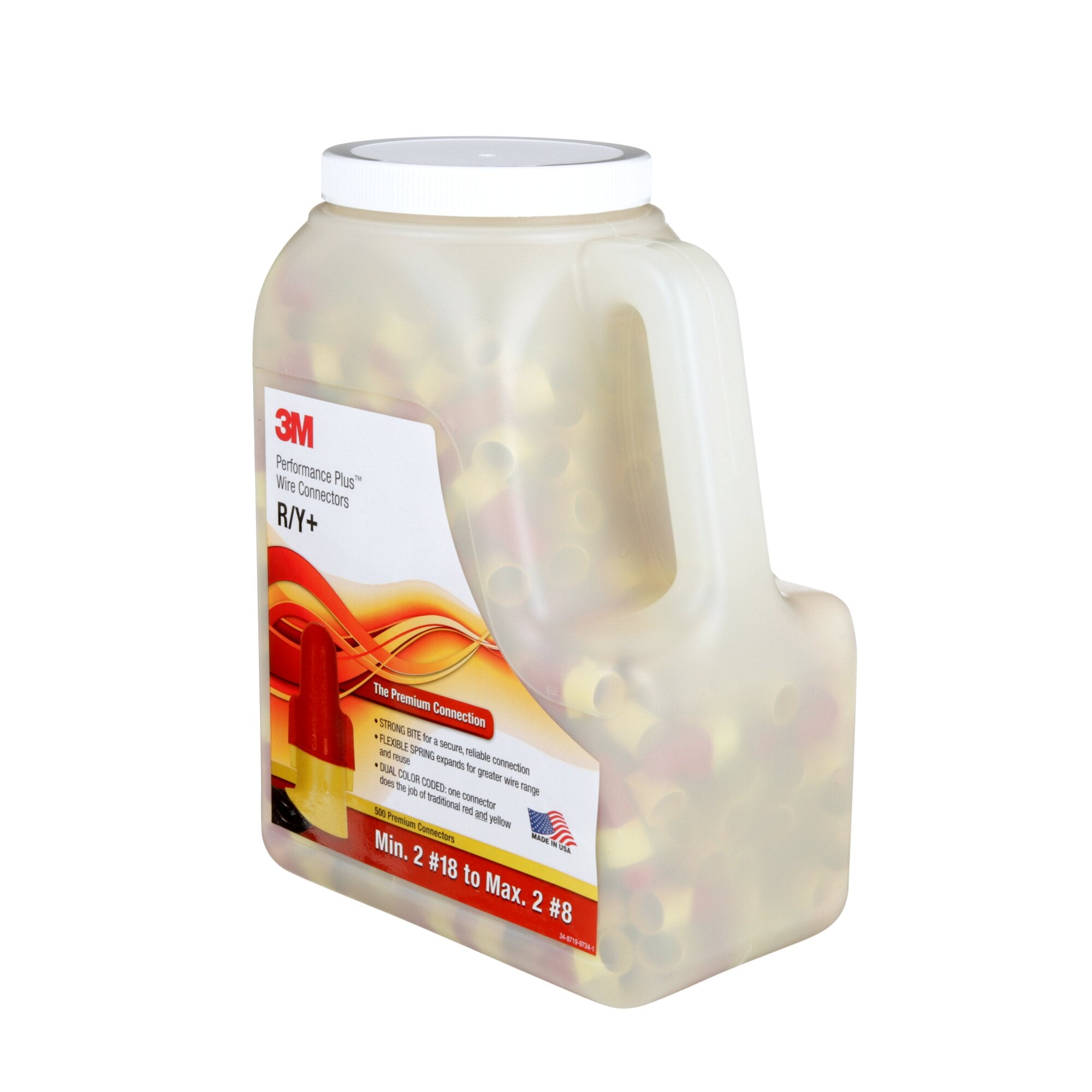

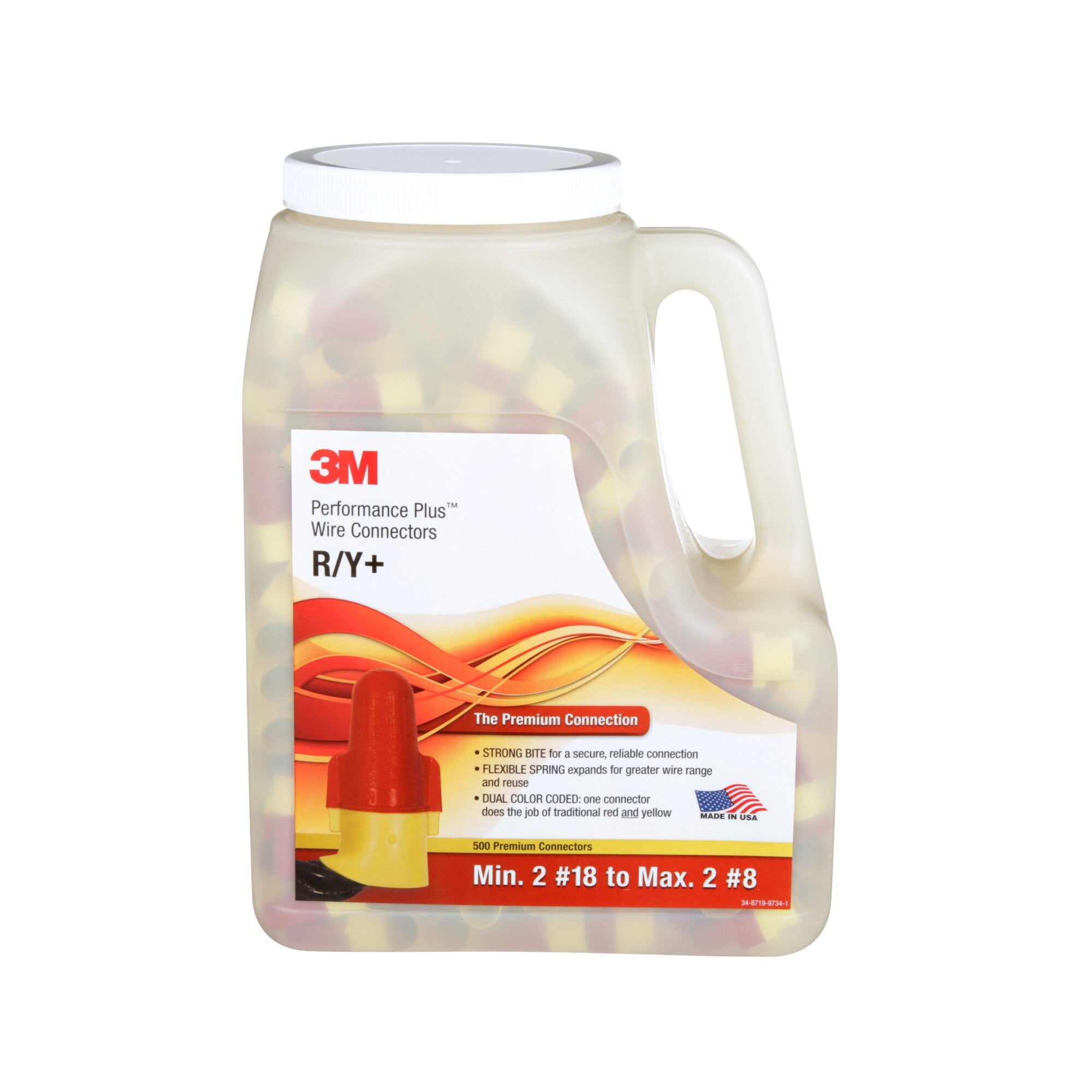

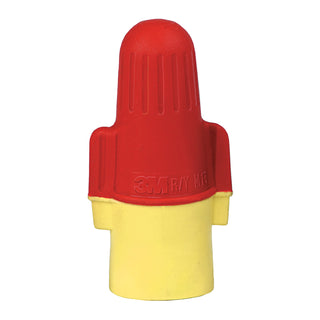

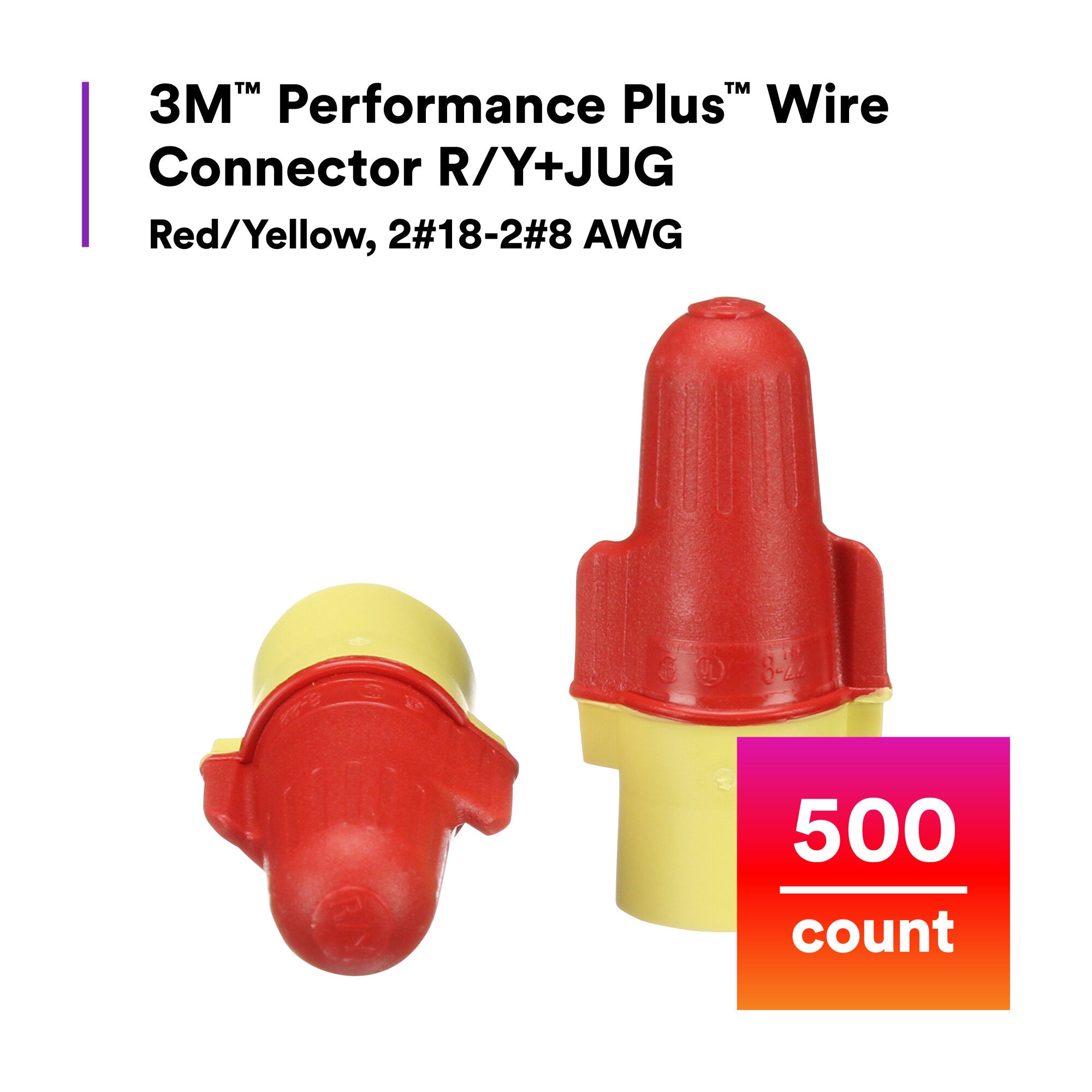

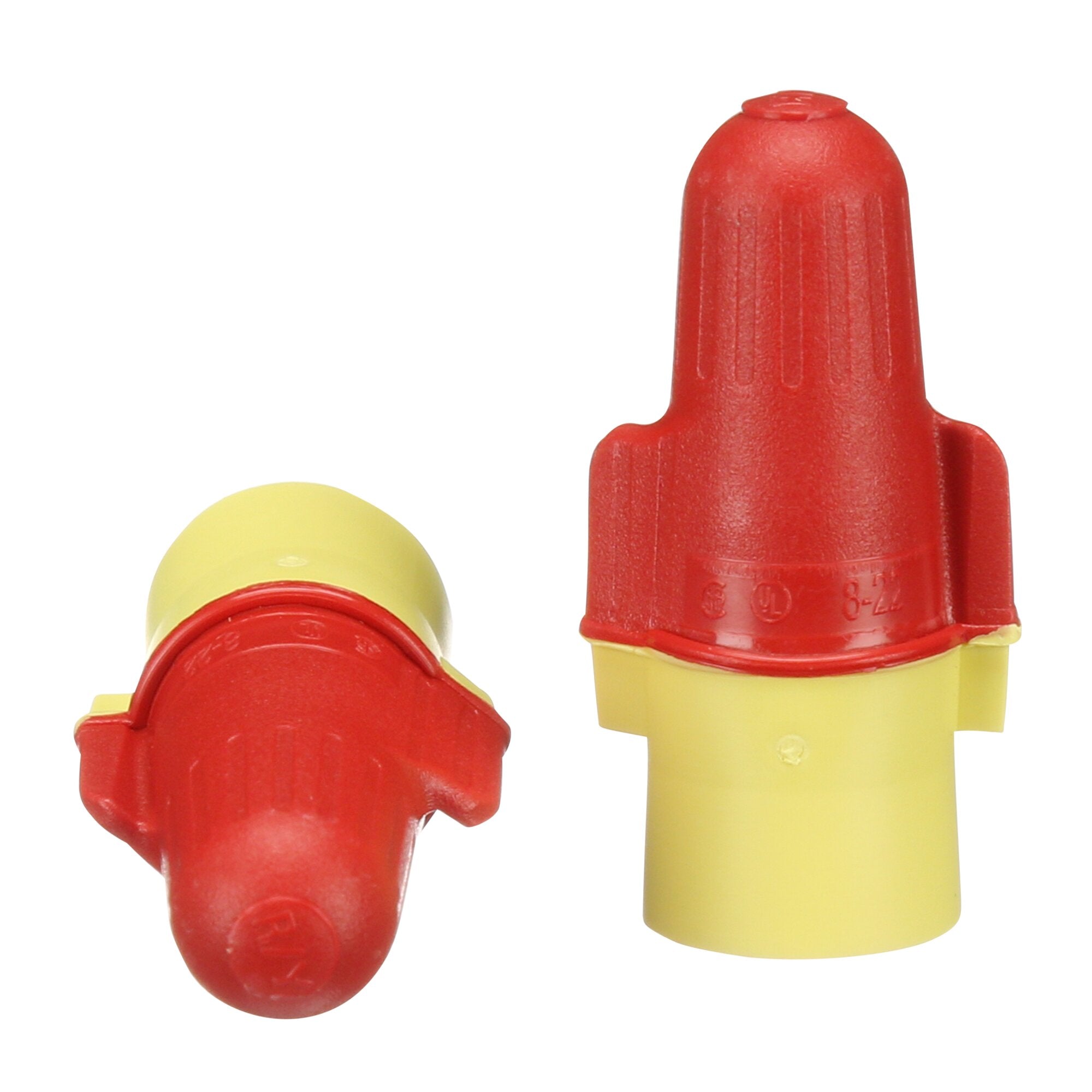

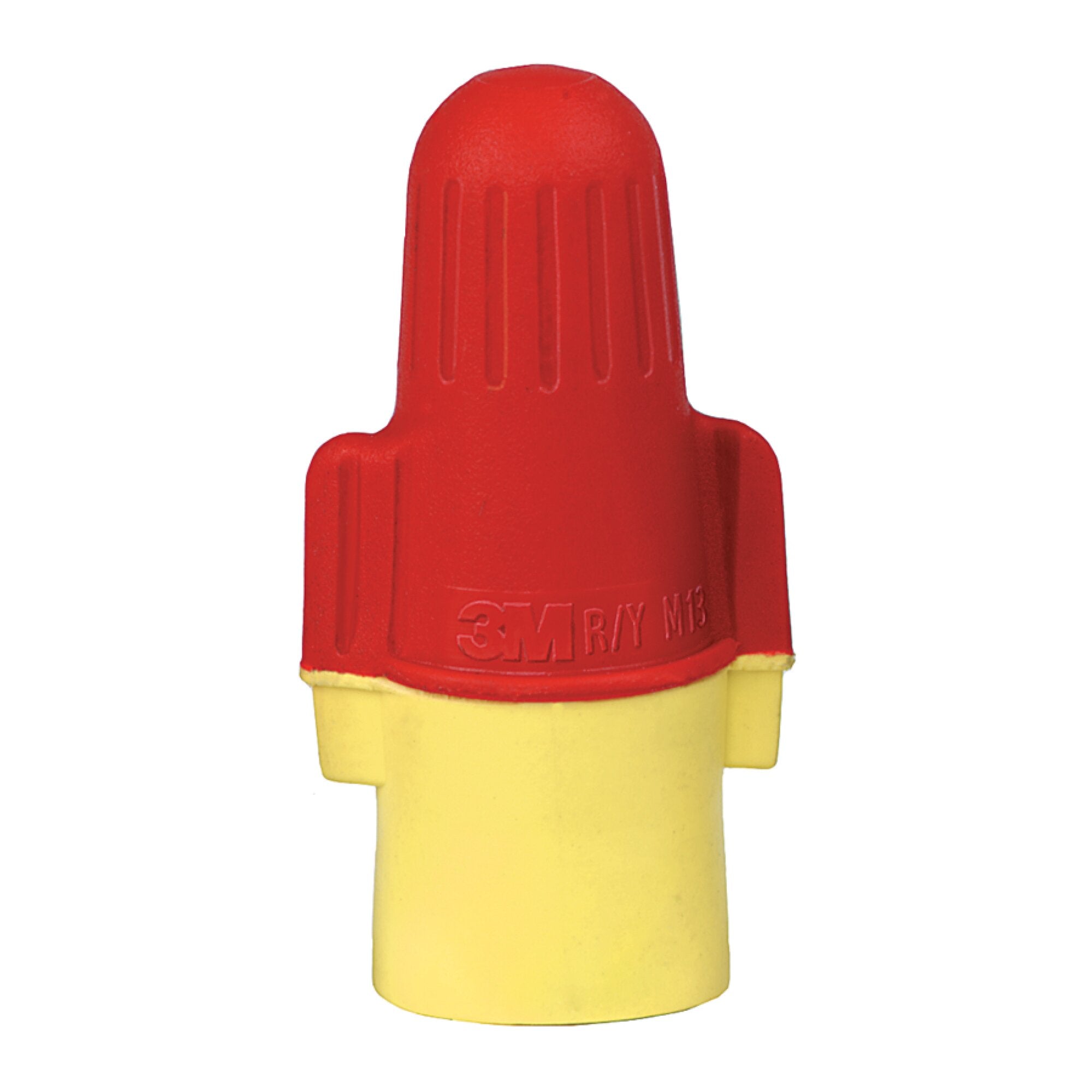

3M™ Performance Plus Wire Connector R/Y+ is used to connect and insulate copper wires in a variety of industry applications. The quick-biting spring creates secure, reliable connections, while generous room for expansion allows 1 connector to replace traditional red and yellow connectors. Made in the USA.

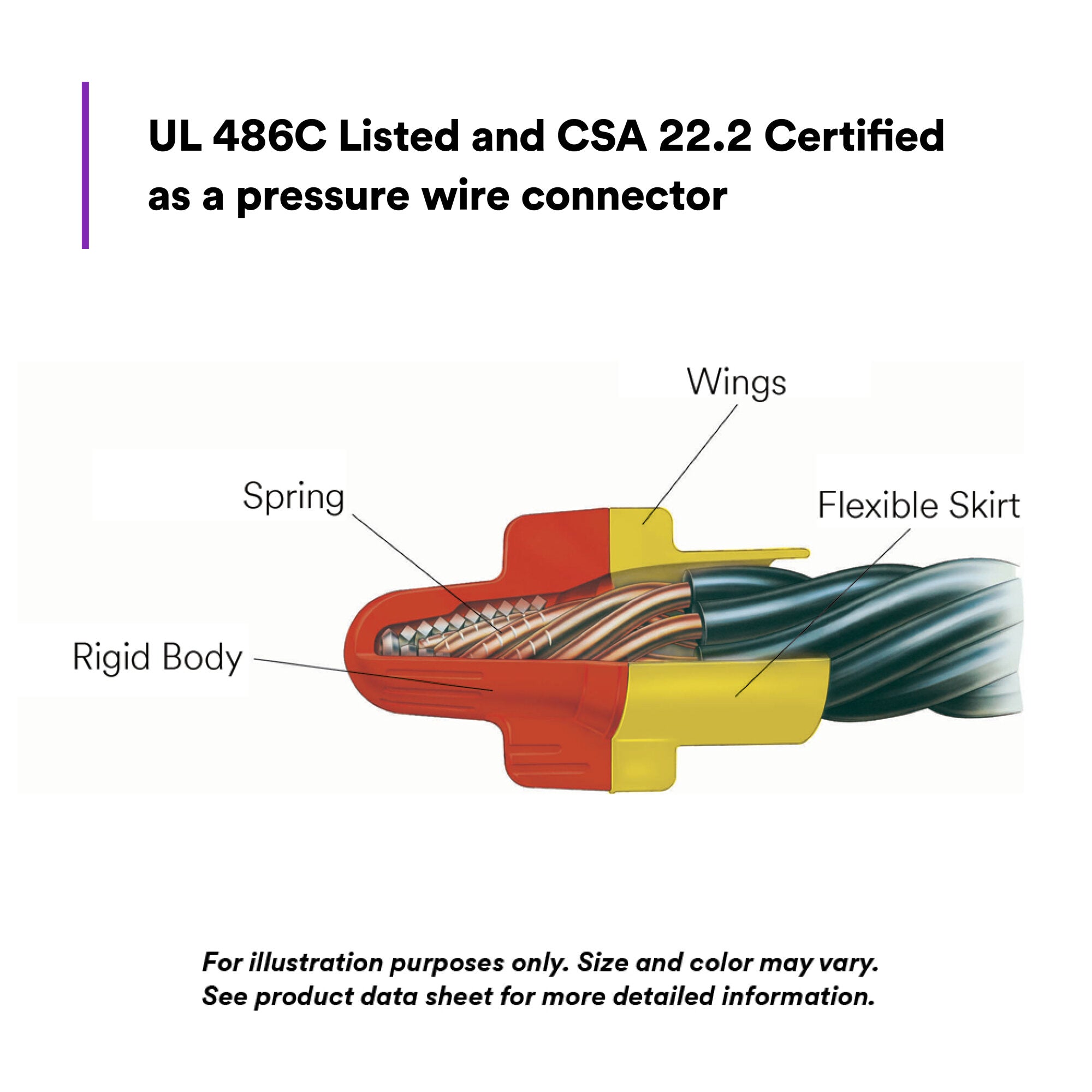

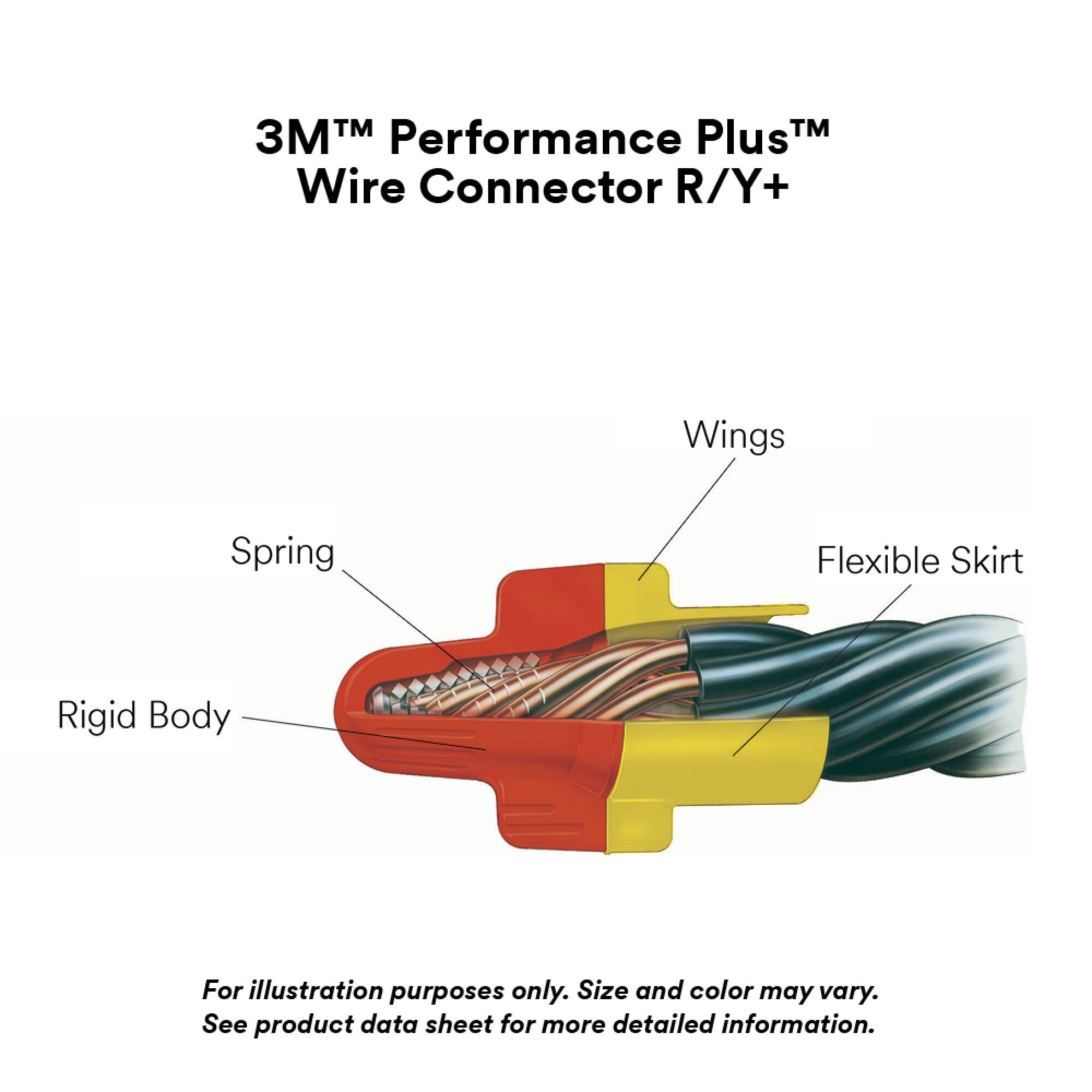

3M™ Performance Plus Wire Connector R/Y+ features a spring that expands for greater wire-taking range and reuse, allowing 1 connector to do the job of a traditional red and yellow (22 to 8 AWG). The quick-biting spring creates secure, reliable connections, while wings enable easy, high torque installation. The flexible skirt helps prevent copper exposure for enhanced safety. UL Listed and CSA Certified.
