3M Performance Plus Wire Connector T/Y+JUG, 500 per Jug

by 3M
No reviews
Original price $60.99 - Original price $60.99
Original price
$60.99
$60.99 - $60.99
Current price $60.99
Free shipping
3M Performance Plus Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance... Read more
Please allow 2 days for production.

Overview

3M

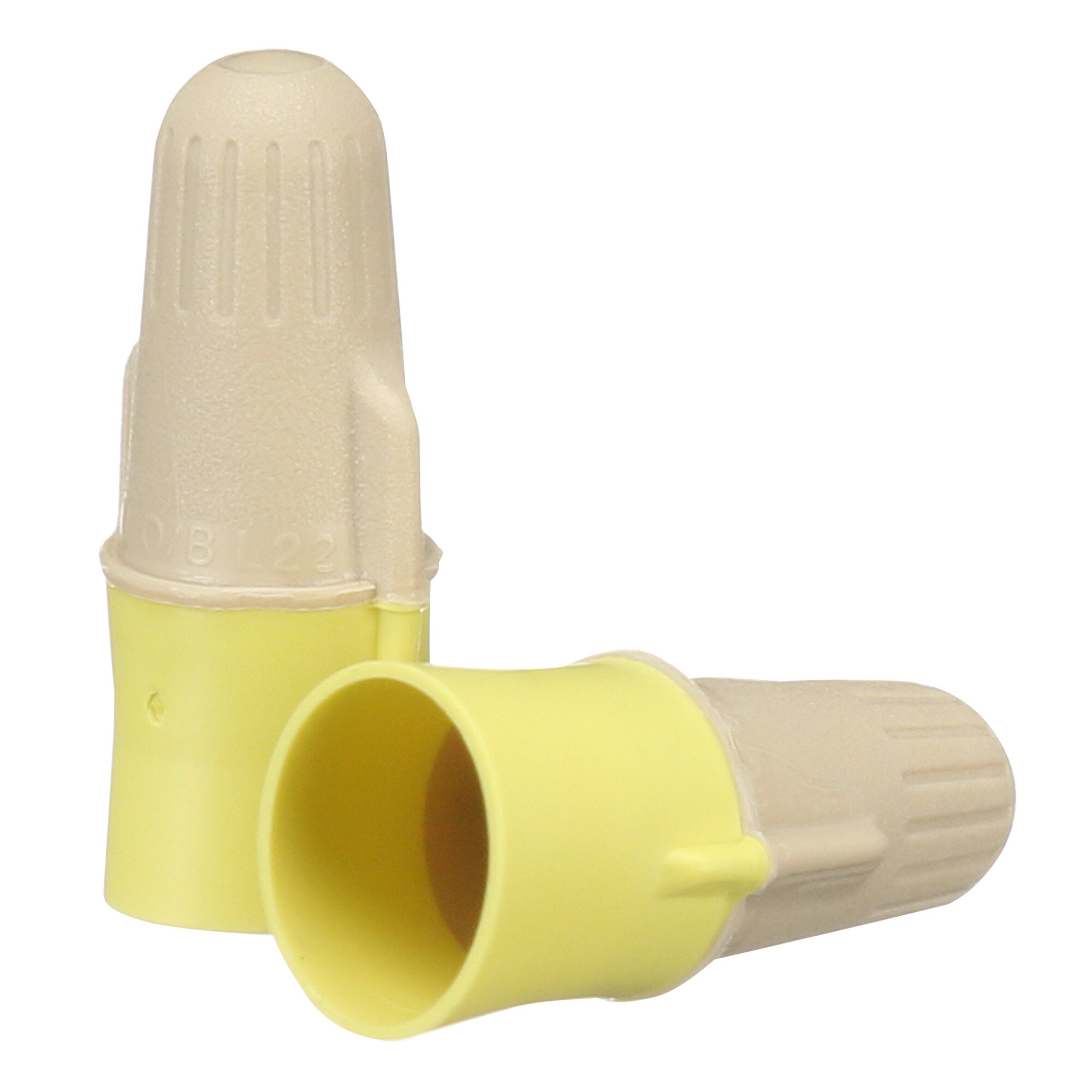

3M Performance Plus Wire Connector T/Y+JUG, 500 per Jug

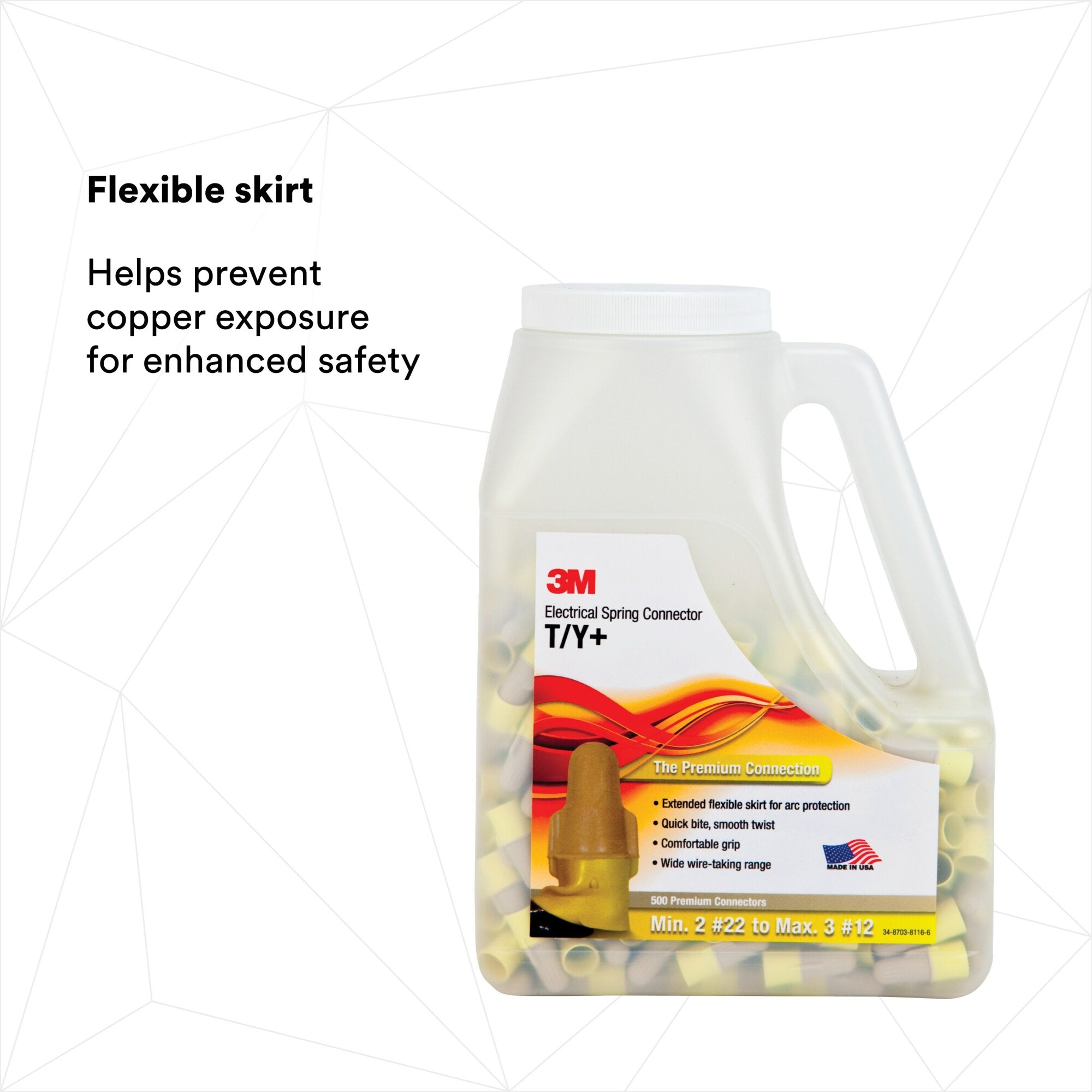

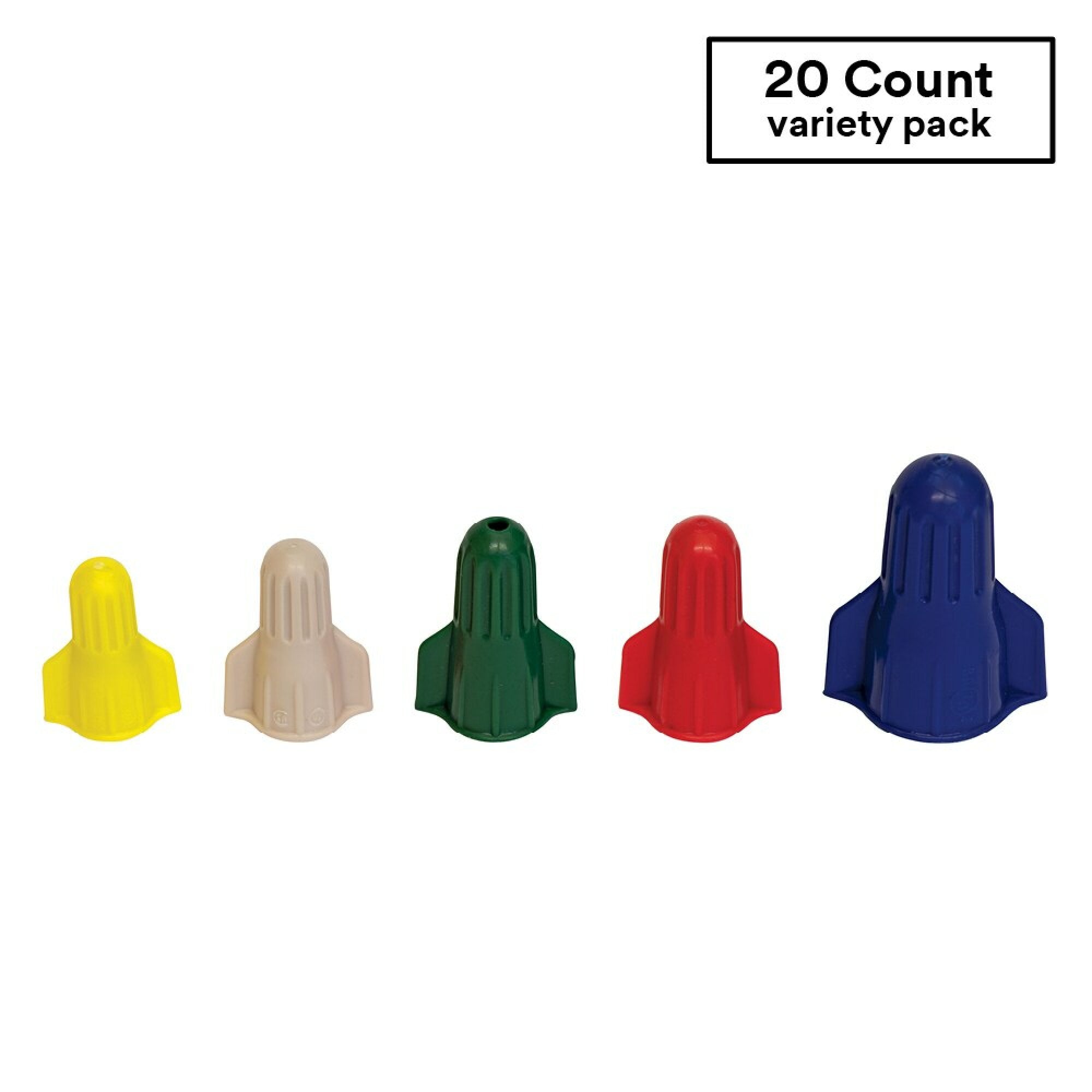

3M Performance Plus Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.

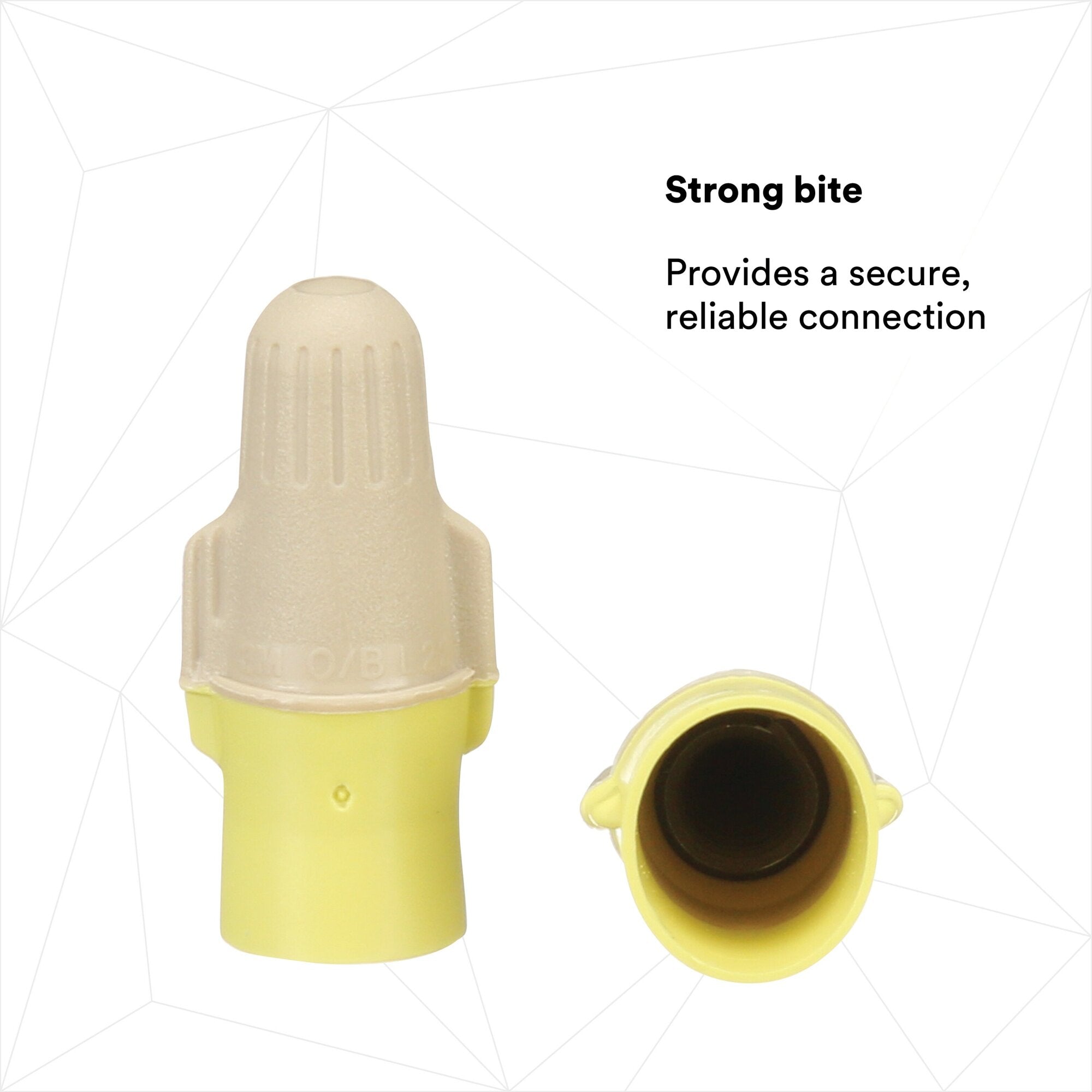

  • Strong bite for a secure, reliable connection

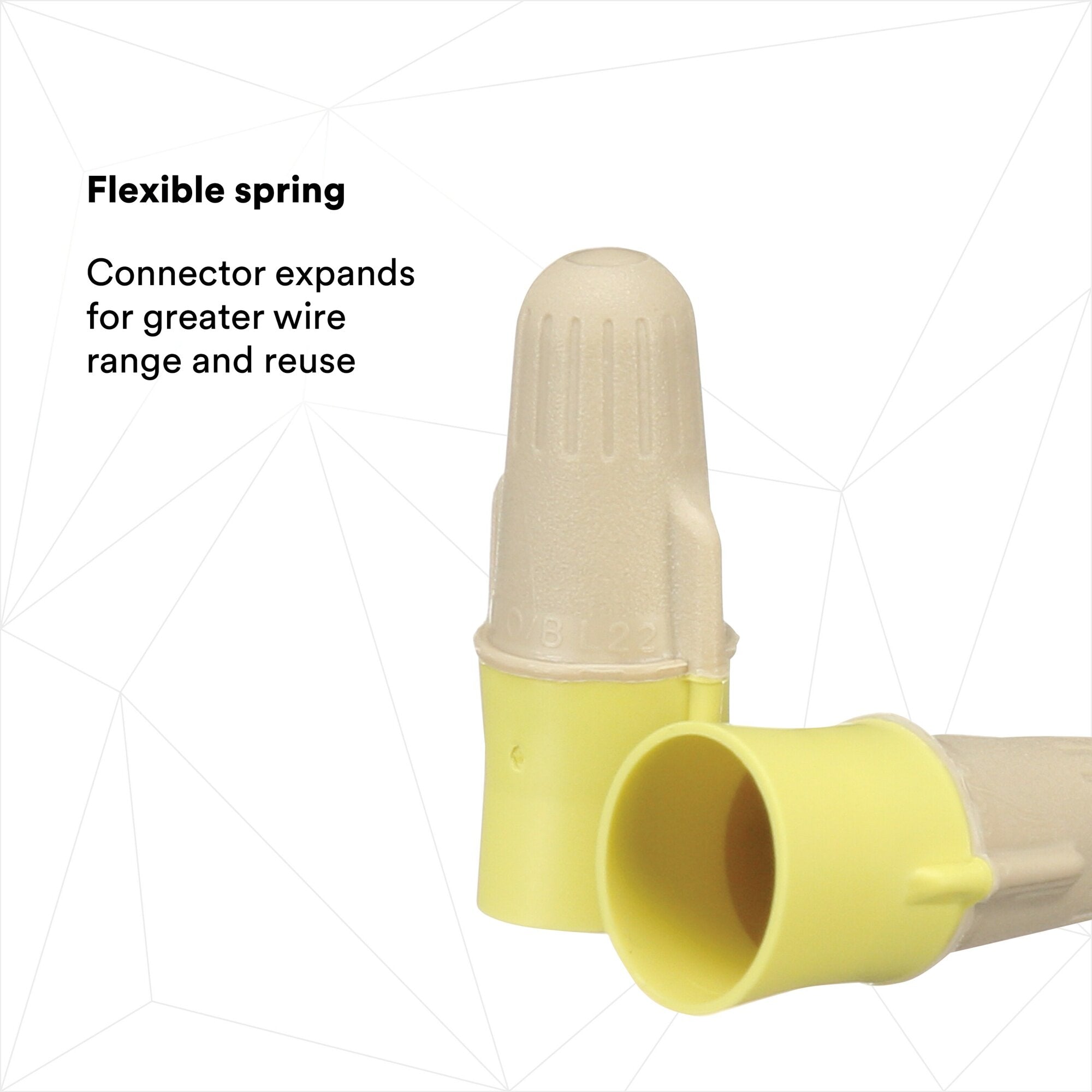

  • Flexible spring expands for greater wire range and reuse

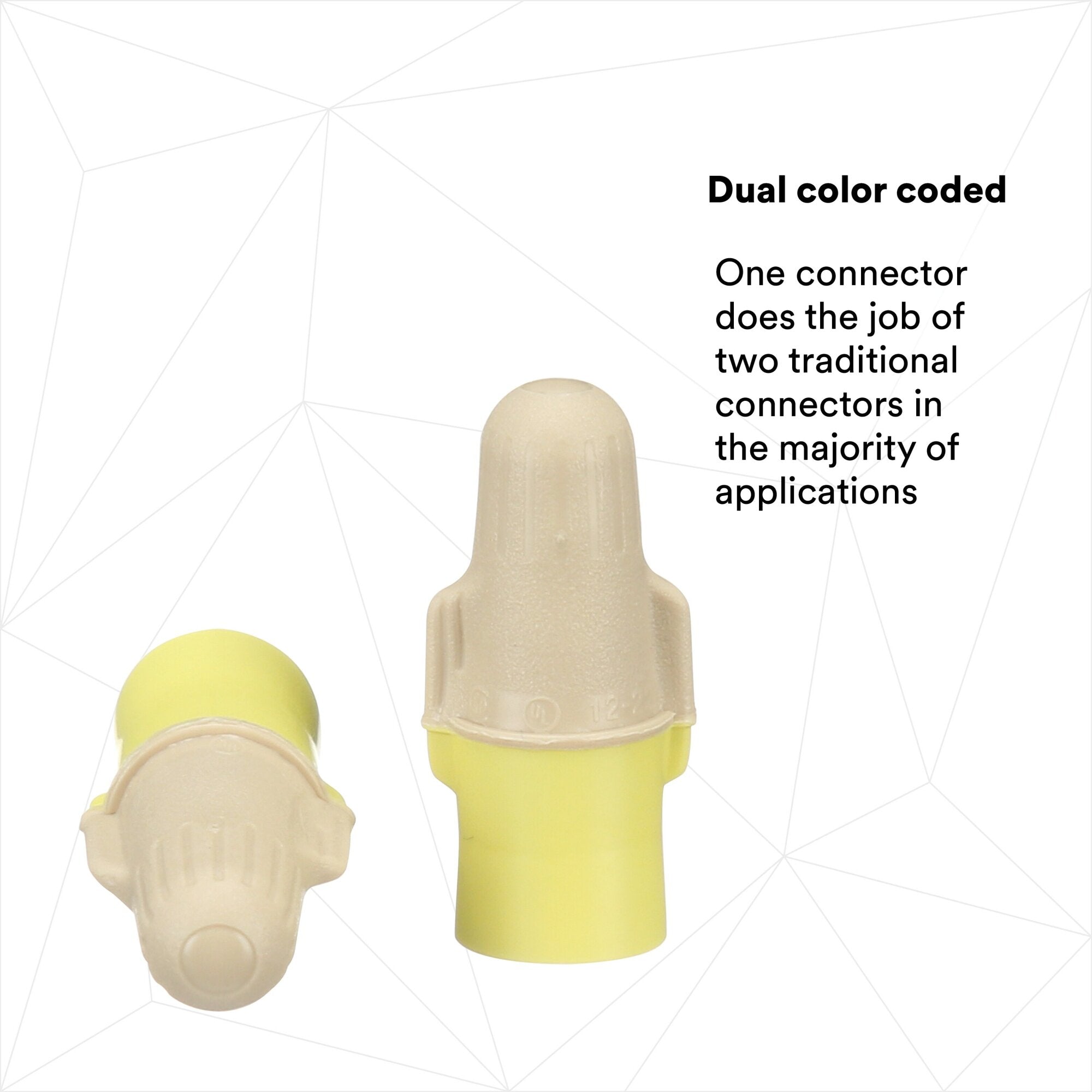

  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications

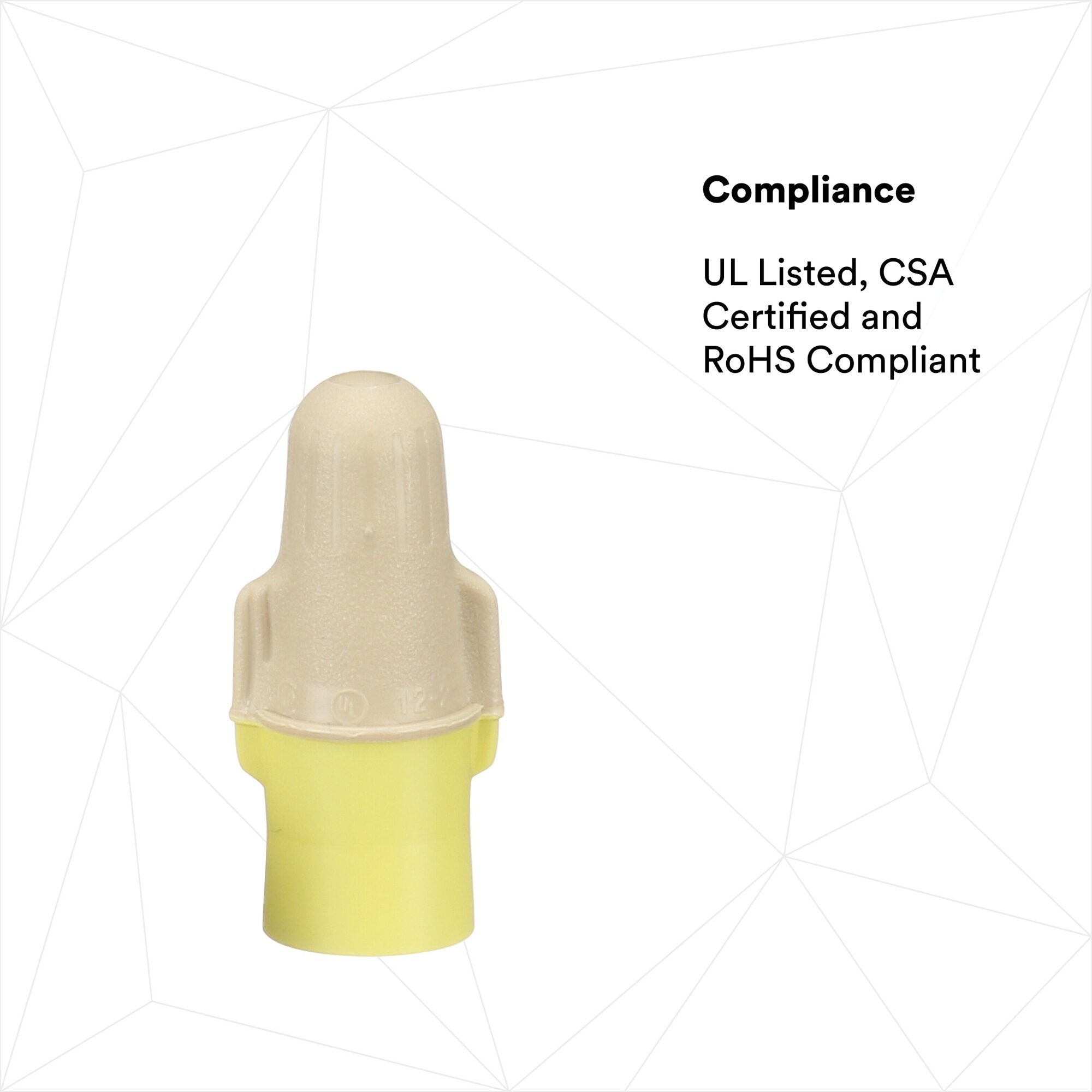

  • UL Listed

Product Details

General Information
Brand
3M™
Connection Type
Wire
Connector Style
Twist On
Product Type
Connector
Wire Connector Type
Twist-on Wire Connectors
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
22 - 12 AWG
Maximum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
4 mm²
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Maximum Voltage Rating
600 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Voltage Rating
600 V
Maximum Conductor Size Imperial
12 AWG
Maximum Conductor Size Metric
4
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
.34 mm²
Other Details
Flame Retardant
Yes
Units Per Case
10000.0
Family
3M™ Performance Plus Wire Connector
Material and Composition
Material
Plastic
Color and Appearance
Product Color
Tan
Certifications and Standards
Specifications Met
CSA
Packaging and Shipping
Case Quantity
10,000
Packaging
Jug
