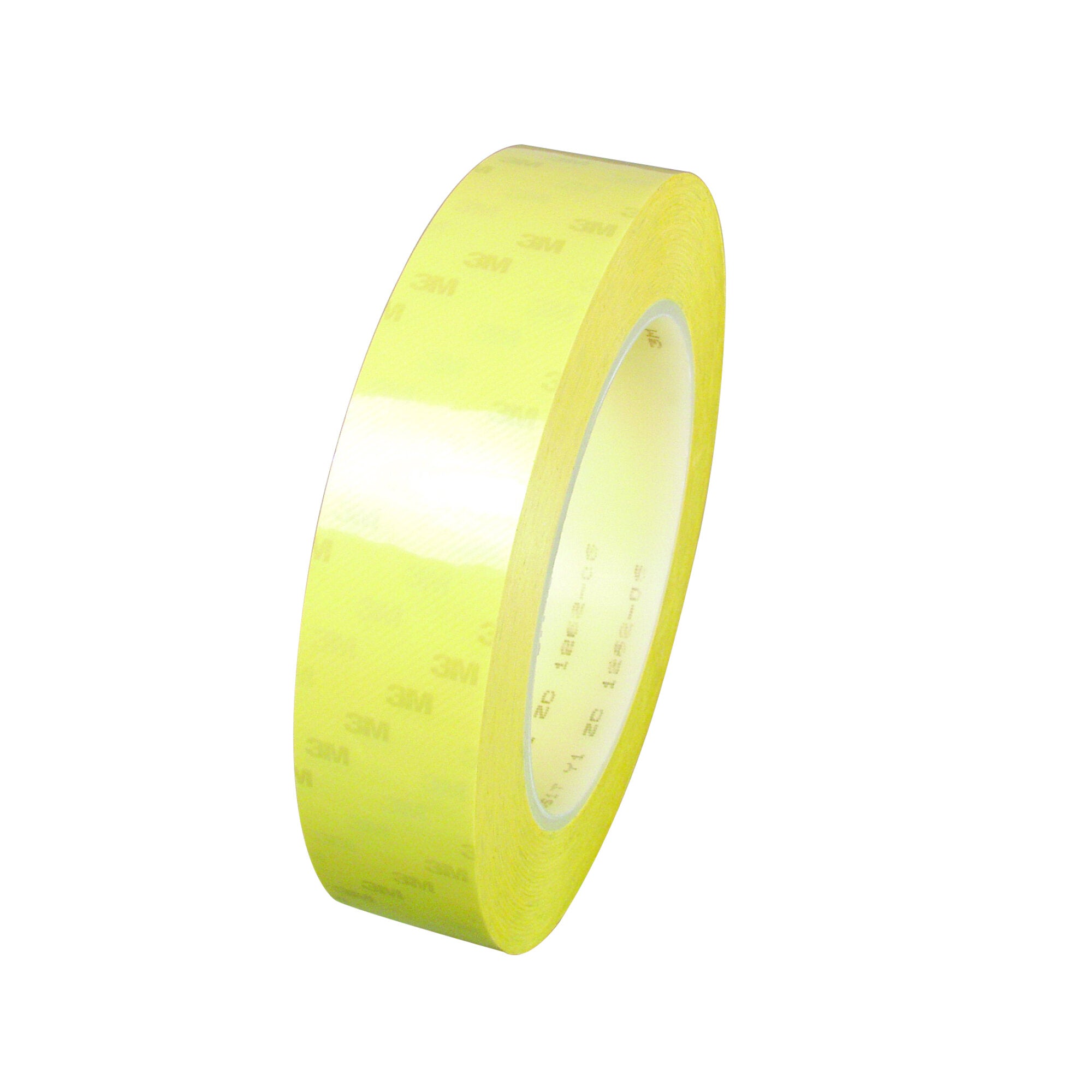

3M Polyester Film Electrical Tape 56, 1/2 in X 72 yd, Yellow

by 3M
No reviews
Original price $799.99 - Original price $799.99
Original price
$799.99
$799.99 - $799.99
Current price $799.99
Free shipping
3M Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of... Read more
This product is made to order.

Overview

3M

3M Polyester Film Electrical Tape 56, 1/2 in X 72 yd, Yellow

3M Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 F (0 to 130 C).3M™ Polyester Film Electrical Tape 56 is highly conformable with a thermosetting, rubber adhesive. This tape has a polyester film backing and offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. UL Listed and RoHS 2011/65/EU Compliant.
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Suitable for use as a coil cover and as layer insulation
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Adhesive Type
Thermosetting Rubber
Country Of Origin
Mexico
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
130 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
266 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
32 Degree Fahrenheit
Overall Length (Imperial)
72 yd
Overall Length (Metric)
65.8 m
Overall Width (Imperial)
0.5 in
Overall Width (Metric)
12.7 mm
Total Tape Thickness Without Liner (Imperial)
2.5 mil
Total Tape Thickness Without Liner (Metric)
0.064 mm
Overall Length Imperial
72.0
Other Details
Dielectric Strength
5000 V
Electrolytic Corrosion Factor
1.0
Insulation Resistance
1 x 10^6 megohms
Rolls Per Case
72
Material and Composition
Backing (Carrier) Material
Polyester
Backing Carrier Material
Polyester
Shelf Life
1825
Color and Appearance
Product Color
Yellow
Certifications and Standards
Specifications Met
UL Recognized
