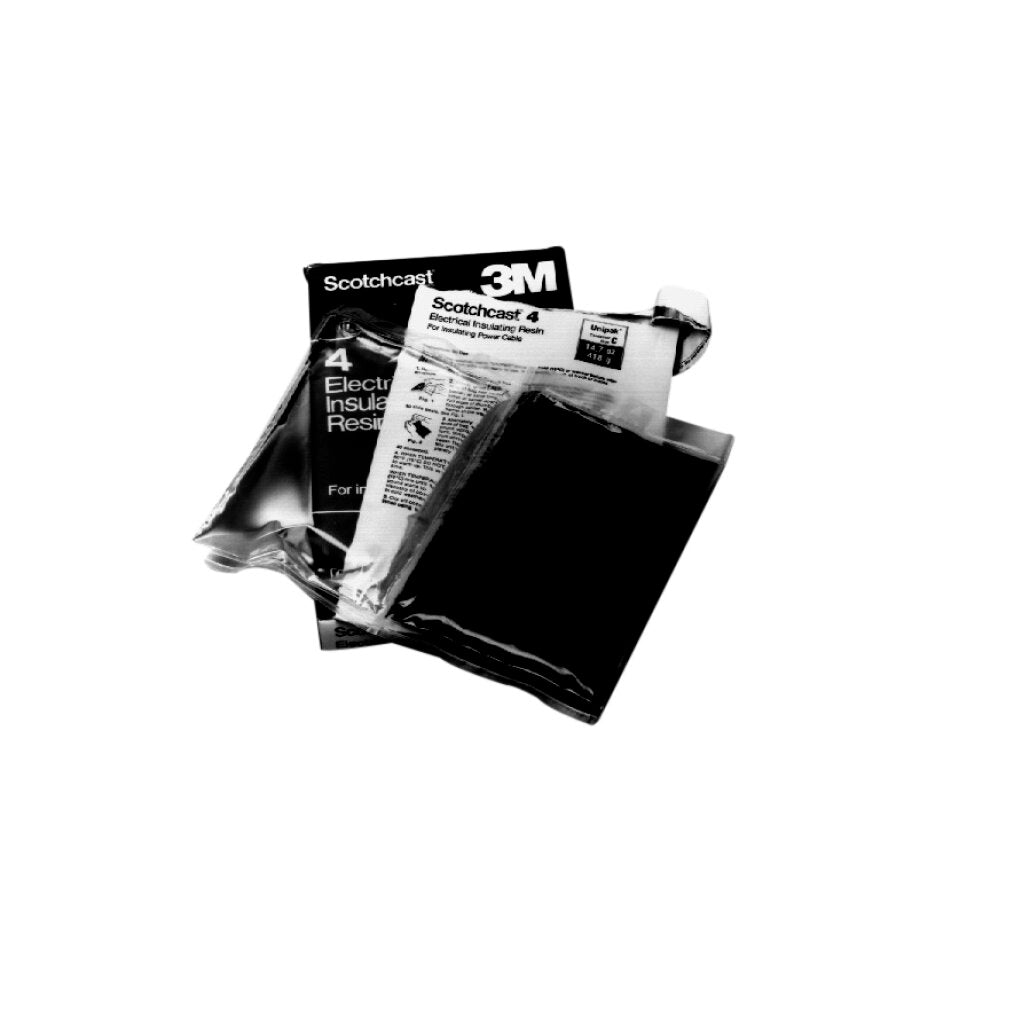

3M™ Scotchcast™ Electrical Insulating Resin 4N-C, (14.6 oz)

Features

One pack per Order

80 Shore D hardness

Has 16-minute gel time at 73 degrees F (23 degrees C)

Useful for splicing solid dielectric and oil-filled cables up to 8 kV

Comes in black color

14.6-oz capacity size C bag

Withstands a temperature range of 32 to 266 degrees F (0 to 130 degrees C)

Elongates 4% longer than its original size for easy insulation or wrapping

Withstands a voltage rating of 8 kV or less (for splicing solid dielectric and oil-filled cables)

ASTM Approved and RoHS 2011/65/EU Compliant‎

3M™ Scotchcast™ Electrical Resin 4N-C is a 2-part, insulating and encapsulating, epoxy-based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.

3M™ Scotchcast™ Electrical Resin 4N-C is a multi-purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil-filled cables up to 8 kV and to jacket high-voltage splices. This resin is used in 82-H, 82-B1, 85-14CP and 90-B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant‎.
