82 Shore A hardness
Has 17-minute gel time at 73 degrees F (23 degrees C)
Useful for replacing or repairing the jacket on both single- and multi-core power cables
Comes in black color
Withstands a temperature range of 32 to 194 degrees F (0 to 90 degrees C)
Elongates 339% longer than its original size for easy insulation or wrapping
Withstands a voltage rating of 1 kV or less
ASTM and MSHA Approved, RoHS 2011/65/EU Compliant

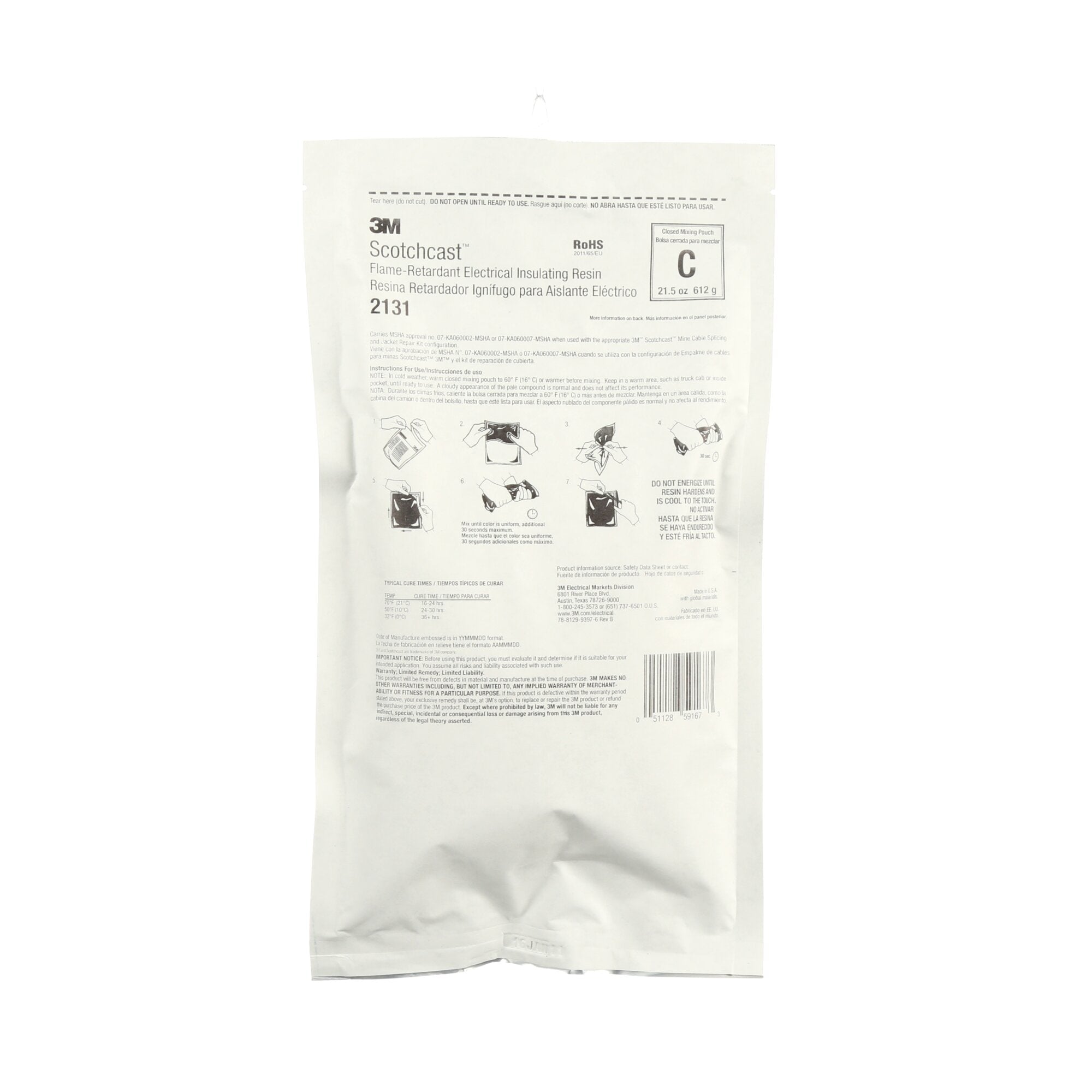

3M™ Scotchcast™ Electrical Resin 2131 is a 2-part, flame-retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid-type resin has a unique formulation to use in rugged conditions. High dielectric strength offers a very good electrical insulating property to the resin.
3M™ Scotchcast™ Flame-Retardant Resin 2131 has low gel point rating to ensure curing at room temperature. The high-tensile strength of the resin exhibits a semi-flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, helping prevent any fire hazard due to quick ignition. The flame-retardant resin allows you to insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi-core cables. ASTM and MSHA Approved, RoHS 2011/65/EU Compliant.
