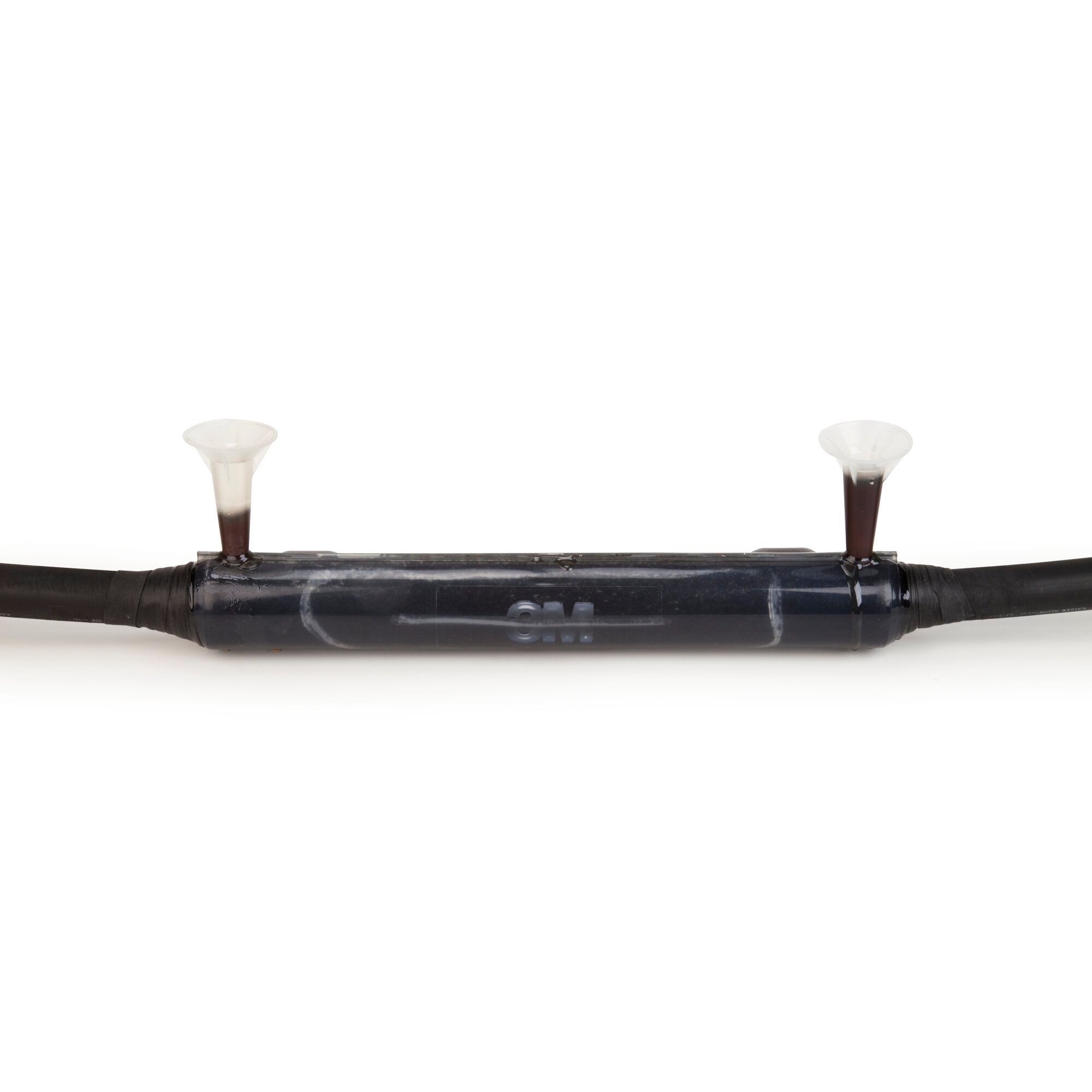

Dimensions and Specifications
Conductor Sizes (Imperial)
16 AWG
Insulation Outside Diameter Range
0.25 - 0.625 Inch
Insulation Outside Diameter Range (Metric)
6.4-15.9 mm
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
6 mm²
Maximum Insulation Outer Diameter (Imperial)
0.25 in
Maximum Insulation Outer Diameter (Metric)
6.4 mm
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Minimum Insulation Outer Diameter (Imperial)
0.25 in
Minimum Insulation Outer Diameter (Metric)
6.4 mm
Molded Body Length
7.125 in
Molded Body Length (Metric)
181.0 mm
Voltage
1 kV
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
6 mm²
Maximum Insulation Outer Diameter Metric
6.4
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
.34 mm²
