3M™ Scotchcast™ Multi-Mold Resin Splice Kit 85-10, 8 AWG stranded
- Resin Joints & Splice Kits
- 3M
- 7100009589
Features
Electrically insulates odd-sized and odd-shaped splices on cables
Pliable plastic molds are formed around splices
Suitable for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins
Cable has a 7/16-in run and tap O.D.
Accommodates 4 AWG stranded H or C-tap compression conductors
Rated for 1 kV cables
RoHS 2011/65/EU Compliant
3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit is specially designed to splice 1kV-rated cables. This versatile splice kit electrically insulates odd-sized and odd-shaped splices in underground applications.

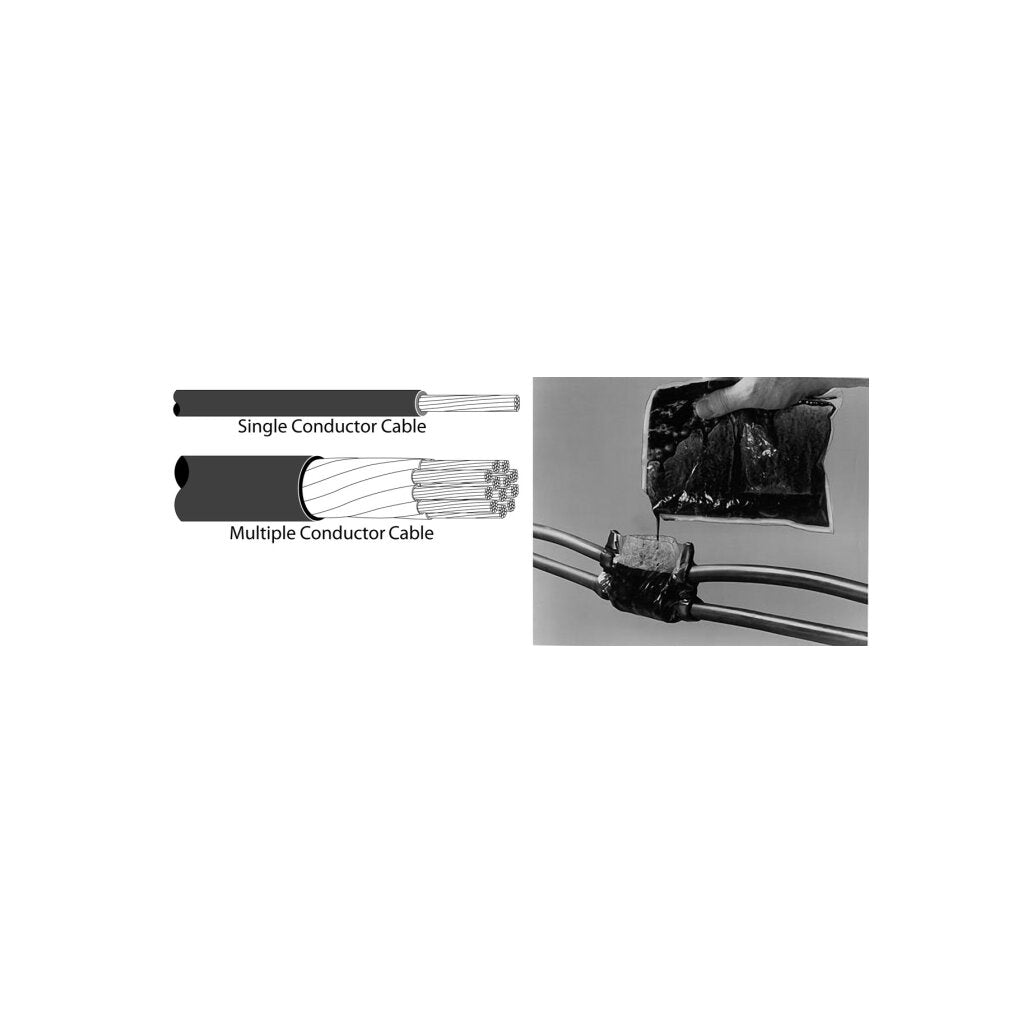

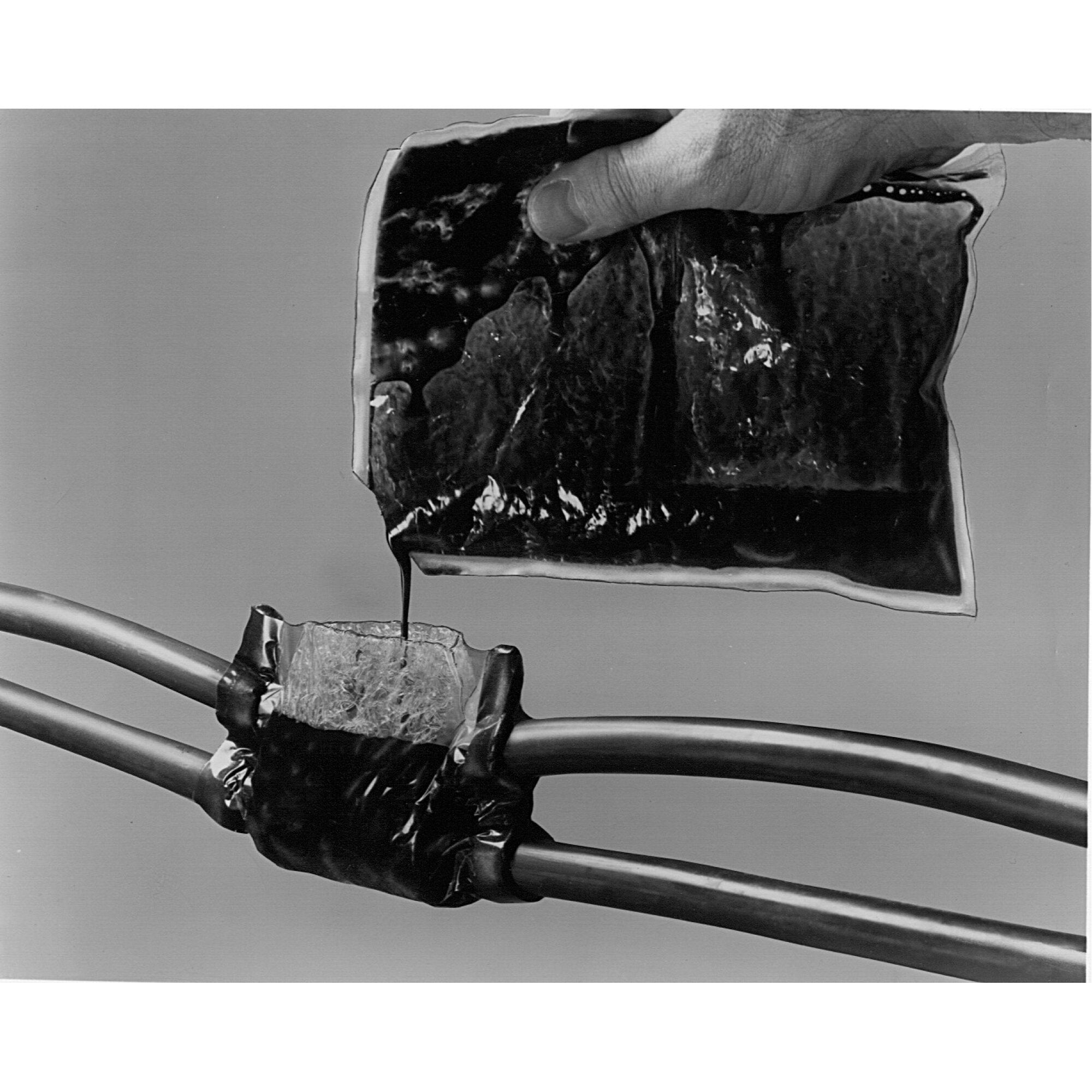

3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit includes a flexible film plastic mold, electrical insulating resin 2104, pressure-sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H-tap or C-tap compression connectors, it provides inline, wye, X, butt and dead-end splice configurations. It has a flexible film plastic mold with a built-in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins. RoHS 2011/65/EU Compliant.
