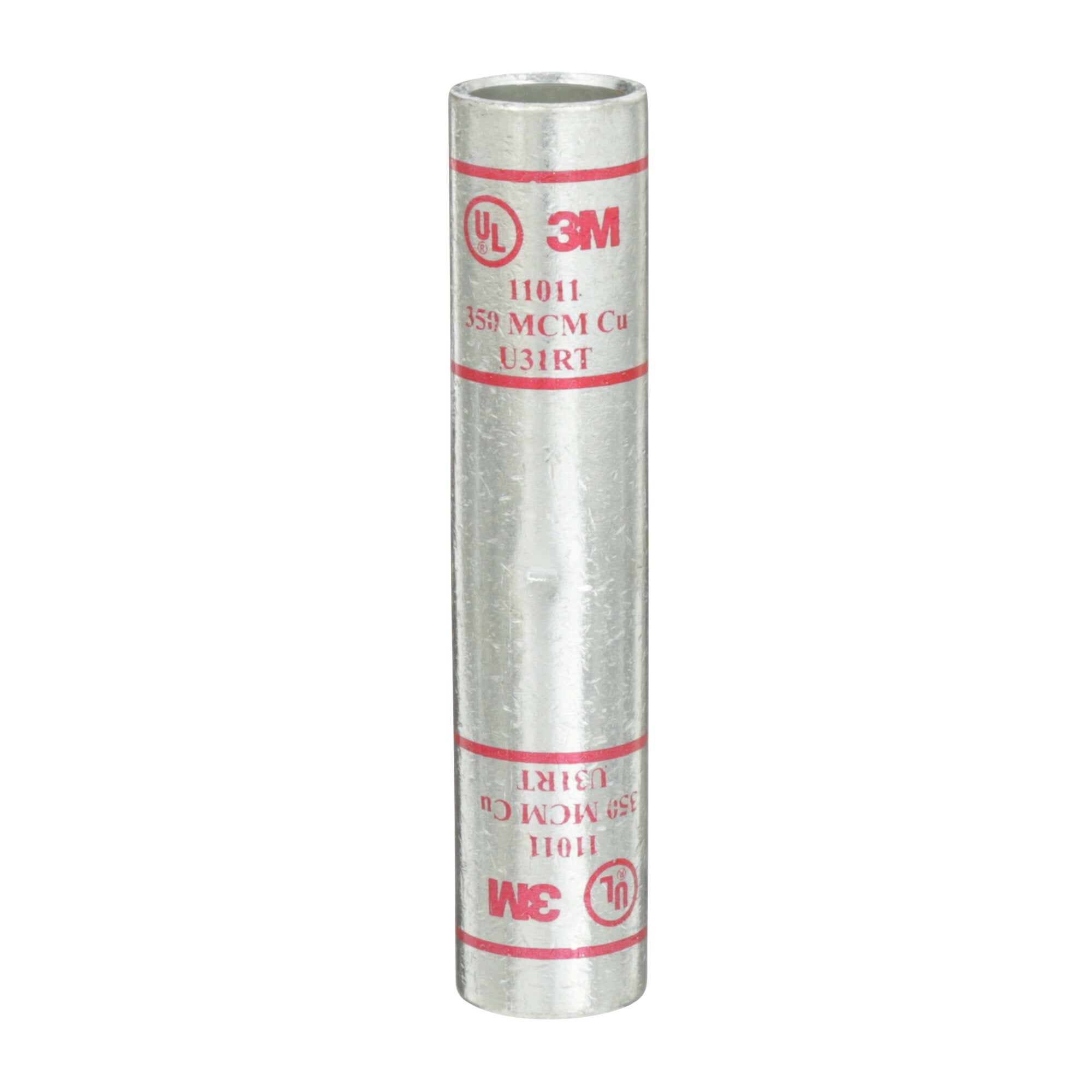

3M Scotchlok Copper Long-Barrel Connector 11011, up to 35 kV, 350kcmil, Red

by 3M
No reviews
Original price $59.99 - Original price $59.99
Original price
$59.99
$59.99 - $59.99
Current price $59.99
Free shipping

3M Scotchlok Copper Compression Connectors, 10000 Series are one-piece, standard-barrel, seamless copper connectors and are designed to cover a wide range of conductor sizes from 6 AWG through 1000 kcmil (MCM).

Please allow 2 days for production.

Overview

3M

3M Scotchlok Copper Long-Barrel Connector 11011, up to 35 kV, 350kcmil, Red

3M Scotchlok Copper Compression Connectors, 10000 Series are one-piece, standard-barrel, seamless copper connectors and are designed to cover a wide range of conductor sizes from 6 AWG through 1000 kcmil (MCM).
  • Standard barrel ensures reliable performance
  • Built-in solid center oil stop
  • Made of aluminum for good conductivity and has corrosion-resistant tin plating

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Long Barrel
Connector Type
Compression Connectors
Electrical Connector Type
Compression Connectors
Product Series
11000
Country Of Origin
Chile
Lead Time
2 days
California Residents
Dimensions and Specifications
Connector O.D. Range (Metric)
22.9-33.0 mm
Inside Diameter (Imperial)
0.7 in
Inside Diameter (Metric)
17.8 mm
Maximum Conductor Size (Imperial)
350 kcmil (Stranded)
Maximum Conductor Size (Metric)
185 mm² (Stranded)
Maximum Connector Length
5.2 inch (Al)
Maximum Connector Length (Metric)
140 mm (Cu)
Maximum Operating Voltage
35 Kilovolt
Minimum Conductor Size (Imperial)
350 kcmil
Minimum Conductor Size (Metric)
185 mm²
Outer Diameter (Imperial)
0.88 in
Overall Length (Imperial)
4.13 in
Overall Length (Metric)
104.8 mm
Poly/EPR Cable Insulation O.D. Range (Metric)
22.0 - 34.6 mm
Inside Diameter Metric
17.8 mm
Maximum Conductor Size Imperial
350 kcmil (Stranded)
Maximum Conductor Size Metric
185 mm² (Stranded)
Minimum Conductor Size Imperial
350 kcmil
Minimum Conductor Size Metric
185 mm²
Outer Diameter Imperial
0.88
Overall Length Imperial
4.13
Other Details
Connector Base Metal
Copper
Connector O.D. Range
0.90 - 1.30 Inch
For Use With
Copper Conductor Only
Indoor/Outdoor
Both
Indoor Outdoor
Both
Material and Composition
Body Material
Copper
Insulation Material
Non Pertinent
Color and Appearance
Color Code
Red
Product Color
Red
Packaging and Shipping
Case Quantity
3
