3M Scotchlok Electrical Idc 557-Pouch, Pigtail, Self-Stripping, Red,22-16 Awg

by 3M
No reviews
Original price $350.99 - Original price $350.99
Original price
$350.99
$350.99 - $350.99
Current price $350.99
Free shipping
Make connections easily with the self-stripping 3M Scotchlok 557 IDC Pigtail Electrical Connector. Rated for 600V building wire applications and 1000V sign, fixture and luminaire jobs, it joins 2 solid or stranded wires of sizes... Read more

Overview

3M

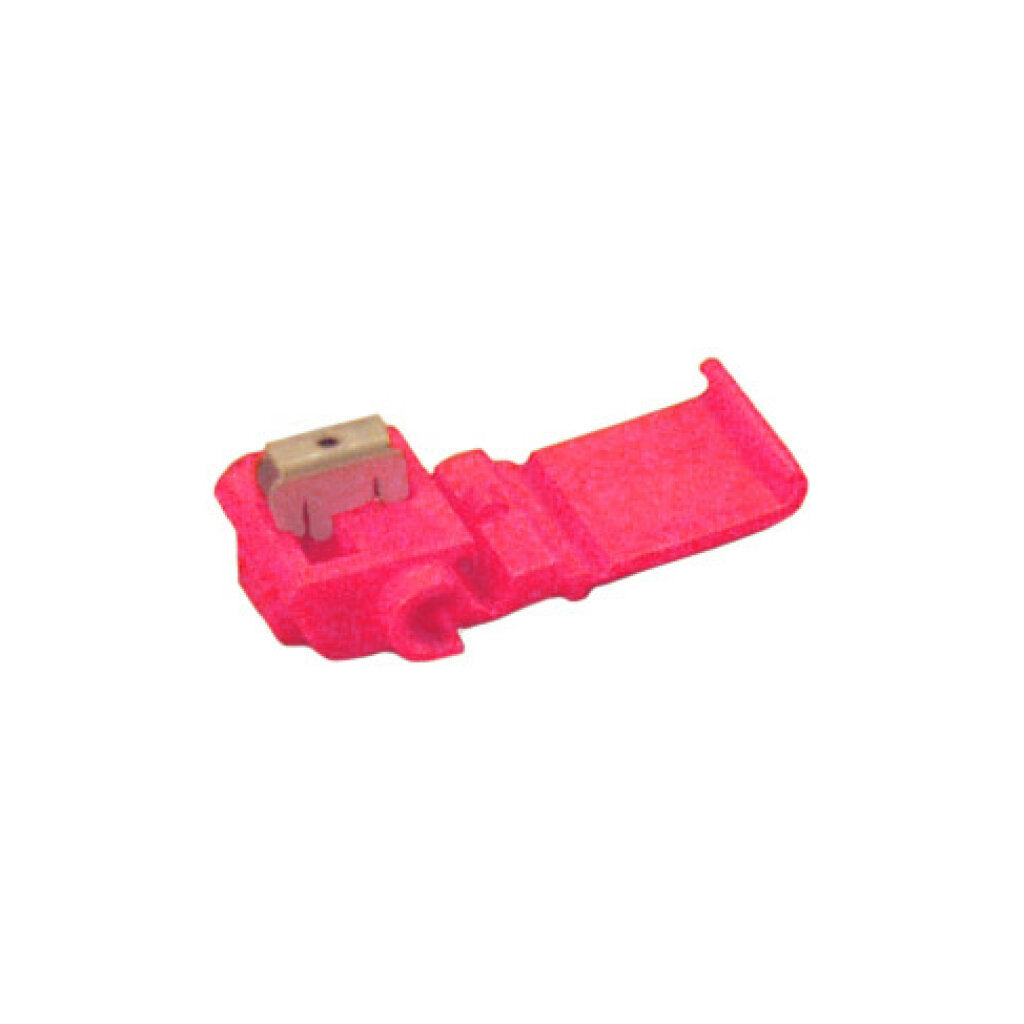

3M Scotchlok Electrical Idc 557-Pouch, Pigtail, Self-Stripping, Red,22-16 Awg

Make connections easily with the self-stripping 3M Scotchlok 557 IDC Pigtail Electrical Connector. Rated for 600V building wire applications and 1000V sign, fixture and luminaire jobs, it joins 2 solid or stranded wires of sizes of 22 to 16 AWG and insulates the connection with flame-retardant polypropylene. This 3M connector performs well at temperatures up to 221 degrees F (105 degrees C).3M™ Scotchlok™ Insulation Displacement Connector 557 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • intended for use with common thermoplastic insulated wire such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE GPT with a maximum insulation diameter of 3,5 mm
  • Accommodates 22 to 16 AWG solid/stranded
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Connection Type
Pigtail
Connector Style
Insulation Displacement
Product Type
Connector
Wire Connector Type
IDC Connectors
Country Of Origin
United States
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
16 AWG
Conductor Sizes (Metric)
1.5 mm²
Insulation Outer Diameter (Imperial)
0.12 in
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Run Maximum Insulation Outer Diameter (Imperial)
0.12 in
Run Maximum Insulation Outer Diameter (Metric)
3.05 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.12 in
Tap Maximum Insulation Outer Diameter (Metric)
3.05 mm
Voltage Application
Low Voltage
Conductor Sizes Imperial
16 AWG
22 AWG
Maximum Conductor Size Imperial
16 AWG
Maximum Conductor Size Metric
1.5
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
.34 mm²
Other Details
CSA File Number
LR15503
Connector / Connector Tool
3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
Flame Retardant
Yes
Grease Filling Against Corrosion
No
Interrupt Free Shifting
No
Moisture Resistant
No
Recommended Crimping Tool
E-9BM
UL File Number
E23438
Units Per Case
1000.0
Family
IDC for Electrical Applications
Material and Composition
Insulation Material
Polypropylene
Material
Insulator: FR Polypropylene, U-contact: Tin-plated Brass
Color and Appearance
Insulation Color
Red
Product Color
Red
Packaging and Shipping
Case Quantity
1000
Packaging
Box
