3M Scotchlok Electrical IDC 562-BIN, Yellow, 12 AWG (solid/stranded),10 AWG

by 3M
No reviews
Original price $295.99 - Original price $295.99
Original price
$295.99
$295.99 - $295.99
Current price $295.99
Free shipping
The 3M Scotchlok 562 IDC Double Run or Tap Electrical Connector is rated 600V for use with building wire and 1000V for use with luminaires, fixtures and signs. Its flame-retardant and designed to provide an... Read more
Please allow 2 days for production.

Overview

3M

3M Scotchlok Electrical IDC 562-BIN, Yellow, 12 AWG (solid/stranded),10 AWG

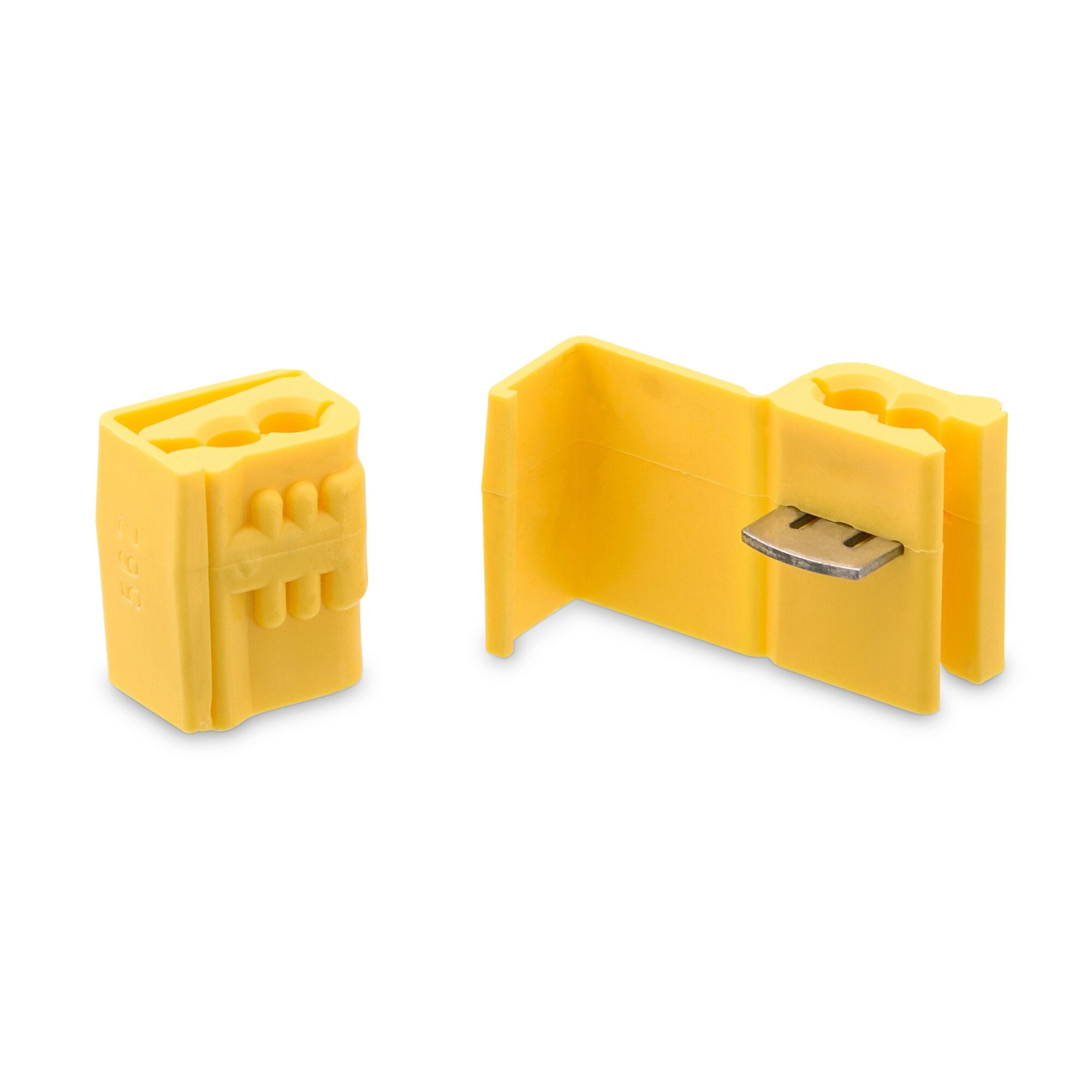

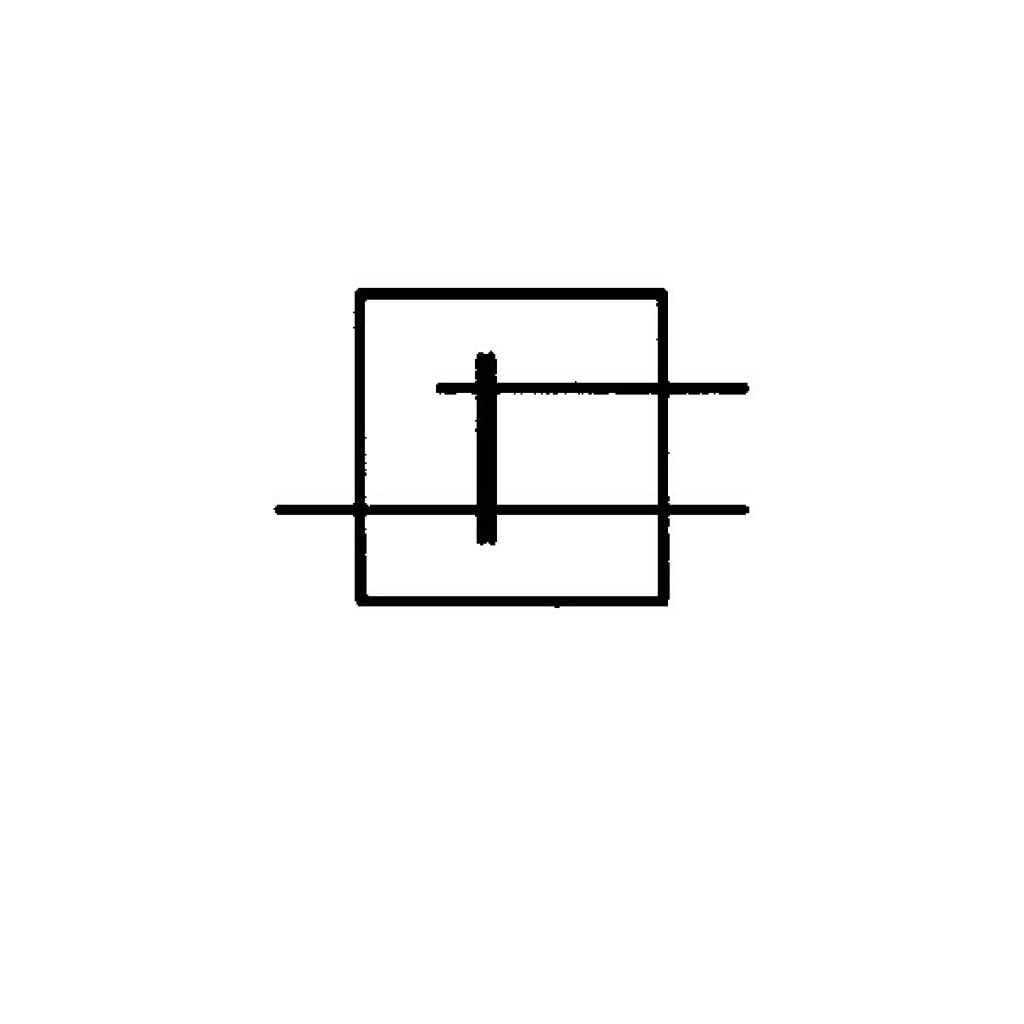

The 3M Scotchlok 562 IDC Double Run or Tap Electrical Connector is rated 600V for use with building wire and 1000V for use with luminaires, fixtures and signs. Its flame-retardant and designed to provide an insulated electrical connection between a tap wire and run (through) wire. The self-stripping insulation is crafted from polypropylene for good performance and lasting quality.3M™ Scotchlok™ Insulation Displacement Connector 562 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
  • Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Rated for 32V applications
  • Accommodates 18 to 14 AWG solid/stranded
  • RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Connection Type

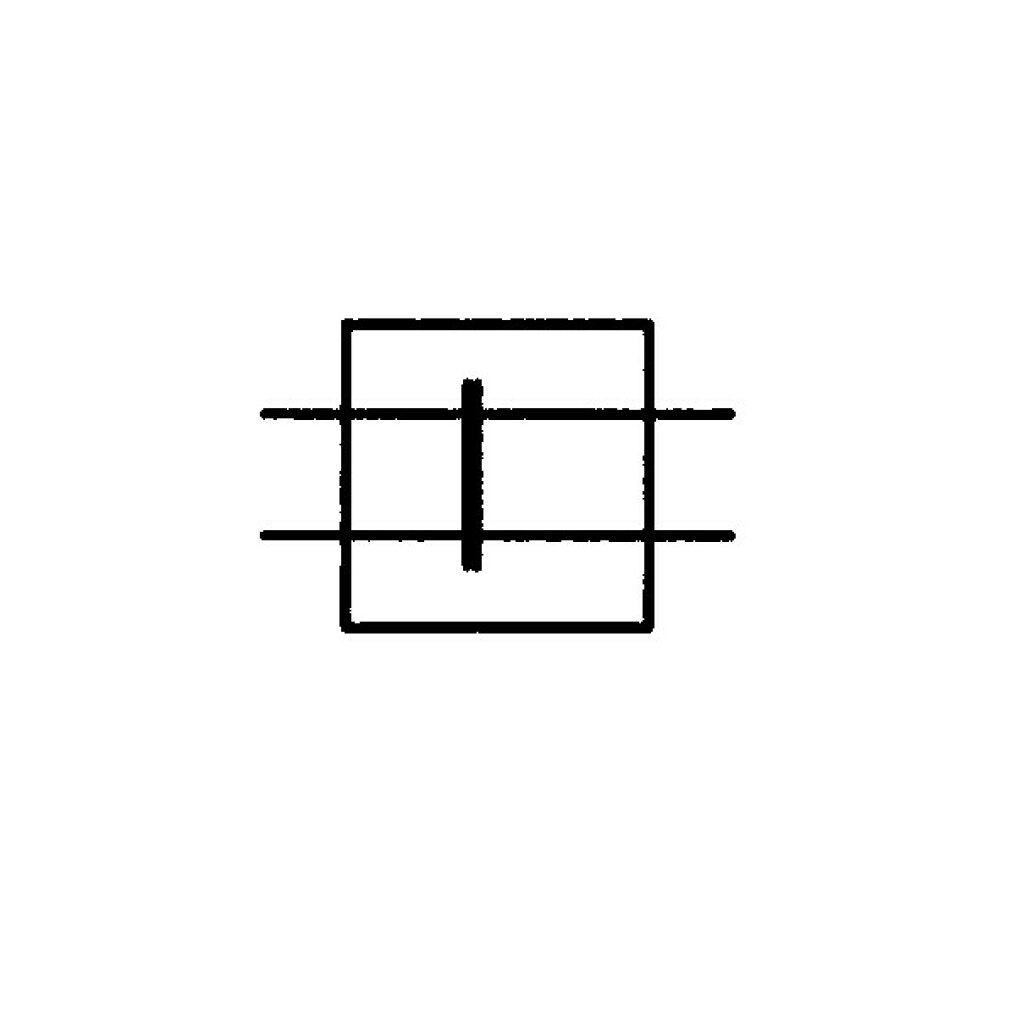

Double Run or Tap
Connector Style
Insulation Displacement
Product Type
Connector
Wire Connector Type
IDC Connectors
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
10 AWG (Stranded)
Conductor Sizes (Metric)
6 mm² (Stranded)
Insulation Outer Diameter (Imperial)
0.19 in
Maximum Conductor Size (Imperial)
10 AWG (Stranded)
Maximum Conductor Size (Metric)
6 mm² (Stranded)
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
4 mm²
Run Maximum Insulation Outer Diameter (Imperial)
0.19 in
Run Maximum Insulation Outer Diameter (Metric)
4.82 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.19 in
Tap Maximum Insulation Outer Diameter (Metric)
4.82 mm
Voltage Application
Low Voltage
Conductor Sizes Imperial
10 AWG (Stranded)
12 AWG
Maximum Conductor Size Imperial
10 AWG (Stranded)
12 AWG
Maximum Conductor Size Metric
6
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
4 mm²
Other Details
Connector / Connector Tool
3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
Flame Retardant
Yes
Grease Filling Against Corrosion
No
Interrupt Free Shifting
No
Max. Number Of Cores
2
Moisture Resistant
No
Package Quantity
1000
UL File Number
E23438
Units Per Case
1000.0
Family
IDC for Electrical Applications
Material and Composition
Insulation Material
Polypropylene
Material
Insulator: FR Polypropylene, U-contact: Tin-plated Brass
Color and Appearance
Insulation Color
Yellow
Product Color
Yellow
Packaging and Shipping
Packaging
Bin
