3M™ Scotchlok™ Electrical IDC 804 Blue, 18-16 AWG (solid/stranded), 14 AWG (str)

by 3M
Original price $359.99 - Original price $359.99
Original price
$359.99
$359.99 - $359.99
Current price $359.99
Free shipping
1000 per caseBlue, polypropylene-insulated connector is suitable to electrically tap into a wire in mid-span without cuttingColor-coded for quick and easy identification of the wire sizeSuitable for control circuit wiring, fixture wiring, appliance wiring, signal... Read more

Overview

Brand img

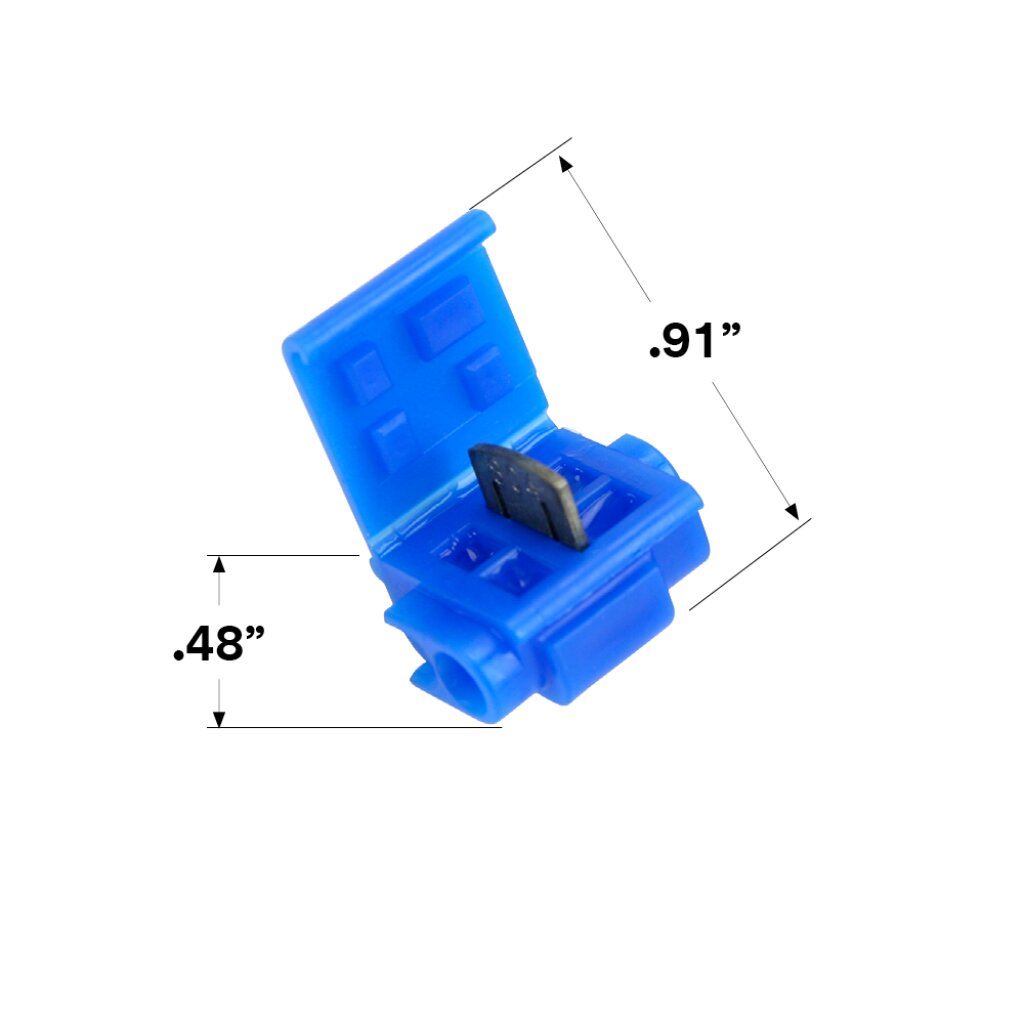

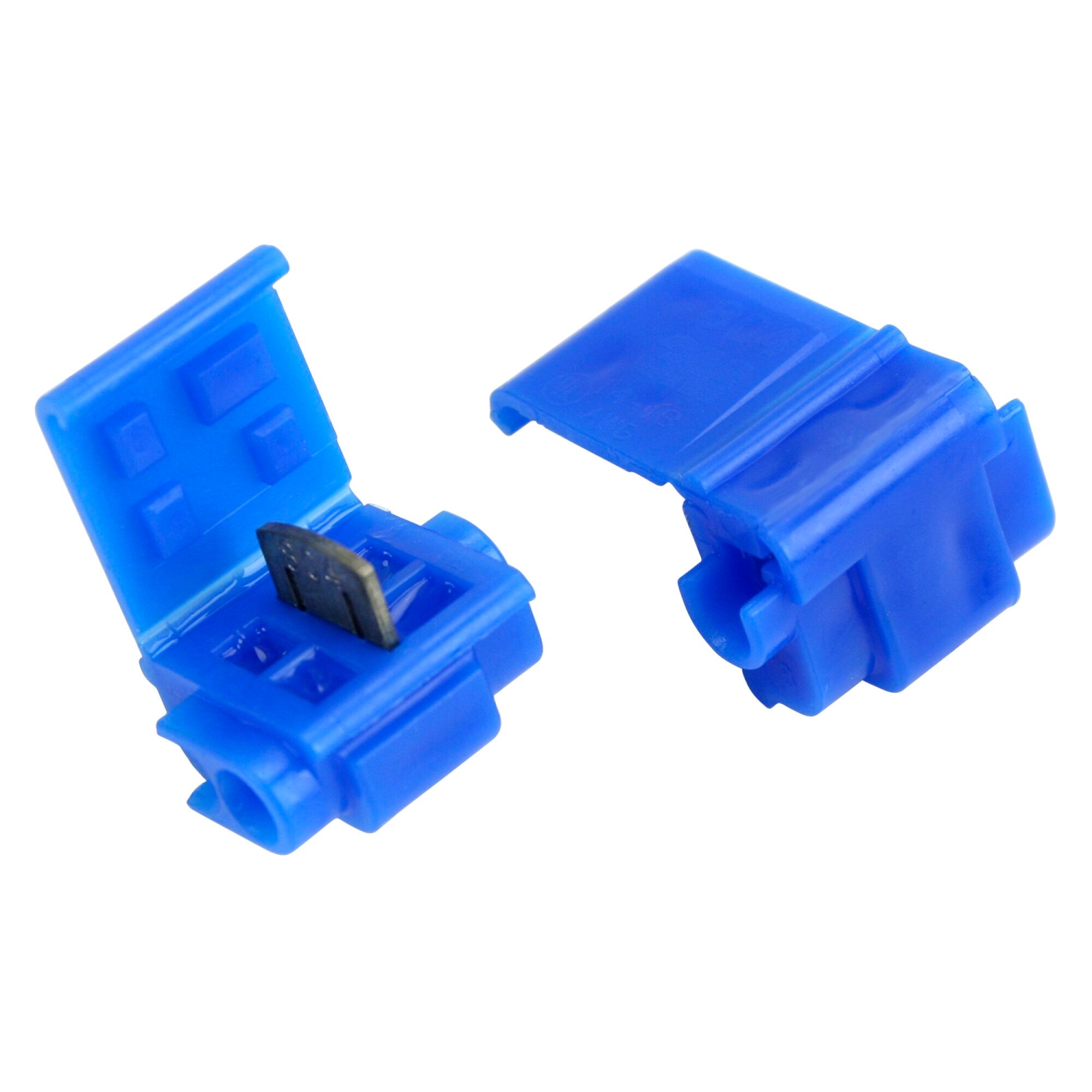

3M™ Scotchlok™ Electrical IDC 804 Blue, 18-16 AWG (solid/stranded), 14 AWG (str)

  • 3M
  • 7010398509

1000 per case

Blue, polypropylene-insulated connector is suitable to electrically tap into a wire in mid-span without cutting

Color-coded for quick and easy identification of the wire size

Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring

Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded

Brass element construction for good conductivity and tin plating for corrosion resistance

Withstands temperatures of 167 degrees F (75 degrees C)

Rated for 600V applications

UL Listed and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ 804 IDC Run or Tap Electrical Connector electrically connects a tap wire to a run (through) wire while insulating the connection. The connector insulation is manufactured from polypropylene and used to electrically tap into a wire in mid-span without cutting or stripping the wire. It is 600V-rated and withstands temperatures of 167 degrees F (75 degrees C).


Product Details

General Information
Manufacturer
3M
Part Number
7010398509
Product Type
Crimp Terminals, Lugs & Wire Nuts
