3M Scotchlok Female Disconnect, High Temperature Butted SeamMU14-250DFHTK

by 3M
No reviews
Original price $115.99 - Original price $115.99
Original price
$115.99
$115.99 - $115.99
Current price $115.99
Free shipping
3M Scotchlok High-Temperature Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C).... Read more
This product is made to order. Please allow 8 days for production.

Overview

3M

3M Scotchlok Female Disconnect, High Temperature Butted SeamMU14-250DFHTK

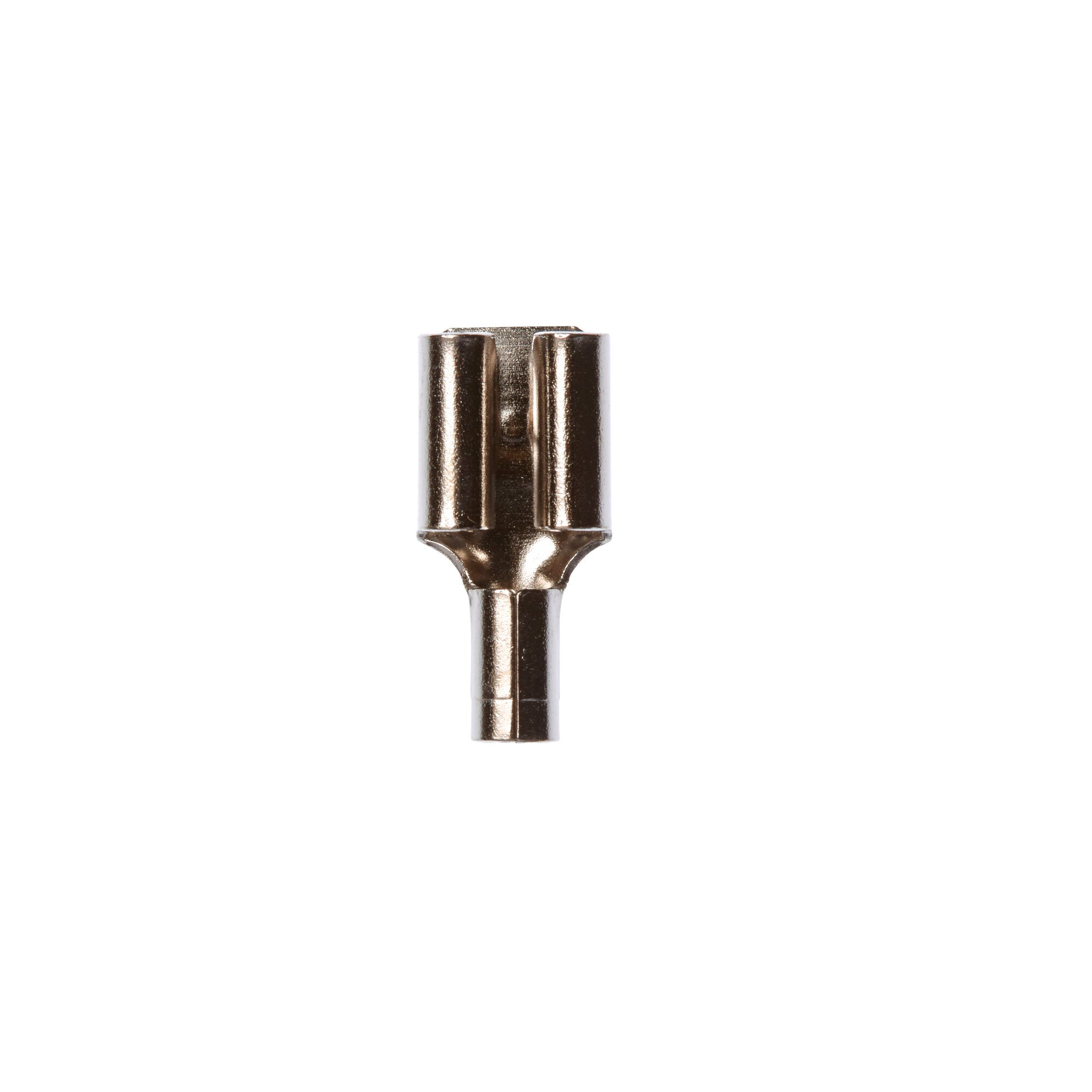

3M Scotchlok High-Temperature Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.3M™ Scotchlok™ High-Temperature Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a non-insulated, butted-seam barrel with a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • This high-temperature female disconnect terminal has dents and rolled edges to allow for excellent holding force
  • Allows for quick and easy disconnect of wires
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Disconnect Type
Female
Terminal Style
High Temp
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.095 Inch
Barrel Length (Imperial)
0.23 Inch
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Mates With Female Width
0.25 Inch
Mates With Male Tab Width (W')
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²
Overall Length (Imperial)
0.64 in
Pad Width
0.25 in
Tab Width
0.250
Barrel Length Imperial
0.23 Inch
Conductor Sizes Imperial
16 - 14 AWG
Overall Length Imperial
0.64
Other Details
Fastener Orientation
Female
Solution For
Wireless Network: Infrastructure Accessories
Units Per Case
1000.0
Material and Composition
Insulation Material
Non-insulated
Packaging and Shipping
Packaging
1000 per bulk box
