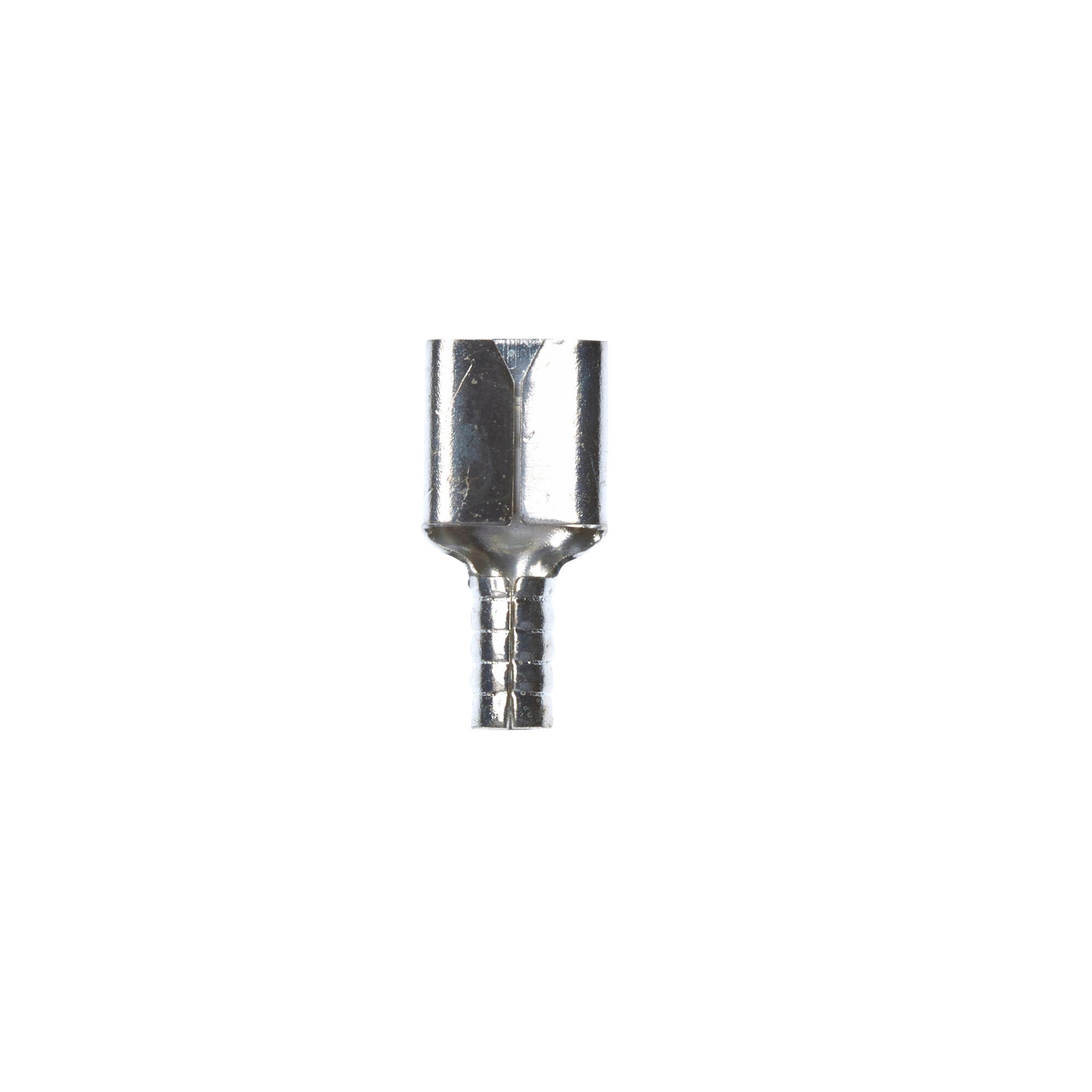

3M Scotchlok Female Disconnect, Non-Insulated Butted Seam MU18-250DFK,22-18 AWG

by 3M
No reviews
Original price $115.99 - Original price $115.99
Original price
$115.99
$115.99 - $115.99
Current price $115.99
Free shipping
3M Scotchlok Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature... Read more
This product is made to order. Please allow 8 days for production.

Overview

3M

3M Scotchlok Female Disconnect, Non-Insulated Butted Seam MU18-250DFK,22-18 AWG

3M Scotchlok Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Disconnect Type
Female
Terminal Style
Standard
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.08 Inch
Barrel Length (Imperial)
0.25 Inch
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Mates With Female Width
0.25 Inch
Mates With Male Tab Width (W')
0.25 Inch
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Overall Length (Imperial)
0.66 in
Pad Width
0.25 in
Tab Width
0.250
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
22 - 18 AWG
Overall Length Imperial
0.66
Other Details
CSA File Number
LR22190
Fastener Orientation
Female
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E70512
Units Per Case
1000.0
Material and Composition
Insulation Material
Non-insulated
Packaging and Shipping
Packaging
1000 per bulk box
