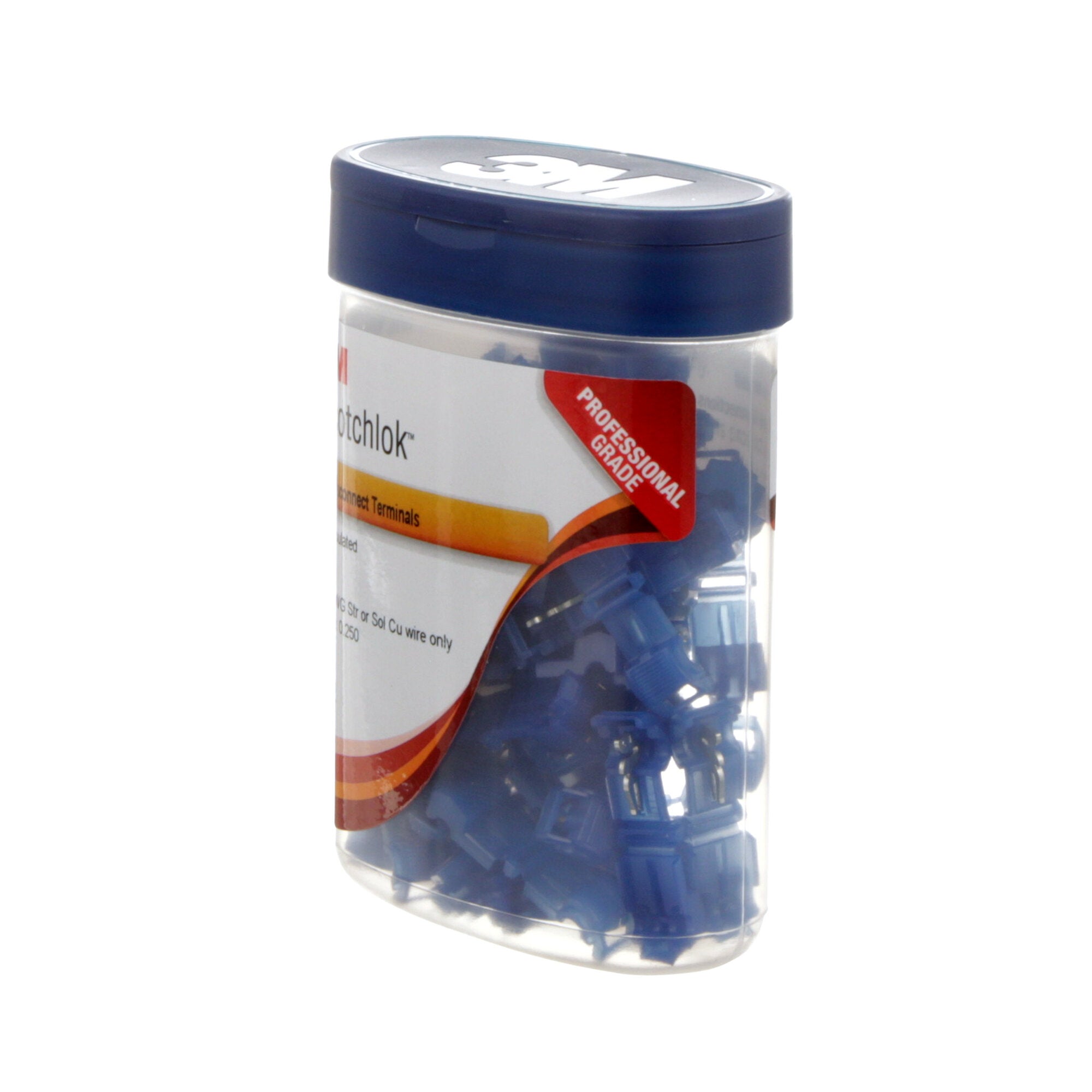

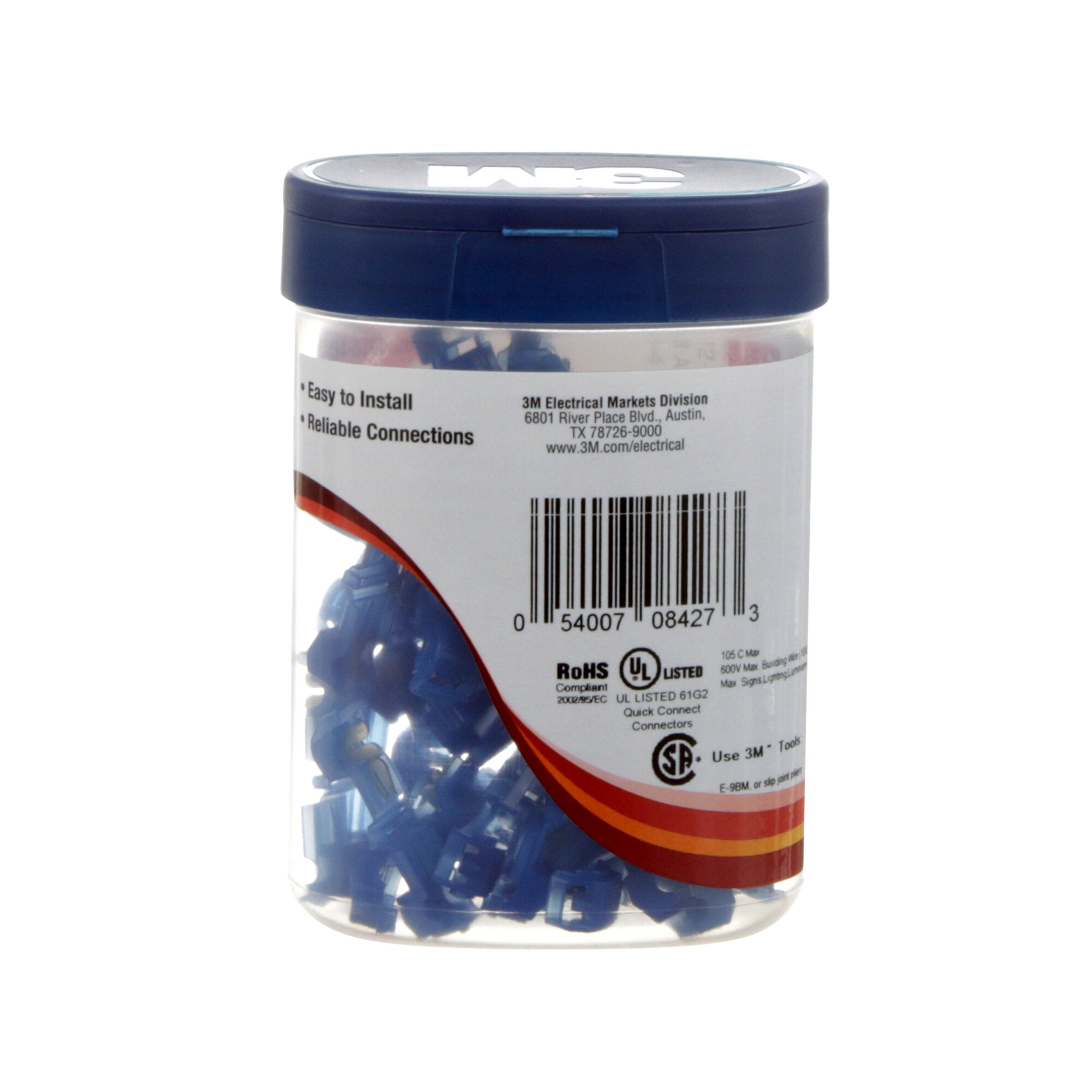

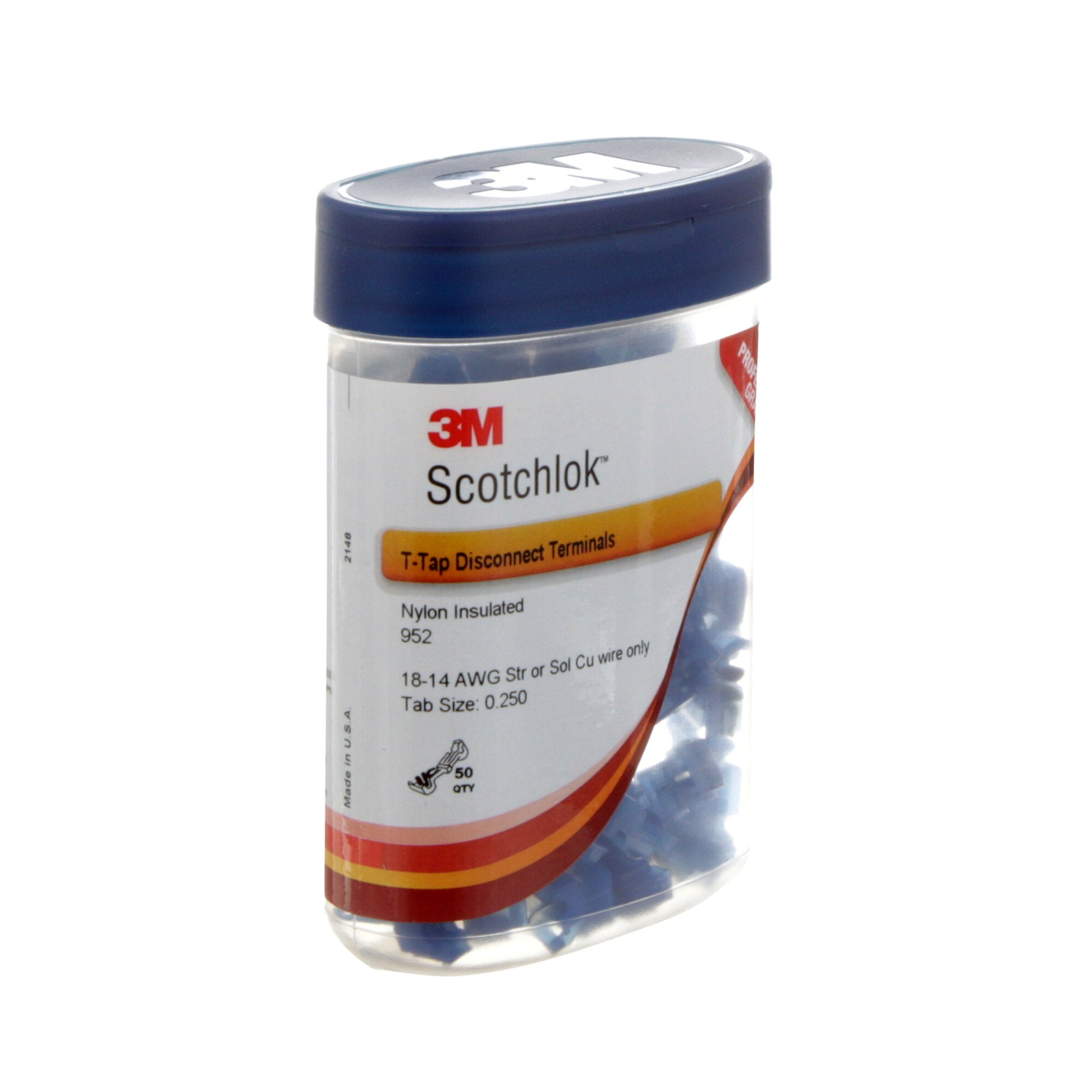

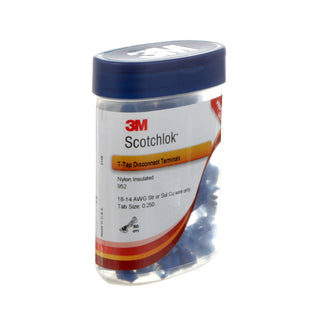

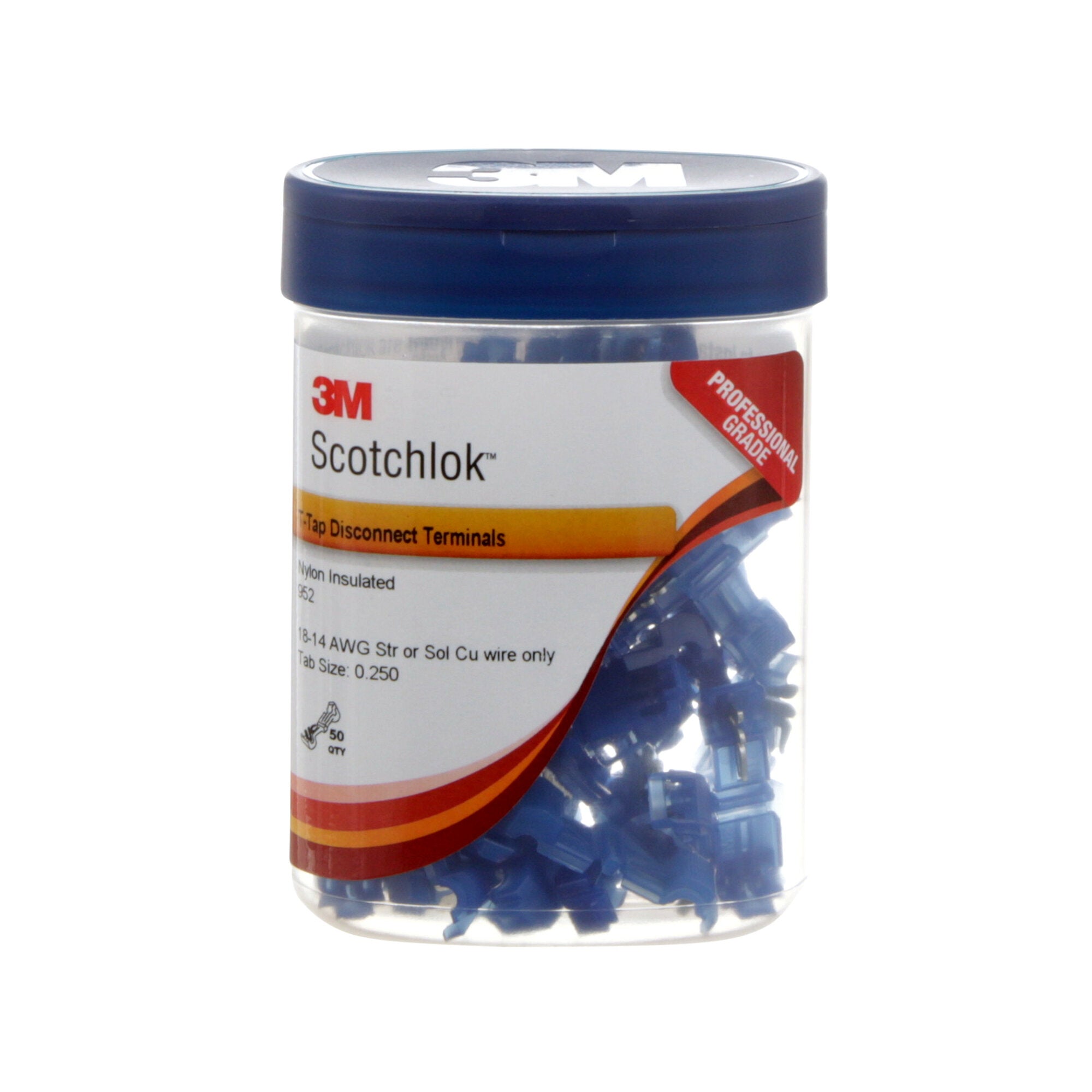

3M Scotchlok Female QuickSlide Disconnect

3M Scotchlok Female QuickSlide Disconnect

by 3M
No reviews
$20.99 - $20.99
$20.99
$20.99 - $20.99
$20.99
Free shipping
Extended Handling May Be Required
3M Scotchlok Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making... Read more
Please allow 2 days for production.

Overview

3M

3M Scotchlok Female QuickSlide Disconnect

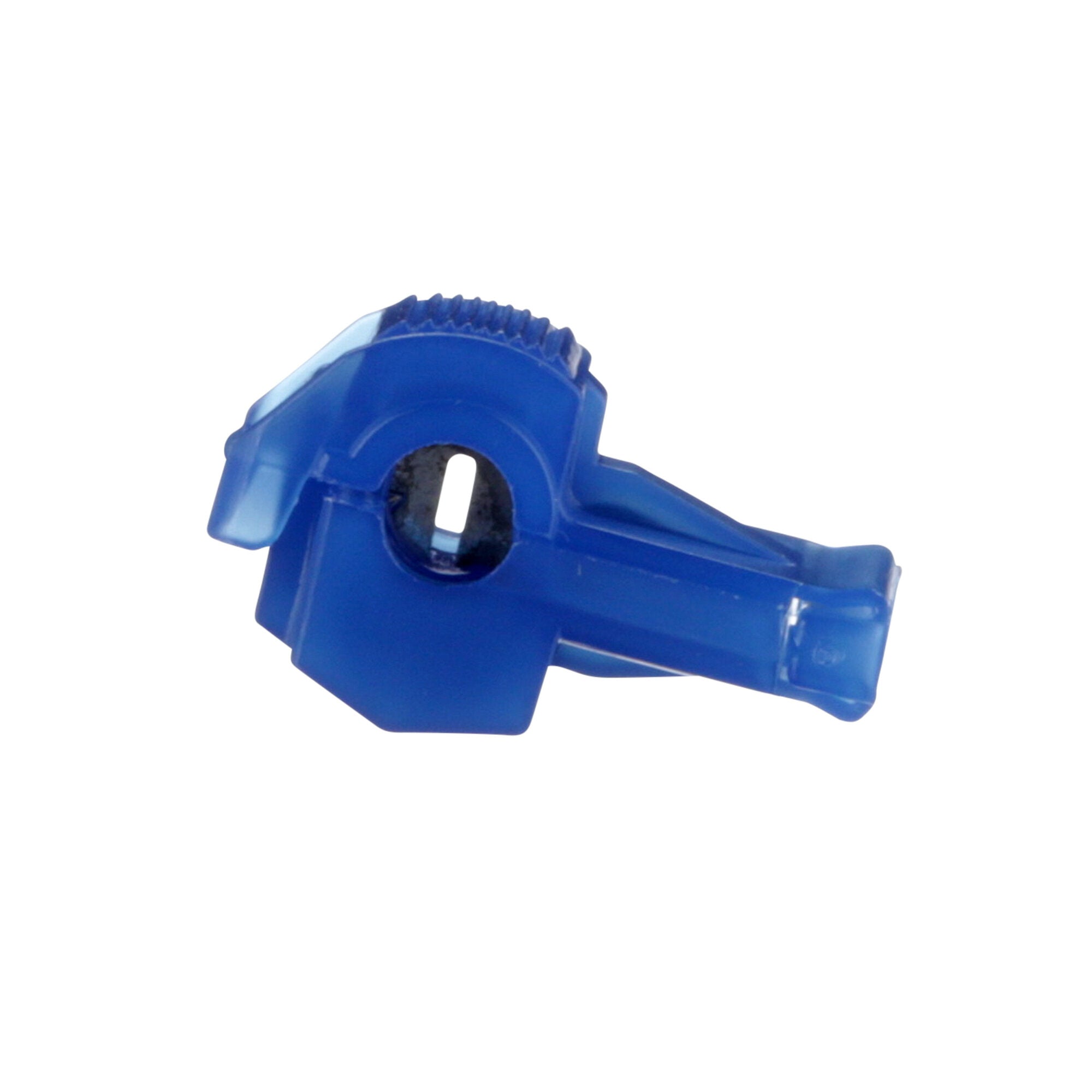

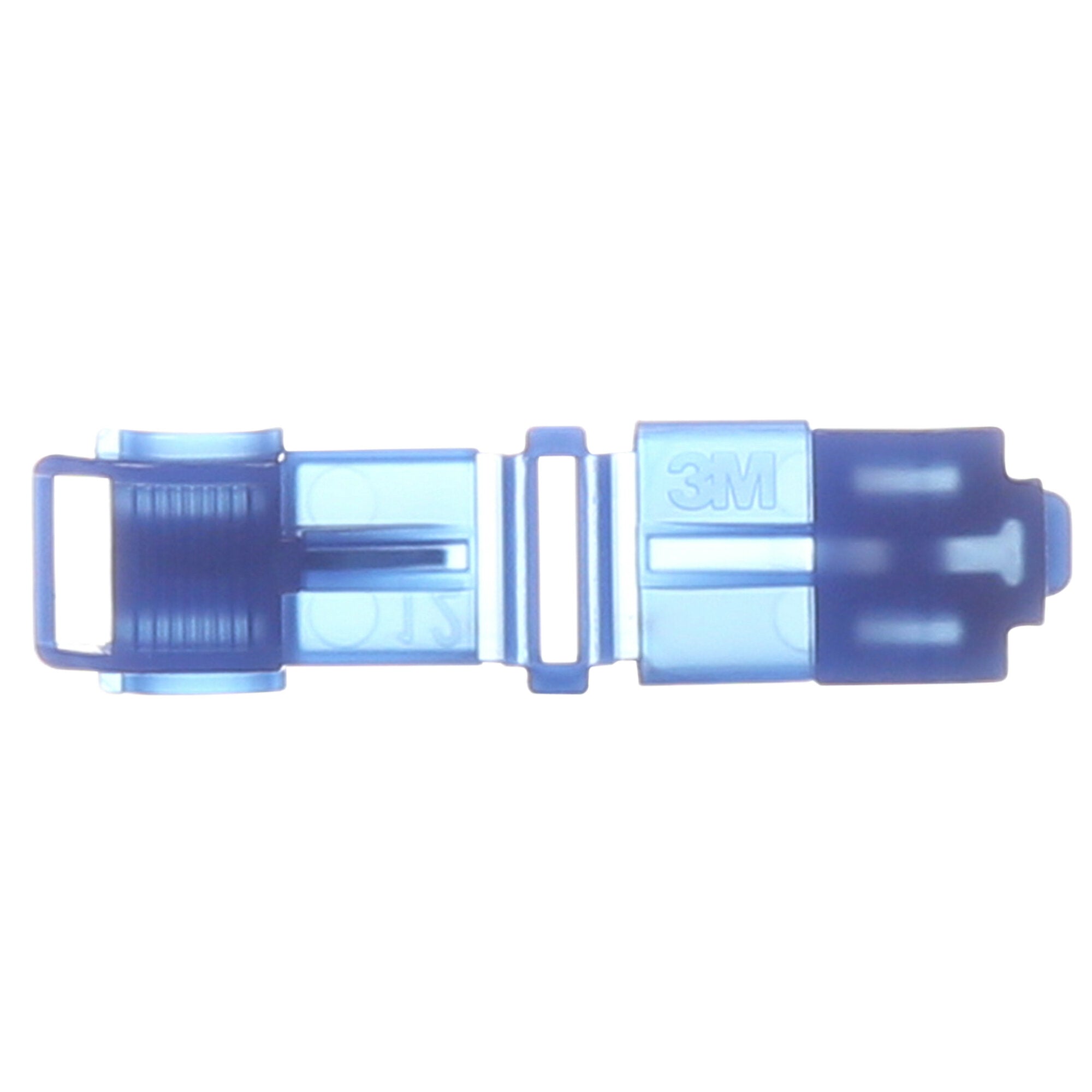

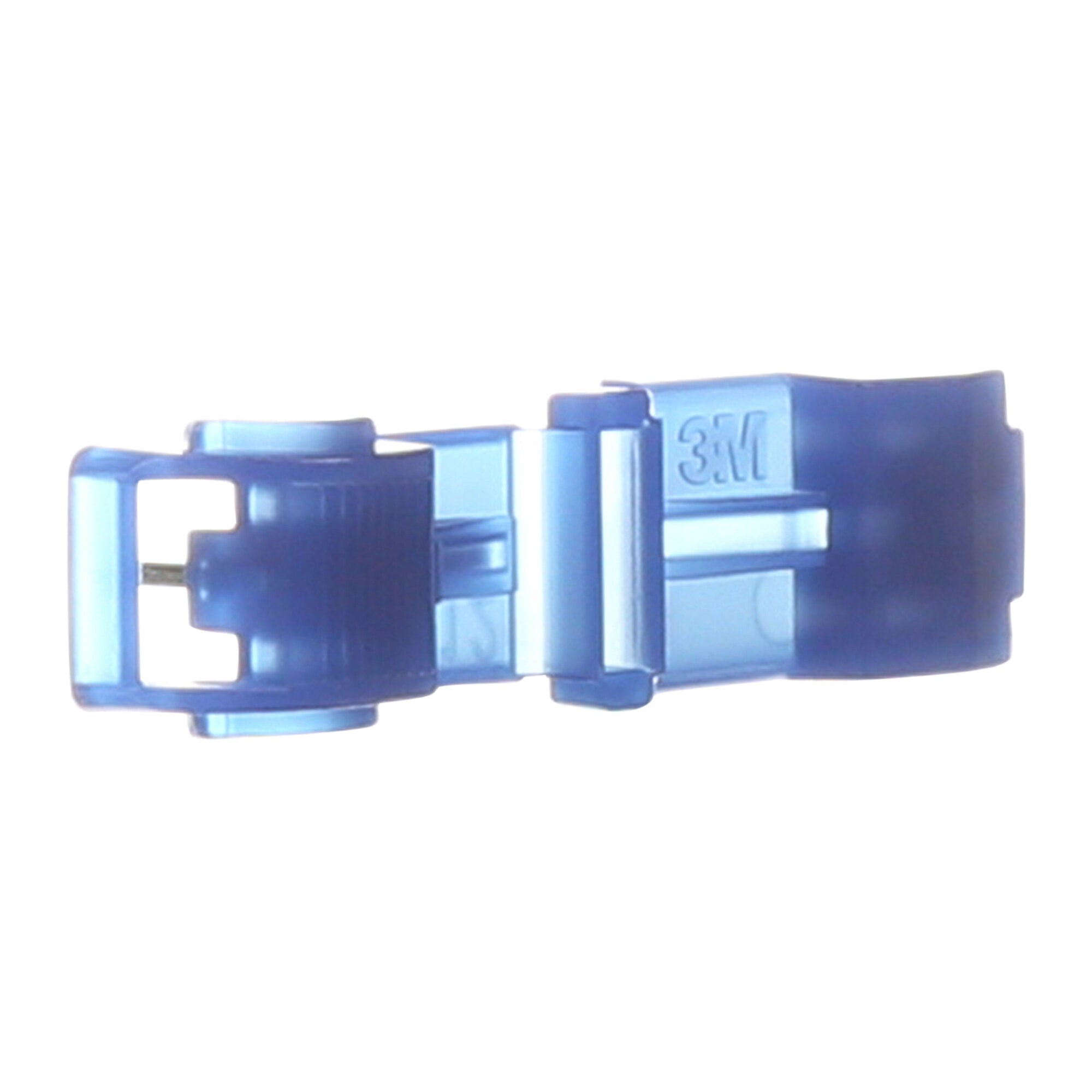

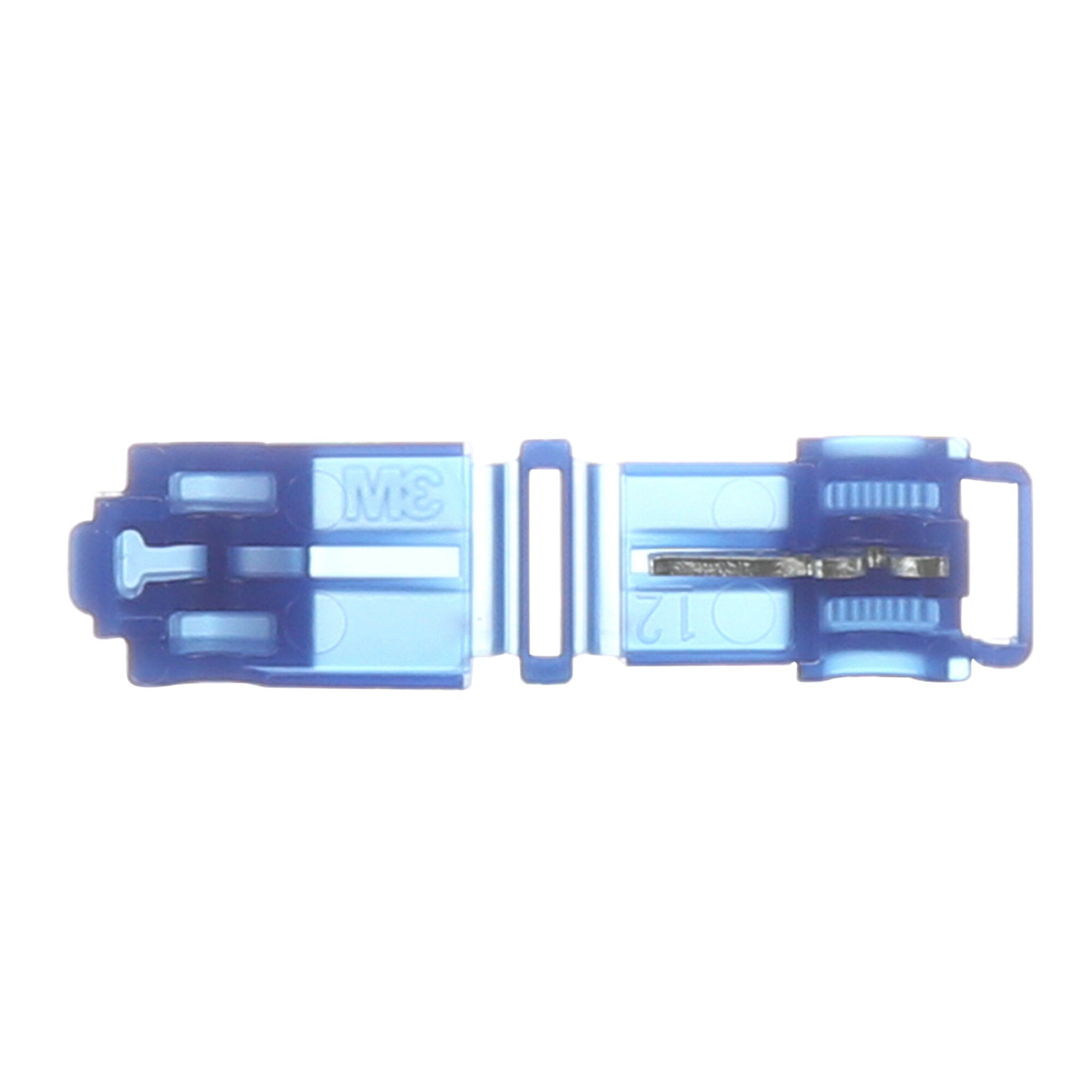

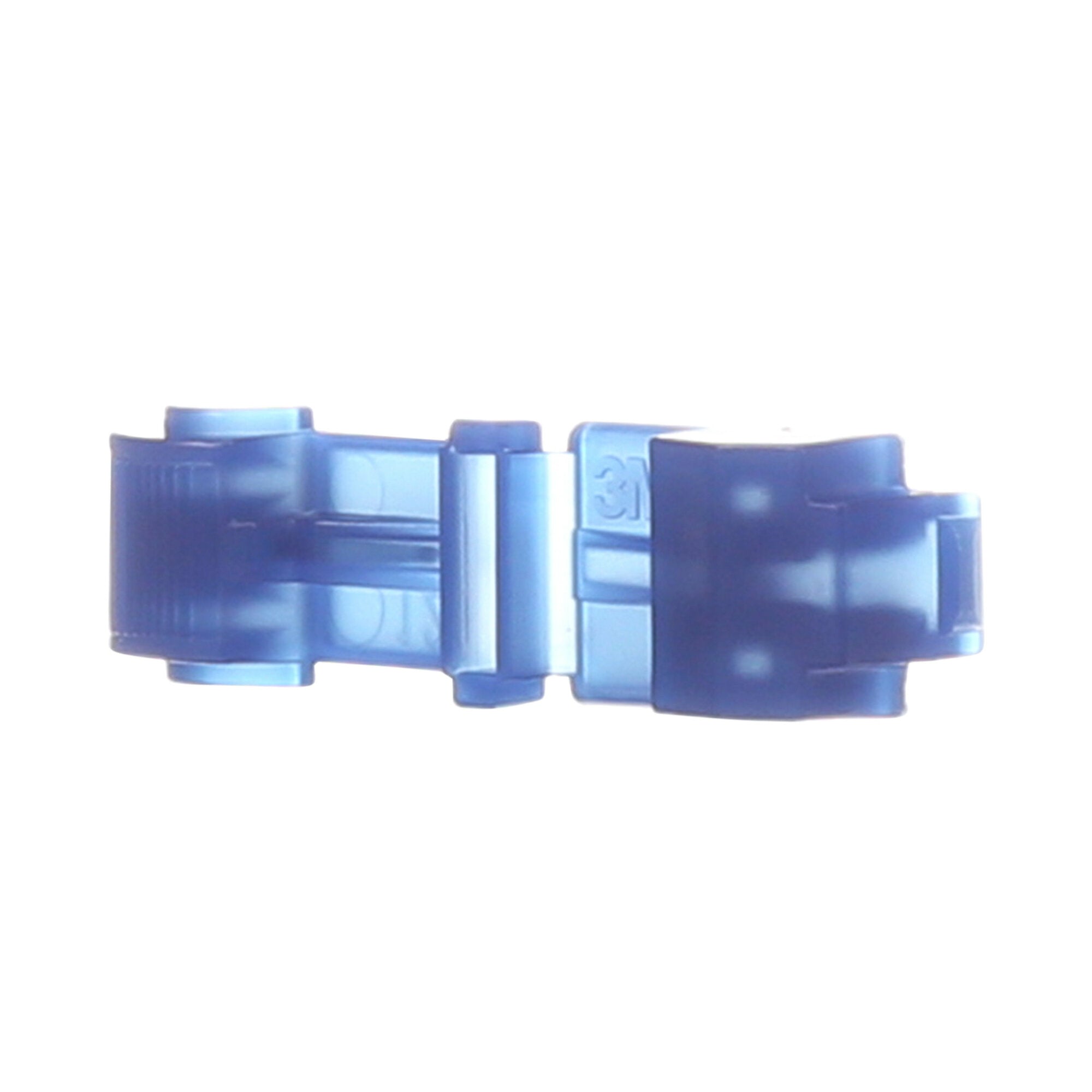

3M Scotchlok Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. They withstand temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Insulated Self-Stripping
Connection Type
T-tap
Connector Style
Insulation Displacement
Disconnect Type
Female
Product Type
Connector
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Metric)
1 mm²
Conductor Sizes Imperial
18 - 14 AWG (0.75 - 1.5 mm^2)
Maximum Insulation Outer Diameter Metric
3.7
Other Details
CSA File Number
LR15503, LR32411
Connector / Connector Tool
3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Fastener Orientation
Female
Flame Retardant
Yes
Grease Filling Against Corrosion
No
Recommended Crimping Tool
E-9BM Mechanics (slip joint) Pliers
UL File Number
E70512, UL Listed for AWG Only
Material and Composition
Insulation Material
Nylon
Material
Insulator: FR Nylon, Element: Tin-plated Brass
Color and Appearance
Insulation Color
Blue
Product Color
Blue
