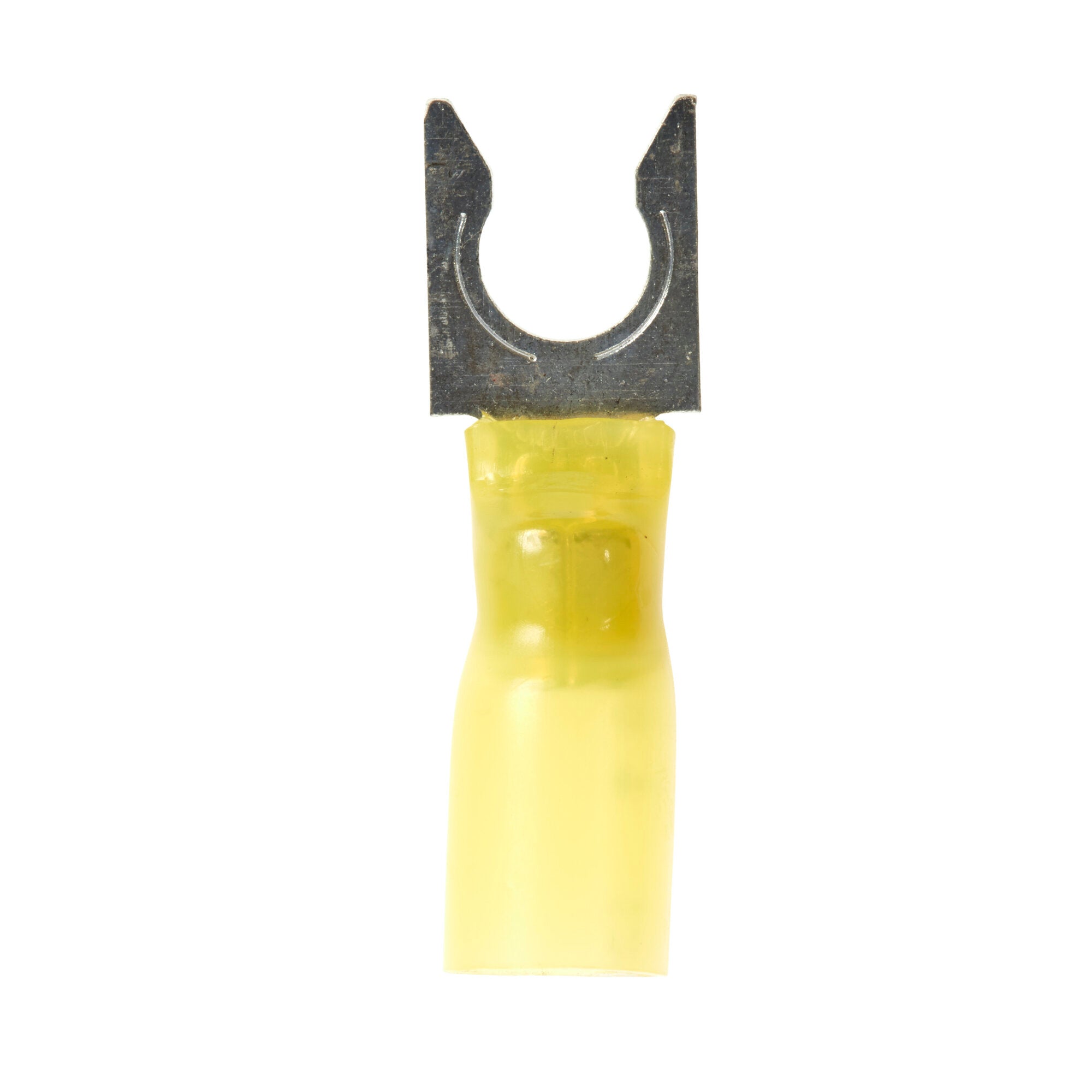

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-14FLK, Stud Size 1/4

Features

250 per order, made to order

Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance

When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt

Spring-like tongue firmly fits around the stud

Stud size 1/4 in

Accommodates wire sizes 12 to 10 AWG

Electrolytic copper construction offers good conductivity

Withstands a maximum temperature of 221 degrees F (105 degrees C)

600V-rated for building wire and 1000V for signs, fixtures or luminaires

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Heat Shrink Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.
