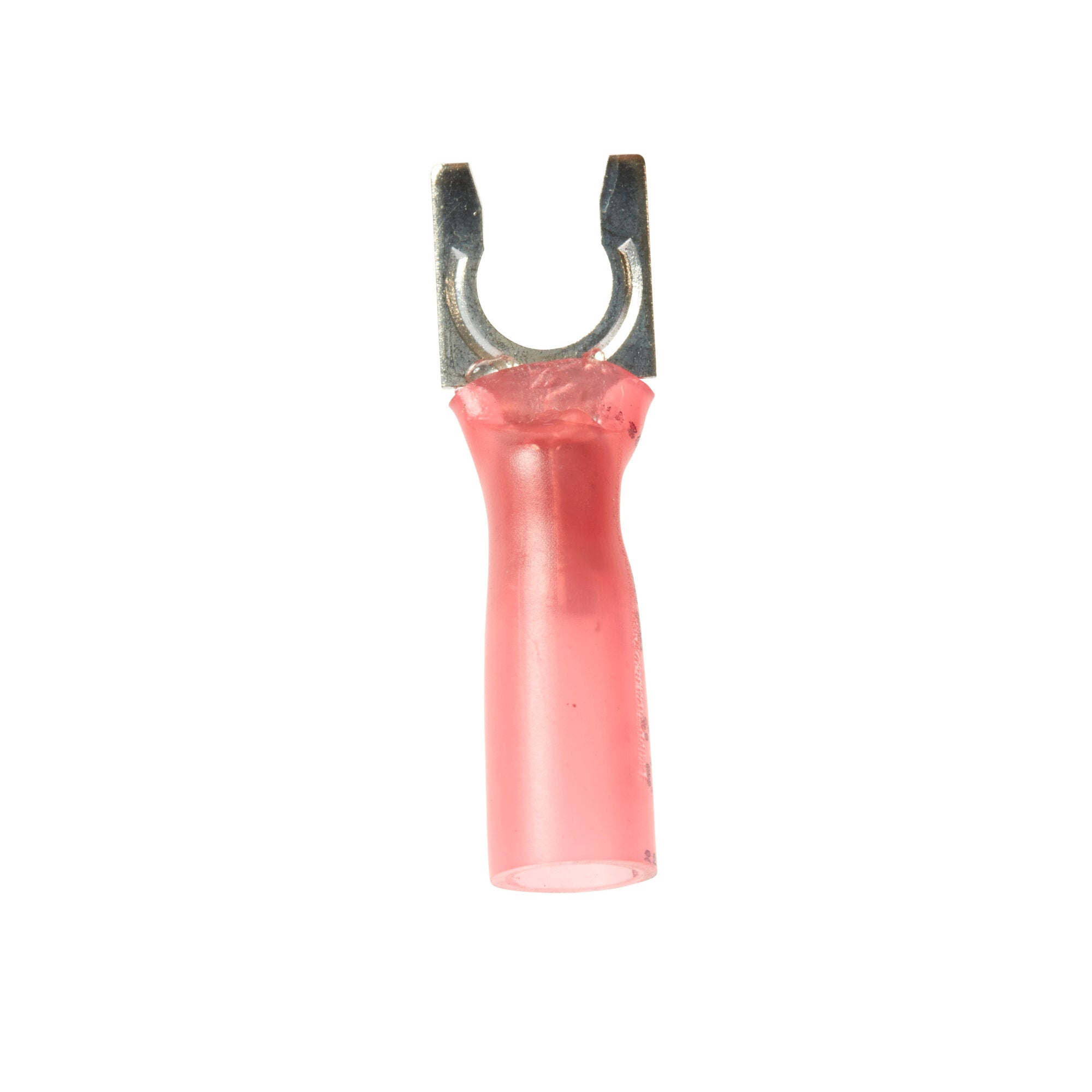

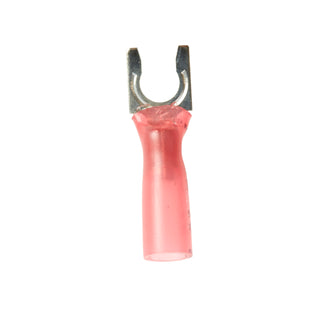

3M Scotchlok Locking Fork, Heat Shrink Brazed Seam MH18-10FLK, StudSize 10

Features

3M Scotchlok Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Heat Shrink Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.

• When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
• Spring-like tongue firmly fits around the stud
• Electrolytic copper construction offers good conductivity
• Withstands a maximum temperature of 221 degrees F (105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
